With industry-leading speed and an innovative automatic workflow, the portable Leica RTC360 3D laser scanner creates high-quality scans and HDR images faster than ever before

Fast

The new Leica RTC360 laser scanner makes 3D reality capture faster than ever before. With a measuring rate of up to 2 million points per second and advanced HDR imaging system, the creation of coloured 3D point clouds can be completed in under two minutes. Plus, automated targetless field registration (based on VIS technology) and the seamless, automated transfer of data from site to office reduce time spent in the field and further maximise productivity.

Leica RTC360 Laser Scanner Leica RTC360 Laser Scanner

Agile

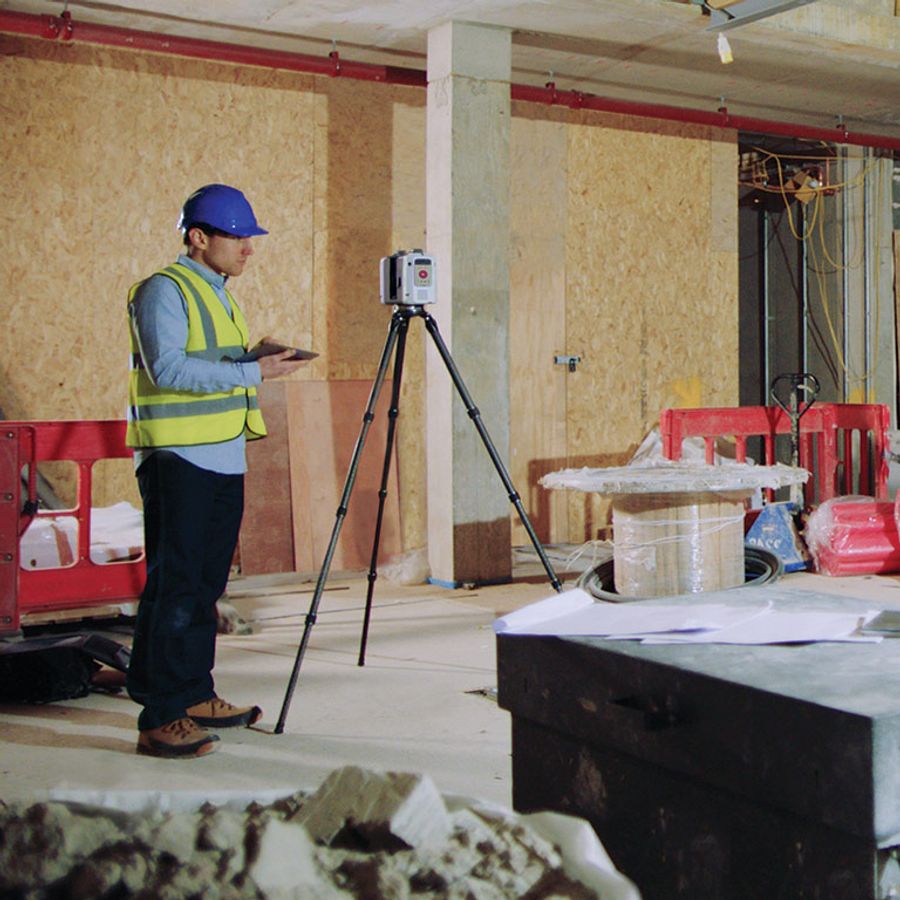

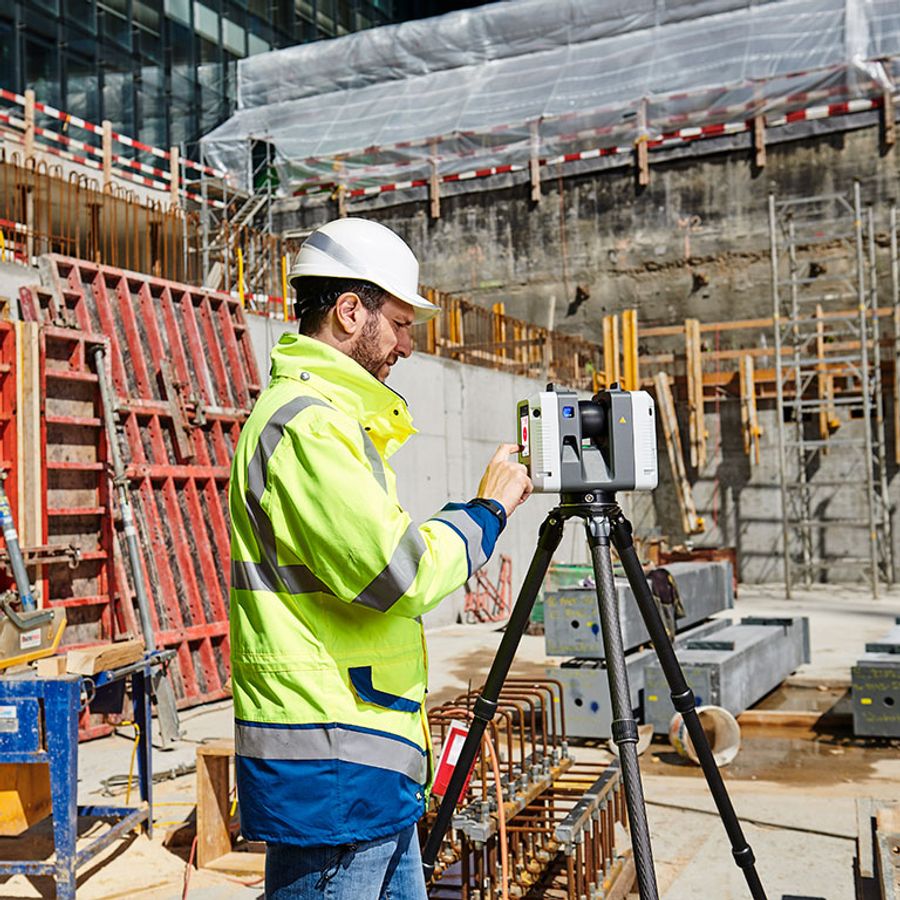

Small and lightweight, the Leica RTC360 scanner’s portable design and collapsible tripod mean it’s compact enough to fit into most backpacks, ready to be taken anywhere. Once on-site, easy-to-use, one-button operation makes for fast, hassle-free scanning.

Precise

Low noise data allows for better images, resulting in crisp, high-quality scans that are rich in detail and ready for use in a range of applications. Combined with Cyclone FIELD 360 software for automated registration in the field, the Leica RTC360 scanner offers outstanding precision that can be checked on-site.

Leica RTC360 Laser Scanner Leica RTC360 Laser Scanner

Pre-registraton in the field

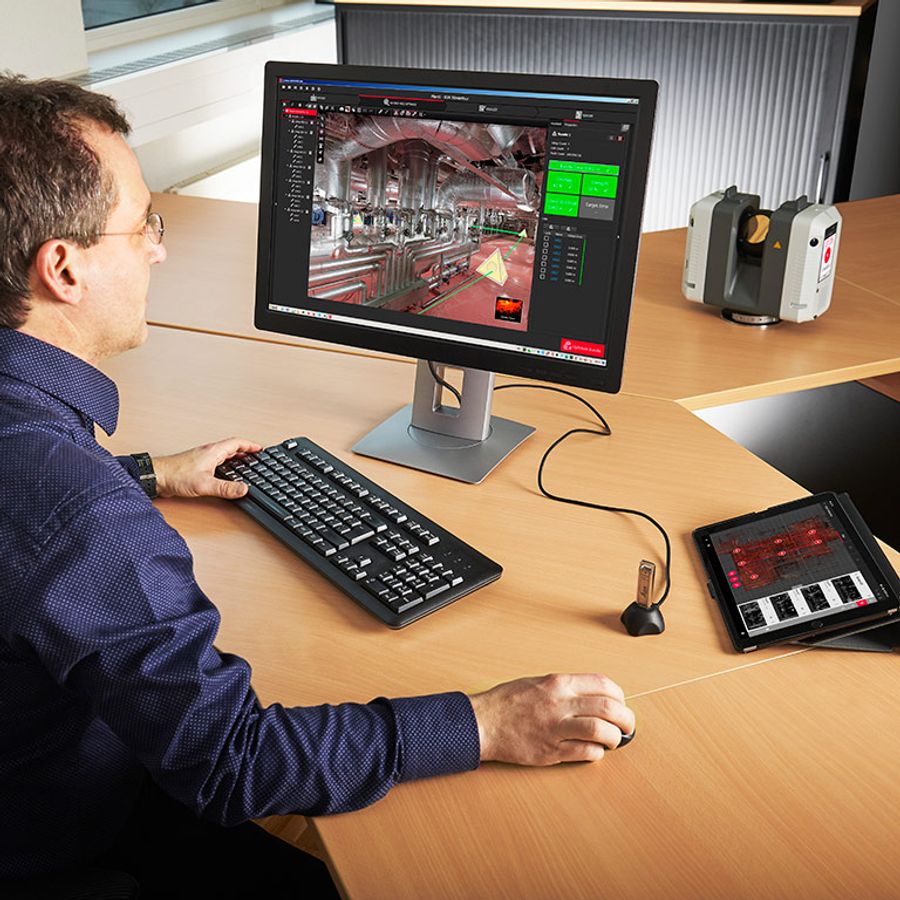

As part of the RTC360 solution, the Cyclone FIELD 360 app links the 3D data acquisition in the field with the laser scanner and data registration in the office with Cyclone REGISTER 360. On-site the user can automatically capture, register and examine scan and image data. The user interface combines easy handling of complex calculations with a graphical user guidance that offers a remarkable user experience, also for novice users.

GENERAL

3D laser scanner High-speed 3D laser scanner with integrated HDR spherical imaging system and Visual Inertial System (VIS) for real time registration

PERFORMANCE

Data acquisition ​​​​<2 mins for complete full dome scan and
spherical HDR image at 6mm @ 10 m
resolution
Real time registration Automatic point cloud alignment based on real time tracking of scanner movement between setups based on Visual Inertial System (VIS) by videoenhanced inertial measurement unit
Double scan Automatic removal of moving objects
Check & Adjust Field procedure for targetless checking of angular parameters

SCANNING

Distance measurement High-speed, high dynamic time of flight enhanced by Waveform Digitising (WFD) technology
Laser class 1 (in accordance with IEC 60825-1:2014), 1550 nm (invisible)
Field of view 360° (horizontal) / 300° (vertical)
Range Min. 0.5 - up to 130 m
Speed Up to 2,000,000 pts / sec
Resolution 3 user selectable settings (3/6/12 mm @ 10 m)
Accuracy Angular accuracy 18”
Range accuracy 1.0 mm + 10 ppm
3D point accuracy:
1.9 mm @ 10 m
2.9 mm @ 20 m
5.3 mm @ 40 m
Range noise 0.4 mm @ 10 m, 0.5 mm @ 20 m

IMAGING

Camera 36 MP 3-camera system captures
432 MPx raw data for calibrated 360° x 300° spherical image
Speed 1 minute for full spherical HDR image at any light condition
HDR Automatic, 5 brackets

NAVIGATION SENSORS

Visual Inertial System Video enhanced inertial measuring system to track movement of the scanner position relative to the previous setup in real time
Tilt IMU based, Accuracy: 3‘ for any tilt
Additional sensors Altimeter, Compass, GNSS

Comparison Charts
Laser Scanning Comparison Chart - Comparison Chart
Datasheets
Leica RTC360 Laser Scanner - Datasheet
Product Manuals
Leica RTC360 Laser Scanner - Product Manual

• 1x RTC360 Laser Scanner (838300)
• 1x GVP730 Transport Container (817063)
• 4x GEB361 Lithium-Ion Battery (799191)
• 1x GKL341 Multicharger Prof 5000 (799187)
• 2x RTC360 USB Flash Drive - 256 GB (842065)
• 1x RTC360 Rain Cover (636767)
• 1x RTC360 Quick Guide
• 1x RTC360 System USB Card
• 1 year RTC360 CCP Basic contract (6013561)

&lt;ol&gt;The Leica RTC360 has an angular accuracy of 18&quot;, a range accuracy of 1.0 mm + 10 ppm, and a 3D point accuracy of 1.9 mm at 10 m, 2.9 mm at 20 m, and 5.3 mm at 40 m.&lt;/ol&gt;

&lt;ol&gt;There are two main differences between the Leica RTC360 and RTC360LT. The first is the RTC360 captures data at a speed of 2 million points per second while the RTC360LT speed is 1 million points per second. The second difference is the RTC360 has VIS.&lt;/ol&gt;

&lt;ol&gt;It’s a navigation sensor! The Leica RTC360 utilises a Visual Inertial System, which is a video-enhanced inertial measuring system. This system is employed to track the movement of the scanner&#39;s position relative to its surroundings.&lt;/ol&gt;

&lt;ol&gt;The Leica RTC360 can scan at 2 million points per second and full HDR imagery only takes 1 minute. A full scan captured at a 12mm grid, 10m from the scanner with HDR imagery will take 1 minute 26.&lt;/ol&gt;

&lt;ol&gt;The Leica RTC360 can scan without image capture, reducing the fastest scan to only 26 seconds. The longest scan is only 1 minute and 42 seconds, which will capture points at a density of 3mm at 10m from the scanner.&lt;/ol&gt;

&lt;ol&gt;Yes, the rotating scanner head of the Leica RTC360 can be cleaned. However, it is important to follow the manufacturer&#39;s guidelines and instructions for cleaning.&lt;/ol&gt;

&lt;ol&gt;The main differences between the All-New Leica BLK360 and RTC360 are: &lt;li&gt;Accuracy: The RTC360 has a higher 3D point accuracy of up to ±1.9mm at 10 meters, compared to the BLK360&#39;s accuracy of up to ±4mm at 10 meters.&lt;/li&gt;&lt;li&gt;Scanning speed: The RTC360 can scan a higher rate of up to 2 million points per second, whereas the BLK360 has a scanning rate of up to 680,000 points per second.&lt;/li&gt;&lt;li&gt;Range: The RTC360 has a longer scanning range of up to 130 meters, while the All New BLK360 has a range of up to 45 meters.&lt;/li&gt;&lt;li&gt;Image Speed: The All-New Leica BLK360 is faster at image capture, taking less than 8 seconds for a full dome LDR image or less than 20 seconds for a 5 bracket HDR image in any lighting conditions. While the RTC360 takes 1 minute for a full spherical HDR image.&lt;/li&gt;&lt;li&gt;Size and weight: The RTC360 is larger and heavier, 5.35 kg without batteries, compared to the all-new BLK360 ,750grams without batteries.&lt;/li&gt;&lt;/ol&gt;

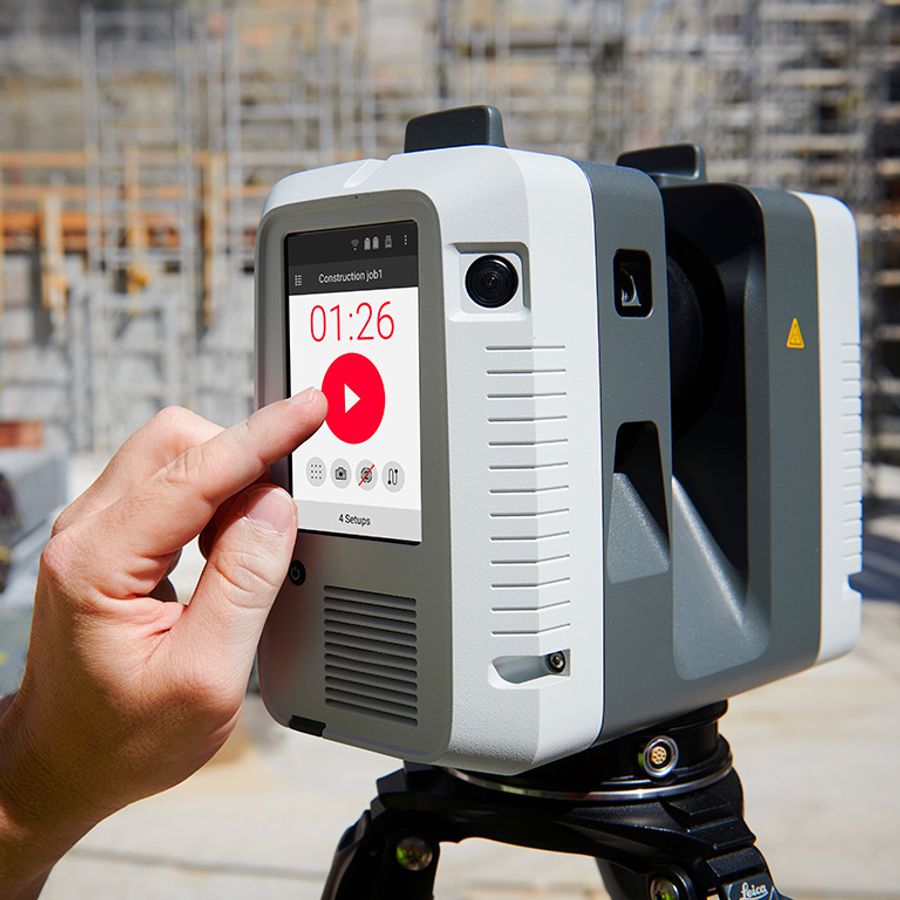

&lt;ol&gt;The Leica RTC360 uses Leica Cyclone FIELD 360 software for capturing scans and controlling the scanning process, users can register scans with this software using a tablet or mobile phone. You can also operate the RTC360 without the app or device by using the on-board GUI (Graphical User Interface) full colour large touchscreen display.&lt;/ol&gt;

&lt;ol&gt;To import scan data from the Leica RTC360 into Autodesk AutoCAD or Bentley MicroStation, you can use Leica Cyclone REGISTER 360 plus software. This software allows you to register and process the captured scans, and it provides export options to formats compatible with AutoCAD and MicroStation. We also recommend CloudWorx plugins for AutoCAD and Bentley MicroStation to save the user from double handing pointcloud files and allow them to directly harness the power of Jetstream and stream the pointcloud directly into their chosen drafting software.&lt;/ol&gt;

&lt;ol&gt;The Leica RTC360 does have the capability for inverted scanning, including scanning in manholes or other inverted positions. It utilizes an IMU (Inertial Measurement Unit) based Tilt sensor that can correct inverted scans to within 10 degrees of their true position. This feature allows for more flexibility in capturing data in various orientations, including upside-down positions.&lt;/ol&gt;

&lt;ol&gt;The main differences between the Leica RTC360 and the Leica P50 laser scanners include: &lt;li&gt;Scanning range: The RTC360 has a range of up to 130 meters, while the P50 has a range of up to 1,000 meters.&lt;/li&gt;&lt;li&gt;Scanning speed: The RTC360 can scan and capture imagery at a rate of up to 2 million points per second, whereas the P50 has a lower scanning speed.&lt;/li&gt; &lt;li&gt;Accuracy: The P50 offers higher accuracy than the RTC360, with an angular accuracy of 8” horizontal and vertical.&lt;/li&gt; &lt;li&gt;Size and weight: The P50 is larger and heavier compared to the RTC360.&lt;/li&gt;&lt;/ol&gt;

&lt;ol&gt;Targets are not required when capturing internal data with the Leica RTC360 scanner, however in some cases they can be preferred.&lt;/ol&gt;

Leica Geosystems has developed an online learning platform for a wide range of products, to further educate customers to maximise the functionality of their instruments.

Our products have many excellent features which all contribute to increasing efficiency on site and the online learning platform assists you to gain the most value from your products.

The online learning courses are available to anyone who has a Leica Geosystems myWorld account, and an active Customer Care Package (CCP) for supported products.
