Commercial Construction

Identify mistakes as they happen with instant progress reports. Improve company decision-making and problem-solving with onsite measurements.

Recommended Kit

Leica iCON iCR70 Total Station

Kit Includes*:

iCR70 5" R500, iCON total station

GDF323 Tribrach PRO w/o opt. Plummet blk

CCD18, LR-BT Communication Handle black

MPR122, 360° Reflector PRO

CRP1, Construction Pole, telescopic, cm

CMB10, Tablet Holder for CC80 Tablet

GHT63 Pole clamp for attaching GHT

GVP732, Case for iCON TPS acc. w/ CC8x

GEB222 Battery int. Li-Ion 7.4V/6000mAh

GST120-9 Wooden heavy-duty tripod

GKL311 single Charger Prof 3000

GEV192-4 AC/DC-Adapter for GKL311

CA37, Power cord (AUS) for AC/DC Adapter

CSW 201, iCON build field software

* can be customised

Common Tasks;

Upload your CAD drawings straight onto the tablet – no extra software required
Layout & checking of construction lines from design
Checking heights and elevations across the entire project
As-built App to document site progress and verify as-builts
Verify finish surface deviations of floor, wall, columns, sub strucuture etc.
Verify penetrations, instillations, finished tasks at all stages
Mark out all excavation works
Produce reports & as-built data to management
Check dimensions on site instantly for contractors off CAD drawings

Large busy sites often means a lot of things in your line of site and loss of lock.

The iCR70 has improved prism locking technology over the iCT30 & has a faster rotation when searching – also has a range of 500m meaning survey control stickers can be placed at greater distances.

The iCR80 is the best of them all in this sense so could be worth a look but many users are more than happy with their iCR70. iCR80 has far better locking capabilities to the prism and can be upgraded to Dynamic Lock meaning you’ll never have to worry about searching for the prism again.

Apps we suggest:

Earthworks Package (iCON Build Plus)
Verification with Grid & Scan
Layout Objects – Use 3D model IFCs on site, great for steel structures

Recommended Accessories

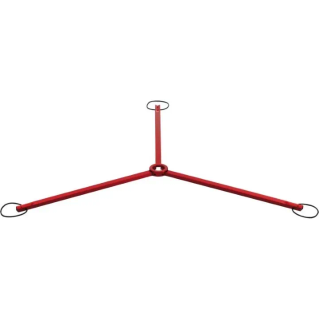

Tripod Star
Most can do without but if you’re setting up the total station on concrete or smooth surfaces its very important that the total station is setup securely, the Leica tripod star is best for this.

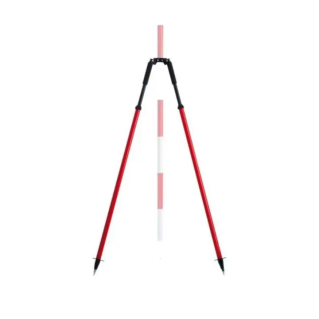

Bipod
Added stability to the prism pole for stakeout

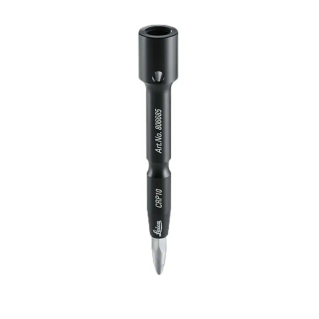

Centerpunch
A pole tip that leaves a mark on the slab after stakeout, efficiency gains

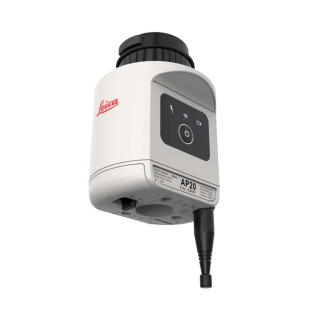

AP20 Pole (only available with iCR70)
The world’s first tilt-compensated total station pole solution for construction and surveying professionals.
