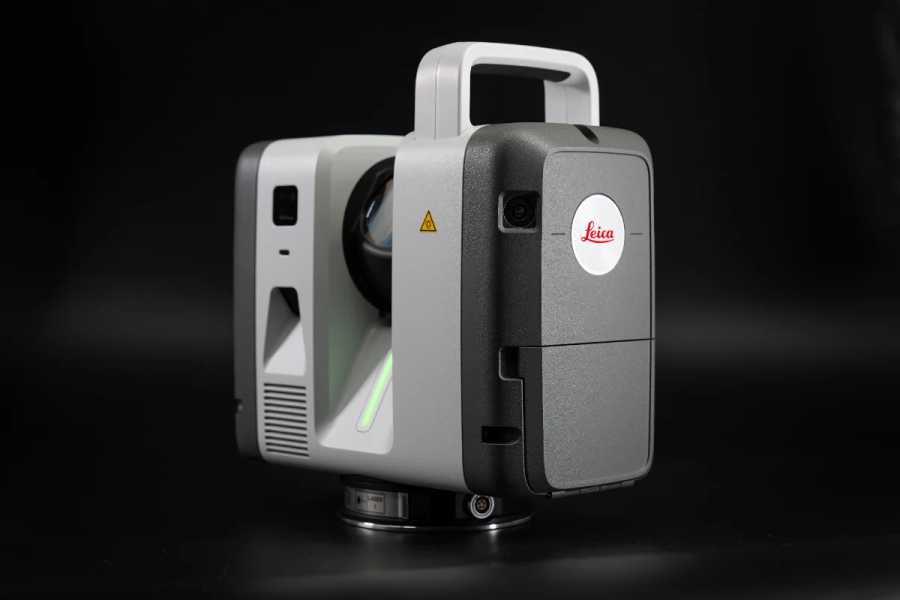

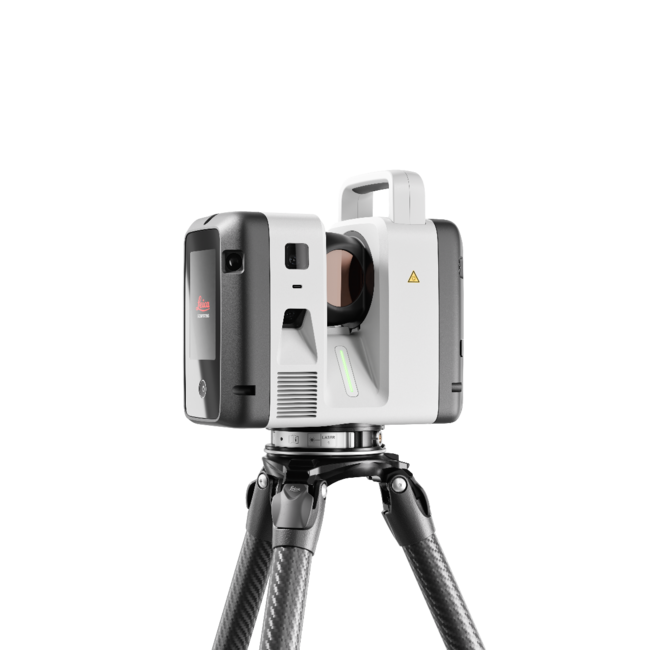

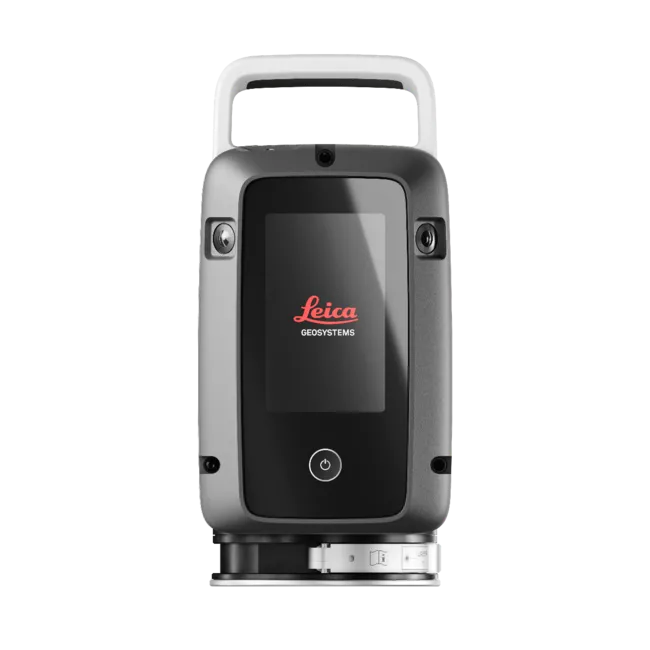

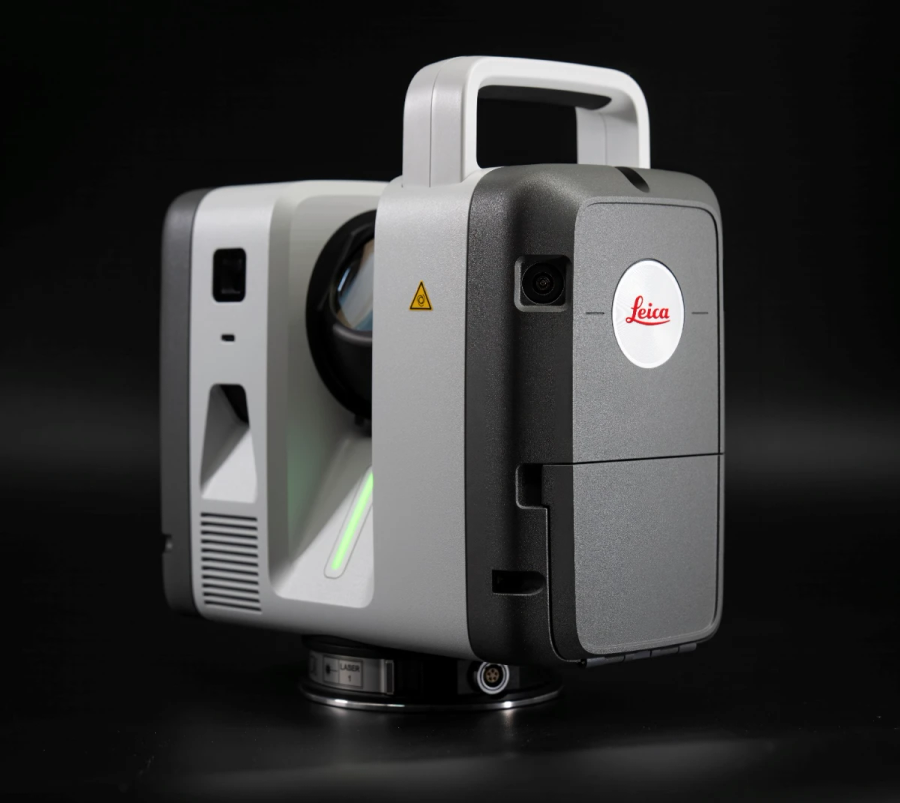

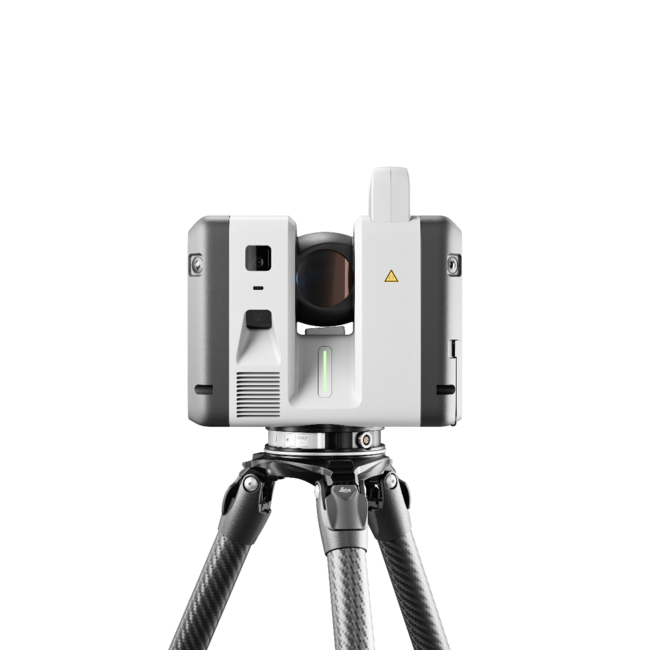

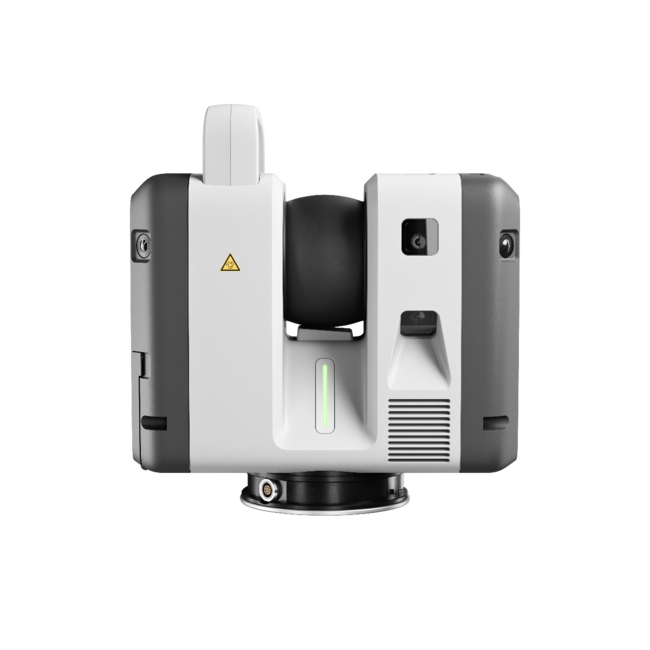

Leica RTC500 Laser Scanner
- Delivers enhanced performance and extended range for more demanding scanning projects.
- Capture up to 2 million points per second with fast, efficient full-dome workflows.
- Extended range up to 130 metres for increased flexibility across larger environments.
- VIS technology enables automated scan alignment and improved field productivity.
- Livelink connectivity supports real-time collaboration and project visibility.
- Designed for users requiring greater capability, with a clear upgrade path to the flagship RTC700.
RTC500 Advanced Performance

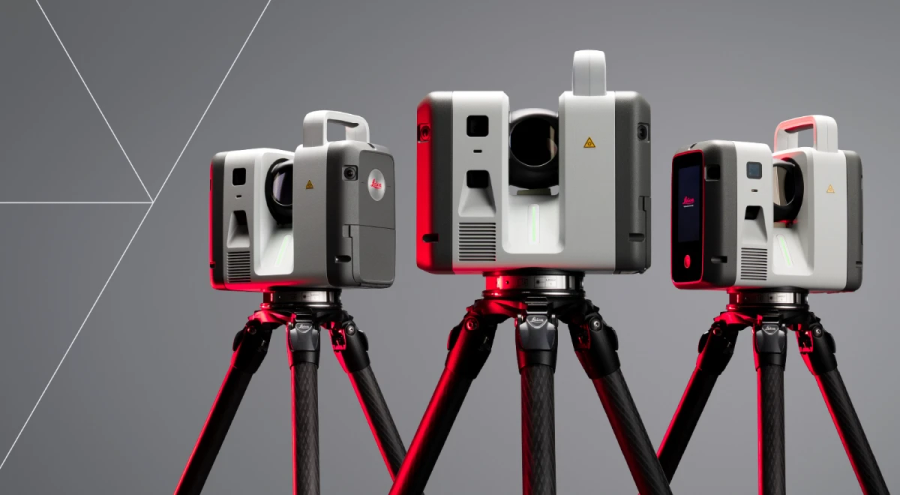

One trusted design, three levels of performance – with the Leica RTC500 delivering advanced capability for more demanding reality capture projects. Combining increased speed, extended range up to 130 metres, and enhanced workflow functionality, it provides users with the tools to handle larger and more complex environments. Positioned between accessible entry-level solutions and the flagship RTC700, the RTC500 offers strong performance while highlighting the full potential of the top-tier model.
High-Speed Capture
With capture speeds of up to 2 million points per second, the RTC500 enables efficient data acquisition across larger environments. Combined with fast scanning workflows, it allows users to complete projects quicker while maintaining the data quality required for professional applications.
Enhanced Accuracy
The RTC500 delivers reliable and consistent accuracy with precise measurement performance suited for a wide range of applications. Integrated tilt compensation and automatic self-calibration ensure stable and dependable results across varying site conditions.
Capture. Connect. Collaborate.
With integrated Livelink connectivity, the RTC500 supports real-time collaboration between field and office teams. Data can be shared, reviewed, and validated as it is captured, improving project visibility and reducing the risk of incomplete data or rework.
Increased Productivity
Delivering a step up in capability, the RTC500 enables users to take on more complex projects with greater efficiency. Its combination of speed, range, and intelligent workflows helps reduce time in the field while improving overall project delivery.
Advanced Field Workflows
Supporting more advanced workflows than entry-level solutions, the RTC500 enables users to handle complex data capture scenarios with confidence. When paired with Leica Cyclone FIELD 360, it provides greater control, improved registration processes, and enhanced project management capabilities in the field.
GENERAL
| 3D laser scanner | High-speed 3D laser scanner with integrated HDR imaging, VIS technology, tilt compensation, and cloud connectivity | ||
PERFORMANCE
| RTC300 | RTC500 | RTC700 | |
|---|---|---|---|
| Data acquisition | Up to 1M pts/sec ~2 min 30 sec |
Up to 2M pts/sec ~1 min 40 sec |
Up to 2M pts/sec Full dome + HDR |
| Range | Up to 85m | Up to 130m | Up to 270m |
| Accuracy |
Angular accuracy: 10” Range accuracy: 1.2 mm + 10 ppm 3D point accuracy: 1.5 mm @ 10m |
||
| Scan rate | 1M pts/sec | Up to 2M pts/sec | |
SCANNING
| Distance measurement | High-speed time-of-flight with Waveform Digitising (WFD) | ||
| Laser class | Class 1, 1550 nm (invisible) | ||
| Field of view | 360° horizontal / 300° vertical | ||
| Resolution | 3 / 6 / 12 / 25 mm | 3 / 6 / 12 / 25 mm | 1.6 / 3 / 6 / 12 / 25 mm 0.8 mm area scan |
| Range noise | 0.2 mm @ 10m / 0.4 mm @ 50m | ||
IMAGING
| Camera system | 72 MP (6-camera), 432 MP HDR capture | ||
| Image resolution | 174 MP spherical (360° × 300°) | ||
| HDR speed | ~30 seconds | ||
| HDR processing | Automatic multi-bracket | ||
NAVIGATION SENSORS
| VIS | Real-time tracking + automatic registration | ||
| Tilt compensator | IMU-based, up to 3” accuracy | ||
| Additional sensors | GNSS, compass, altimeter | ||
GENERAL & PHYSICAL
| Weight | Approx. 5.5 kg | ||
| Dimensions | 121 × 240 × 254 mm | ||
| Environmental | IP55, -20°C to +50°C | ||
WORKFLOW & CONNECTIVITY
| Field software | Leica Cyclone FIELD 360 | ||
| Office software | Leica Cyclone REGISTER 360 | ||
| Cloud | Hexagon GeoCloud (Livelink) | ||
| Storage | 512 GB SSD | ||
| Connectivity | WLAN, USB-C | ||
| Datasheets | |
|---|---|
| Leica RTC500 Laser Scanner - Datasheet | Product Manuals |
| Leica RTC500 Laser Scanner - Product Manual |
• 1x Leica RTC500 Laser Scanner
• 1x Leica GVP780 Transport Container for RTC
• 4x Leica GEB461 Internal Li-Ion Batteries (10.8V / 6.7Ah)
• 1x Leica GKL341 Charger Prof 5000
• 1x Leica RTC Rain Cover
• 1x Leica RTC300/500/700 Quick Guide
• 1x Hexagon GeoCloud 500GB (6-Month Trial)
• 1x 1-Year RTC Laser Scanner Basic CCP
• 1x 2-Year RTC Warranty
Leica Geosystems has developed an online learning platform for a wide range of products, to further educate customers to maximise the functionality of their instruments.
Our products have many excellent features which all contribute to increasing efficiency on site and the online learning platform assists you to gain the most value from your products.
The online learning courses are available to anyone who has a Leica Geosystems myWorld account, and an active Customer Care Package (CCP) for supported products.
Brand: Leica Geosystems |
Code: LG6020225
APN: 9319499340926 |
Supplier Code: 6020225
Brand: Leica Geosystems |
Code: LG6020225
APN: 9319499340926 |
Supplier Code: 6020225
At a glance
- Delivers enhanced performance and extended range for more demanding scanning projects.
- Capture up to 2 million points per second with fast, efficient full-dome workflows.
- Extended range up to 130 metres for increased flexibility across larger environments.
- VIS technology enables automated scan alignment and improved field productivity.
- Livelink connectivity supports real-time collaboration and project visibility.
- Designed for users requiring greater capability, with a clear upgrade path to the flagship RTC700.
RTC500 Advanced PerformanceOne trusted design, three levels of performance – with the Leica RTC500 delivering advanced capability for more demanding reality capture projects. Combining increased speed, extended range up to 130 metres, and enhanced workflow functionality, it provides users with the tools to handle larger and more complex environments. Positioned between accessible entry-level solutions and the flagship RTC700, the RTC500 offers strong performance while highlighting the full potential of the top-tier model.
|
|
|
|
High-Speed CaptureWith capture speeds of up to 2 million points per second, the RTC500 enables efficient data acquisition across larger environments. Combined with fast scanning workflows, it allows users to complete projects quicker while maintaining the data quality required for professional applications.
|
Enhanced AccuracyThe RTC500 delivers reliable and consistent accuracy with precise measurement performance suited for a wide range of applications. Integrated tilt compensation and automatic self-calibration ensure stable and dependable results across varying site conditions.
|
|
|
|
Capture. Connect. Collaborate.With integrated Livelink connectivity, the RTC500 supports real-time collaboration between field and office teams. Data can be shared, reviewed, and validated as it is captured, improving project visibility and reducing the risk of incomplete data or rework.
|
Increased ProductivityDelivering a step up in capability, the RTC500 enables users to take on more complex projects with greater efficiency. Its combination of speed, range, and intelligent workflows helps reduce time in the field while improving overall project delivery.
|
|
|
|
Advanced Field WorkflowsSupporting more advanced workflows than entry-level solutions, the RTC500 enables users to handle complex data capture scenarios with confidence. When paired with Leica Cyclone FIELD 360, it provides greater control, improved registration processes, and enhanced project management capabilities in the field.
|
High-Performance Reality Capture
The RTC500 delivers strong performance across a wide range of scanning applications, enabling users to capture environments efficiently while maintaining reliable data quality. Its combination of speed and extended range allows projects to be completed faster compared to entry-level solutions, making it well suited to more demanding everyday workflows.
Intelligent Automation
With integrated VIS technology, the RTC500 automatically tracks scanner movement and aligns scans in the field, reducing the need for manual processes. This automation simplifies operation and improves productivity, allowing users to complete scanning tasks more efficiently.
Connected Field-to-Office Workflows
Livelink integration enables real-time data sharing between field and office teams, allowing scan progress to be monitored and reviewed during capture. This improves project visibility, helps ensure complete data collection, and reduces the risk of returning to site.
Extended Capability
The RTC500 provides a clear step up in performance, with scan speeds up to 2 million points per second and extended range up to 130 metres. This increased capability allows users to capture larger environments more efficiently while maintaining a straightforward and reliable workflow.
Ready to Scale
Designed for users expanding their capabilities, the RTC500 enables progression into larger and more demanding projects. It provides a solid foundation for growth, while the RTC700 represents the highest level of performance for those requiring maximum speed, range, and capability.
