Leica Piper 100 Red Beam Pipe Laser Package
The most versatile pipe lasers in the market, the Leica Piper 200 and 100 bring exceptional performance, accuracy and simplicity to sewer construction and pipe applications.
The Leica Piper 100 brings exceptional performance, accuracy and simplicity to sewer construction and pipe applications. The compact Piper fits inside a 100 millimetre (4 inch) pipe, assuring easy and efficient setup even in the smallest inverts.
High application versatility
In the pipe, over the top or in the manhole, the Leica Piper always delivers outstanding performance.
- In the pipe - Piper's self-centring, rubber tipped feet and robust, cast-aluminium housing assures the highest reliability in pipeline construction.
- Over the top - In above-ground tasks, the optional scope and the mount kit provide user-friendly solution for simple setup and operation.
- In the manhole - In manhole applications, Piper's unique design and wide stable base make it easy to set up even in the tightest inverts.
- Piper is 100% waterproof (sealed to IP X8 protection standard) and has a positive pressure nitrogen seal to deliver the ultimate reliability.
Piper hits the target every time
Piper is ideal anywhere line and grade is required.
- Large clear display for easy grade reading. Line position, battery status and level indication.
- Piper's bright, visible beam is focused to maintain its crisp, clear spot and size over long distances.
- Automatic grade compensation easily identifies and corrects grade errors. Piper automatically self-levels over a full grade range and eliminates the need to tip the laser for steep slopes.
Increased productivity with smart features
Piper 100 provides pipe and sewer contractors with smart, user-friendly features for enhanced application performance.
- Strobe Mode - its multi-functional remote control strobes the laser beam for increased visibility.
- Top pivot point (Lighted Pivot Point) and Battery Saving Mode.
| Laser Beam Colour | Red |
| Wave Length | 635nm |
| Lasser Class | 3R |
| Max average radiant power | 4.75mW |
| Working range | Up to 200m |
| Grade Range | -10% to +25% |
| Self-levelling Range | -15% to +30% |
| Line Movement | 6m @ 30m |
| Battery | Li-Ion, up to 40 hours |
| Charging Time | 4 hours |
| Operating temperature | -20°C to +50°C |
| Dimensions | 96mm x 267mm |
| Weight | 2.0Kg |
| Housing | Cast aluminium |
| Wireless remote distance |
Front 150m Back 10m |
| Self levelling accuracy | +/-1.5mm at 30m |
| Auto targeting | No |
| Warranty | 5 years |
- Leica Piper 100 Red Beam pipe laser

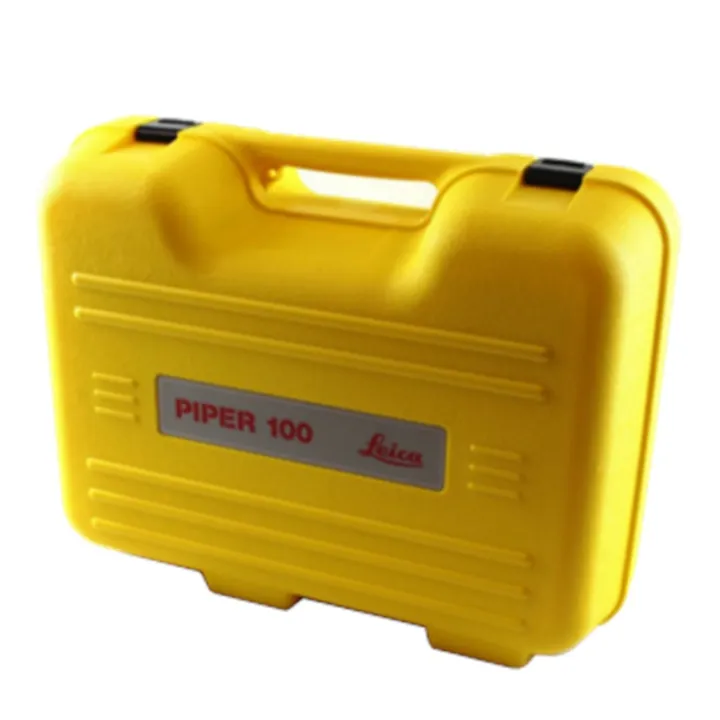

- Rugged carrying case
- Remote control

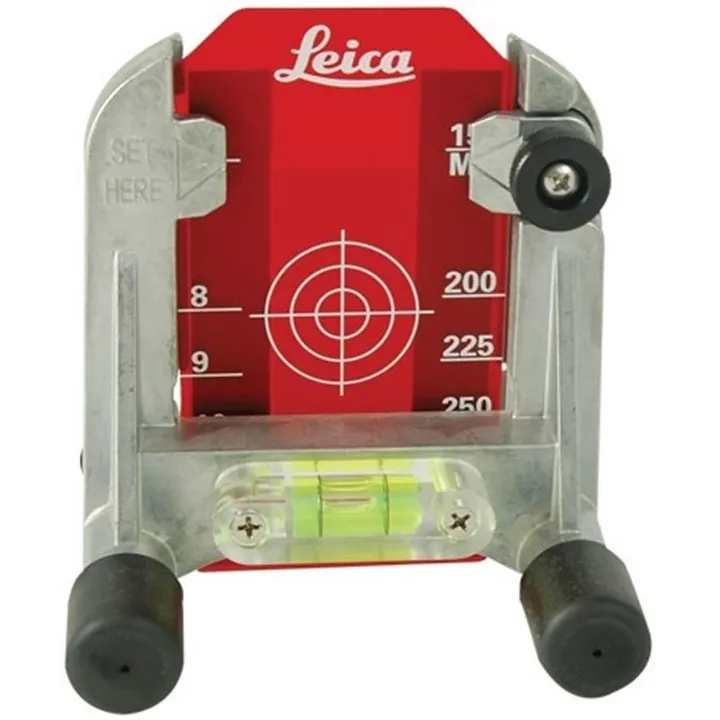

- Target assembly
- GEB222 Li-ion rechargeable battery
- Battery charger with AC and 12V car adapter
- Self-centering feet set (150mm / 6")
- 5-year warranty
