Bring simplicity to construction applications with the Leica Rugby 680 and 670 semi-automatic grade lasers. Designed for contractors who do mostly flat work but occasionally need to create single or dual slopes, Rugby 680 construction lasers are easy to use and effective in all levelling and grading tasks.
Slopes done easily
Easily perform levelling and slope applications with the semi-automatic Leica Rugby 680 dual and single grade lasers. Their simple user interface, four-button menu and digital display allow quick and convenient dial-in grade for increased productivity and efficiency on site.
Accurate performance throughout the day
Eliminate costly errors and downtime coming from temperature changes on the jobsite. The Smart Slope function of the Rugby 680 continuously monitors temperature changes over time. This unique functionality assures accuracy and solid laser performance over the course of the day.
Technical Data |
Leica Rugby 680 |
Functionality |
Self-levelling horizontal, dial-in grade in dual axis |
Range (diameter) |
1,100 m |
Self-levelling accuracy (defined at 25°C) |
± 1.5 mm @ 30 m |
Self-levelling range |
± 5° |
Grade range |
± 8% SG |
Smart slope |
YES |
Rotation speeds |
10 rps |
Laser diode type / class |
635 nm / Class 1 |
Dimensions (HxWxD) |
212 x 239 x 192 mm |
Protection class (splash water / dust proof) |
IP67 |
Operating temperature range |
-20° to +50°C |

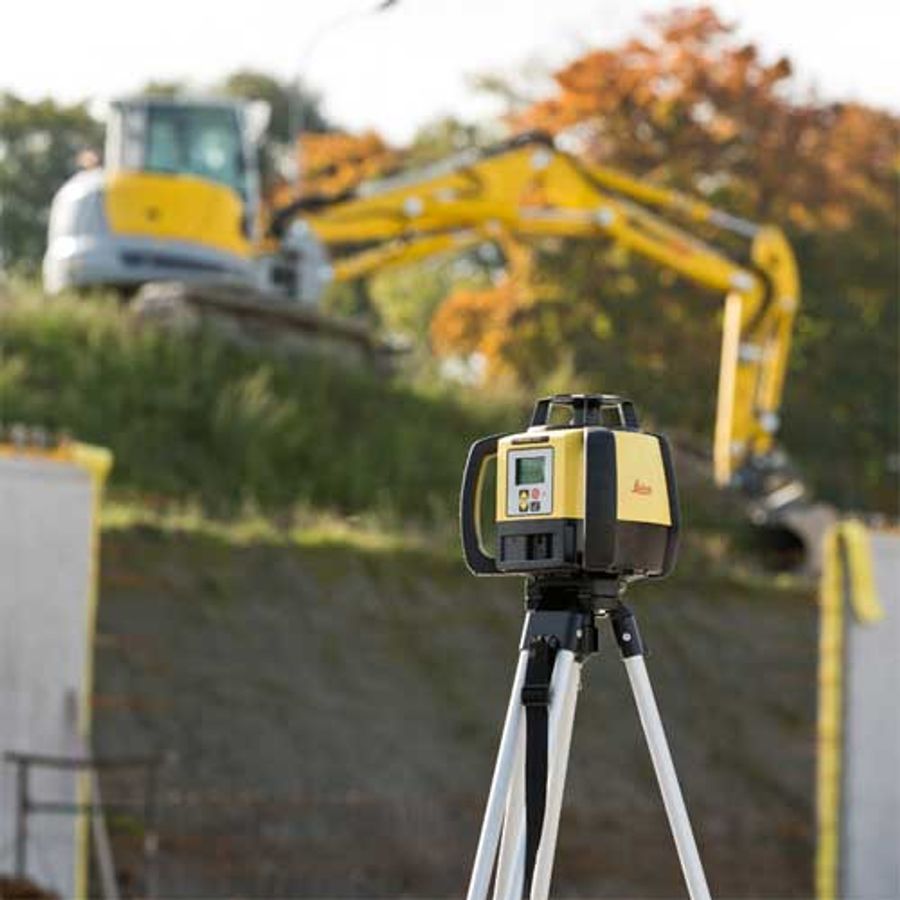

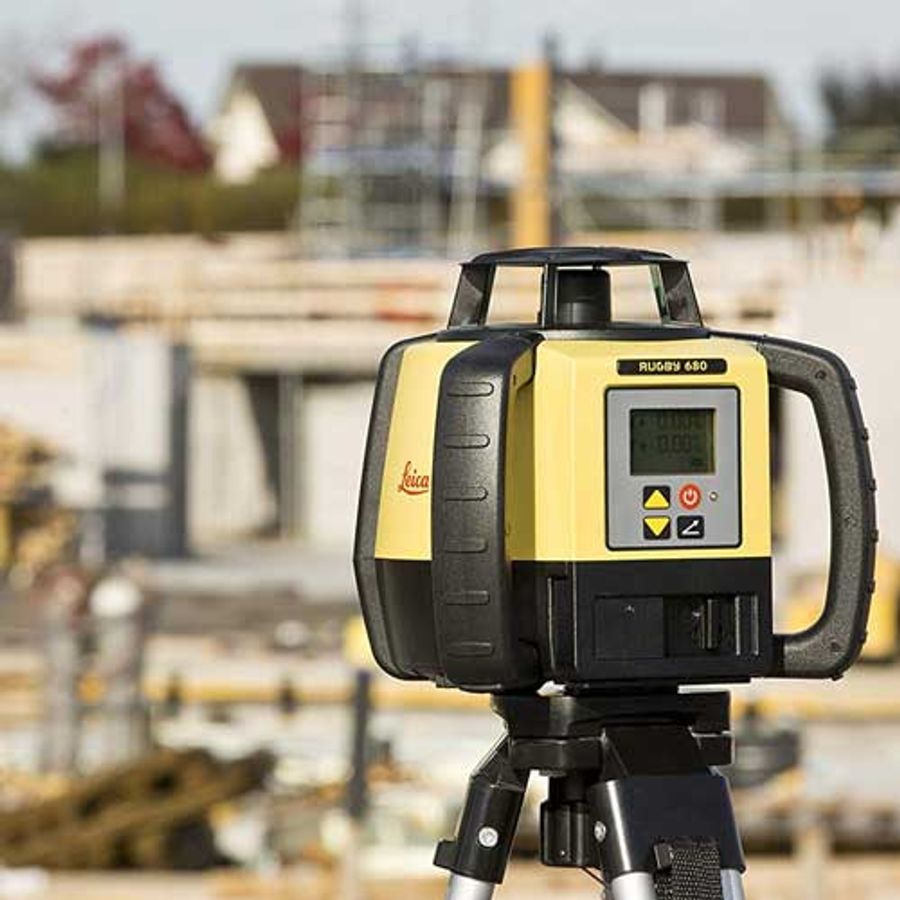

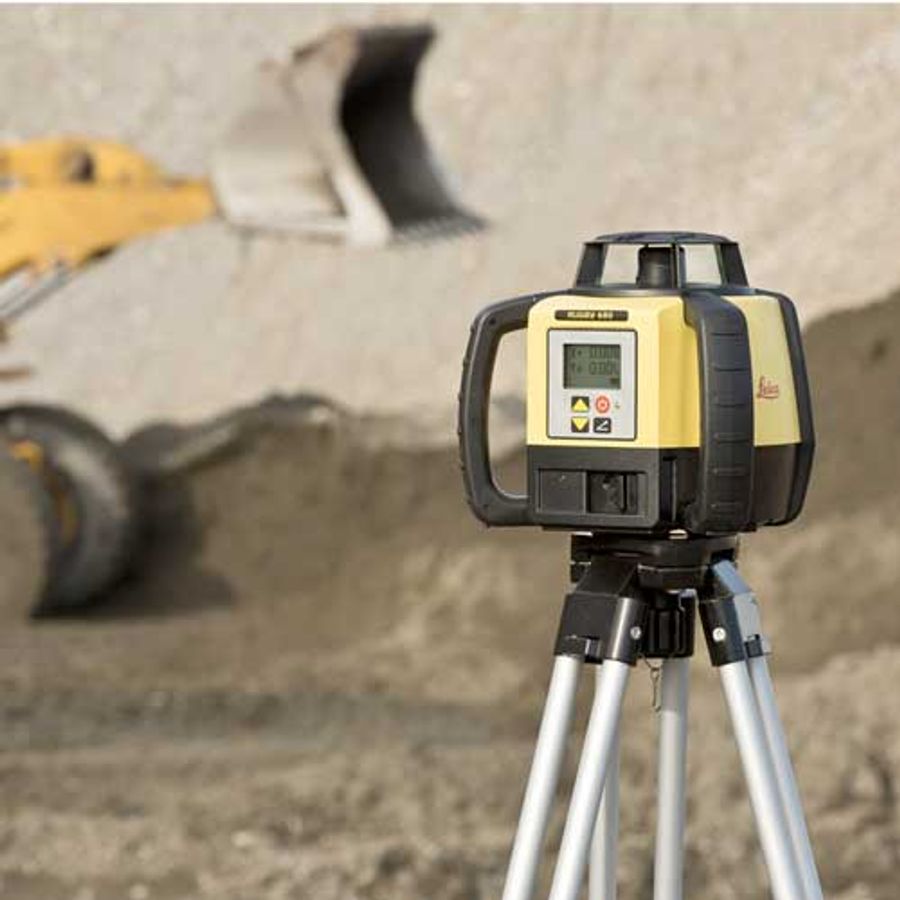

Leica Rugby 680 rotating laser - Slopes done easy
Bring simplicity to construction applications with the Leica Rugby 680 and 670 semi-automatic grade lasers. Designed for contractors who do mostly flat work but occasionally need to create single or dual slopes, Rugby 680 construction lasers are easy to use and effective in all levelling and grading tasks.
Slopes done easily
Easily perform levelling and slope applications with the semi-automatic Leica Rugby 680 dual and single grade lasers. Their simple user interface, four-button menu and digital display allow quick and convenient dial-in grade for increased productivity and efficiency on site.
Accurate performance throughout the day
Eliminate costly errors and downtime coming from temperature changes on the jobsite. The Smart Slope function of the Rugby 680 continuously monitors temperature changes over time. This unique functionality assures accuracy and solid laser performance over the course of the day.
Technical Data |
Leica Rugby 680 |
Functionality |
Self-levelling horizontal, dial-in grade in dual axis |
Range (diameter) |
1,100 m |
Self-levelling accuracy (defined at 25°C) |
± 1.5 mm @ 30 m |
Self-levelling range |
± 5° |
Grade range |
± 8% SG |
Smart slope |
YES |
Rotation speeds |
10 rps |
Laser diode type / class |
635 nm / Class 1 |
Dimensions (HxWxD) |
212 x 239 x 192 mm |
Protection class (splash water / dust proof) |
IP67 |
Operating temperature range |
-20° to +50°C |
