Leica iCON CC200 Rugged 10" Tablet PC
- 10" touch screen tablet with long 12 hour battery life.
- Compatible with both Leica iCON site or Leica iCON build software.
- Ideal for machine control and construction site applications.
- IP65 environmental rating

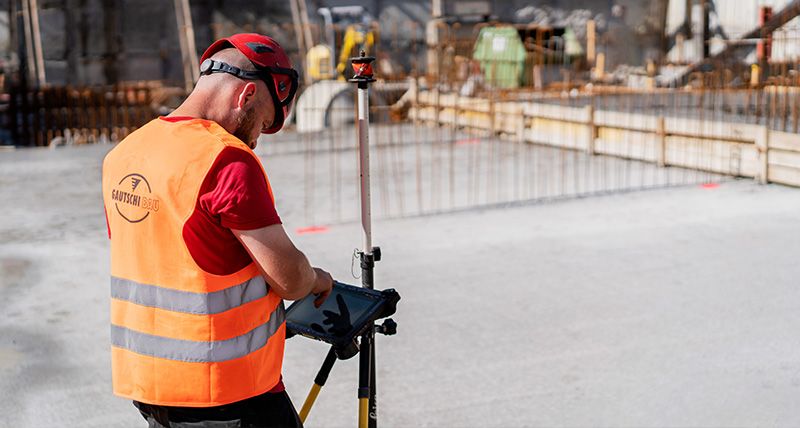

All-weather field controllerThe Leica iCON CC200 is a robust IP65-certified field controller that is ready to withstand even the toughest site conditions. It has a 'glove' mode when you need to protect your hands from the cold or keep them safe while working. The 'rain' mode will make the wet days on site a bit easier. The CC200 also features six hard buttons with three of them being user-definable. Save your favourite functions and locations, and easily access them with the press of a button.
|
 |
 |

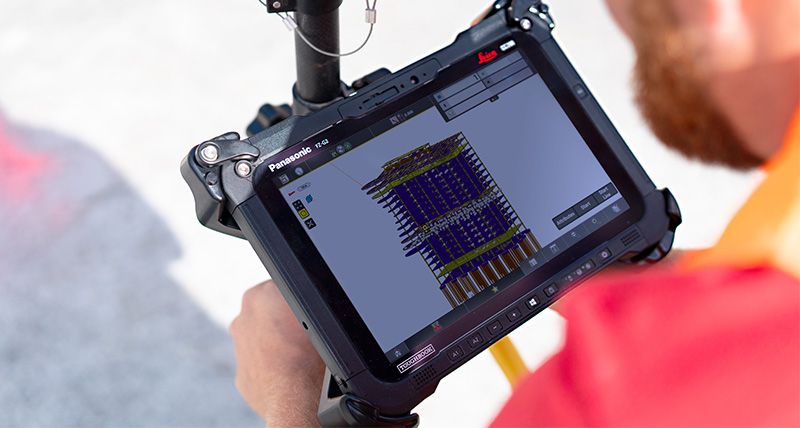

High performance for high standardsThe iCON CC200 field controller's hardware and software deliver high performance that will meet the expectations of the most demanding projects! The 16 GB RAM capacity can handle a large amount of data trouble-free, without jeopardising task speed and quality or the amount of data you can collect. The large 10'' screen offers better visibility with more map capacity while the speed of operation eliminates the wait for data to load.
|

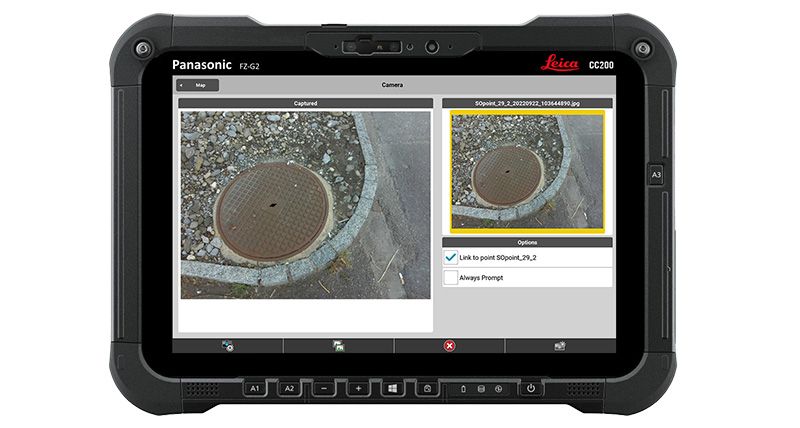

Advanced featuresThe 2 MP front webcam with microphone and the 8 MP rear camera with autofocus and LED light allow users to capture images during measurements, improving transparency and enabling workers in the field to report exact on-site conditions and progress back to the office. Users can also utlise the camera to read QR codes for quick and easy point creation from paper plans. The integrated GPS allows moderate accuracy positioning without the needing to use a SmartAntenna. This is particularly useful when users to locate specific points for inspection or other positioning tasks that high level of GNSS accuracy is not required.
|
 |
| Operating System | Microsoft Windows® 10 enterprise LTSC |
| CPU platform |
Intel® Core™ i5-10310U vPro™ processor |
| RAM | 16 GB |
| Data storage | 512 GB OPAL SSD |
| Display | 10” widescreen, 1920 × 1200 resolution, anti-reflective (AR) screen, Intel UHD Graphics, concealed mode; day/night mode, Gorilla Glass 3, 10-finger multitouch |
| Display branding | Printed display glass |
| Keyboard & buttons | IP55 2-button digitiser pen (right click & erase), stylus holder, tether and cleaning cloth Supports ‘glove‘ and ‘rain‘ mode 7 tablet buttons (3 user-definable, A1/A2/A3) On-screen QWERTY keyboard |
| I/O ports | 1 x USB-C v5.1; 1 x USB A v5.1; Docking station connector (24 pin); Integrated dual-array microphone; Integrated 88 db speakers; Intel high definition audio compliant |
| Integrated communications | Integrated 4G LTE multi-carrier mobile broadband; Intel Wi-Fi 6 AX201; Bluetooth® v5.1 (Class 1) |
| Integrated GPS | L1 GNSS integrated |
| Integrated camera | 1080p webcam with privacy cover & dual-array microphone – infrared with Windows Hello support 8 MP rear camera with autofocus and LED flash |
| TPS 1-man mode working range | Typically 450 m, up to 500 m with direct line of sight |
| Battery | Li- ion long ‘life‘ battery: 10.8 V, 6300 mAh |
| Operating Time | 12 hours (max. load test) |
| Size | 27.94 cm x 18.8 cm x 2.8 cm |
| Weight | 1.3kg |
| Operating temperature | -30 °C to 60 °C |
| Storage temperature | -50 °C to 70 °C |
| Rain and dust | IP65 |
| Datasheets | |
|---|---|
| Leica iCON CC200 Rugged 10" Tablet PC - Datasheet |
Leica Geosystems has developed an online learning platform for a wide range of products, to further educate customers to maximise the functionality of their instruments.
Our products have many excellent features which all contribute to increasing efficiency on site and the online learning platform assists you to gain the most value from your products.
The online learning courses are available to anyone who has a Leica Geosystems myWorld account, and an active Customer Care Package (CCP) for supported products.
