Leica Rugby 610 Laser Level
Product options:
- Easy one button operation
- Self levelling
- Horizontal laser level
- Shock and weather proof to IP67
- 5 year Warranty
- Ideal for concrete pouring, formwork levelling, transferring or checking of heights, etc.
Visit https://mypromos.com.au/leica-eofy26 to redeem your bonus
Get right to work

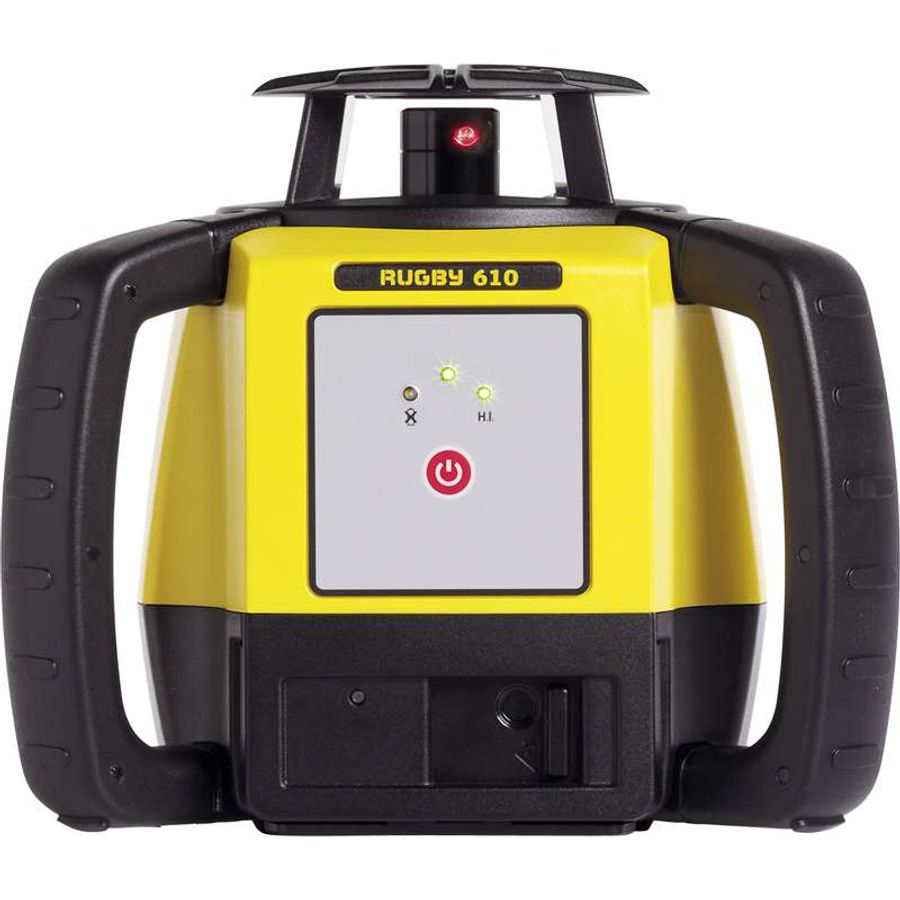

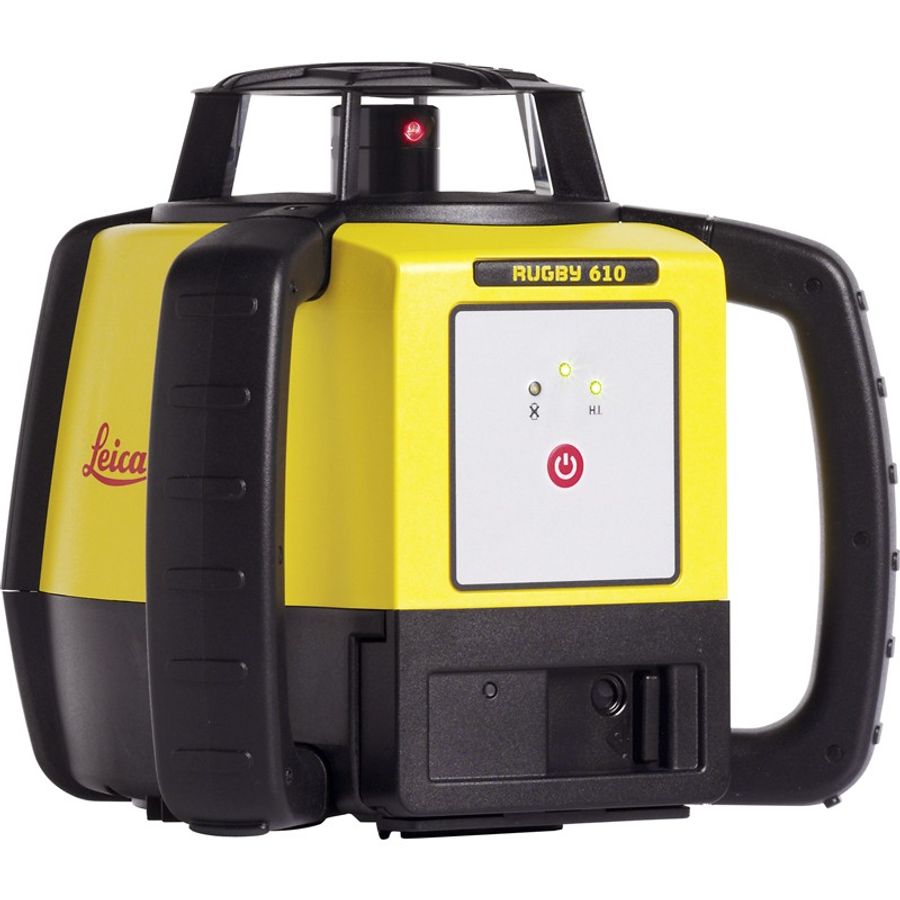

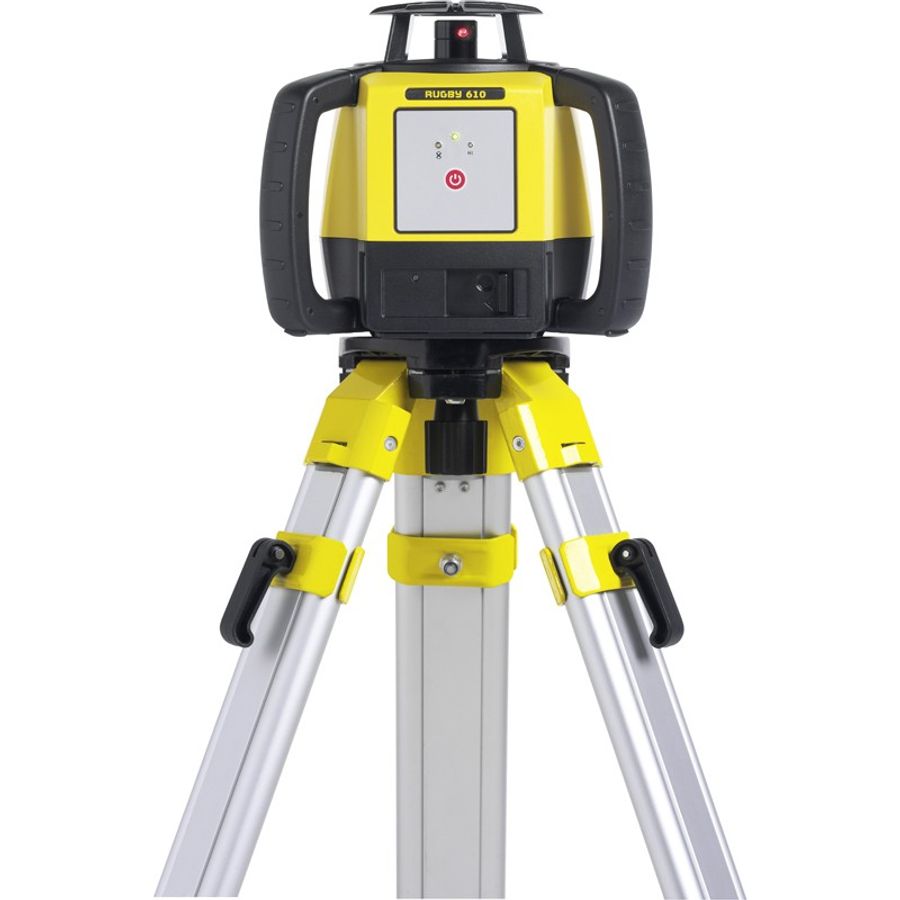

Whether it is concrete pouring, formwork levelling, transferring or checking of heights, the Leica Rugby 610 rotary laser level offers increased productivity combined with the ultimate ease of use. One button interface makes the operation of laser extremely easy and absolutely fool proof. No training and no preparation is required - get right to work.
Extended working range and battery life
The Rugby 610 rotating laser delivers great performance with the Rod Eye Basic receiver. If needed, the operating range can be extended to 600 m with the Rod Eye 140 and the Rod Eye 160 digital receivers. The Rugby 610 comes in package with the long-lasting and quickly charging Li-Ion battery for even longer operating times.
Your dependable partner on a jobsite
Assuring high reliability and no downtime, the Rugby 610 professional laser is sealed to the water and dust protection standard (IP 67) which stands for complete protection against dust and withstanding of water immersion up to 1 m. The rubber over mould handles offer great protection and easy grip handles. Fit, fast, tough - Rugby 610 represents it all. In addition, PROTECT by Leica Geosystems grants customers with Lifetime Manufacturer's Warranty and 5-year No Cost period for the Rugby 610 laser level.
| Rugby 610 | Rugby 620 | Rugby 640 | Rugby 64G | Rugby 680 | |
| Functionality | One button Self Levelling Horizontal laser |
One button, Self Levelling, Single axis manual slope, Horizontal laser |
Self levelling in veritcal & horizonal Manual Slope 90° dual axis |
Green Beam, Self levelling Veritcal, horizonal Manual Slope 90° dual axis |
Self Levelling horizontal, dial-in grade in dual axis |
| Product Type | Standard Construction | Standard Construction | Multipurpose | Interior | Semi Auto-Grade |
| Plumb Up | - | - | Yes | Yes | - |
| Smart Slope | - | - | - | - | Yes |
| Scanning | - | - | 10, 45, 90° | 10, 45, 90° | |
| Self Levelling Range | ± 5° | ± 5° | ± 5° | ± 5° | ± 5° |
| Grade Range | ± 8% Dual Grade | ||||
| Accuracy | ±2.2mm @ 30m | ±1.5mm @ 30m | ±1.5mm @ 30m | ±1.5mm @ 30m | ±1.5mm @ 30m |
| Laser Class | Class 1 | Class 1 | Class 2 | Class 2 | Class 1 |
| Rotation (RPS) | 10 | 10 | 0,2,5,10 | 0,2,5,10 | 10 |
| Max Range RE120/120G | 800m | 800m | 500m | 400m | 900m |
| Max Range RE140/160 | 1,100m | 1,100m | 600m | - | 1,100m |
| Max Range RC400 Remote | - | - | 200m | 200m | - |
| Operating Time (Alkaline) | 60 hours | 60 hours | 60 hours | 60 hours | 60 hours |
| Operating Time (Li-Ion) | 40 hours | 40 hours | 40 hours | 40 hours | 40 hours |
| Protection class | IP67 | IP67 | IP67 | IP67 | IP67 |
| Operating temperature | -10° to +50°C | -10° to +50°C | -10° to +50°C | -10° to +50°C | -10° to +50°C |
| Datasheets | |
|---|---|
| Leica Rugby 610 Laser Level - Datasheet | Product Manuals |
| Leica Rugby 610 Laser Level - Product Manual |
Brand: Leica Geosystems |
Code:
LG6011150
Product options:
Brand: Leica Geosystems |
Code:
LG6011150
At a glance
- Easy one button operation
- Self levelling
- Horizontal laser level
- Shock and weather proof to IP67
- 5 year Warranty
- Ideal for concrete pouring, formwork levelling, transferring or checking of heights, etc.
