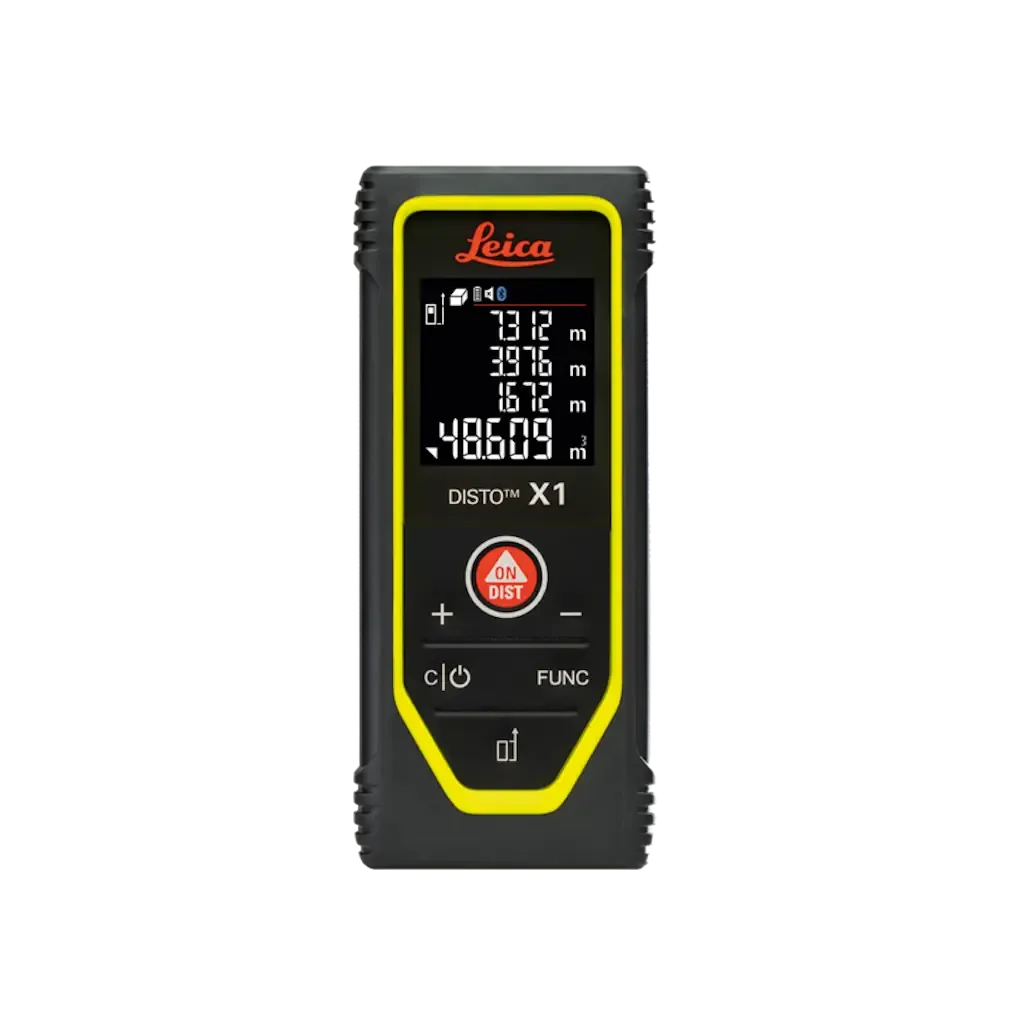

Leica Disto X1 Laser Distance Meter, 100m, IP65, NFC
The Leica DISTO X1 is a highly reliable laser measurement tool for tough indoor construction site conditions. Its robust housing, made of rubber and glass-fiber reinforced plastic, is built to withstand drop tests from a height of 2 meters, ensuring durability and consistent accuracy.
With IP65 protection, it works perfectly in dusty and wet conditions and can be cleaned under water with ease. Effortlessly connect to the Leica DISTO Plan app using NFC for quick, hassle-free data transfer, visualization and documentation. By streamlining measurement tasks and data management, it increases efficiency and boosts professionalism on any project.
Robust design - reliably measuring accuracy

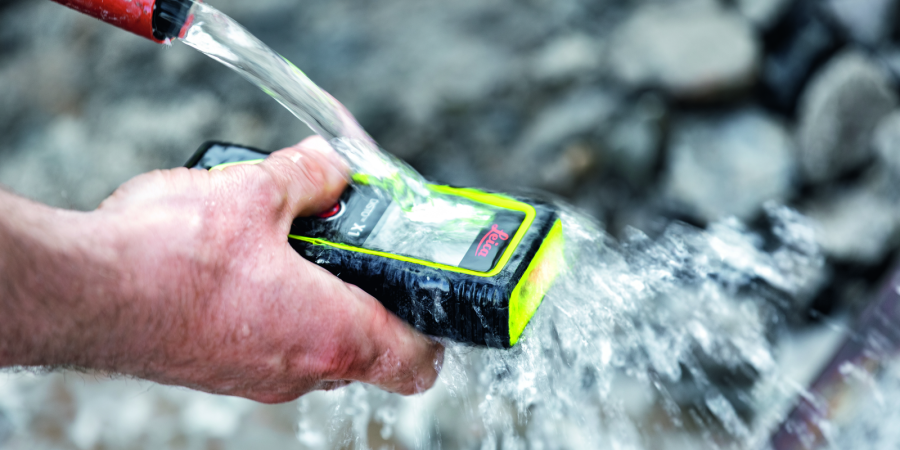

The Leica DISTO X1 ensures reliable measurements even in challenging construction site conditions, thanks to its robust design. The device's rugged housing, made of rubber and glass-fiber reinforced plastic, protects its optical and electronic components, ensuring consistent accuracy and durability. Rated IP65, it is dust and jet water-resistant, allowing it to function reliably in dirty environments and be cleaned under running water. It can also withstand accidental drops from heights up to 2 meters.
NFC - simplified and streamlined connectivity

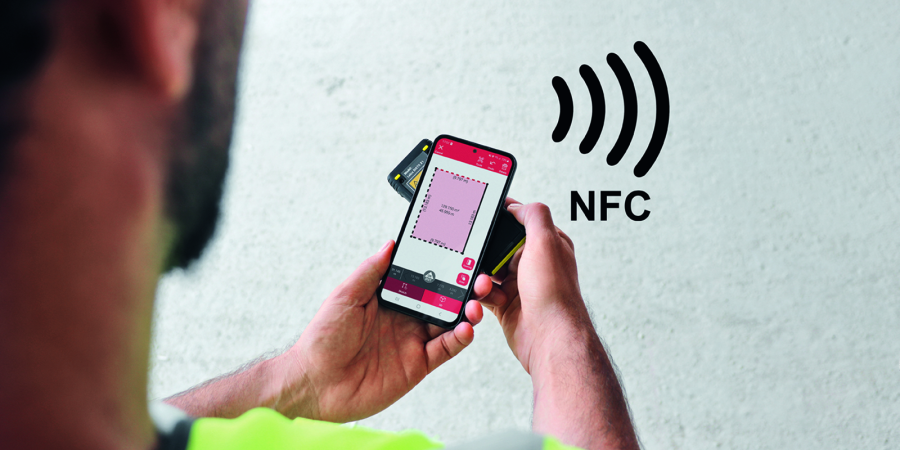

The Leica DISTO X1 offers simplified connectivity to the DISTO Plan app via NFC, eliminating the need for a pairing process. By simply placing the device near a smartphone, users can instantly transfer measured values. This NFC connection enables quick and efficient interactions, enhancing user convenience and efficiency. Additionally, data can also be transferred using Bluetooth, providing flexible options for seamless communication between devices.
Fast and reliable measurement performance

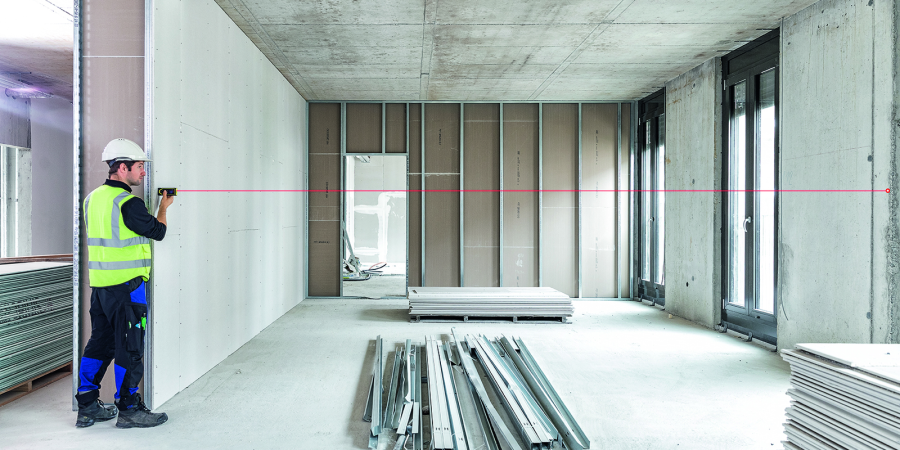

The device offers fast and reliable measurement performance tailored for daily construction site tasks, with range and accuracy verified according to ISO 16331-1 standards. This ensures consistent measurement reliability not only in test labs but also in real-world construction environments. An optimized ASIC is integrated to enhance speed and reliability, making it well-suited for practical, on-site applications.
| Parameter | Specification |
|---|---|
| Article number (metric) | 1017807 |
| Article number (imperial) | 1017805 |
| Typ. distance measuring accuracy (ISO 16331-1) | ± 1.5 mm |
| Range (ISO 16331-1) | 0.05 up to 100 m |
| Measuring units | m, ft, in |
| X-Range Power Technology | Yes |
| Display illumination | Yes |
| Free software for Windows | Yes |
| App for iOS and Android | Yes |
| Wireless interface | Bluetooth® 6.0, NFC |
| Measurements per set of batteries | Up to 7,000* |
| Service life of batteries | Up to 14 h* |
| Batteries | Type AAA, 2 × 1.5 V |
| Protection class | IP65 |
| Drop test | 2 m drop tested |
| Dimensions | 125 × 53.5 × 25.5 mm |
| Weight with batteries | 129 g |
| Distance (m) | Ø of Laser Dot (mm) |
|---|---|
| 10 | 6 |
| 50 | 30 |
| 100 | 60 |
* Reduced when used with Bluetooth®
| Quick Start | |
|---|---|
| LG986859 - Quick Start | Datasheets |
| Leica Disto X1 Laser Distance Meter, 100m, IP65, NFC - Datasheet | Product Manuals |
| Leica Disto X1 Laser Distance Meter, 100m, IP65, NFC - Product Manual |

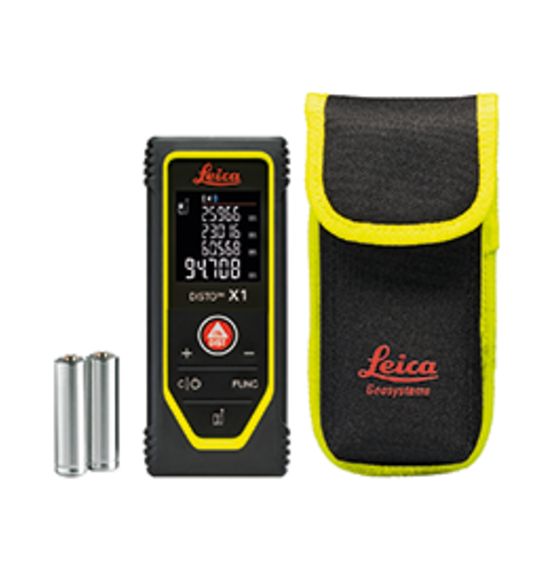

- Leica DISTO X1 laser distance meter
- Hand loop
- Pouch
- 2 batteries type AAA 2 x 1.5 V
- Safety instructions
- Calibration Certificate Silver
- Quick start with QR code linking to online manual
- 3 Years warranty card
Brand: Leica Geosystems |
Code: LG986859
APN: 7640180533955 |
Supplier Code: 986859
Brand: Leica Geosystems |
Code: LG986859
APN: 7640180533955 |
Supplier Code: 986859
At a glance
The Leica DISTO X1 is a highly reliable laser measurement tool for tough indoor construction site conditions. Its robust housing, made of rubber and glass-fiber reinforced plastic, is built to withstand drop tests from a height of 2 meters, ensuring durability and consistent accuracy.
Robust design - reliably measuring accuracyThe Leica DISTO X1 ensures reliable measurements even in challenging construction site conditions, thanks to its robust design. The device's rugged housing, made of rubber and glass-fiber reinforced plastic, protects its optical and electronic components, ensuring consistent accuracy and durability. Rated IP65, it is dust and jet water-resistant, allowing it to function reliably in dirty environments and be cleaned under running water. It can also withstand accidental drops from heights up to 2 meters. |
|
|
|
NFC - simplified and streamlined connectivityThe Leica DISTO X1 offers simplified connectivity to the DISTO Plan app via NFC, eliminating the need for a pairing process. By simply placing the device near a smartphone, users can instantly transfer measured values. This NFC connection enables quick and efficient interactions, enhancing user convenience and efficiency. Additionally, data can also be transferred using Bluetooth, providing flexible options for seamless communication between devices. |
Fast and reliable measurement performanceThe device offers fast and reliable measurement performance tailored for daily construction site tasks, with range and accuracy verified according to ISO 16331-1 standards. This ensures consistent measurement reliability not only in test labs but also in real-world construction environments. An optimized ASIC is integrated to enhance speed and reliability, making it well-suited for practical, on-site applications. |
|
- Leica DISTO X1 laser distance meter
- Hand loop
- Pouch
- 2 batteries type AAA 2 x 1.5 V
- Safety instructions
- Calibration Certificate Silver
- Quick start with QR code linking to online manual
- 3 Years warranty card
