Leica Disto X3 Laser Distance Meter
- 150m measuring range
- Measuring accuracy of ± 1/16"
- Tilt accuracy of ± 0.2°
- 2m drop tested
- IP65 dust and water protection class
- Utilizes X-Range Power technology
- Speeds up stake-out the workflow
- Works perfectly with Leica DST 360
CONSTRUCTION SITE PROOF

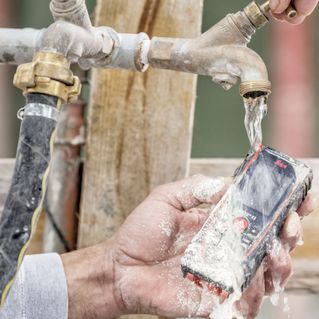

The Leica DISTO™ X3 is perfect for tough construction site conditions. It is drop-tested up to 2 m in height, water jet and dust protected to IP 65 standards.
SMART ROOM

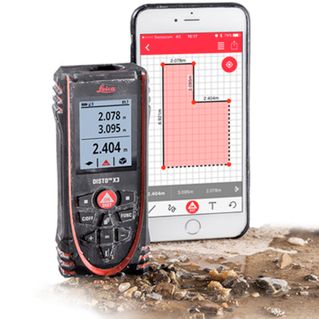

New Leica DISTO™ technologies in combination with the Smart Room function of the Leica DISTO™ Plan app* allow you to quickly create scaled floor plans on your smartphone or tablet.
POINT TO POINT MEASUREMENT

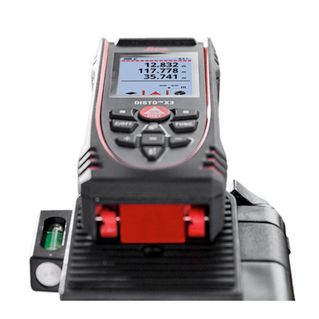

The Leica DST 360 transforms your hand-held laser device into a measurement station. It allows you to measure distances between any two points from one position.
INTUITIVE
Easy to use buttons and functions make working with the DISTO™ X3 fast and intuitive.
YOUR DISTO™ X3

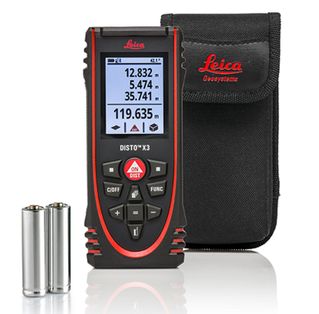

The DISTO™ X3 is designed to make indoor laser measurements an easy task. A holster, hand loop and batteries are included.
| Typ. distance measuring accuracy (ISO 16331-1 certified) | ± 1.0 mm |
| Range (ISO 16331-1 certified) | 0.05 up to 150 m |
| Measuring units | m, ft, in |
| X-Range Power Technology | Yes |
| Tilt sensor | Yes |
| Tilt sensor accuracy to the housing | ± 0.2° |
| Smart Base measuring range Horizontal Vertical |
360° for use with Leica DST 360 |
| Typ. tolerance of P2P function for use with Leica DST 360 | ± 2mm at 2m, 5mm at 5m, 10mm at 10m |
| Levelling range | 5° for use with Leica DST 360 |
| Memory of last measurement | 20 |
| Free software for Windows | Yes |
| Free App for iOS and Android | Yes |
| Smart Room function support | Yes |
| General data interface | Bluetooth® Smart |
| Data interface for 3D point data | Bluetooth® Smart |
| Measurements per set of batteries | up to 4'000 (reduced when used with Bluetooth®) |
| Service life of batteries | up to 8h (reduced when used with Bluetooth®) |
| Multifunctional endpiece with automatic reference detection | Yes |
| Batteries | 2x AA Alkaline |
| Protection class | IP 65 |
| 2m drop tested | Yes |
| Dimensions | 132 x 56 x 29 mm |
| Weight with batteries | 184g |
| Art. No. | 850833 |
| EAN / UPC | 7640110697054 |
| Brochures | |
|---|---|
| LG850833 - Brochure |
- Leica Disto X3 Laser Distance Meter 850833
- Holster
- Hand Loop
- Batteries
- 3 Years Warranty
Leica DST 360 Adapter for Disto X-Series - Includes TRI 120 Tripod + Rugged Case

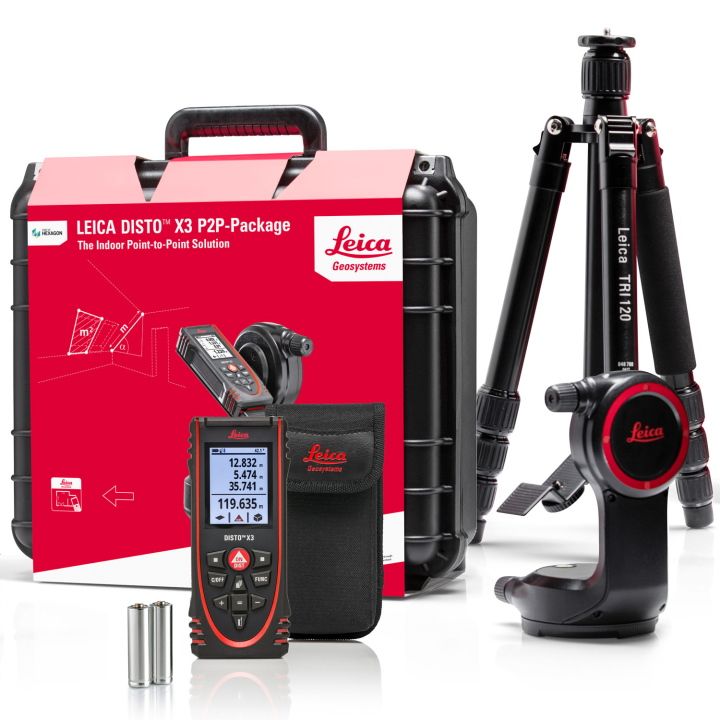

Leica Disto X3 P2P Kit with with DST360 and TRI120 in hard case**
Brand: Leica Geosystems |
Code: LG850833
APN: 7640110697047 |
Supplier Code: 850833
Brand: Leica Geosystems |
Code: LG850833
APN: 7640110697047 |
Supplier Code: 850833
At a glance
- 150m measuring range
- Measuring accuracy of ± 1/16"
- Tilt accuracy of ± 0.2°
- 2m drop tested
- IP65 dust and water protection class
- Utilizes X-Range Power technology
- Speeds up stake-out the workflow
- Works perfectly with Leica DST 360
CONSTRUCTION SITE PROOFThe Leica DISTO™ X3 is perfect for tough construction site conditions. It is drop-tested up to 2 m in height, water jet and dust protected to IP 65 standards. |
|
|
|
SMART ROOMNew Leica DISTO™ technologies in combination with the Smart Room function of the Leica DISTO™ Plan app* allow you to quickly create scaled floor plans on your smartphone or tablet. |
POINT TO POINT MEASUREMENTThe Leica DST 360 transforms your hand-held laser device into a measurement station. It allows you to measure distances between any two points from one position. |
|
|
|
INTUITIVEEasy to use buttons and functions make working with the DISTO™ X3 fast and intuitive. |
YOUR DISTO™ X3The DISTO™ X3 is designed to make indoor laser measurements an easy task. A holster, hand loop and batteries are included. |
|
| Typ. distance measuring accuracy (ISO 16331-1 certified) | ± 1.0 mm |
| Range (ISO 16331-1 certified) | 0.05 up to 150 m |
| Measuring units | m, ft, in |
| X-Range Power Technology | Yes |
| Tilt sensor | Yes |
| Tilt sensor accuracy to the housing | ± 0.2° |
| Smart Base measuring range Horizontal Vertical |
360° for use with Leica DST 360 |
| Typ. tolerance of P2P function for use with Leica DST 360 | ± 2mm at 2m, 5mm at 5m, 10mm at 10m |
| Levelling range | 5° for use with Leica DST 360 |
| Memory of last measurement | 20 |
| Free software for Windows | Yes |
| Free App for iOS and Android | Yes |
| Smart Room function support | Yes |
| General data interface | Bluetooth® Smart |
| Data interface for 3D point data | Bluetooth® Smart |
| Measurements per set of batteries | up to 4'000 (reduced when used with Bluetooth®) |
| Service life of batteries | up to 8h (reduced when used with Bluetooth®) |
| Multifunctional endpiece with automatic reference detection | Yes |
| Batteries | 2x AA Alkaline |
| Protection class | IP 65 |
| 2m drop tested | Yes |
| Dimensions | 132 x 56 x 29 mm |
| Weight with batteries | 184g |
| Art. No. | 850833 |
| EAN / UPC | 7640110697054 |
Leica DST 360 Adapter for Disto X-Series - Includes TRI 120 Tripod + Rugged Case
Leica Disto X3 P2P Kit with with DST360 and TRI120 in hard case**
