Leica Rugby 640G Green Beam Laser Level - Horizontal & Vertical

Product options:

Horizontal & Vertical levelling
Versatility inside and outside

Leica Rugby 640G rotating laser - Versatility inside and outside

New green diode technology in the Rugby 640G provides outstanding visibility for indoor application
Fit for any interior and exterior levelling, aligning and squaring application
Work conveniently with offsets thanks to the Rod Eye receivers digital read-out
Scan 90 – make layout easier by quickly moving the beam 90 degrees to the left or right side
Plumb Down – automatic and accurate plum down direction for alignment over a reference point
Sleep Mode – save battery and put the Leica Rugby into sleep mode without disturbing your set up

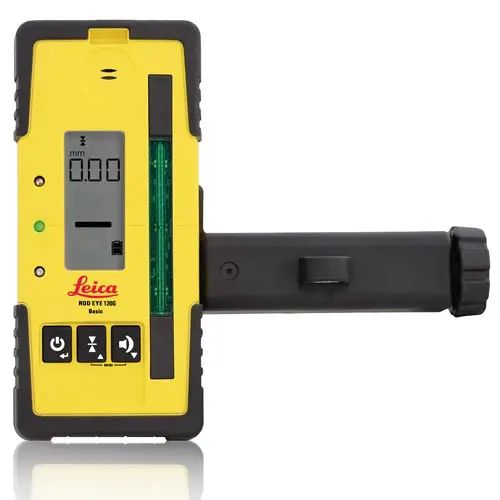

The digital readout of the Rod Eye 120G measures offset from Rugby 640G beam position, adding convenience and saving time

	Rugby 610	Rugby 620	Rugby 640	Rugby 64G	Rugby 680
Functionality	One button Self Levelling Horizontal laser	One button, Self Levelling, Single axis manual slope, Horizontal laser	Self levelling in veritcal & horizonal Manual Slope 90° dual axis	Green Beam, Self levelling Veritcal, horizonal Manual Slope 90° dual axis	Self Levelling horizontal, dial-in grade in dual axis
Product Type	Standard Construction	Standard Construction	Multipurpose	Interior	Semi Auto-Grade
Plumb Up	-	-	Yes	Yes	-
Smart Slope	-	-	-	-	Yes
Scanning	-	-	10, 45, 90°	10, 45, 90°
Self Levelling Range	± 5°	± 5°	± 5°	± 5°	± 5°
Grade Range					± 8% Dual Grade
Accuracy	±2.2mm @ 30m	±2.2mm @ 30m	±2.2mm @ 30m	±2.2mm @ 30m	±1.5mm @ 30m
Laser Class	Class 1	Class 1	Class 2	Class 2	Class 1
Rotation (RPS)	10	10	0,2,5,10	0,2,5,10	10
Max Range RE120/120G	800m	800m	500m	400m	900m
Max Range RE140/160	1,100m	1,100m	600m	-	1,100m

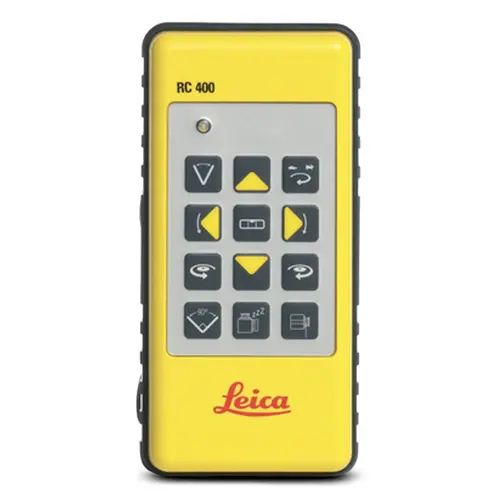

Max Range RC400 Remote	-	-	200m	200m	-
Operating Time (Alkaline)	60 hours	60 hours	60 hours	60 hours	60 hours
Operating Time (Li-Ion)	40 hours	40 hours	40 hours	40 hours	40 hours
Protection class	IP67	IP67	IP67	IP67	IP67
Operating temperature	-10° to +50°C	-10° to +50°C	-10° to +50°C	-10° to +50°C	-10° to +50°C

Related Categories

Brand: Leica Geosystems | Code: LG6011488KIT

Product options:

Brand: Leica Geosystems | Code: LG6011488KIT

At a glance

Horizontal & Vertical levelling
Versatility inside and outside

Related Categories

Leica Rugby 640G rotating laser - Versatility inside and outside

New green diode technology in the Rugby 640G provides outstanding visibility for indoor application
Fit for any interior and exterior levelling, aligning and squaring application
Work conveniently with offsets thanks to the Rod Eye receivers digital read-out
Scan 90 – make layout easier by quickly moving the beam 90 degrees to the left or right side
Plumb Down – automatic and accurate plum down direction for alignment over a reference point
Sleep Mode – save battery and put the Leica Rugby into sleep mode without disturbing your set up
The digital readout of the Rod Eye 120G measures offset from Rugby 640G beam position, adding convenience and saving time

When levelling and aligning in and around buildings, red beams can be difficult to see. Leica Rugby 640G green beam rotating laser enables you to easily see wherever you are working.

This universal, multipurpose laser provides the best beam visibility and functionality for interior and exterior applications. From installing drywall to working on suspended ceilings and raised floors, the new, bright green beam ensures you don’t miss the mark.

The green beam uses the latest in green diode technology, visible up to 30 metres without a receiver. An IP 67 protection and up to 60 hours operating time make these lasers the most trusted and rugged choice for any interior project.

Rugby 640G is delivered with the Leica Rod Eye 120G with digital read-out ability for convenient offset readings and outstanding operating range. The universal Rugby 640G also performs reliably outdoors, even in freezing temperatures.

	Rugby 610	Rugby 620	Rugby 640	Rugby 64G	Rugby 680
Functionality	One button Self Levelling Horizontal laser	One button, Self Levelling, Single axis manual slope, Horizontal laser	Self levelling in veritcal & horizonal Manual Slope 90° dual axis	Green Beam, Self levelling Veritcal, horizonal Manual Slope 90° dual axis	Self Levelling horizontal, dial-in grade in dual axis
Product Type	Standard Construction	Standard Construction	Multipurpose	Interior	Semi Auto-Grade
Plumb Up	-	-	Yes	Yes	-
Smart Slope	-	-	-	-	Yes
Scanning	-	-	10, 45, 90°	10, 45, 90°
Self Levelling Range	± 5°	± 5°	± 5°	± 5°	± 5°
Grade Range					± 8% Dual Grade
Accuracy	±2.2mm @ 30m	±2.2mm @ 30m	±2.2mm @ 30m	±2.2mm @ 30m	±1.5mm @ 30m
Laser Class	Class 1	Class 1	Class 2	Class 2	Class 1
Rotation (RPS)	10	10	0,2,5,10	0,2,5,10	10
Max Range RE120/120G	800m	800m	500m	400m	900m
Max Range RE140/160	1,100m	1,100m	600m	-	1,100m
Max Range RC400 Remote	-	-	200m	200m	-
Operating Time (Alkaline)	60 hours	60 hours	60 hours	60 hours	60 hours
Operating Time (Li-Ion)	40 hours	40 hours	40 hours	40 hours	40 hours
Protection class	IP67	IP67	IP67	IP67	IP67
Operating temperature	-10° to +50°C	-10° to +50°C	-10° to +50°C	-10° to +50°C	-10° to +50°C
