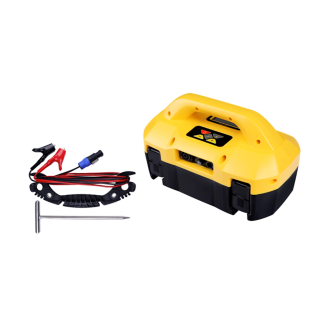

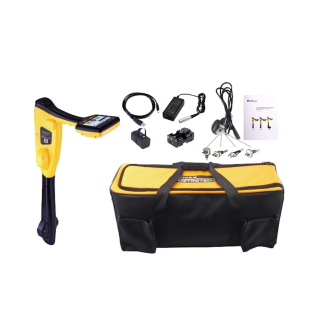

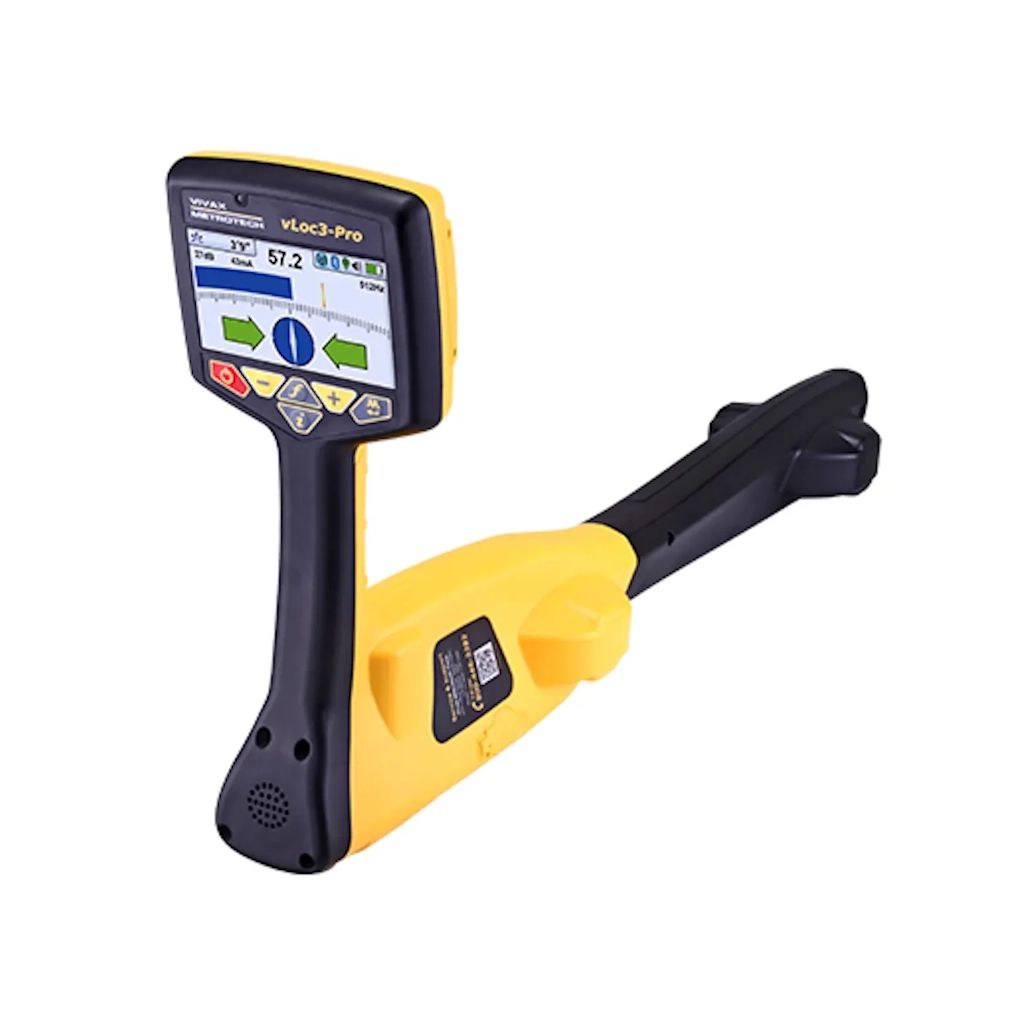

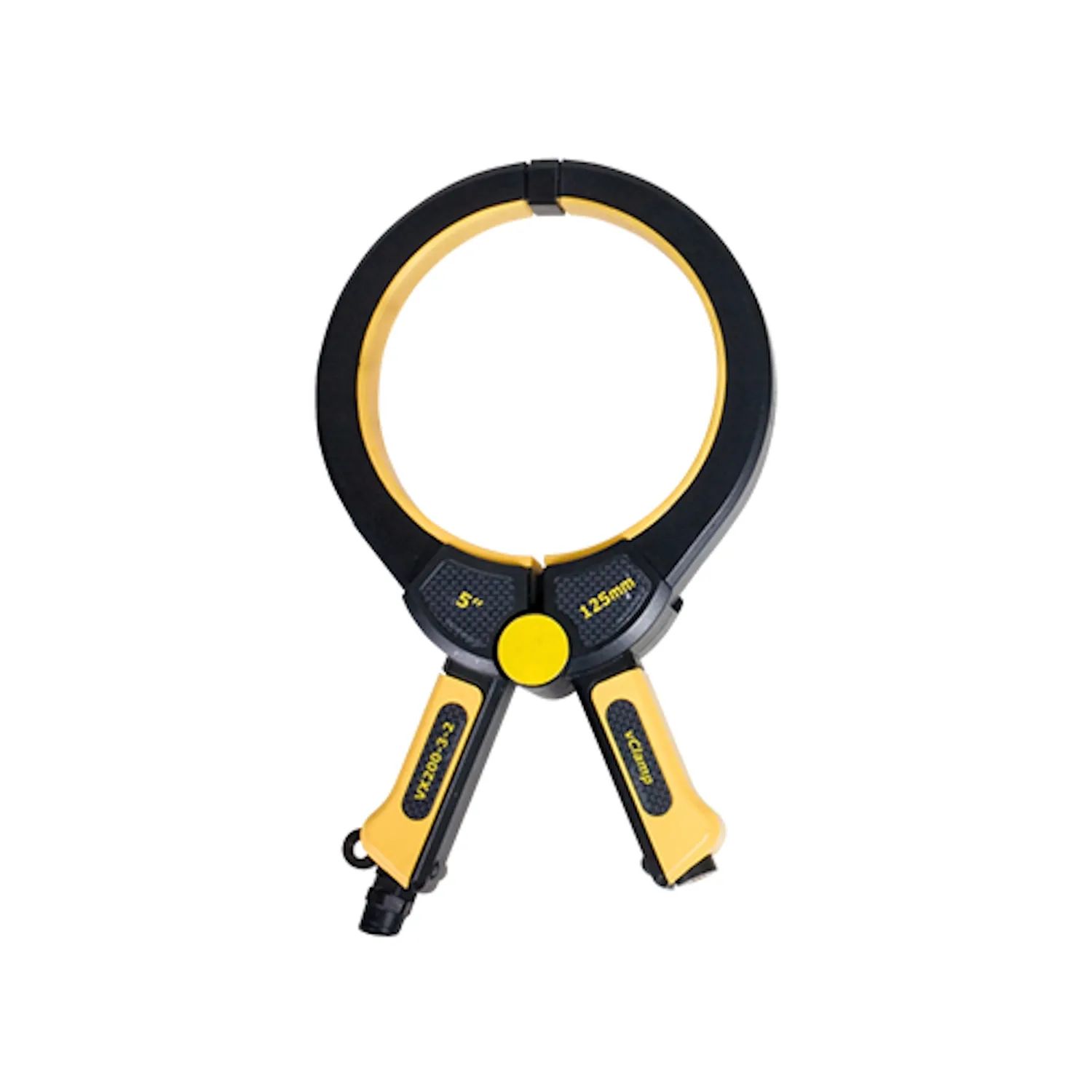

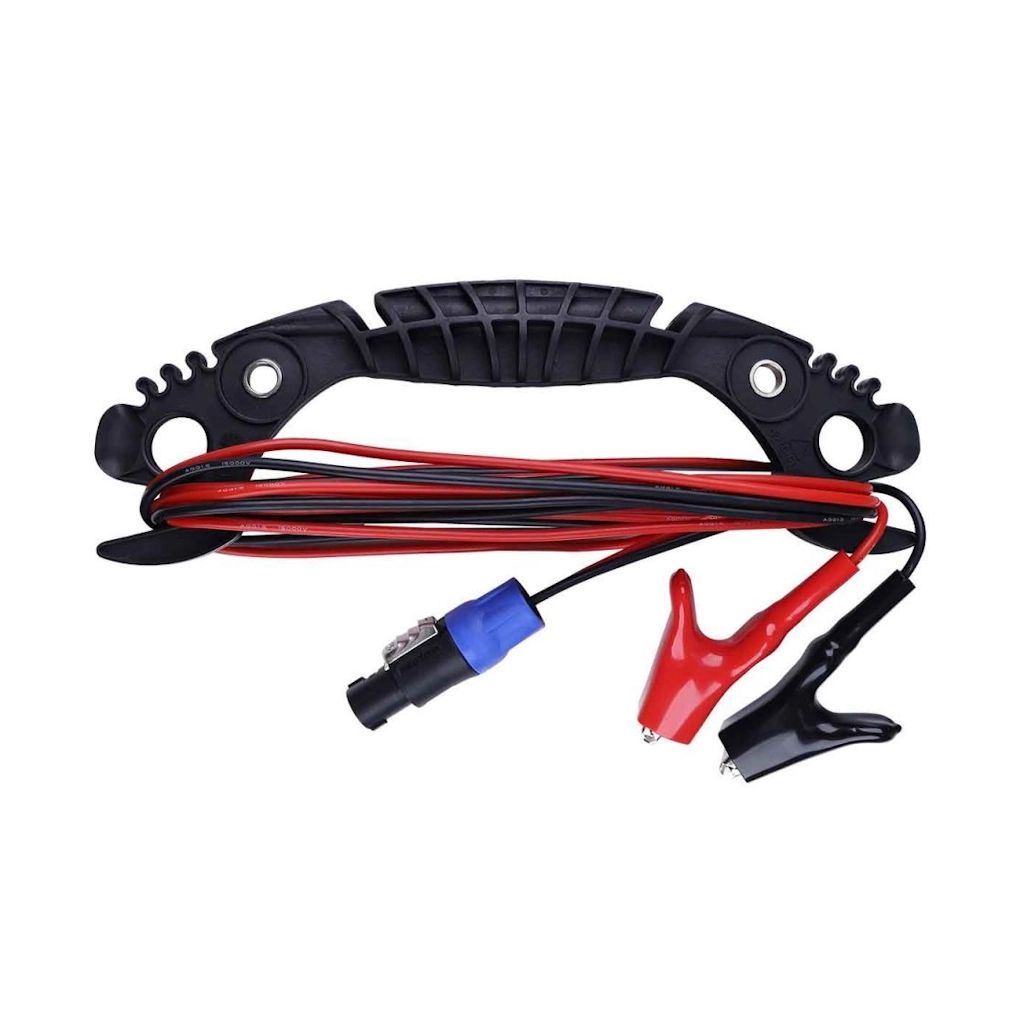

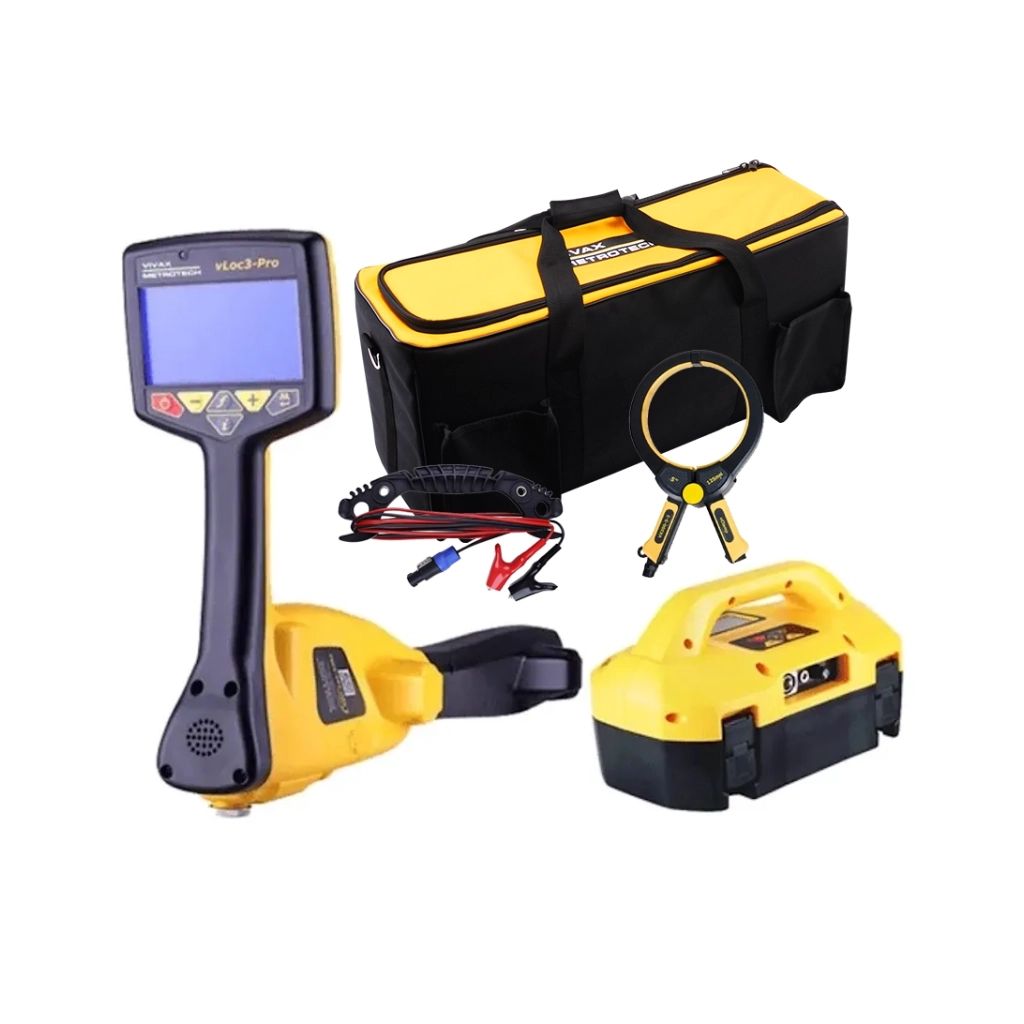

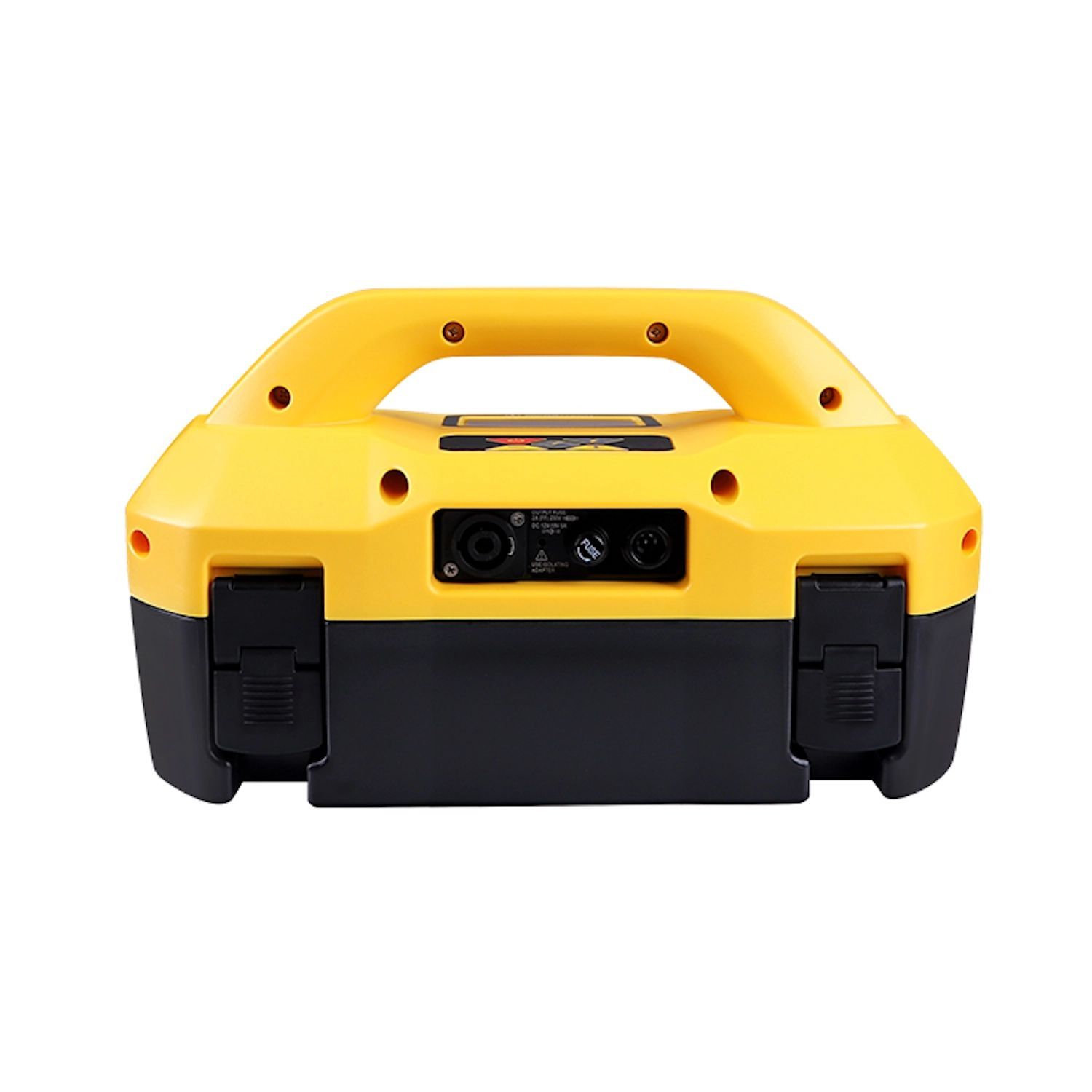

Vivax vLoc3-Pro 10-Watt Kit incl. 10-Watt Transmitter DC Leads, 5" Clamp & Kit Bag
The vLoc3-Pro utility locator introduces new innovative tools for locating buried utilities assuring damage prevention while gathering information for analysis.
- Built-in accelerometer and gyroscope providing continuous correction of depth
- Vibration motor in handle provides user feedback during alerts & warnings
- Weighs only 4.6 lbs. (2.1kg)
- VMMAP App for mapping utilities (FREE for iOS & Android download)
- Built-In locate data logging (stores 50 Million records)
- Ultra Fast Multi-Core processor engine for fast, reliable, and accurate results
- Multiple Locating & Antenna modes
- Directional Sonde mode (512Hz/640Hz/8kHz/33kHz)
- Line Orientation Compass (360 degrees)
- Fault-Find mode ready (requires optional accessory)

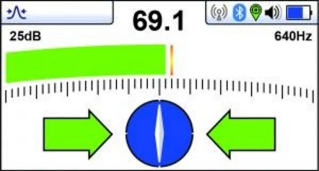

Classic Mode
Unique in all display modes are the colour codes which give the level of distortion and confidence level. The Classic Screen has all the functions normally seen on a classic cable locator

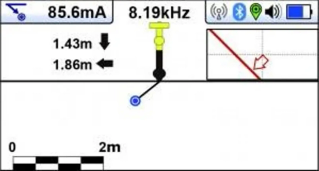

Vector Mode
This view is the Vector screen which is a side view, or cross section view. The inset view is the top pan view. Combined the user has a true 3D view. Vector mode allows to measure utilities from a location which is offset. This would potentially allow to detect a utility that is located on a busy road from the safe location of a sidewalk.

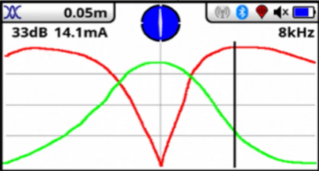

Transverse Mode
The Transverse Plot screen is used to analyse the field shape at a particular location. This enables the user to get a better feel for the reliability of the data gathered. Two plots are generated simultaneously.

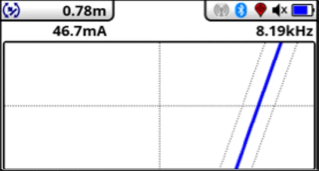

Plan Mode
The Plan View screen shows a picture as if you were viewing the line from above the ground. When the blue line in the centre and pointing forward/back you are directly over the line and pointing in the direction of the line. Red, blue and green colour of the line show the level of distortion and confidence level.

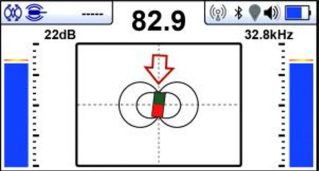

Sonde Locating Mode
The Sonde give a different “Peak” pattern and there are three distinct peaks – a small peak – a large peal - a small peak with two “Nulls” between the peaks. The Sonde is located under the centre of the “large peak”
| Software | |
|---|---|
| VIVAXVLOC3KIT10W.tag.software.zip - Software | Quick Start |
| VIVAXVLOC3KIT10W - Quick Start | Brochures |
| VIVAXVLOC3KIT10W - Brochure | Product Manuals |
| Vivax vLoc3-Pro 10-Watt Kit incl. 10-Watt Transmitter DC Leads, 5" Clamp & Kit Bag - Product Manual | Specifications |
| Vivax vLoc3-Pro 10-Watt Kit incl. 10-Watt Transmitter DC Leads, 5" Clamp & Kit Bag - Specifications |
Vivax has developed an online learning platform for a wide range of products, to further educate customers to maximise the functionality of their instruments.
Our products have many excellent features which all contribute to increasing efficiency on site and the training documents assists you to gain the most value from your products.
Locator Training - vLoc3-ProThe Theory of Pipe and Cable Locating
