Rothbucher RSMP390-C Cicular Rotating Mini Prism 25.4mm-Copper Coating Magnetic

Loading
  • Rothbucher RSMP390-C Cicular Rotating Mini Prism 25.4mm-Copper Coating Magnetic
  • Rothbucher RSMP390-C Cicular Rotating Mini Prism 25.4mm-Copper Coating Magnetic
  • Rothbucher RSMP390-C Cicular Rotating Mini Prism 25.4mm-Copper Coating Magnetic
  • Rothbucher RSMP390-C Cicular Rotating Mini Prism 25.4mm-Copper Coating Magnetic
  • Rothbucher RSMP390-C Cicular Rotating Mini Prism 25.4mm-Copper Coating Magnetic
$165.00 ETA: 24/11/2024

  • Twistable, extensible 25.4 mm mini-prism made with a rugged plastic housing system
  • Offset -16.9 mm (Leica +17.5 mm)
  • Height of tilting axis: 45 mm
  • Accuracy is 5 arc sec (+/-2 arc sec)
  • Features magnetic base plate for easy installation on steel structures
  • Prism Type: copper coated

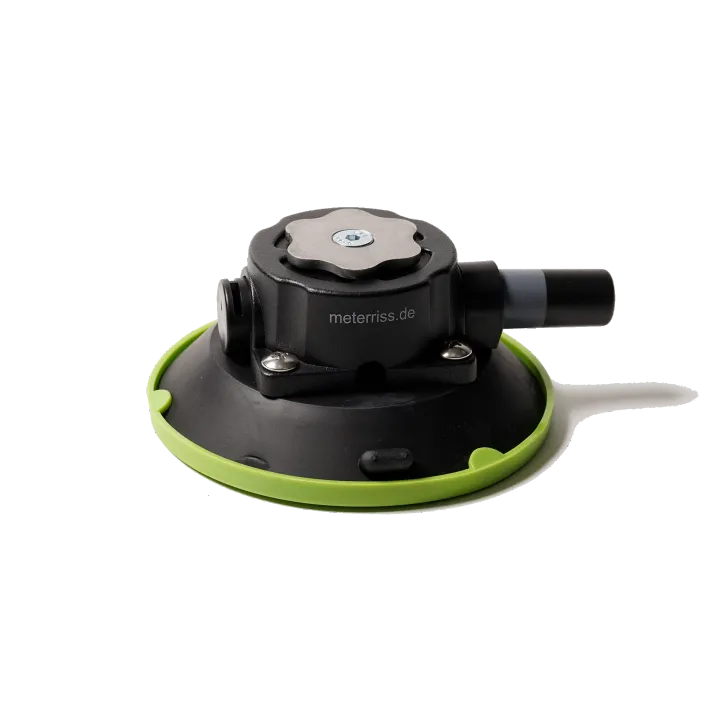

  • Compatible with Rothbucher RSSv-X90 suchtion cup.

Rothbucher's RSMP390 tilting mini prism with magnetic base can easily be attached. with dowels and screws, even on difficult bases, such as glass and marble facades, historic buildings, steel beams, rails, gas and oil pipelines, etc.

  • Twistable, extensible 25.4 mm mini-prism made with a rugged plastic housing system
  • Offset -16.9 mm (Leica +17.5 mm)
  • Height of tilting axis: 45 mm
  • Accuracy is 5 arc sec (+/-2 arc sec)
  • Features magnetic base plate for easy installation on steel structures
  • Prism Type: copper coated
When using tachometers and robotic total stations
  • the prism can always be aligned accurately with the measuring instrument
  • the prism can be turned in a radius of 360°, making it possible to use the same survey point from different directions
  • bridges, facades, and many other structures can be monitored even more quickly and precisely
  • several prisms can be combined with one another due to the integrated connector system, making it possible to survey from different directions without having to turn the prism
When using robotic total stations
  • permanent setting measurements can be carried out during the building work
  • settling measurements are possible on railway tracks while under the load of rail traffic
  • ATR mode ranges of 500 m to 700 m can be achieved*

*NOTE: The ranges are dependent on the type of instrument used and are affected by the weather and environmental conditions. When sighting measuring points that are already known, with robotic stations it is possible to achieve ranges of up to 1000 m. Depending on the focus, ranges of approx. 200 m are achieved for the measurements in manual mode.

Related Categories Prisms RS Survey Targets

Brand: Rothbucher Systems | Code: RSMP390RM-C
APN: 9319499281915 | Supplier Code: RSMP390-C

Brand: Rothbucher Systems | Code: RSMP390RM-C
APN: 9319499281915 | Supplier Code: RSMP390-C

At a glance

  • Twistable, extensible 25.4 mm mini-prism made with a rugged plastic housing system
  • Offset -16.9 mm (Leica +17.5 mm)
  • Height of tilting axis: 45 mm
  • Accuracy is 5 arc sec (+/-2 arc sec)
  • Features magnetic base plate for easy installation on steel structures
  • Prism Type: copper coated
  • Compatible with Rothbucher RSSv-X90 suchtion cup.
