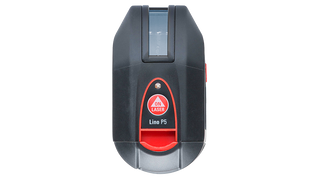

Leica Lino P5-1 5-Point Laser Level
- High precision 5-point laser level.

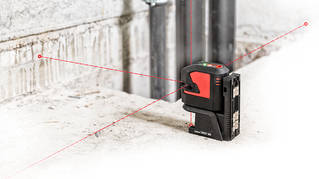

ONE BUTTON OPERATIONThe Leica Lino P5 point laser is very easy to use. At the push of a button, it accurately projects five reference points at exact right angles to one another.
|
|
|

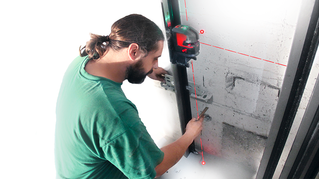

QUICK POSITIONINGMagnetic smart adapters allow you to quickly attach your Leica Lino P5 to edges, profiles, iron pipes, tracks or bars, allowing you to complete your job faster.
|
SELF-LEVELLINGThe Leica Lino P5 automatically adjusts its positioning if it is slightly out of level to ensure the correct transfer of angles and reference points up to ± 4°. Flashing laser points mean that the tilt is outside this limit.
|
|
|

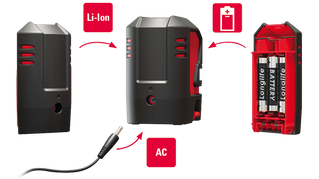

TRIPLE POWER CONCEPTThe Leica Lino P5 laser has a triple power concept. It comes with Alkaline batteries but it can be operated with the addition of a Li-Ion battery pack, too.
|
RUGGED DESIGNThe Leica Lino P5 is dust and spray water protected to IP54 standards. This makes it a tough instrument suitable for all your jobs.
|
|
||||||||||||||||||||||||||||||||||||||||
| Range | 30 m |
| Levelling accuracy | ± 0.2 mm/m |
| Self-levelling range | ± 4° |
| # of laser dots | 5 |
| Beam direction | up, down, forward, right, left |
| Dot accuracy | ± 0.2 mm/m |
| Laser type | 635 nm/class 2 |
| Battery type | AA 3 x 1.5V |
| Operating time** | up to 37 h (AA) |
| Protection class | IP54 |
| Dimensions | 110 x 60 x 100 mm |
| Weight with batteries | 530 g |
| Tripod thread |
1/4" |

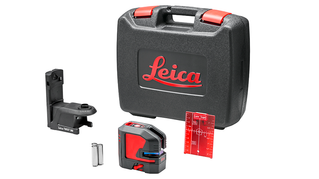

| Scope of delivery | Leica Lino P5, TWIST 360, Alkaline battery tray, batteries, target plate, hard case |
| Product Manuals | |
|---|---|
| Leica Lino P5-1 5-Point Laser Level - Product Manual |
- Leica Lino P5
- Quick start guide
- Rugged case
- 3 AA batteries
- Laser target
- TWIST 360 magnetic multi functional adapter
- Safety instructions
- Calibration certificate
- Warranty card
Brand: Leica Geosystems |
Code: LG864427
APN: 7640110697566 |
Supplier Code: 864427
Brand: Leica Geosystems |
Code: LG864427
APN: 7640110697566 |
Supplier Code: 864427
At a glance
- High precision 5-point laser level.
ONE BUTTON OPERATIONThe Leica Lino P5 point laser is very easy to use. At the push of a button, it accurately projects five reference points at exact right angles to one another.
|
|
|
|
QUICK POSITIONINGMagnetic smart adapters allow you to quickly attach your Leica Lino P5 to edges, profiles, iron pipes, tracks or bars, allowing you to complete your job faster.
|
SELF-LEVELLINGThe Leica Lino P5 automatically adjusts its positioning if it is slightly out of level to ensure the correct transfer of angles and reference points up to ± 4°. Flashing laser points mean that the tilt is outside this limit.
|
|
|
|
TRIPLE POWER CONCEPTThe Leica Lino P5 laser has a triple power concept. It comes with Alkaline batteries but it can be operated with the addition of a Li-Ion battery pack, too.
|
RUGGED DESIGNThe Leica Lino P5 is dust and spray water protected to IP54 standards. This makes it a tough instrument suitable for all your jobs.
|
|
