Leica Lino L2G-1 Green Beam Laser Level
LEICA LINO L2G-1 Green laser technology, visibility on a new level

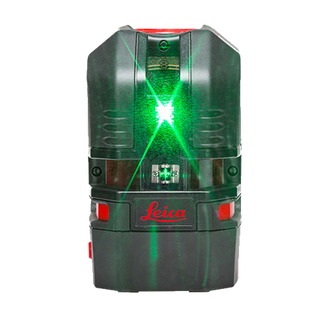

GREEN LASER VISIBILITY
Leica’s latest green laser technology brings laser line visibility and clarity to the highest level. Green reference lines are easily seen in difficult lighting conditions and over long distances.

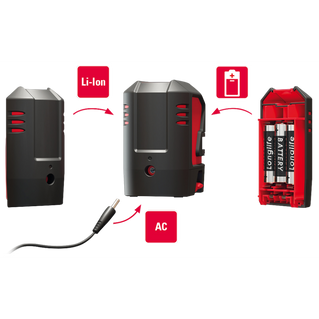

TRIPLE POWER CONCEPT
The Leica Lino L2G’s triple power concept ensures an uninterrupted workflow. You can power your laser by using rechargeable Li-Ion batteries for up to 28 hours on one charge. Alternatively, you can use Alkaline batteries or simply its charger.
CONSTRUCTION SITE PROOF
The Leica Lino L2G is dust and spray water protected to IP 54 standards and comes in a hard case allowing you to store all accessories safely.
ALWAYS LEVEL
The Leica Lino L2G is a self-levelling laser. It automatically corrects its positioning when out of level up to ± 4°. The laser beams flash if the tilt is outside this range to prevent errors.

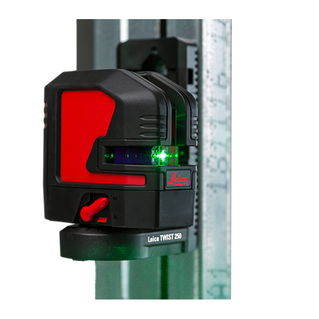

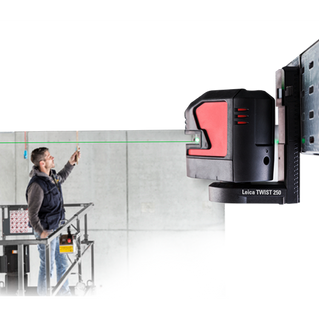

MAGNETIC SMART ADAPTERS
Magnetic smart adapters allow you to quickly position your Lino L2G with absolute precision. You can set up the rotatable adapter over edges and profiles, or attach it to iron pipes, tracks and bars with the addition of the UAL 130 adapter.
|
Range |
up to 35 m depending on lighting conditions |
|
Range with laser receiver |
up to 80 m depending on lighting conditions |
|
Levelling accuracy |
± 0.2 mm / m |
|
Self-levelling range |
± 4 ° |
|
Self-levelling time |
< 3 s |
|
Number of laser lines |
2 |
|
Beam direction |
vertical, horizontal |
|
Laser line width at 5m |
< 2 mm |
|
Laser type |
525 nm / class 2 (green) |
|
Battery type |
Li-Ion rechargeable (or AA 3 x 1.5 V) |
|
Operating time |
up to 28 h (Li-Ion) depending on laser mode |
|
Temperature range storage |
-25 to 70°C (-13 to 158°F) |
|
Temperature range operation |
-10 to 50°C (14 to 122°F) |
|
Protection class |
IP 54 |
|
Dimensions |
110 x 60 x 100 mm |
|
Weight with batteries |
530 g |
|
Tripod thread Lino |
1/4" |
|
Tripod thread adapter |
1/4" + 5/8" |
|
Art. No. |
864420 |
|
EAN / UPC |
7640110697535 |
|
Range |
up to 35 m depending on lighting conditions |
|
Range with laser receiver |
up to 80 m depending on lighting conditions |
|
Levelling accuracy |
± 0.2 mm / m |
|
Self-levelling range |
± 4 ° |
|
Self-levelling time |
< 3 s |
| Product Manuals | |
|---|---|
| Leica Lino L2G-1 Green Beam Laser Level - Product Manual |
Brand: Leica Geosystems |
Code: LG864420
APN: 7640110697535 |
Supplier Code: 864420
Brand: Leica Geosystems |
Code: LG864420
APN: 7640110697535 |
Supplier Code: 864420
At a glance
LEICA LINO L2G-1 Green laser technology, visibility on a new level
GREEN LASER VISIBILITYLeica’s latest green laser technology brings laser line visibility and clarity to the highest level. Green reference lines are easily seen in difficult lighting conditions and over long distances. |
|
|
|
TRIPLE POWER CONCEPTThe Leica Lino L2G’s triple power concept ensures an uninterrupted workflow. You can power your laser by using rechargeable Li-Ion batteries for up to 28 hours on one charge. Alternatively, you can use Alkaline batteries or simply its charger. |
CONSTRUCTION SITE PROOFThe Leica Lino L2G is dust and spray water protected to IP 54 standards and comes in a hard case allowing you to store all accessories safely. |
|
|
|
ALWAYS LEVELThe Leica Lino L2G is a self-levelling laser. It automatically corrects its positioning when out of level up to ± 4°. The laser beams flash if the tilt is outside this range to prevent errors. |
MAGNETIC SMART ADAPTERSMagnetic smart adapters allow you to quickly position your Lino L2G with absolute precision. You can set up the rotatable adapter over edges and profiles, or attach it to iron pipes, tracks and bars with the addition of the UAL 130 adapter. |
|
