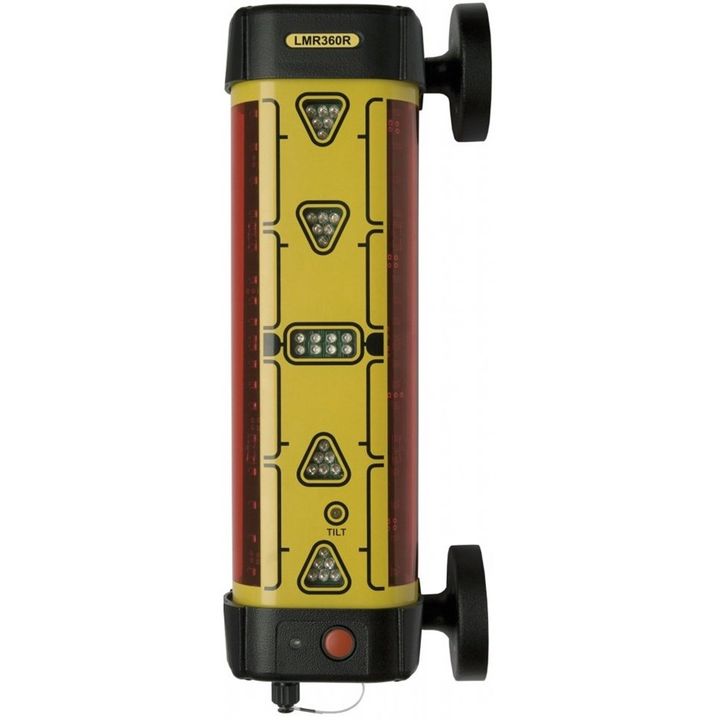

Leica LMR360R Receiver with Clamps
- Accurate grade control for all visual machine control applications.
- Large 360° detection window picks up any rotating laser any angle.
- Built-in vertical indicator monitors angle of the stick, signaling if it‘s plumb or under- or overextended.
- Vertical position ensures consistent and accurate grade readings
- Reduce costs by reducing over or under-cutting.
- Waterproof and rugged build
- Easy mounting with screw on clamps.

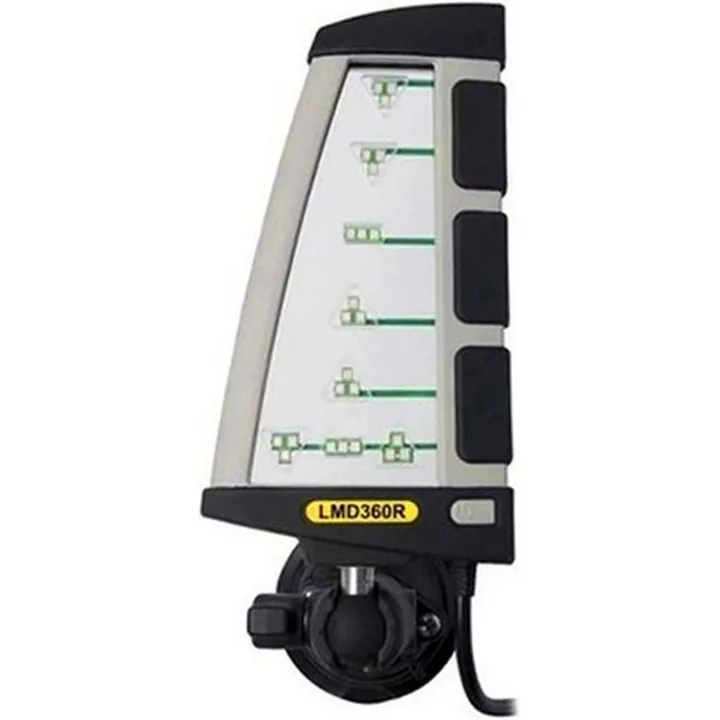

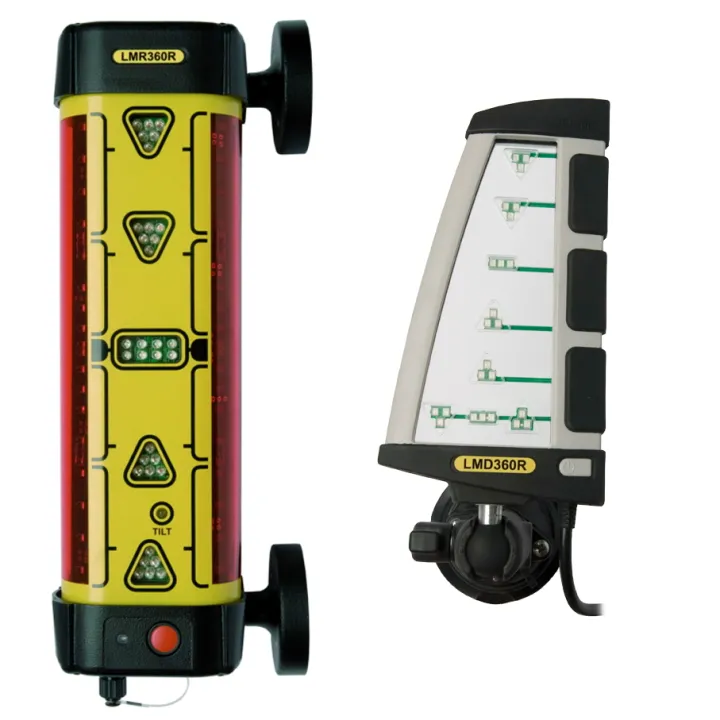

- Compatible with Leica LMD360R Remote Display
The LMR 360 offers accurate grade information for all visual machine control applications. Large 360° detection window picks up any rotating laser, from any angle. Built-in vertical indicator monitors angle of the stick, signaling if it‘s plumb or under- or overextended. Vertical position ensures consistent and accurate grade readings, saving money by reducing over- or under-cutting.
- Accurate grade control
- Built-in vertical indicator
- Waterproof
| Range Radius | 400 m |
| Reception | 360° |
| Capture Window | 25 cm |
| Accuracy (fine) | 6 mm |
| Accuracy (coarse) | 12 mm |
| Protection class (splash water/dust proof) | IP 67 |
| Battery type/hours | NiMH / 30 |
| Weight | 1.8 kg |
| Mounting | Magnetic / Clamps |
| Remote Display | YES |
| Remote Range | 30 m |
Brand: Leica Geosystems |
Code: LG773556
APN: 7640110692943 |
Supplier Code: 773556
Brand: Leica Geosystems |
Code: LG773556
APN: 7640110692943 |
Supplier Code: 773556
At a glance
- Accurate grade control for all visual machine control applications.
- Large 360° detection window picks up any rotating laser any angle.
- Built-in vertical indicator monitors angle of the stick, signaling if it‘s plumb or under- or overextended.
- Vertical position ensures consistent and accurate grade readings
- Reduce costs by reducing over or under-cutting.
- Waterproof and rugged build
- Easy mounting with screw on clamps.
- Compatible with Leica LMD360R Remote Display
| Range Radius | 400 m |
| Reception | 360° |
| Capture Window | 25 cm |
| Accuracy (fine) | 6 mm |
| Accuracy (coarse) | 12 mm |
| Protection class (splash water/dust proof) | IP 67 |
| Battery type/hours | NiMH / 30 |
| Weight | 1.8 kg |
| Mounting | Magnetic / Clamps |
| Remote Display | YES |
| Remote Range | 30 m |
