CHCNAV Alpha Uni 20
- Measures up to 2,000,000 points per second.
- Up to 16 returns per pulse.
- Integrated industrial-grade full-frame orthophoto camera.
- Weighs just 2.82kg.
- IP64 weather rating.

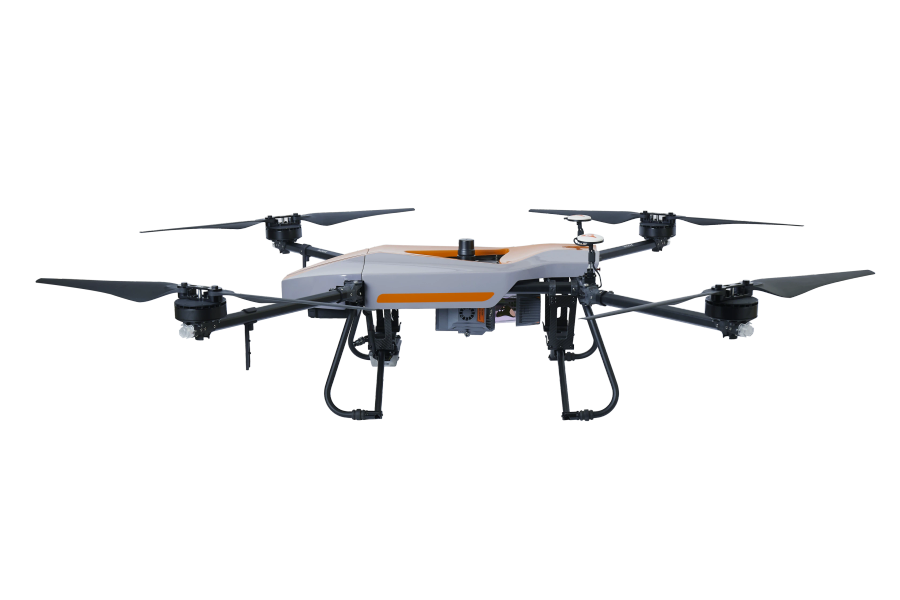

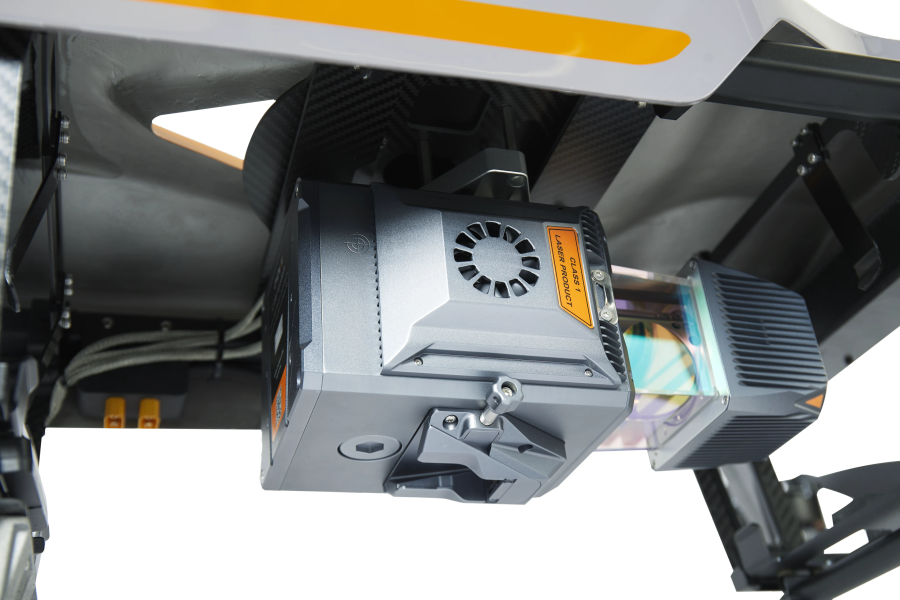

- Easily mount on drones (such as DJI Matrice 300 / 350 RTK), or land vehicles.
- Multi-platform, quickly install & release design, easily switch between applications
OUTSTANDING ACCURACY
The AU20 (or Alphauni 20) incorporates CHCNAV's high-precision navigation algorithm, the result of more than two decades of research. Combined with the scanner's remarkable 5 mm repeated ranging accuracy, the system achieves exceptional absolute accuracy of 2 to 5 cm, even in the most difficult and demanding environments.
EFFICIENT WORKFLOW
CHCNAV offers a complete solution for adding LiDAR surveying to users' geomatics services. Fully automated reality capture and real-time mission monitoring is provided by SmartGo software and intelligent point cloud processing by CoPre desktop software.
ENHANCED VEGETATION PENETRATION
With its advanced multi-target capability, the AU20 supports up to 16 target echoes for superior vegetation penetration ability. Capturing ground surfaces and generating accurate Digital Elevation Models (DEMs) and Digital Surface Models (DSMs) is made easy, even in difficult environments with dense vegetation.
LIGHT-WEIGHT

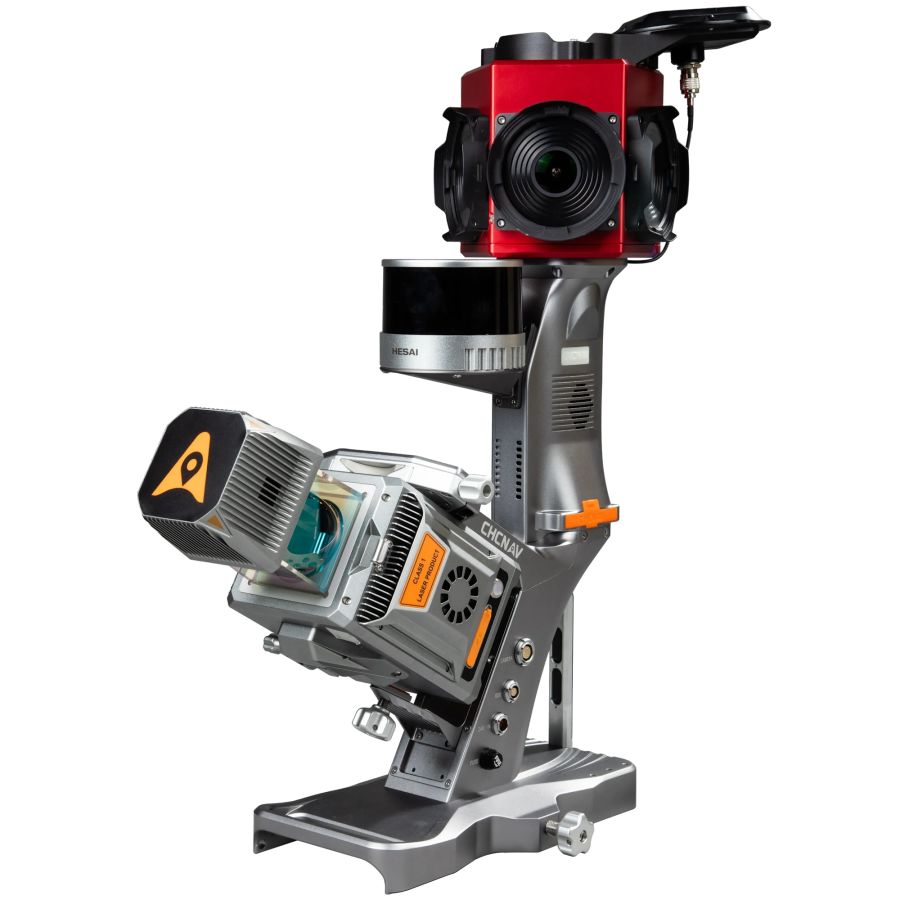

The AU20 LiDAR system is incredibly light and compact, weighing only 2.82 kg. Combined with the latest car mount kit, which includes a Ladybug5+, the total weight is only 10.7 kg.
MULTI-PLATFORM DESIGN

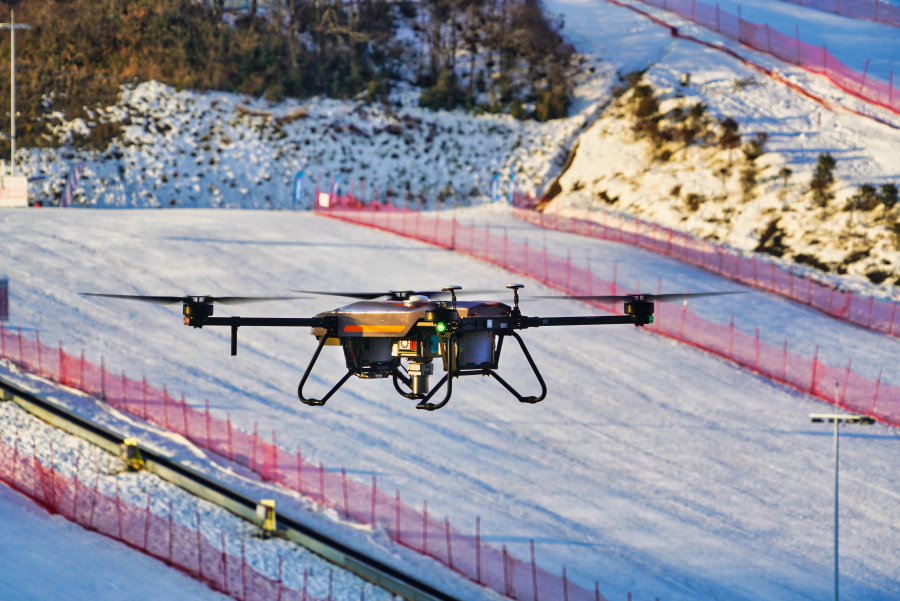

The AU20 follows CHCNAV's proven flexible multi-platform LiDAR design concept. It can be mounted on manned and unmanned aircraft for airborne scanning and on a variety of land vehicles such as cars, boats and trains for LIDAR mapping. It can also be conveniently mounted on a backpack for narrow area mapping.
| GENERAL | |
|---|---|
| Absolute Hz and V accuracy | 2 cm ~ 5 cm RMS |
| Mounting | Quickly install & release design, easily switch between various platforms |
| Weight of instrument | 2.82kg / 3.12kg (with C5 Camera) |
| Dimensions of instrument | 262.3 mm x 141.5 mm x 161 mm |
| Data storage | 512 GB |
| Coping speed | 80 Mb/s | POSITIONING |
| GNSS system | Multiple GPS GLONASS BEIDOU SBAS QZSS constellation GALILEO |
| IMU update rate | 600 Hz |
| Attitude accuracy after post-processing |
0.005° RMS pitch/roll 0.010° RMS heading |
| Position accuracy after post-processing |
0.010 m RMS horizontal 0.020 m RMS vertical |
IMAGING SYSTEM |
| Resolution | 45 MP |
| Focal length | 21mm |
| Sensor size | 36 mm × 24 mm (8184 × 5460) |
| Pixel size | 4.4 μm |
| Min photoing interval | 1s |
| FOV | 81.2° × 59.5° |
| Airbourne optional Camera Setup | Calibrated Sony 7 RIV (7952 × 5304, 61 MP, 10 fps) | LASER SCANNER |
| Laser Class | Class 1 |
| Laser divergence angle | 0.032° |
| Minimum Range | 1.5m |
| Accuracy | 15 mm (1σ,@150m) 5 mm (1σ,@30m) |
| Precision | 5 mm (1σ,@150m) |
| Field of View | 360° Selectable |
| Max. Effective measurement rate | 2,000,000 meas / sec |
| Scan speed (selectable) | 10-200 scans / sec |
| Max. Number of return pulses | Up to 16 |
| Angular resolution | 0.001° |
| Max.Measuring Range@ρ> 80% | 1450m @ 100 KHz |
| Max.Operating Flight Altitude AGL @ρ>20% |
530m @ 100 KHz |
| Brochures | |
|---|---|
| ALPHAUNI20 - Brochure |

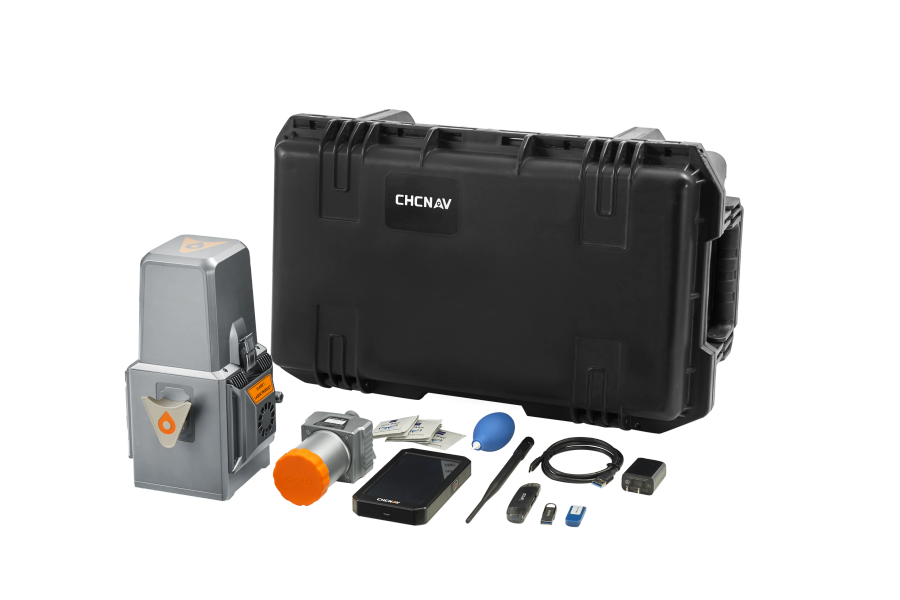

- CHCNAV Alpha Uni 20 Unit with

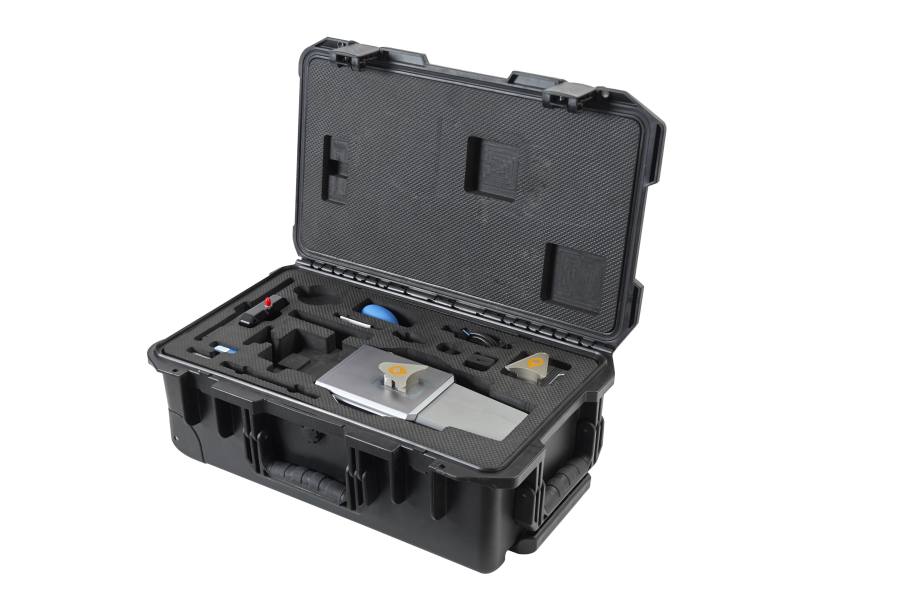

- Tranport container
- RC-8 CHC UHF remote control unit
- AU20 storage module
- U-LINK（for data copy)
- Hygrometer
- XT90 power cord (3M)
- 8 Gb USB flash disk (Installation documents and instructions)
- Silica gel desiccant packet
- Type-C to USB3.1 data copy cable (1 m)
- CoPre Standard license
- CoCapture license
- C5 camera (35mm）
- CoCapture license (UAV edition)
- CoPre license
- CoProcess license
Brand: CHCNAV |
Code: ALPHAUNI20
Supplier Code: ALPHAUNI20
Brand: CHCNAV |
Code: ALPHAUNI20
Supplier Code: ALPHAUNI20
At a glance
- Measures up to 2,000,000 points per second.
- Up to 16 returns per pulse.
- Integrated industrial-grade full-frame orthophoto camera.
- Weighs just 2.82kg.
- IP64 weather rating.
- Easily mount on drones (such as DJI Matrice 300 / 350 RTK), or land vehicles.
- Multi-platform, quickly install & release design, easily switch between applications
The AlphaUni 20 (or CHCNAV AU20) represents the next generation of cost-effective, multi-platform mapping systems. It is the result of six years of innovation and product development powered by CHCNAV's state-of-the-art LiDAR technology. In airborne scenarios, the AU20 delivers superior data and improves survey efficiency thanks to its exceptional vegetation penetration capability, extended measurement range, high accuracy, and data density.
The system provides accurate point cloud and immersive panoramic imagery optimized for a variety of applications, including road surfaces, highway maintenance, and asset management through vehicle-based surveying.
LiDAR mapping has never been more flexible than with the AU20, democratizing the reality capture industry and making it accessible to all
- CHCNAV Alpha Uni 20 Unit with
- Tranport container
- RC-8 CHC UHF remote control unit
- AU20 storage module
- U-LINK（for data copy)
- Hygrometer
- XT90 power cord (3M)
- 8 Gb USB flash disk (Installation documents and instructions)
- Silica gel desiccant packet
- Type-C to USB3.1 data copy cable (1 m)
- CoPre Standard license
- CoCapture license
- C5 camera (35mm）
- CoCapture license (UAV edition)
- CoPre license
- CoProcess license
