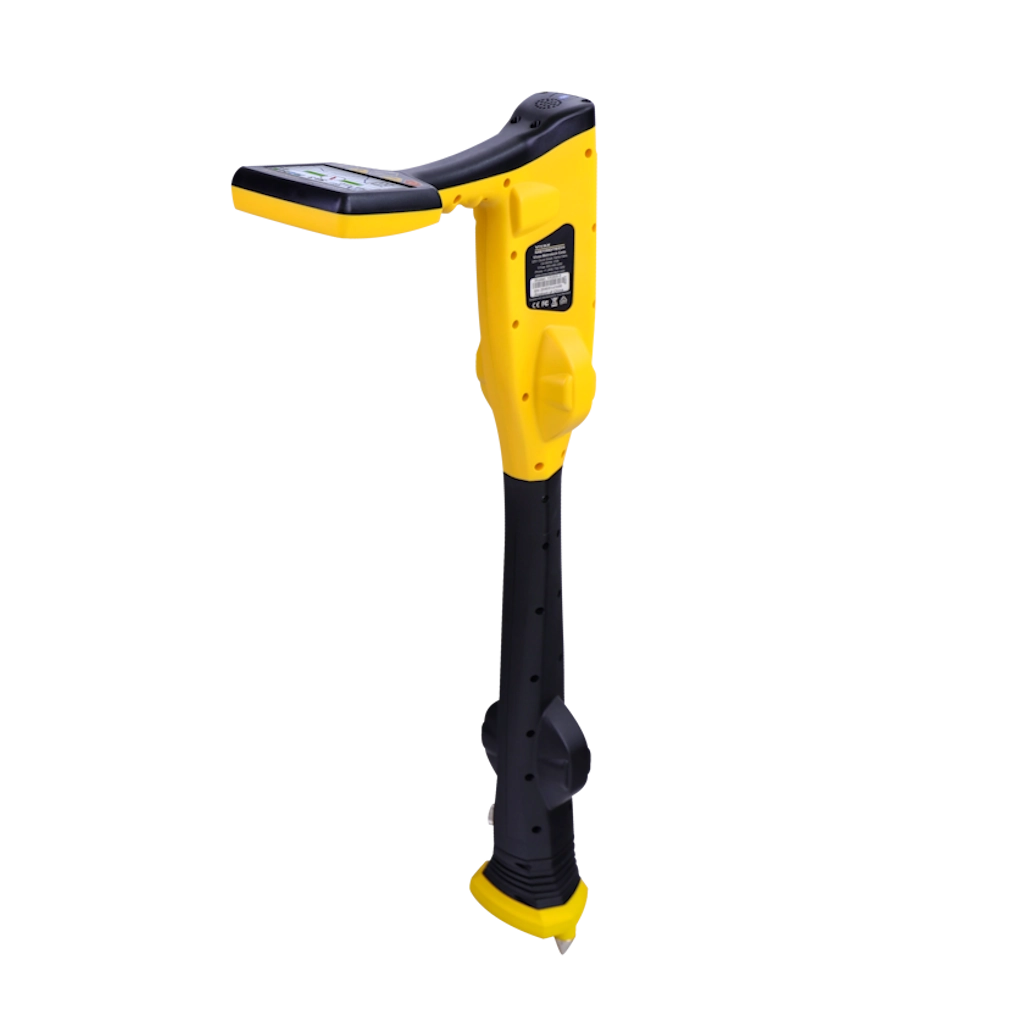

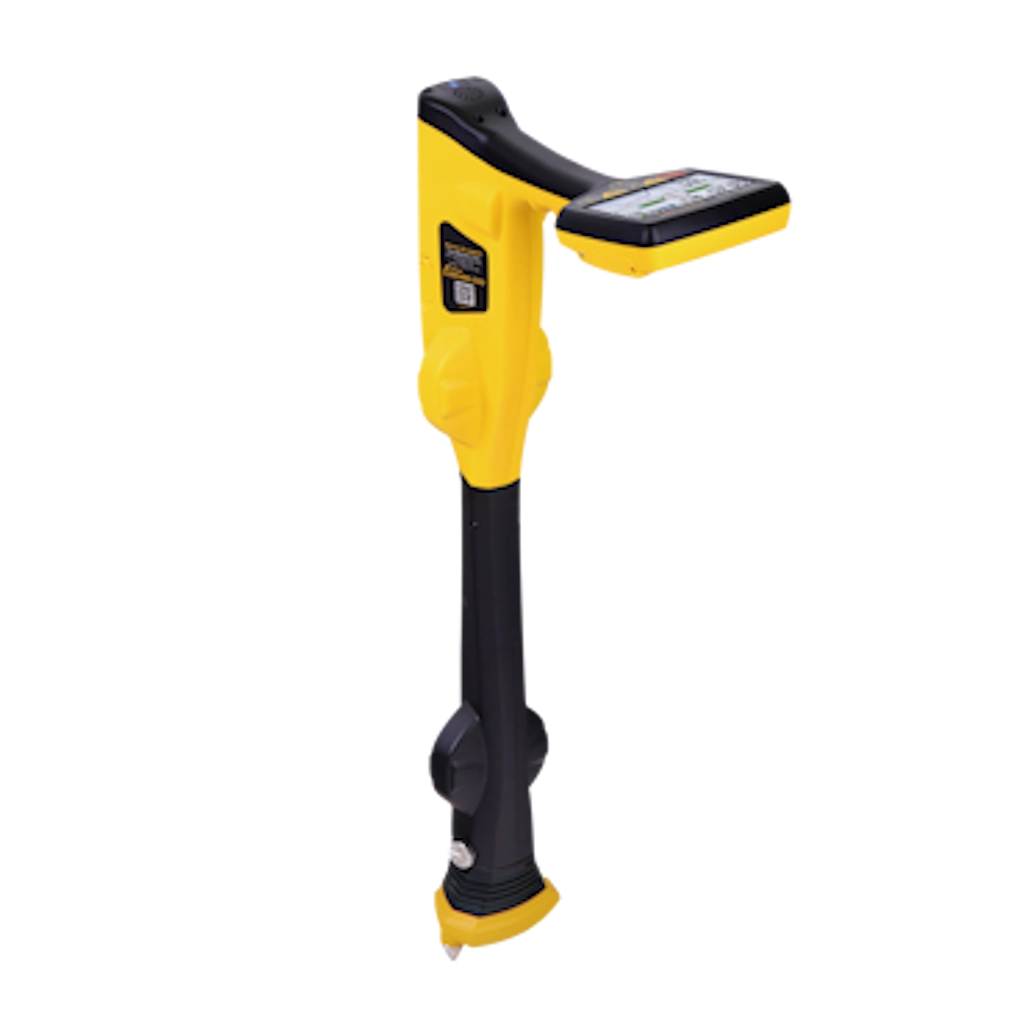

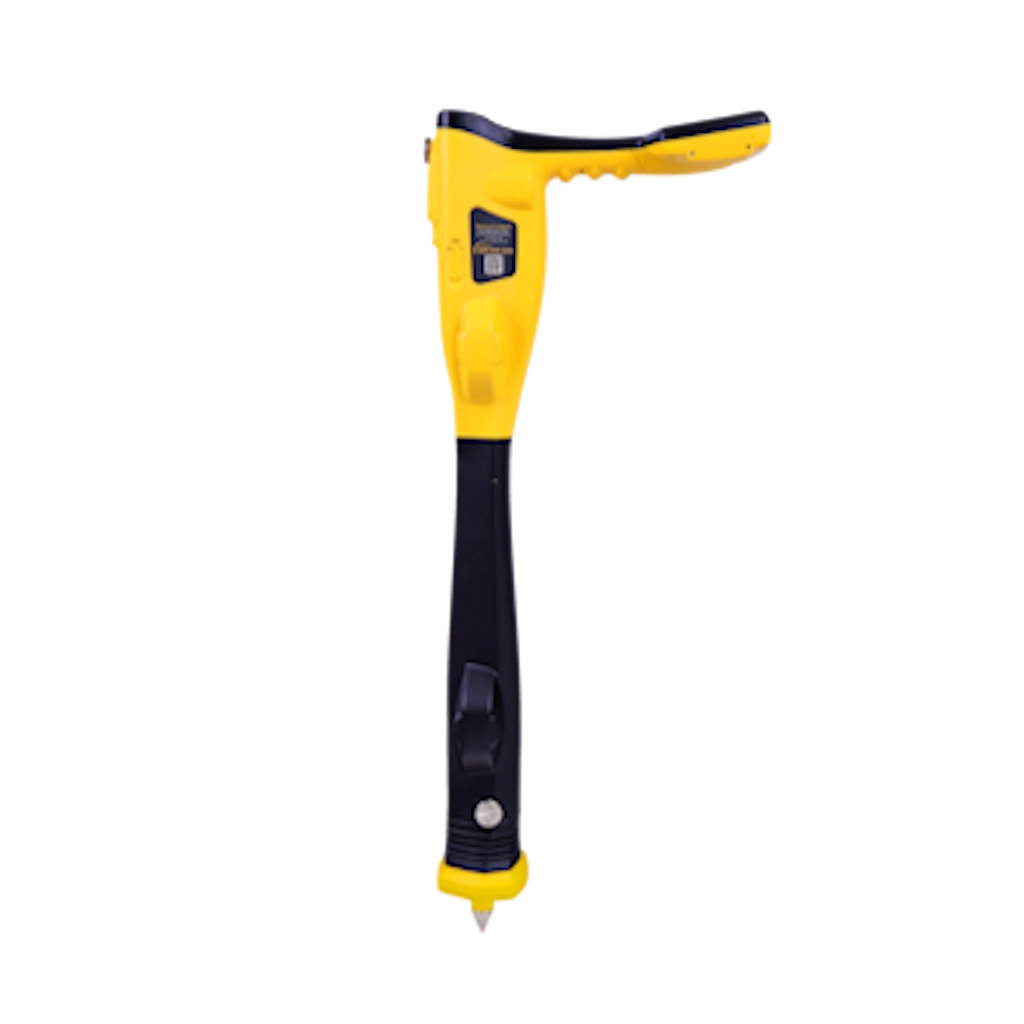

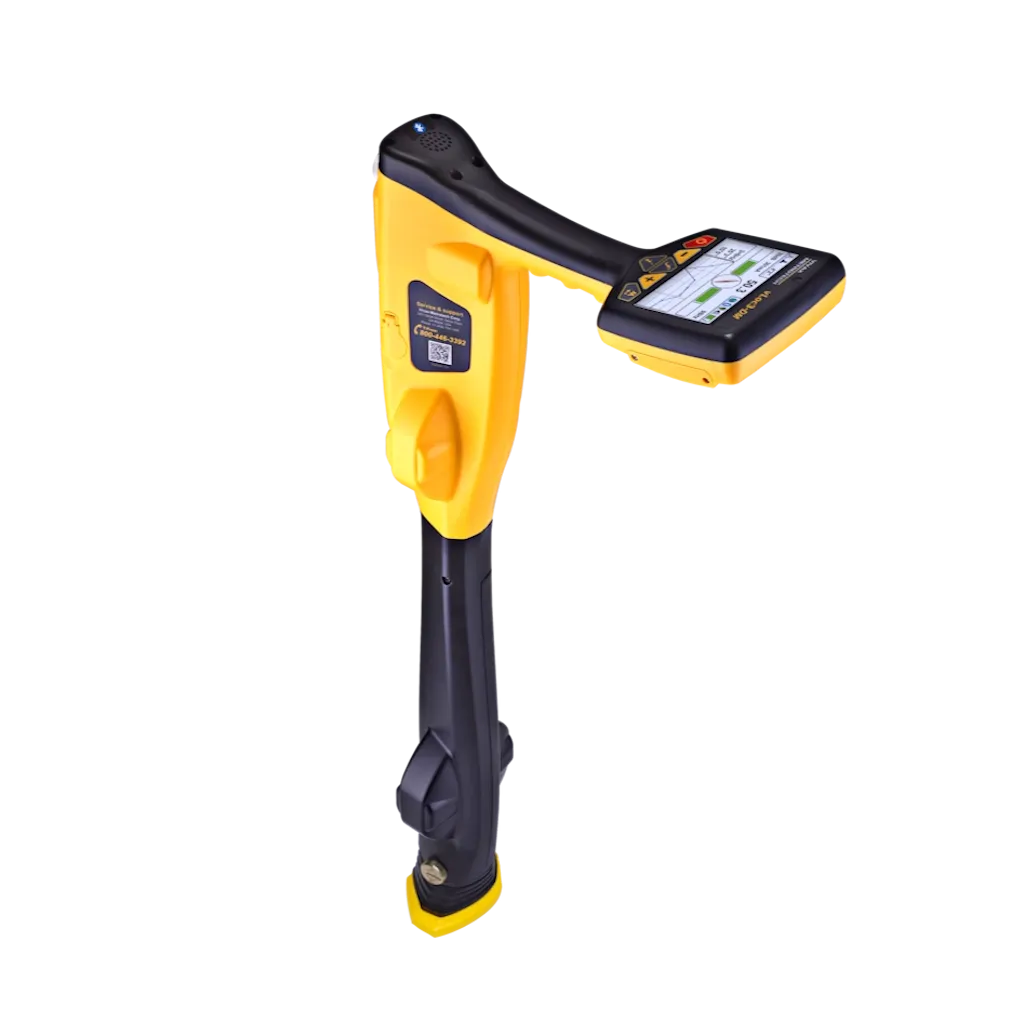

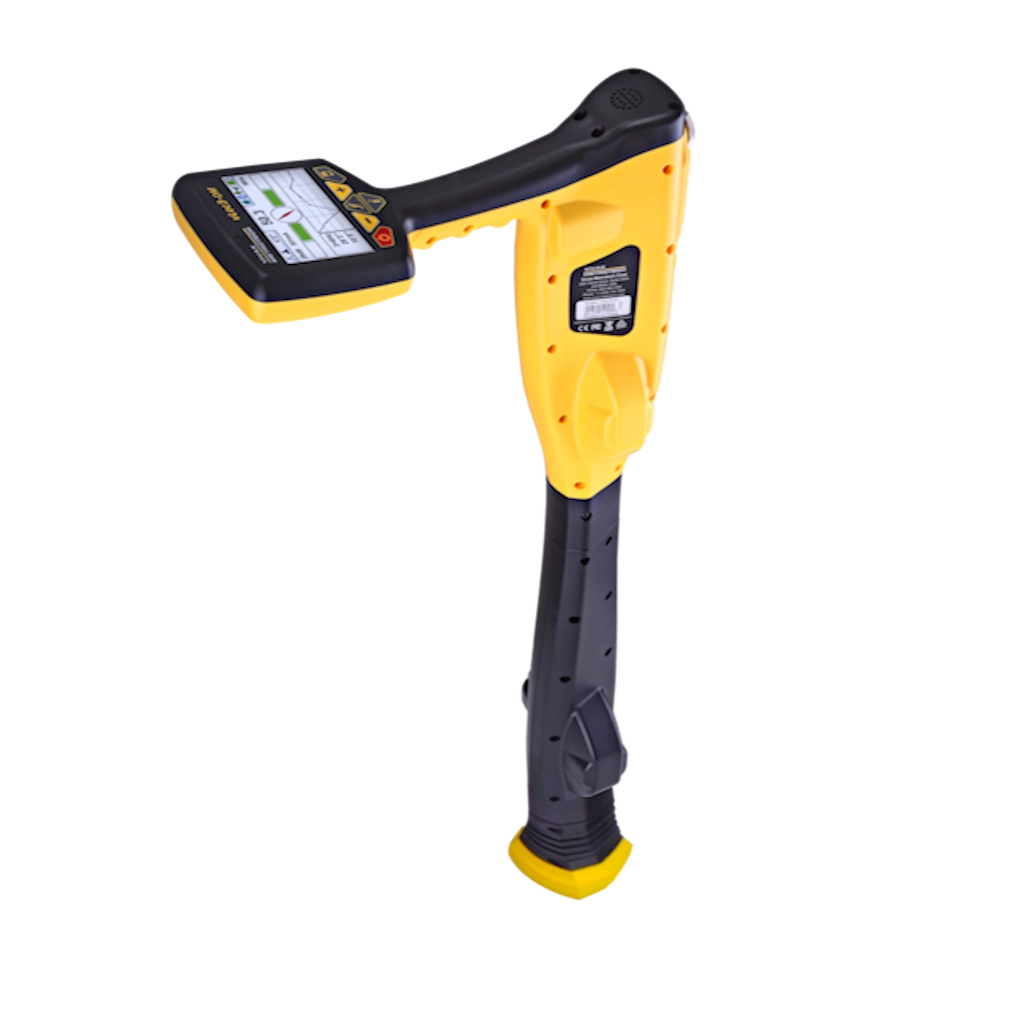

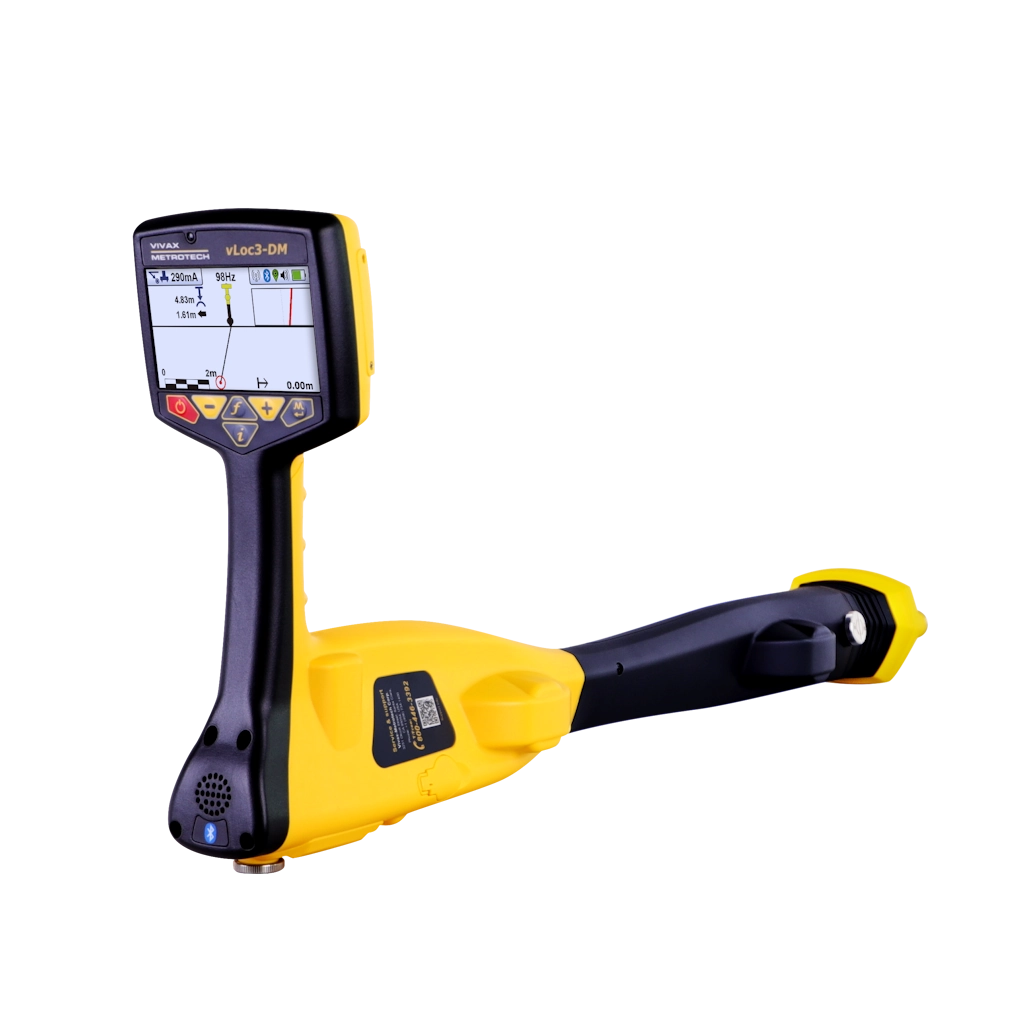

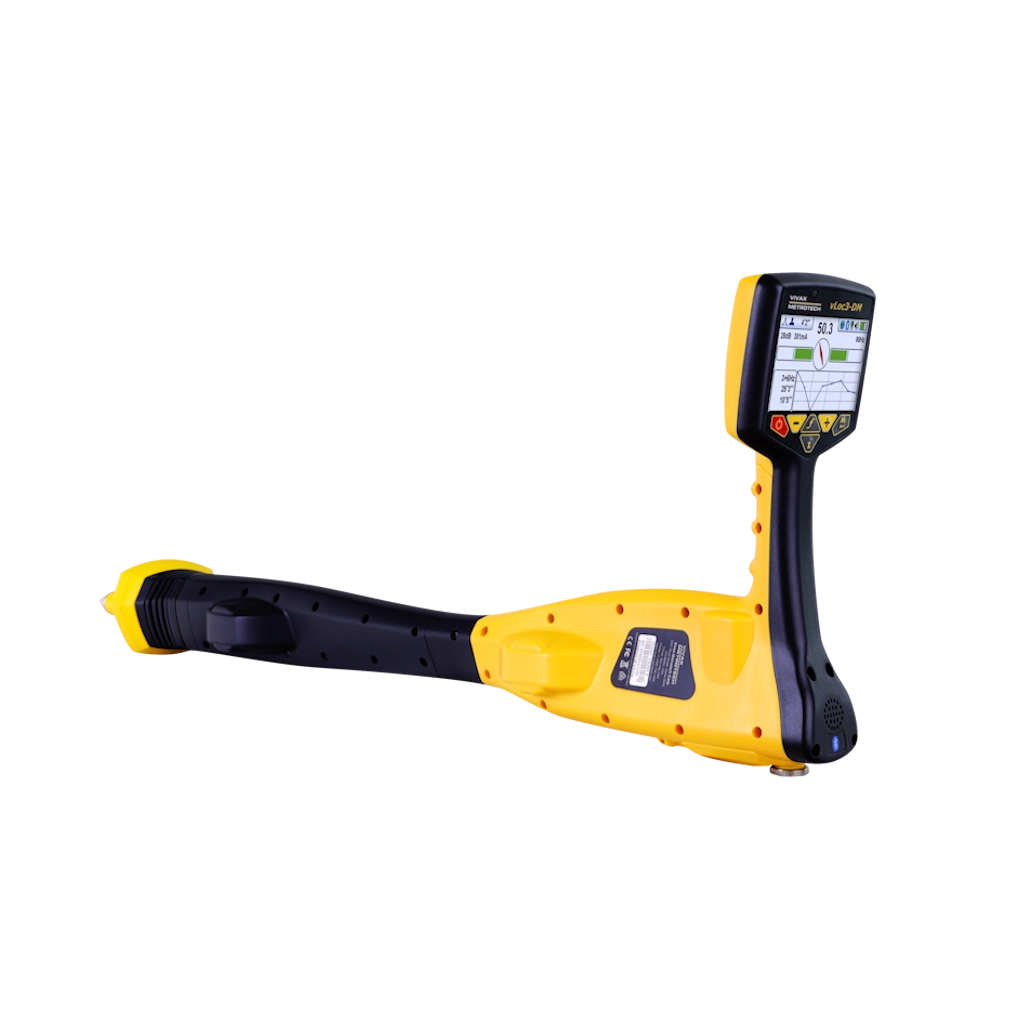

Vivax vLoc3-DM Utility Locator Receiver, inc Bag, Li-ion Batt, BT, Internal GPS V-VLOC3
- Real-time on-screen mapping and data review
- Identify the location of coating defects
- Color-coded EM distortion warnings
- Low-frequency 3Hz and 4Hz current mapping
- Internal Bluetooth and GPS
- Internal data logging

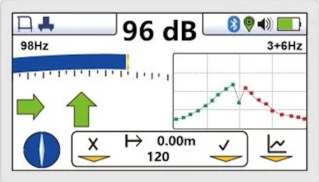

Classic Locate Screen
Use locate the position of the pipeline, with the addition of surface distance to the last measurement with three color-coded distortion levels.

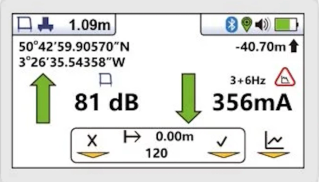

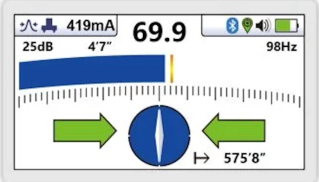

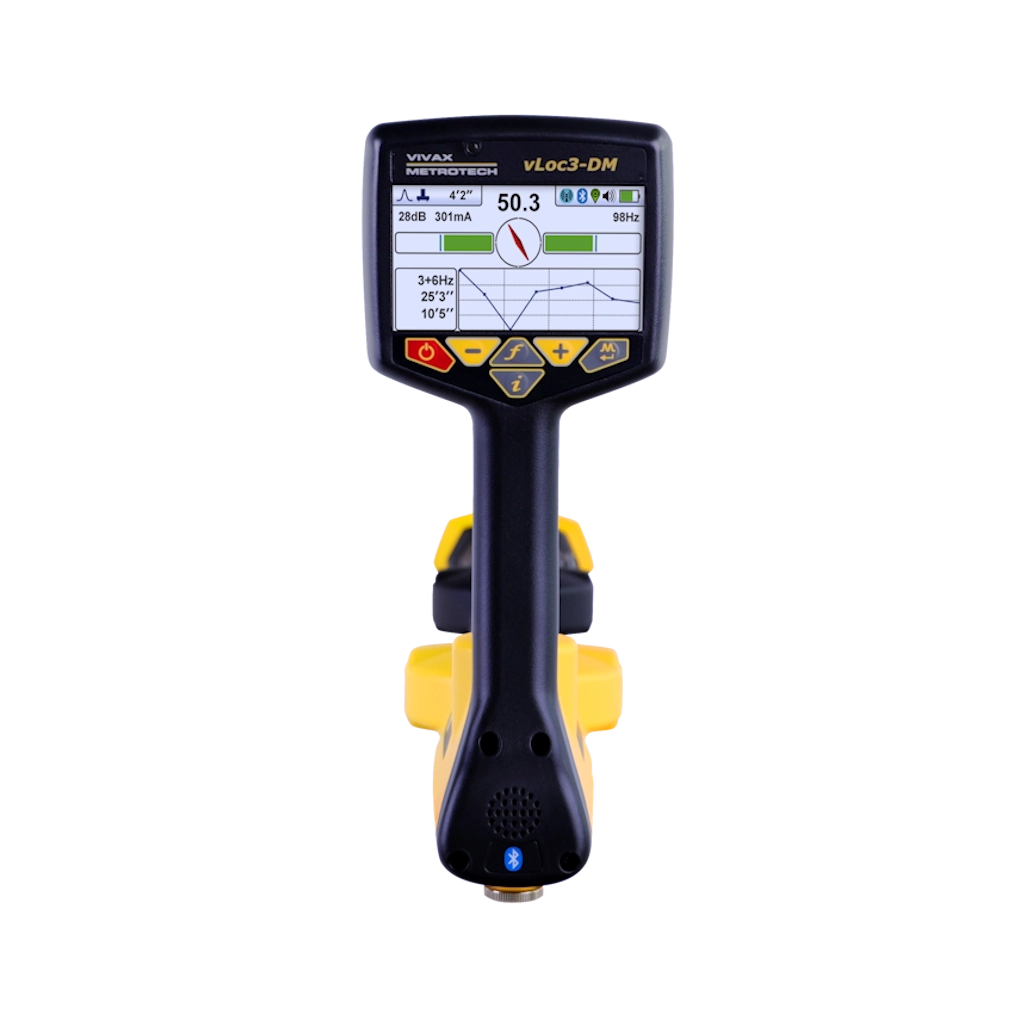

A-Frame Screen
The A-frame screen shows a peak locate screen, compass indicator, direction to a fault, a graph of fault magnitude and data logging options.
Simultaneous Fault and Current Screen
Shows both A-Frame and Defect Mapper current readings.

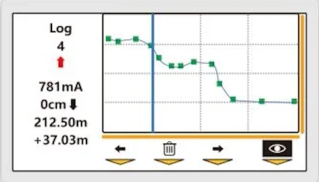

Review Screen
Allows the user to review the points of the complete graph. Shows the data information of LF current, total survey distance, distance from the previous measurement.
Vector Locate Screen
Shows orientation, line position, and distance relative to the locator in 3D.

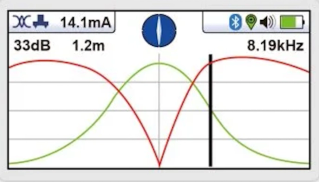

Transverse Plot Screen
Is used to display the peak and null to compare distortion shape.

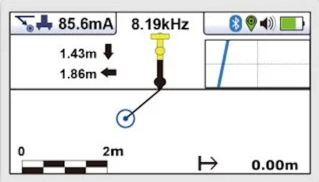

Sonde Screen
Arrow guidence showing direction to the sonde and depth of cover.

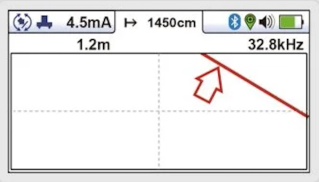

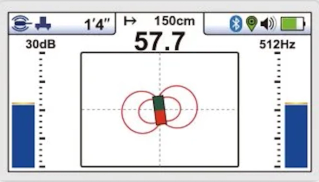

Plan View Screen
Displays the theoritical line in 2D from above ground in omnidirectional mode.
| Software | |
|---|---|
| 1.222.01.00002.tag.software.zip - Software | Brochures |
| 1.222.01.00002 - Brochure | Product Manuals |
| Vivax vLoc3-DM Utility Locator Receiver, inc Bag, Li-ion Batt, BT, Internal GPS V-VLOC3 - Product Manual | Specifications |
| Vivax vLoc3-DM Utility Locator Receiver, inc Bag, Li-ion Batt, BT, Internal GPS V-VLOC3 - Specifications |
- Vivax vLoc3-DM Utility Locator Receiver
- Vivax Vivax vLoc3-DM Utility Locator Kit Bag
- Li-ion rechargable battery for vLoc3-Pro Utility Locator Receiver
- Li-ion rechargable battery charger
- Alkaline battery holder
- Data cable to connect locator to laptop
Brand: Vivax Metrotech |
Code: 1.222.01.00002
Supplier Code: 1.222.01.00005
Brand: Vivax Metrotech |
Code: 1.222.01.00002
Supplier Code: 1.222.01.00005
At a glance
- Real-time on-screen mapping and data review
- Identify the location of coating defects
- Color-coded EM distortion warnings
- Low-frequency 3Hz and 4Hz current mapping
- Internal Bluetooth and GPS
- Internal data logging
Classic Locate ScreenUse locate the position of the pipeline, with the addition of surface distance to the last measurement with three color-coded distortion levels. |
|
|
|
A-Frame ScreenThe A-frame screen shows a peak locate screen, compass indicator, direction to a fault, a graph of fault magnitude and data logging options. |
Simultaneous Fault and Current ScreenShows both A-Frame and Defect Mapper current readings. |
|
|
|
Review ScreenAllows the user to review the points of the complete graph. Shows the data information of LF current, total survey distance, distance from the previous measurement. |
Vector Locate ScreenShows orientation, line position, and distance relative to the locator in 3D. |
|
|
|
Transverse Plot ScreenIs used to display the peak and null to compare distortion shape. |
Sonde ScreenArrow guidence showing direction to the sonde and depth of cover. |
|
|
|
Plan View ScreenDisplays the theoritical line in 2D from above ground in omnidirectional mode. |
- Precisely locates pipelines and assists in evaluating pipe coating defects
- Suitable for both transmission and distribution systems
- Supports complete ACVG surveys using the vLoc3-DM and plug-in A-frame
- Graphs data in real time on the receiver while still on site
- Walk-back feature highlights the operator’s position on the graph, allowing return to points of interest for further evaluation
- Dual sets of 3D antennas detect and display signal distortion effectively
- Full-color, bright display provides clear visibility of signal data
- Vector Locate screen enables fully automatic non-walk over locating
- Transverse Graph displays both peak and null simultaneously for instant signal distortion detection
- Plan View shows the relative orientation of the cable at any angle
- Visual and mechanical vibration alerts configurable by the user
- Alerts for shallow depth, signal overload, overhead cables, and excessive swinging

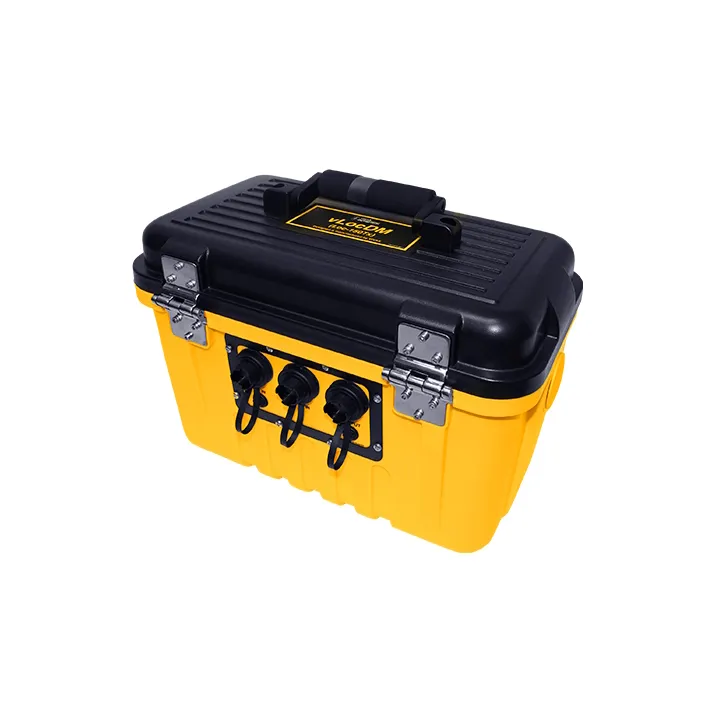

- 150-watt output transmitter connects to the pipe at CP stations and test posts
- Transmitter powered via CP stations, AC mains, or external batteries
- Two rotary/push knobs for frequency selection, output level, menu access, and active/standby modes
- Supplied with direct connection lead, DC input lead, and AC mains lead
