Vivax vLoc3-DM 150W TX inc Direct connect leads, Blue connection & Alk Batt, V-TX

The Loc-150Tx, 150-Watt DM Transmitter is used primarily with the Defect Mapper (DM) Receiver, however it is also useful for those needing a low frequency, high output transmitter.

External Power Compatibility
Comprehensive Alarms
Durable Construction
Precision Locating
Versatile Use

The Loc-150Tx, a 150-Watt DM Transmitter, represents a pinnacle of utility locating and defect mapping technology. Engineered for compatibility with the Defect Mapper (DM) Receiver, it stands out for those in need of a low frequency, high output transmitter for detailed pipeline integrity assessments. The Loc-150Tx excels in applying signal currents for anode bed testing and tracing coating faults along pipelines, proving indispensable in comprehensive pipeline maintenance and inspection tasks.

Vivax vLoc3-DM 150W TX inc Direct connect leads, Blue connection & Alk Batt, V-TX

AC Lead
DC Lead
Direct Connection Leads

Related Categories

Brand: Vivax Metrotech | Code: 1.202.01.00002
Supplier Code: 1.202.01.00005

At a glance

The Loc-150Tx, 150-Watt DM Transmitter is used primarily with the Defect Mapper (DM) Receiver, however it is also useful for those needing a low frequency, high output transmitter.

External Power Compatibility
Comprehensive Alarms
Durable Construction
Precision Locating
Versatile Use

Related Categories

External Power Compatibility: Powered by CP stations, AC, or external batteries for continuous operation.
Comprehensive Alarms: Features over voltage, power, and temperature alarms for enhanced safety and reliability.
Durable Construction: Housed in high-impact ABS plastic for robust field performance.
Precision Locating: Identifies coating defects and faulty insulation joints with selectable frequency range.
Versatile Use: Effective as both a defect mapper and long-line pipeline locator.

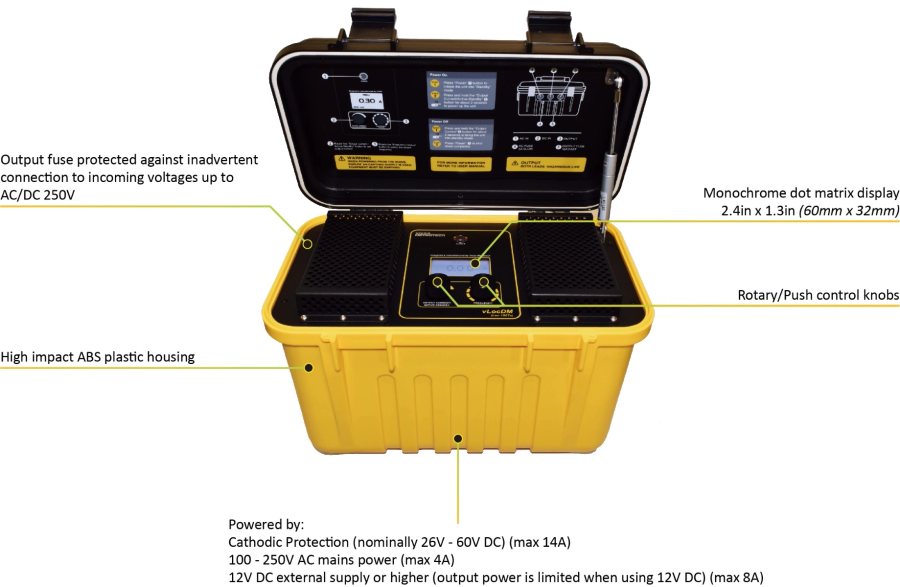

Designed for Power: Operates on external power sources including CP stations, AC, or external batteries, negating the need for internal battery dependency.
Focused Frequency Range: Features selectable direct connection frequencies from 98Hz to 512Hz (640 Hz in Europe), tailored for precise defect location and pipeline tracing.
Robust and Reliable: Encased in high-impact ABS plastic, ensuring durability and longevity in challenging field conditions.

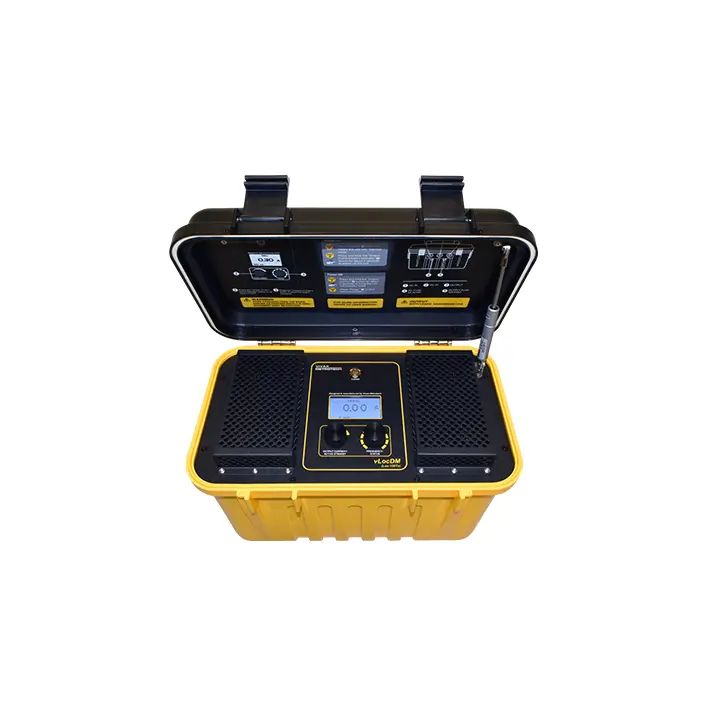

Advanced Monitoring: Equipped with a two-inch by one-inch dot matrix display with LED backlight for real-time monitoring of output current, volts, frequency, and system warnings.
User-Friendly Interface: Two rotary/push control knobs allow easy navigation through frequency selection, output level adjustments, and operational modes.
The Loc-150Tx Transmitter is uniquely positioned to support professionals in identifying coating defects and faulty insulation joints, as well as serving as a long-line pipeline locator. Its direct connection mode ensures that the locate frequency is efficiently applied onto the conductor, offering a straightforward approach to complex locating tasks.

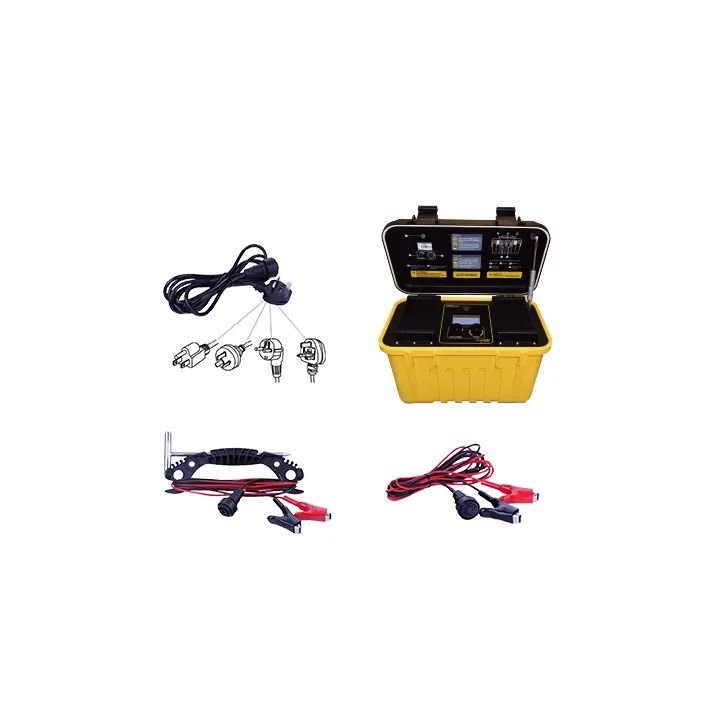

AC Lead
DC Lead
Direct Connection Leads

Vivax vLoc3-DM 150W TX inc Direct connect leads, Blue connection & Alk Batt, V-TX
