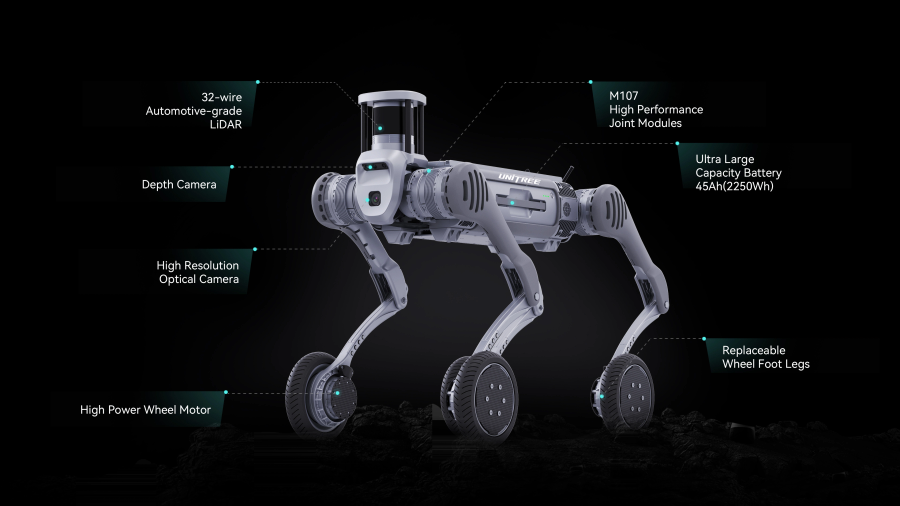

Unitree B2-W Wheeled Robotic Quadruped
- Highly Dynamic Motion - Self-developed high-performance joints that fully utilize the superior movement capabilities of complex structures.
- Traveling on stairs, slopes, and barricades - Combines perceptual and motor control to maintain balance and cope with a variety of different discrete terrains.
- Crossing grass, stone and gravel paths - Stabilizes walking on rough surfaces through the rapid and synergistic response of multiple leg joints.
More Info Unitree B2-W – Official Website
|
Size(Standing) |
1098mm×550mm×758mm |
|
Size(Lying Prone) |
950mm×550mm×450mm |
|
Weight |
85kg Total weight (battery included) |
|
Battery Capacity |
＞2kwh，voltage 58V |
|
Maximum horizontal pulling force |
15km/h [1] |
|
Endurance Ability |
25km with 40kg load |
|
Maximum Load(Standing) |
120kg |
|
Load(Walking) |
> 40kg |
|
Wheel Diameter |
225mm |
|
Maximum wheel speed |
50 rad/s |
|
Maximum wheel torque |
40 Nm |
|
Continuous Stair Climbing |
Stairs of 20~25cm |
|
Climbing Ability |
Climb up and down stairs of 40cm in forward direction |
|
Operating Temperature |
-20℃ ~ 55℃ |
|
Climbing Angle |
>45° |
|
Ingress Protection |
IP67 |
|
Standard configuration: |
Intel Core i5(Platform Function) ,Intel Core i7(User Development) |
| Optional Configuration: | Intel Core i7 and Jetson Orin NX (Maximum up to 3 devices) |
Brand: Unitree |
Code: UTB2W
APN: 9319499320423 |
Supplier Code: UTB2W
Brand: Unitree |
Code: UTB2W
APN: 9319499320423 |
Supplier Code: UTB2W
At a glance
Flexible Moving over All Terrains- Highly Dynamic Motion - Self-developed high-performance joints that fully utilize the superior movement capabilities of complex structures.
- Traveling on stairs, slopes, and barricades - Combines perceptual and motor control to maintain balance and cope with a variety of different discrete terrains.
- Crossing grass, stone and gravel paths - Stabilizes walking on rough surfaces through the rapid and synergistic response of multiple leg joints.
More Info Unitree B2-W – Official Website
|
Size(Standing) |
1098mm×550mm×758mm |
|
Size(Lying Prone) |
950mm×550mm×450mm |
|
Weight |
85kg Total weight (battery included) |
|
Battery Capacity |
＞2kwh，voltage 58V |
|
Maximum horizontal pulling force |
15km/h [1] |
|
Endurance Ability |
25km with 40kg load |
|
Maximum Load(Standing) |
120kg |
|
Load(Walking) |
> 40kg |
|
Wheel Diameter |
225mm |
|
Maximum wheel speed |
50 rad/s |
|
Maximum wheel torque |
40 Nm |
|
Continuous Stair Climbing |
Stairs of 20~25cm |
|
Climbing Ability |
Climb up and down stairs of 40cm in forward direction |
|
Operating Temperature |
-20℃ ~ 55℃ |
|
Climbing Angle |
>45° |
|
Ingress Protection |
IP67 |
|
Standard configuration: |
Intel Core i5(Platform Function) ,Intel Core i7(User Development) |
| Optional Configuration: | Intel Core i7 and Jetson Orin NX (Maximum up to 3 devices) |
