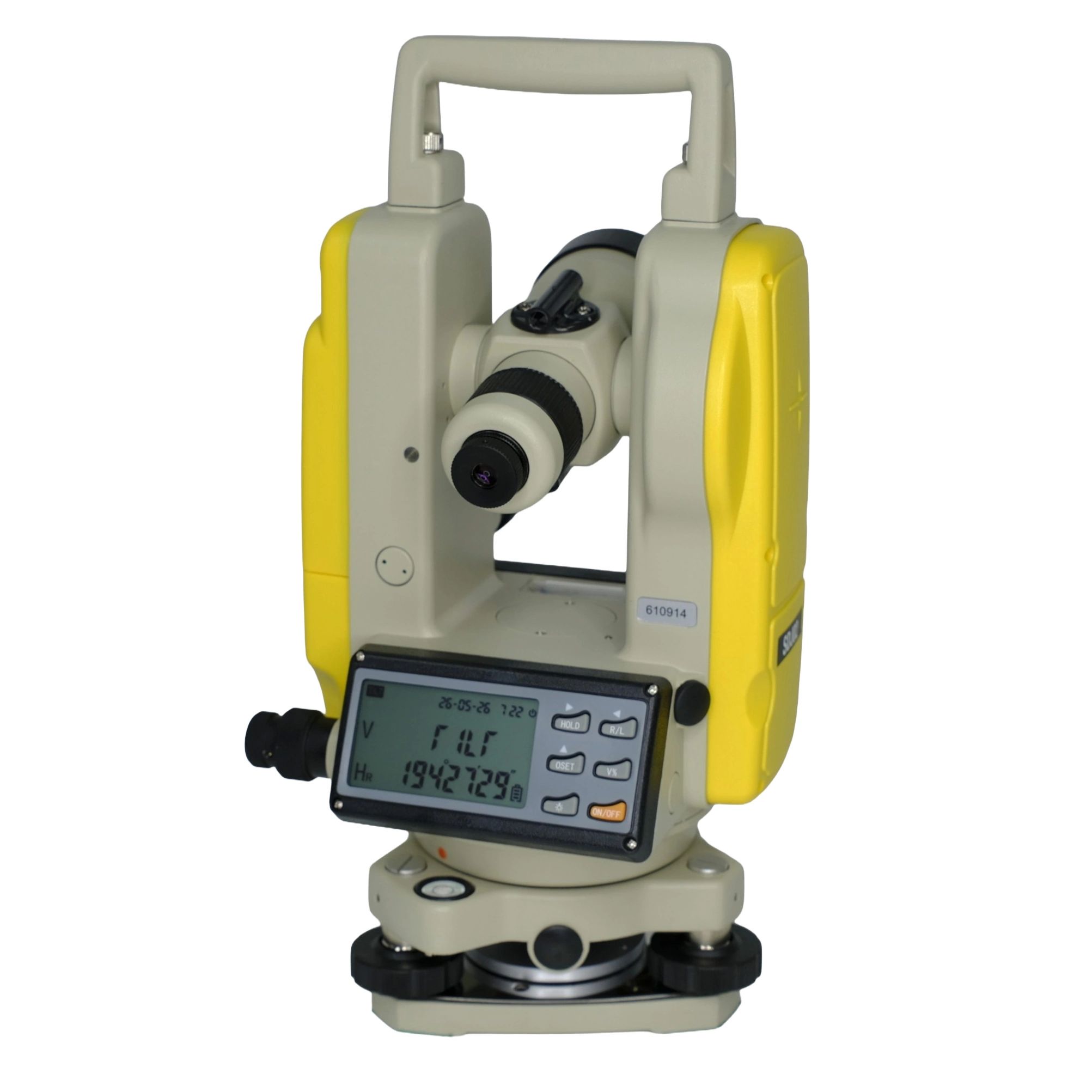

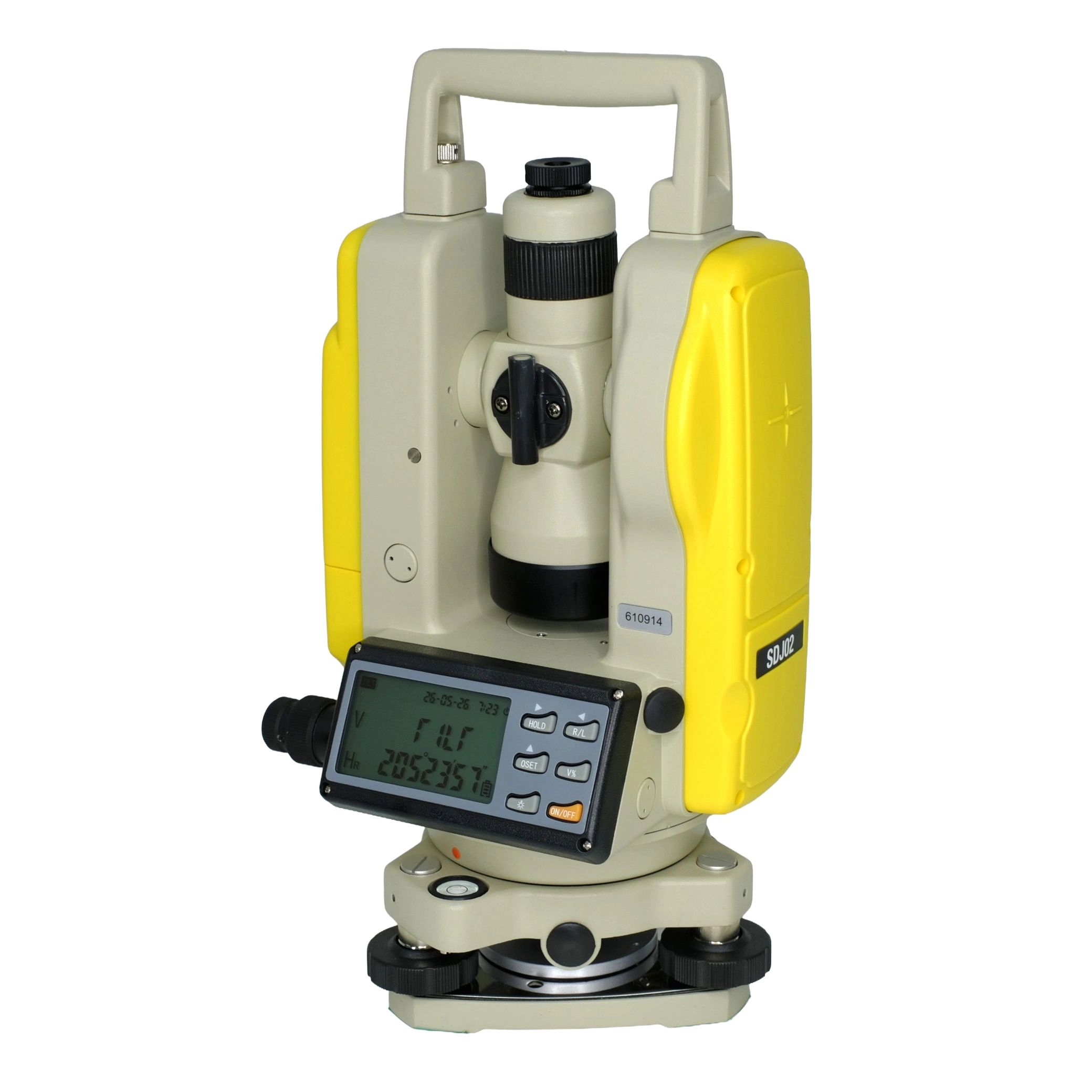

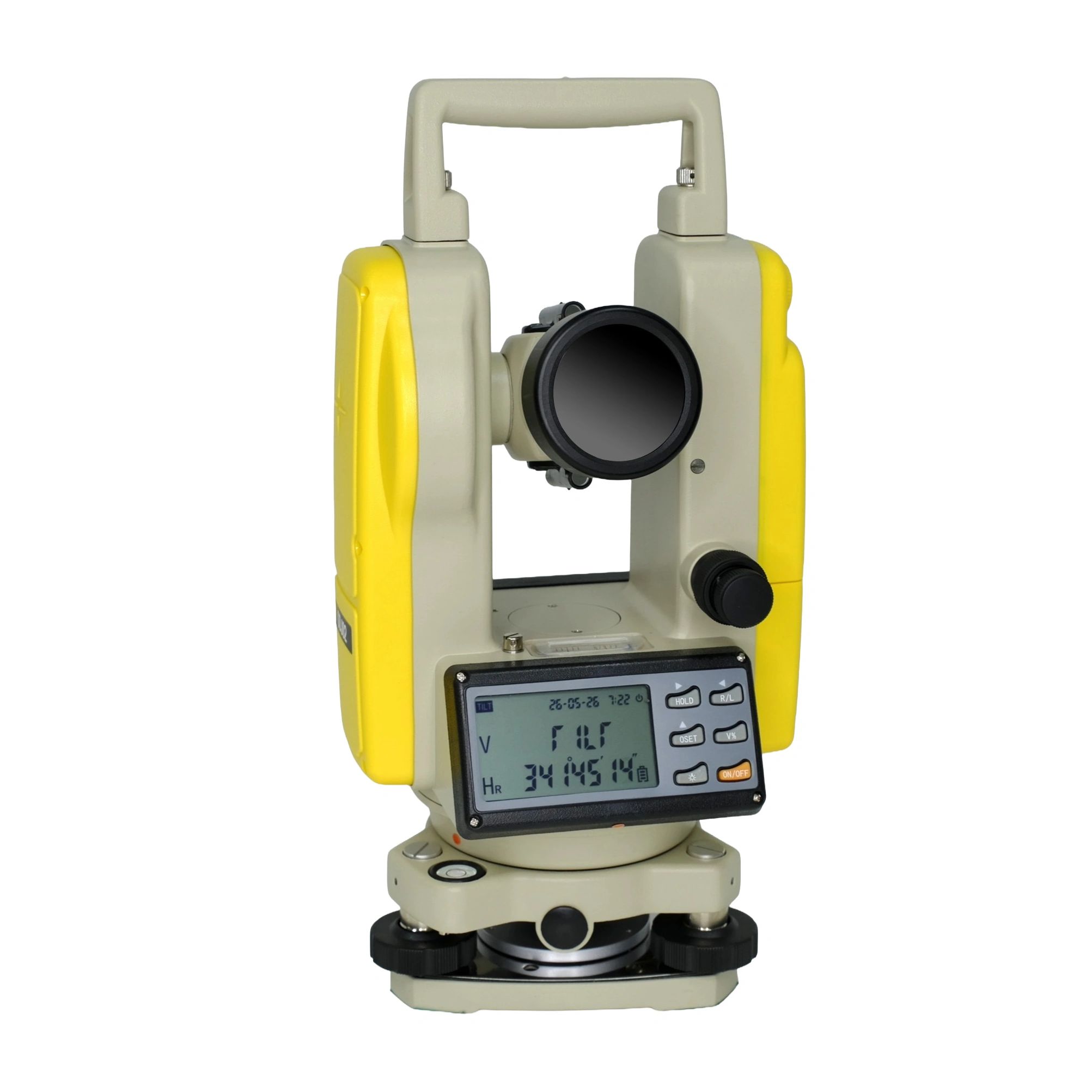

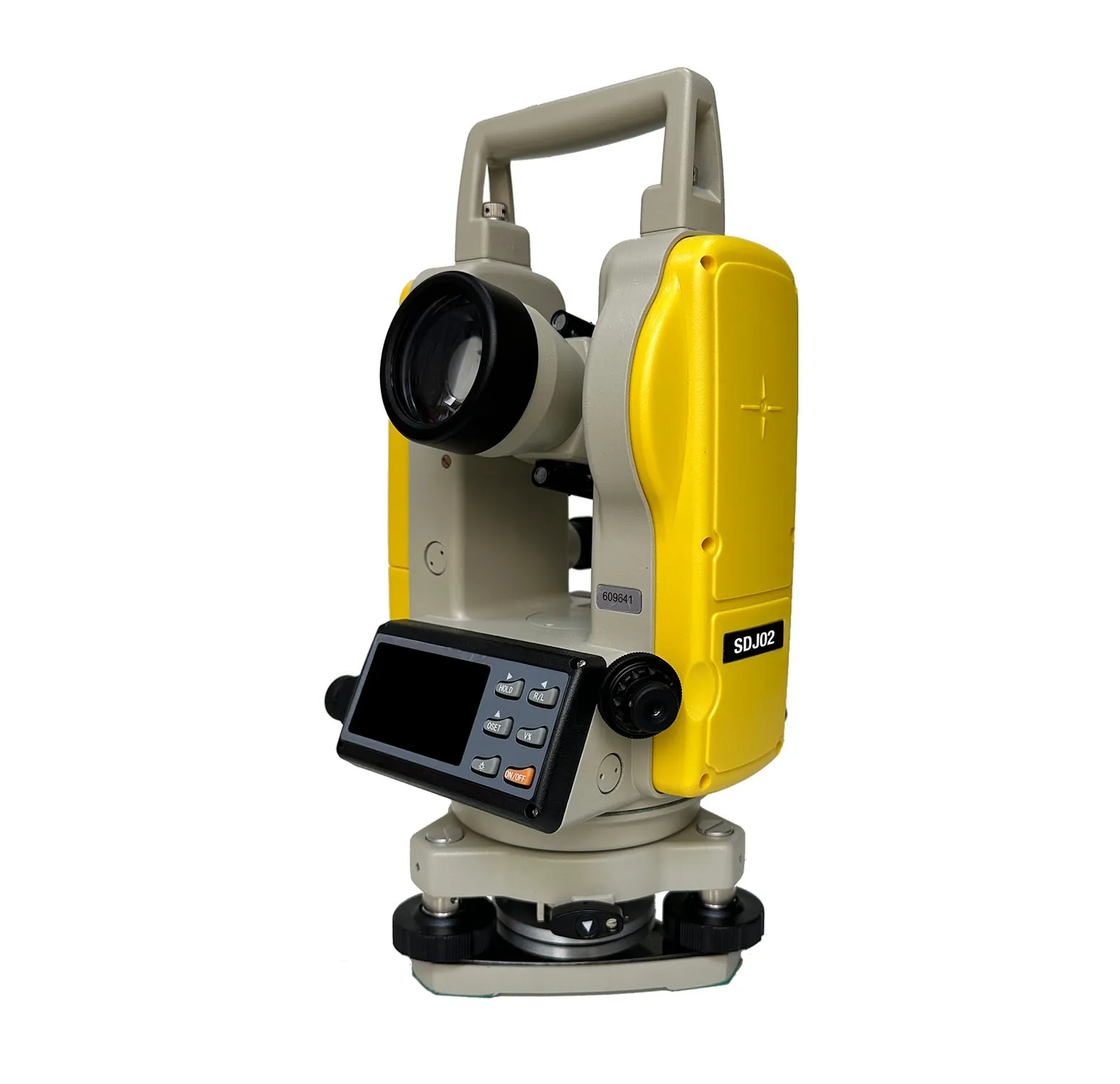

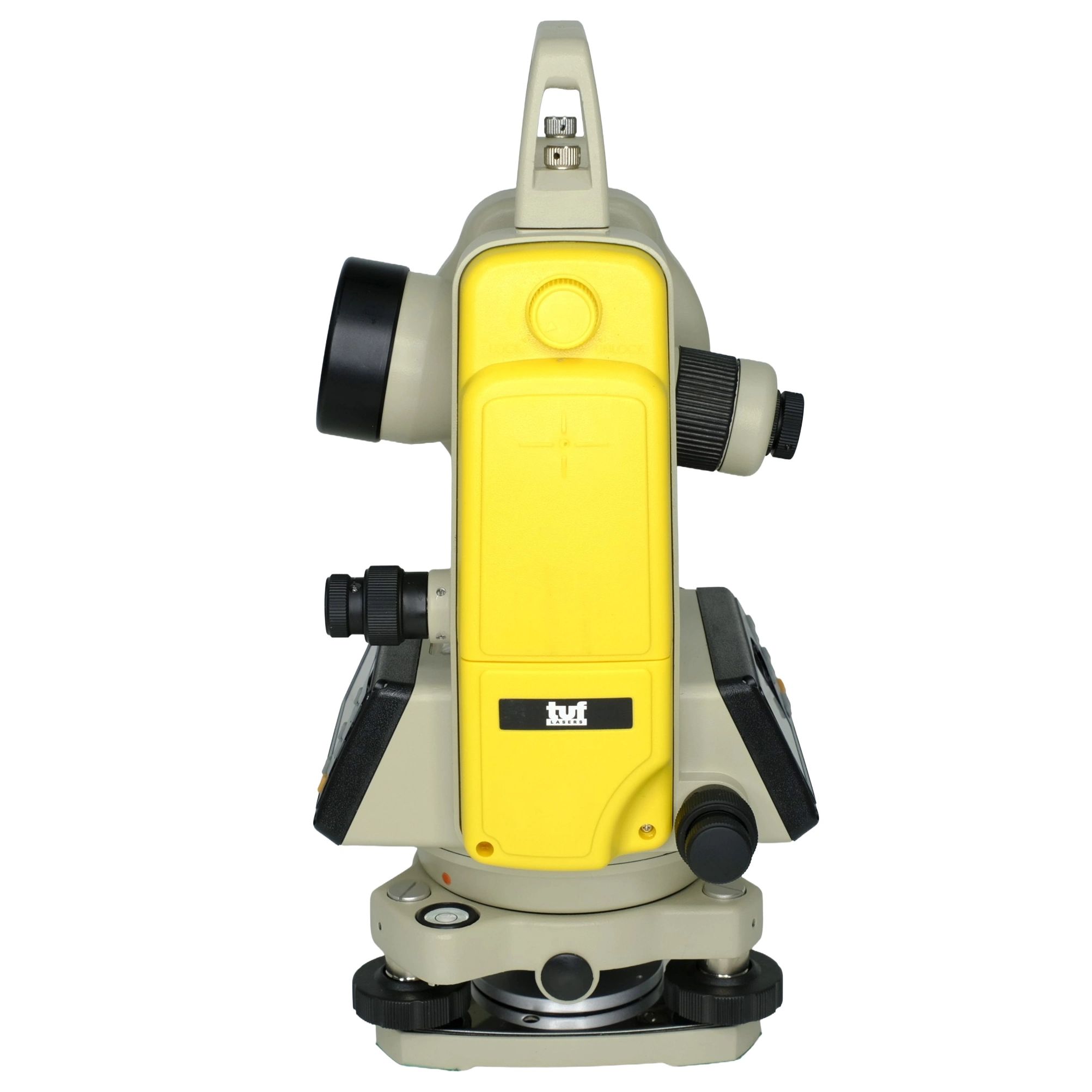

TUF SDJ02 2" Electronic Theodolite
- Big and clear LCD display
- Laser plummet
- 30 X magnification
- 2” angular accuracy.
- Minimum reading: 1”
- Includes both rechargeable & alkaline battery packs.
Telescope
| Image | Positive |
| Magnification Ratio | 30× |
| Effective Aperture of Object Lens | 45mm |
| Angle of View | 1o30' |
| Shortest Visibility Distance | 1.5m |
| Stadia Multiplication Constant | 100 |
| Stadia Addition Constant | 0 |
| Resolution | 3' |
Angle Measuring System
| Mode of Angle Measurement | Photoelectric Incremental Reading |
| Min. Reading | 1' 5' 10″Selectable |
| Detection Method | H: Both Sides |
| V: Single Side | |
| Precision of Angle Measurement |
2' |
| Unit of Angle | DEG MIL GON |
| Display | LCD Double Side |
Compensator
| Tilt Sensor | Automatic vertical compensation |
| Range of Compensation | ±3' |
Optical Plummet
| Image | Positive |
| Magnification Ratio | 3× |
| Angle of View | 5o |
| Focusing Range | 0.5m~∞ |
Sensitivity of Vials
| Tubular vial | 30'/2mm |
| Circular vial | 8'/2mm |
Weight & Dimensions
| Weight of Instrument | 5kg |
| Dimensions | 164×154×340mm |
| Ambient Operating Temperature | -20oC ~ +50 oC |
| Product Manuals | |
|---|---|
| TUF SDJ02 2" Electronic Theodolite - Product Manual |
- TUF SDJ02 2" Electronic Theodolite
- 1 x Rechargeable battery pack
- 1 x Battery charger
- 1 x Battery compartment for AA batteries
- Lens cover
- Rain cover
- Plumb bob and string
- Allen keys and screwdriver
- User manual

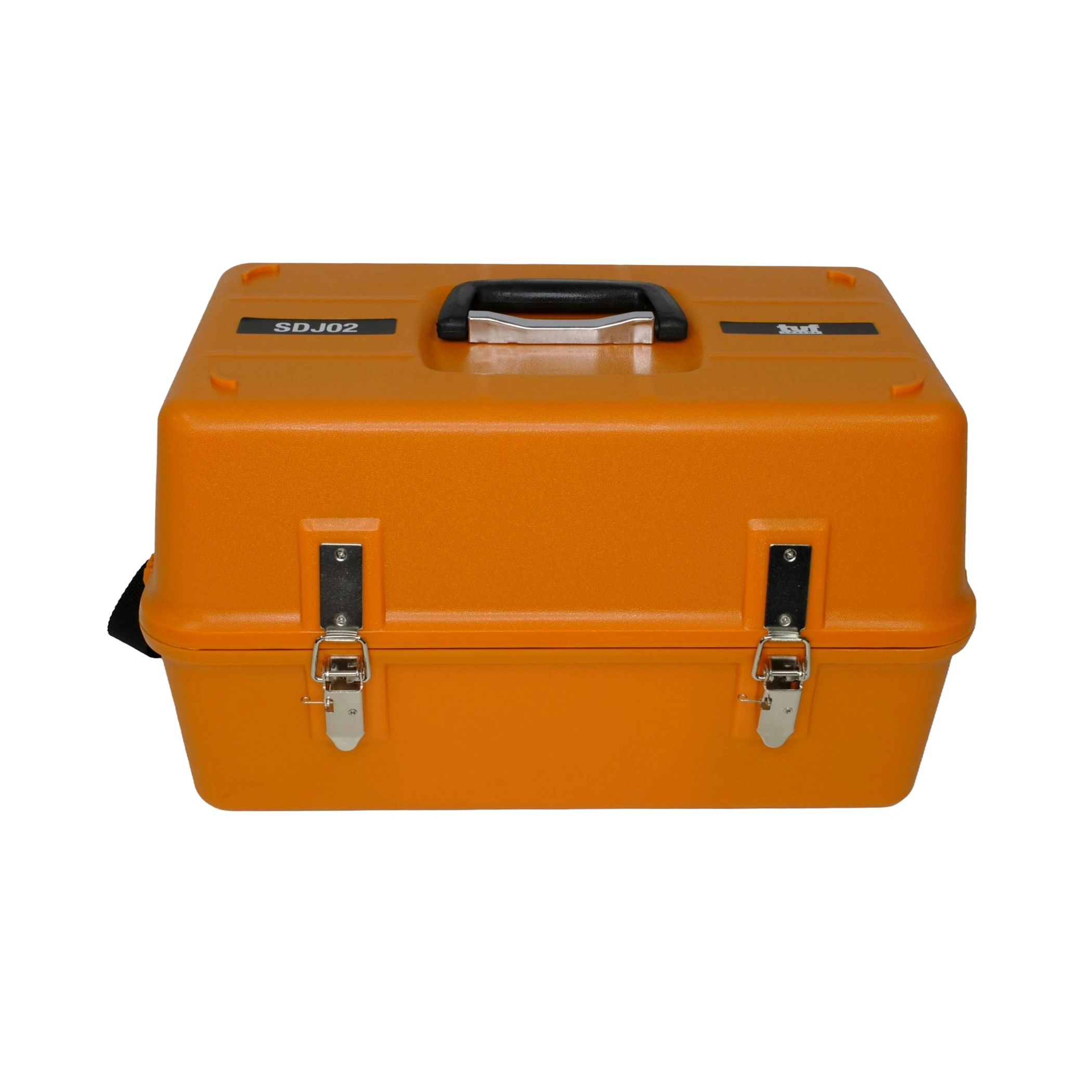

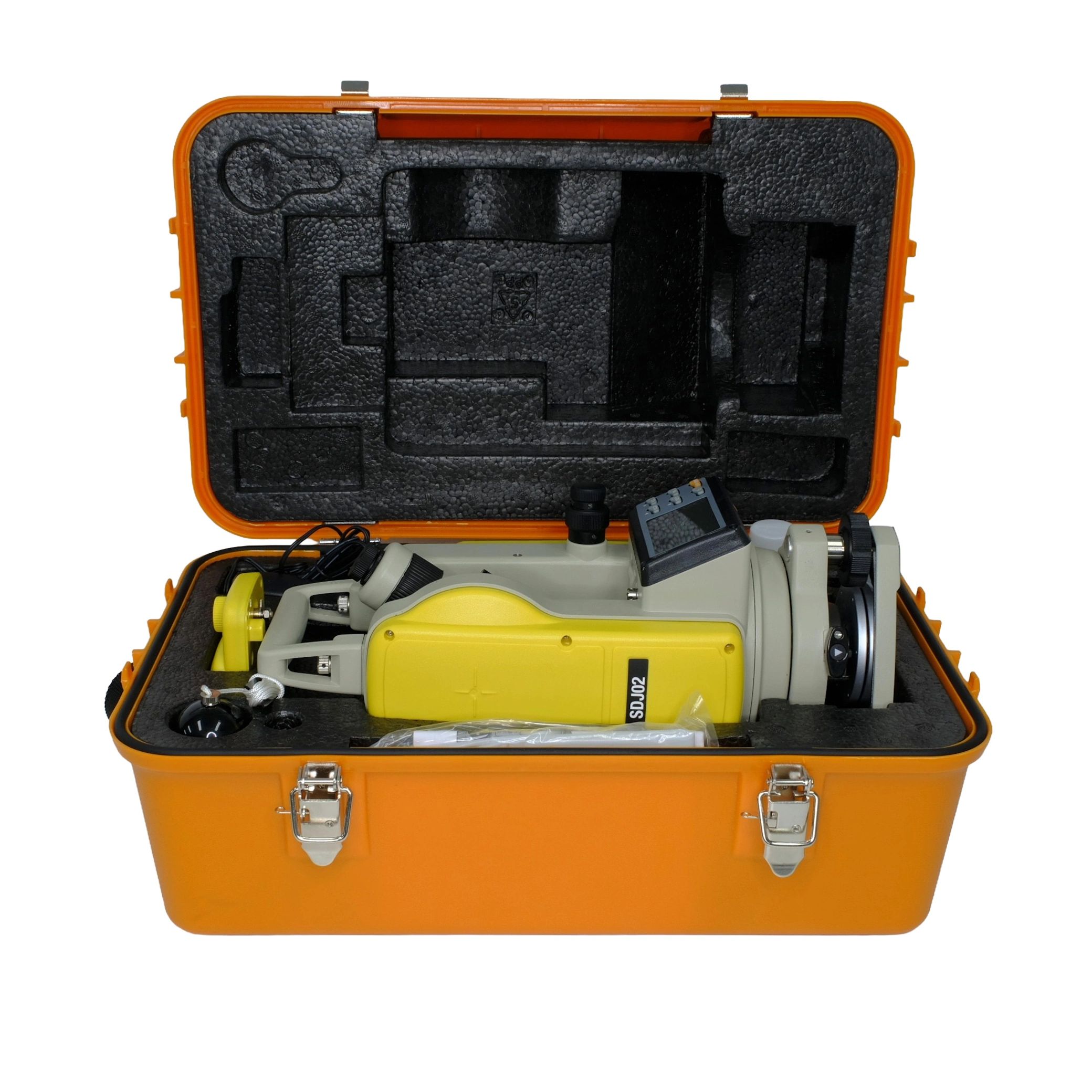

- Hard carry case
Brand: TUF |
Code: TUF-SDJ02
APN: 9319499296179 |
Supplier Code: SDJ02
Brand: TUF |
Code: TUF-SDJ02
APN: 9319499296179 |
Supplier Code: SDJ02
At a glance
- Big and clear LCD display
- Laser plummet
- 30 X magnification
- 2” angular accuracy.
- Minimum reading: 1”
- Includes both rechargeable & alkaline battery packs.
