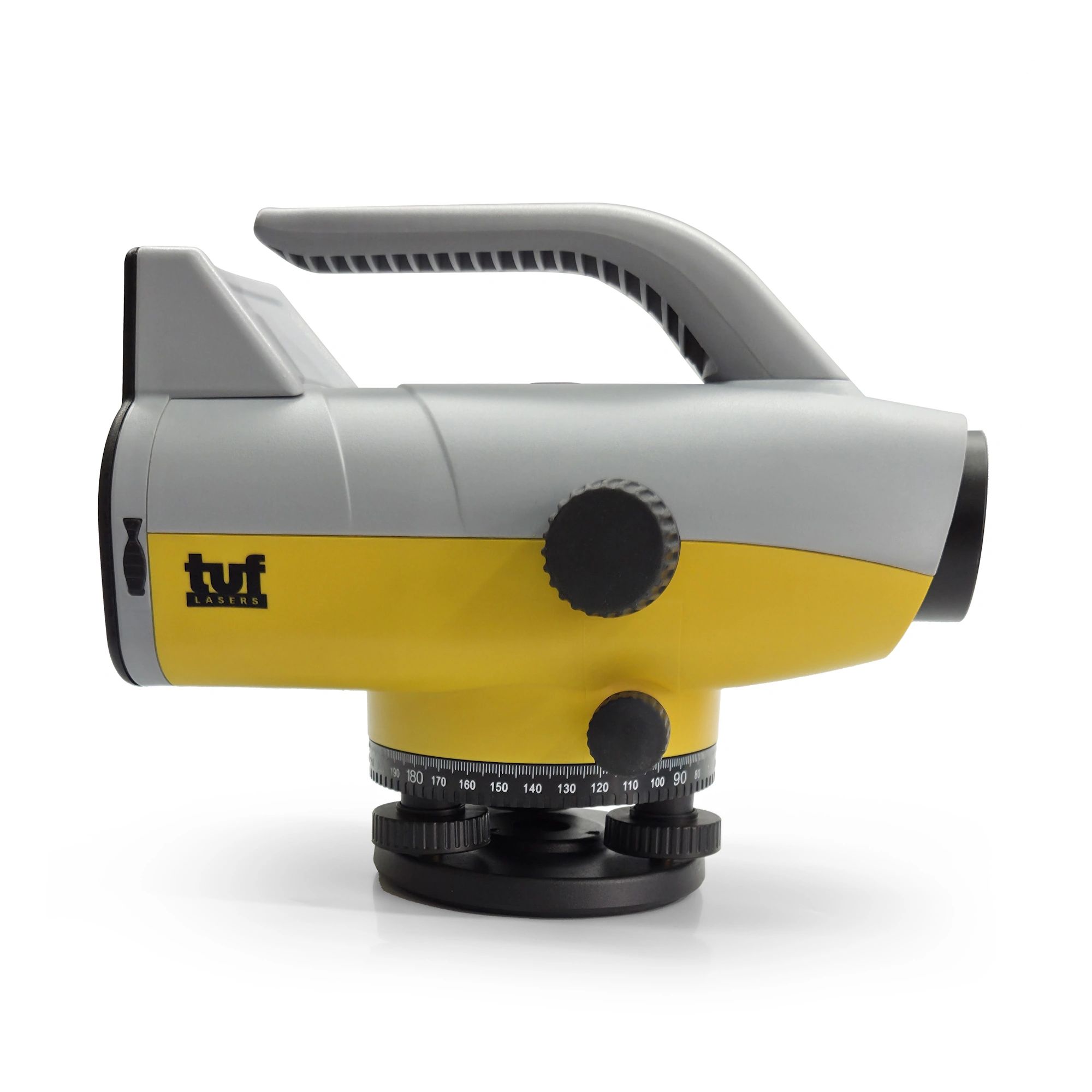

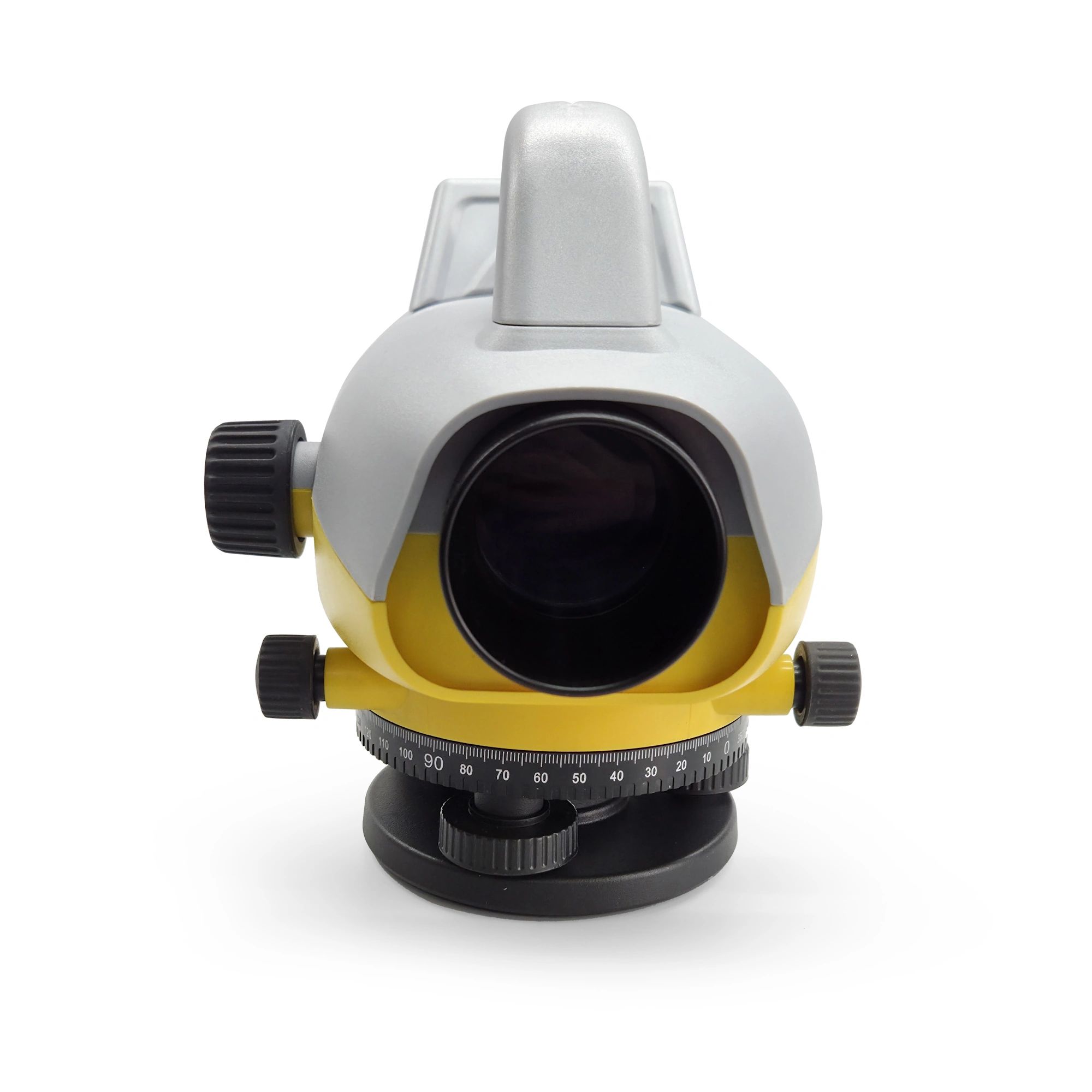

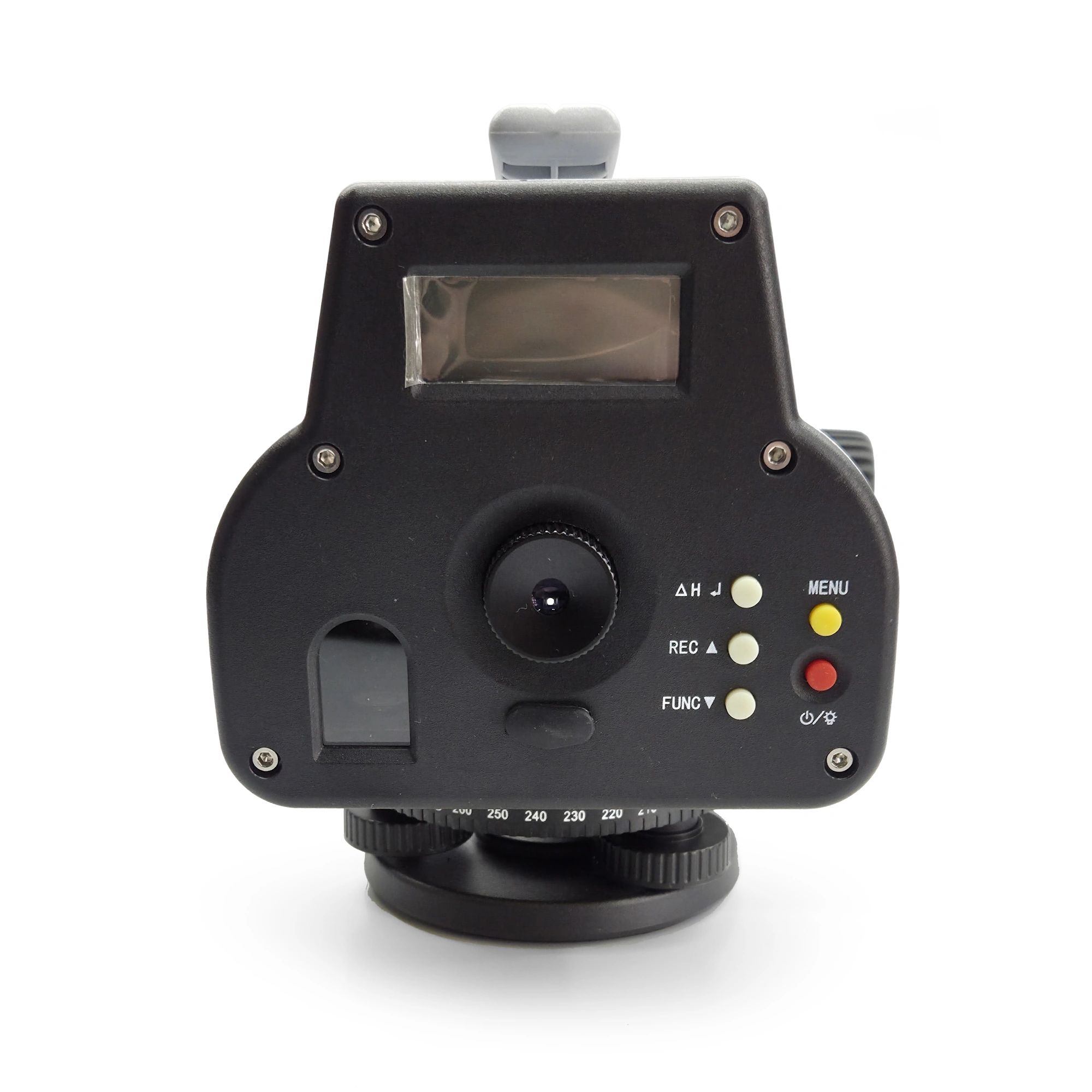

TUF DAL32 Digital Level Kit - 32x Magnification with 2 x Barcode Staff
$1,100.00
ETA: 30/06/2026
- High-accuracy digital level.
- Used to measure height differences with high accuracy.
- Shoots to barcode staff and E-face / Metric staff.
- Resolution of 0.1mm.
- Optical magnification: 32x
- Includes 5m barcode staff and 5m E-face staff with metric.
- IP55 weather resistant.
- Standard Deviation on 1km double run: ±1.0mm/km
| Magnificiation | 32x |
| Standard Deviation on 1km double run | ±1.0mm/km |
| Measuring Range | 2m-100m |
| Minium Displayed Value | Elevation: 0.0001m Distance: 0.001m |
| Meaurintg Time | <3 seconds |
| Measuring Units | Metres / Feet |
| Telescope Field of View | 1°20' |
| Compensator Range | ±15' |
| Compensator Accuracy | 0.3"/min |
| Data Storage | 1,000 points |
| Battery | 2,200mAh Li-Ion |
| Battery life | >20 hours |
| Net weight | 1.9kg |
| Waterpoof | IP55 |
| Operating Temperature | -20°~+50° |
- TUF DAL32 Digital Level
- Charging/Communication Micro-USB Cable
- 2mm Hexagon Spanner
- 2.5 Hexagon Spanner
- Adjusting Pin
- Operator’s Manual
- Hard Plastic Container

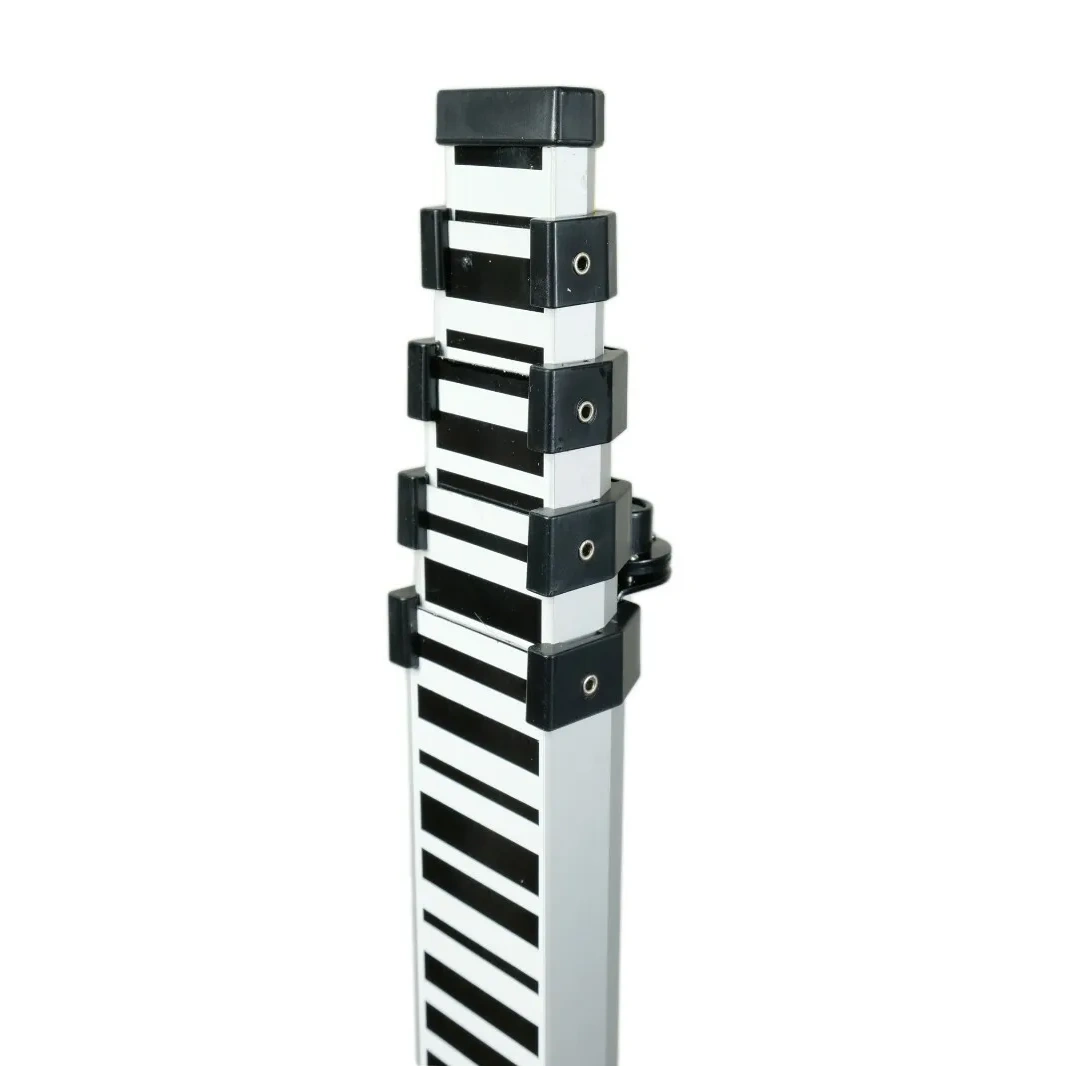

- 1 x 5m / 5 section barcode aluminium staff

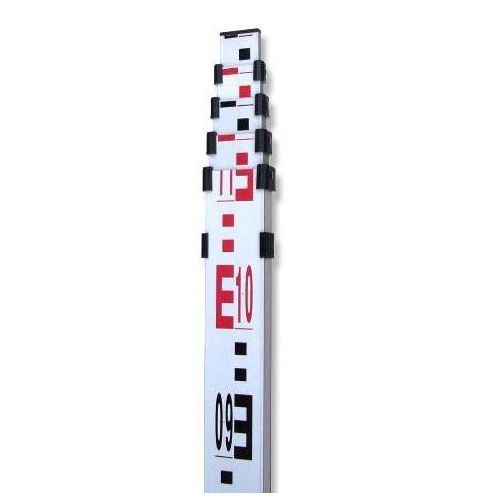

- 1 x 5m / 5 section E-Face and Metric aluminium staff
Brand: TUF |
Code: TUF-DAL32
APN: 9319499296148 |
Supplier Code: DAL32
Brand: TUF |
Code: TUF-DAL32
APN: 9319499296148 |
Supplier Code: DAL32
At a glance
- High-accuracy digital level.
- Used to measure height differences with high accuracy.
- Shoots to barcode staff and E-face / Metric staff.
- Resolution of 0.1mm.
- Optical magnification: 32x
- Includes 5m barcode staff and 5m E-face staff with metric.
- IP55 weather resistant.
- Standard Deviation on 1km double run: ±1.0mm/km
