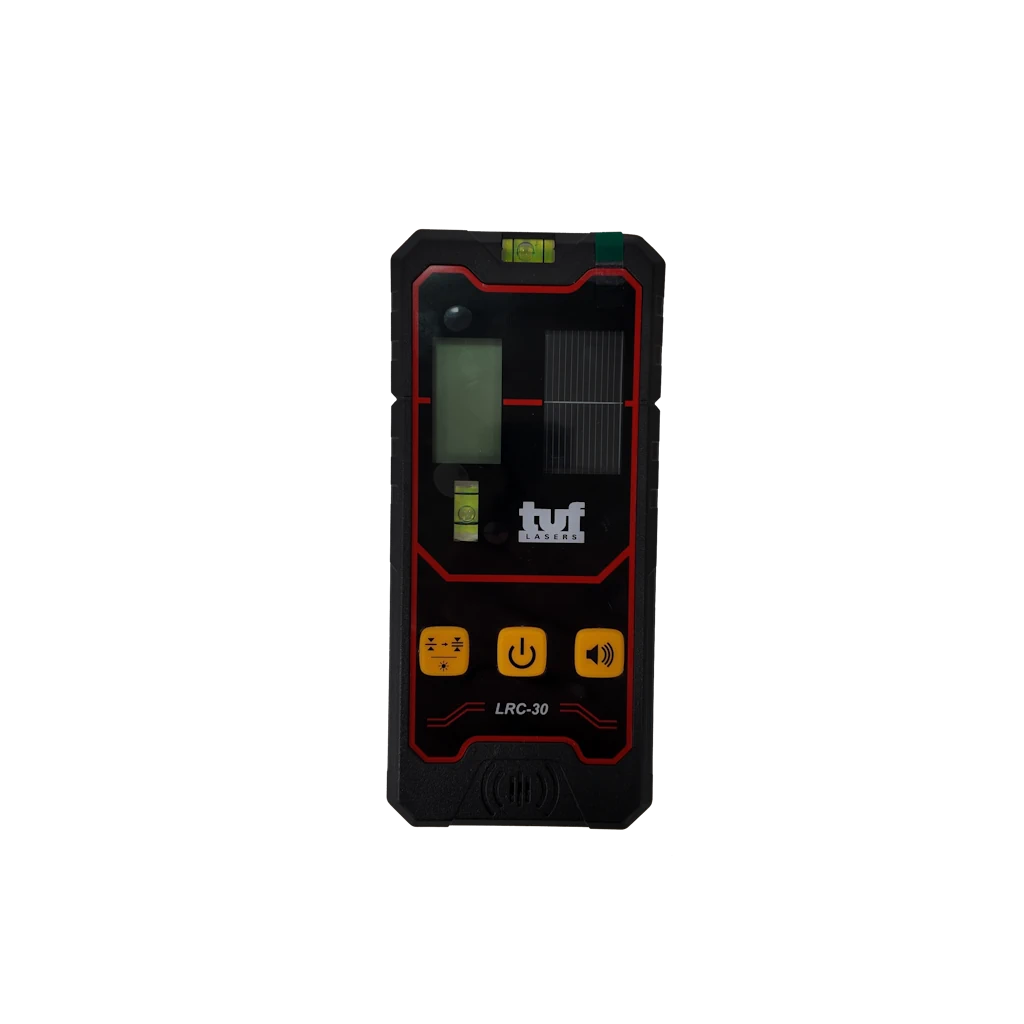

TUF LRC-30 Laser Receiver for LCG4 Green Beam 4D Laser

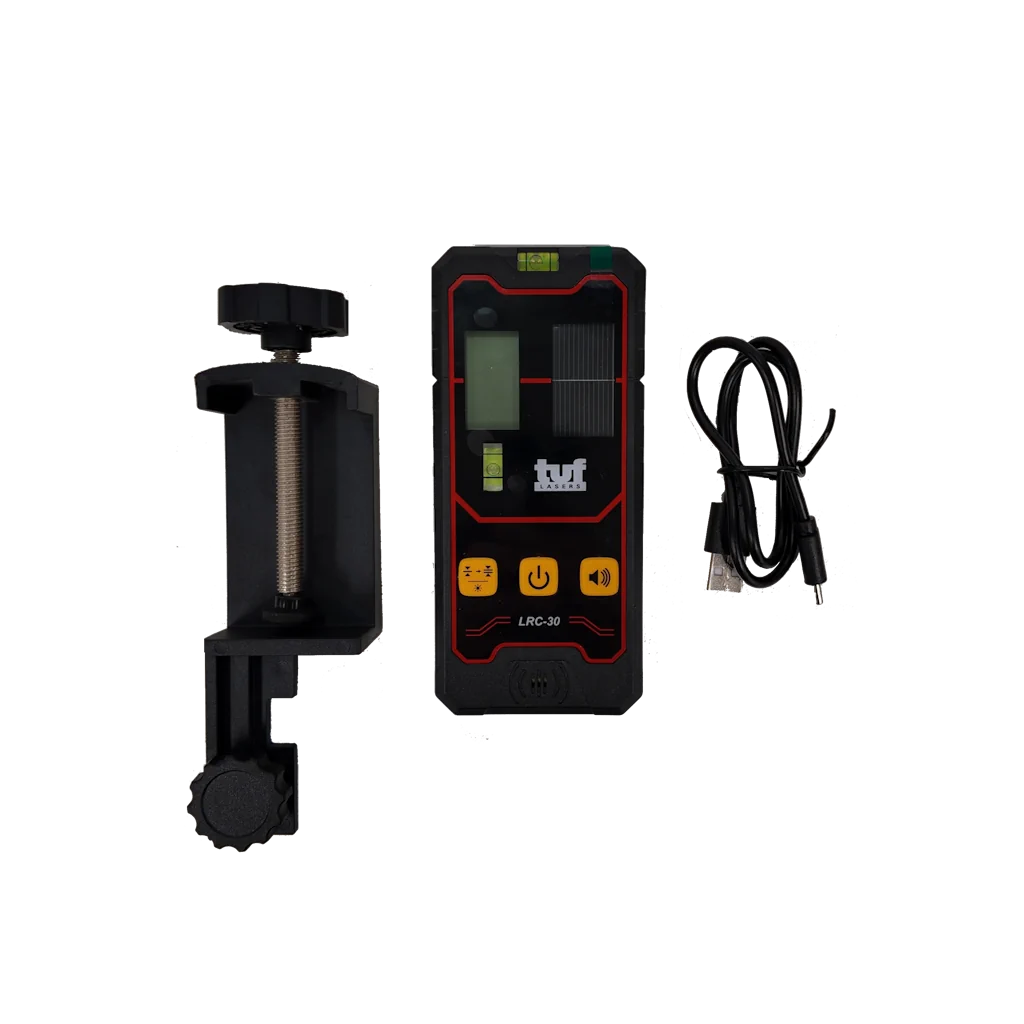

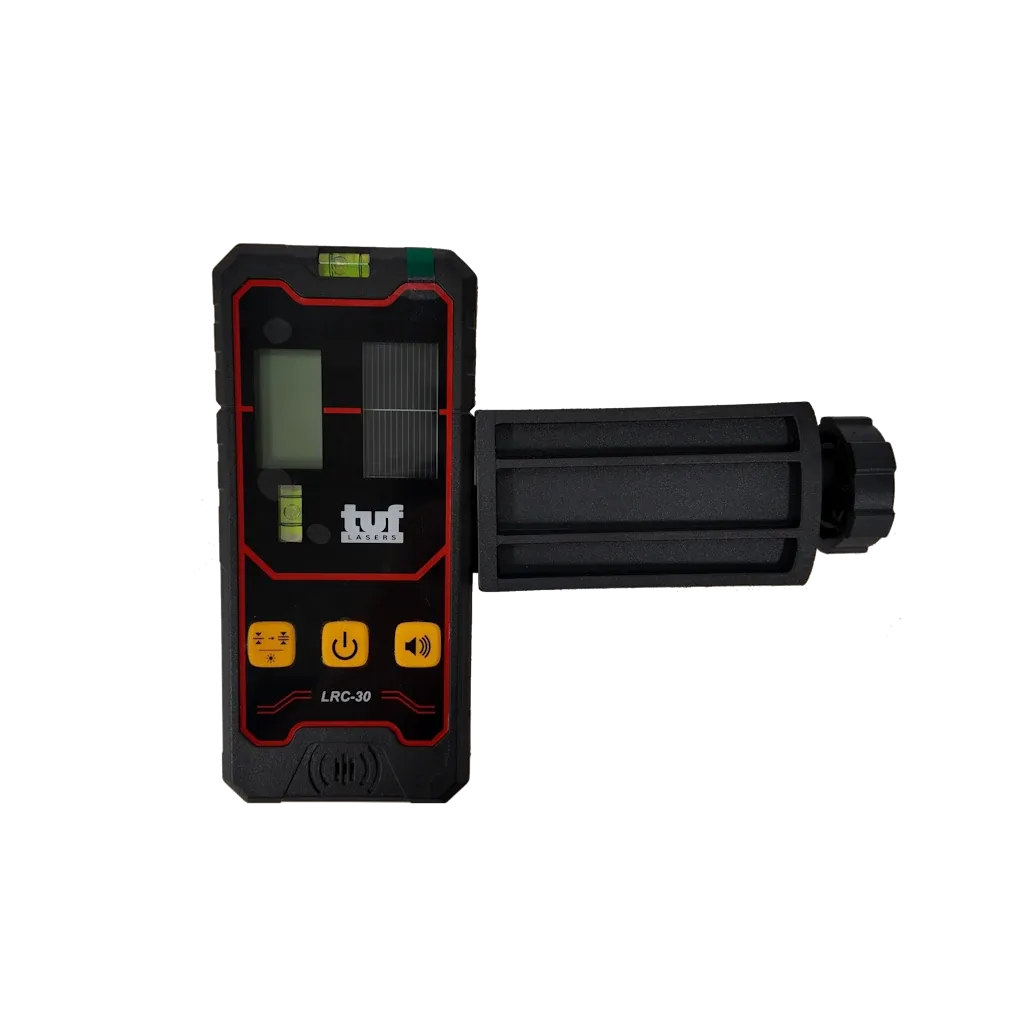

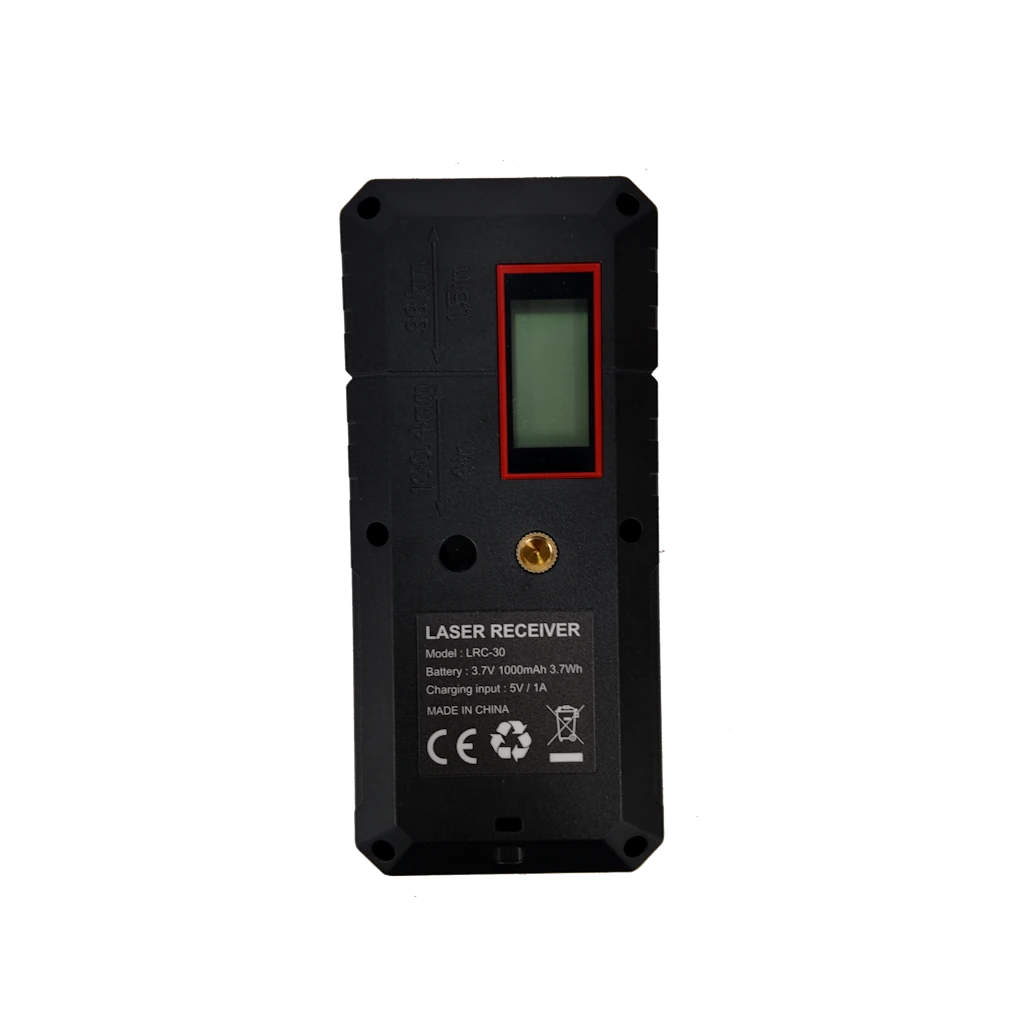

The laser receiver can be held by hand or mounted on a measuring rod or similar object with a clamp. Align the alignment post and set screw on the clamp with the corresponding points on the rear of the receiver and tighten. The receiver clamp can then be fixed to a staff using the clamp fastening knob.
| Item | Specification |
|---|---|
| Product name | Laser receiver |
| Product model | LRC-30 |
| Display screen | LCD |
| High precision setting | ≤2 mm |
| Low precision setting | ≤3 mm |
| Laser receiving window width | 13 mm |
| Working accuracy | ≤50 m (typically), dependent on the laser source |
| Horizontal bubble accuracy | 30′ / 2 mm |
| Working hours | 20 hours |
| Automatic shutdown (no signal detection) | 10 min |
| Battery type | Lithium-ion battery |
| Operating temperature | −10 °C ~ +50 °C |
| Storage temperature | −20 °C ~ +70 °C |
| Weight | 155.2 g |
| Size | 63 × 25.6 × 139.5 mm |
Brand: TUF |
Code: TUF-LRC-30
APN: 9319499325237 |
Supplier Code: TUF -LR30C
Brand: TUF |
Code: TUF-LRC-30
APN: 9319499325237 |
Supplier Code: TUF -LR30C
At a glance
The laser receiver can be held by hand or mounted on a measuring rod or similar object with a clamp. Align the alignment post and set screw on the clamp with the corresponding points on the rear of the receiver and tighten. The receiver clamp can then be fixed to a staff using the clamp fastening knob.
