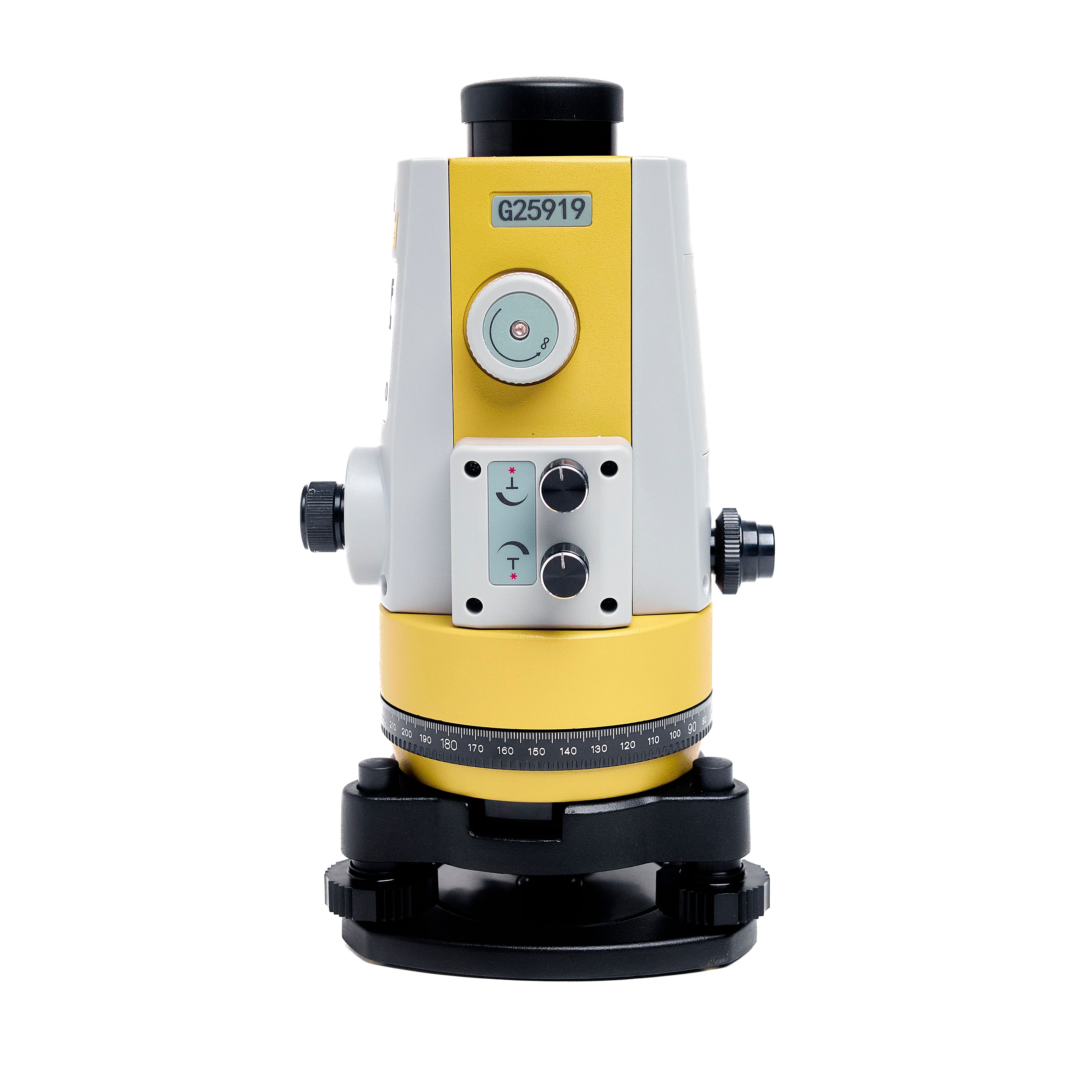

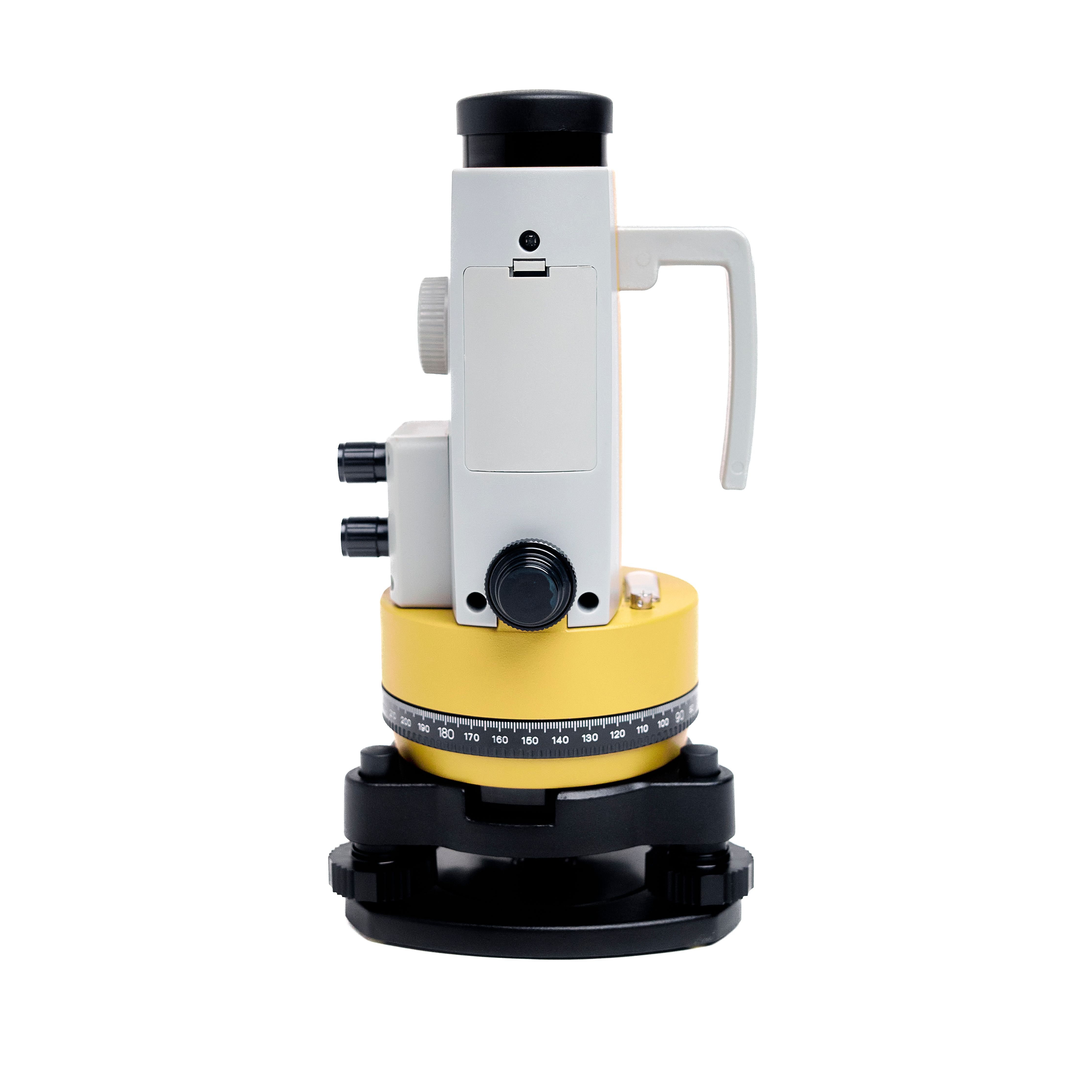

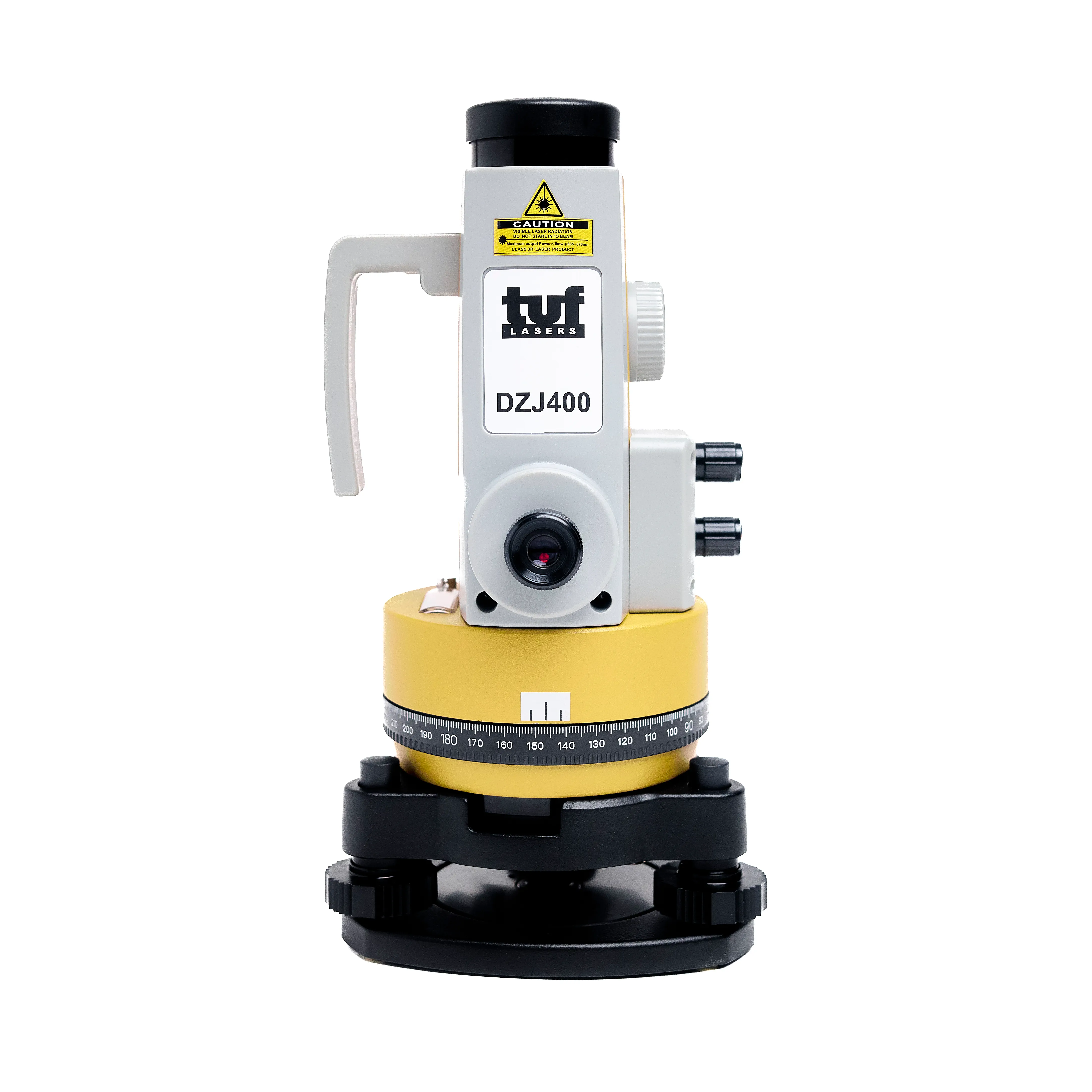

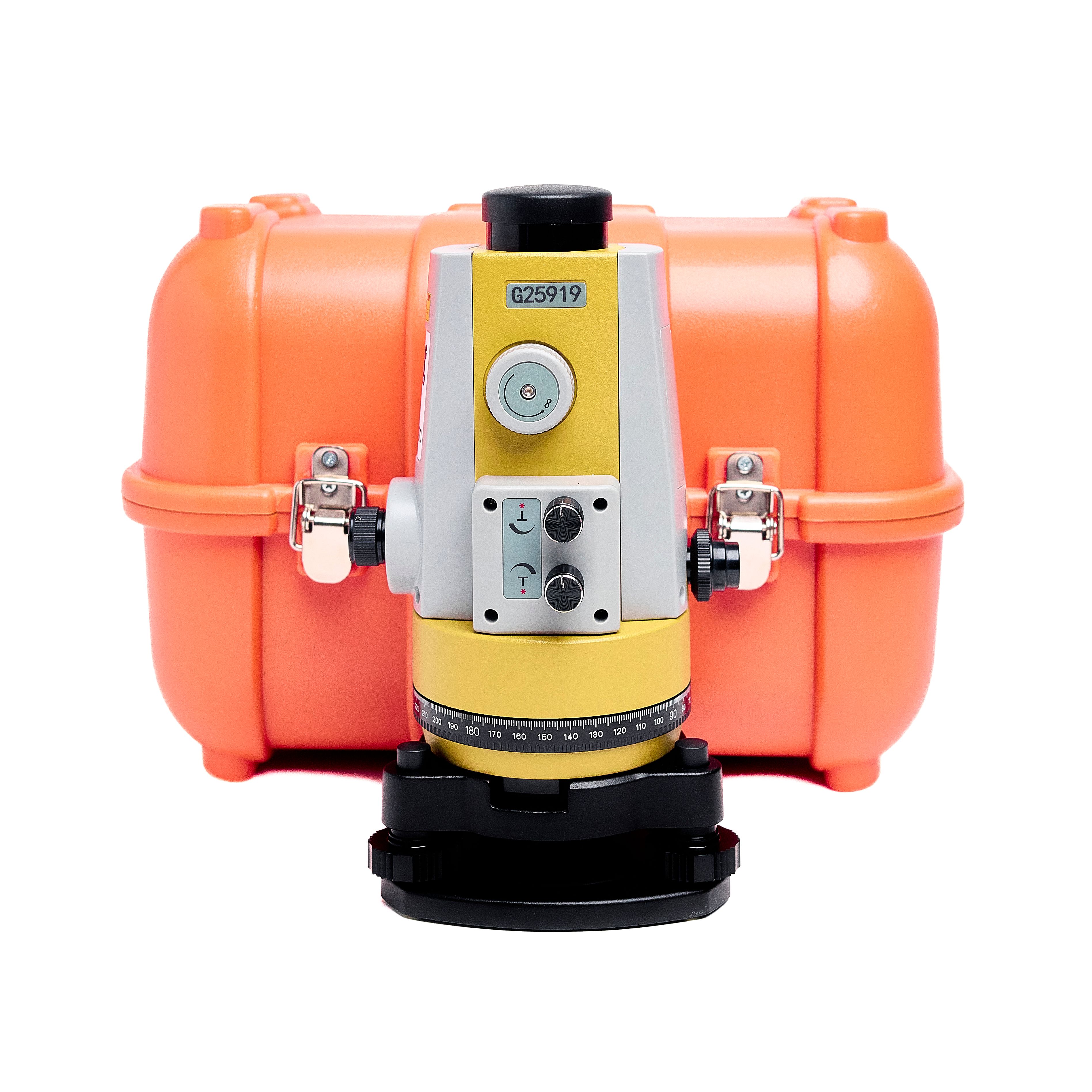

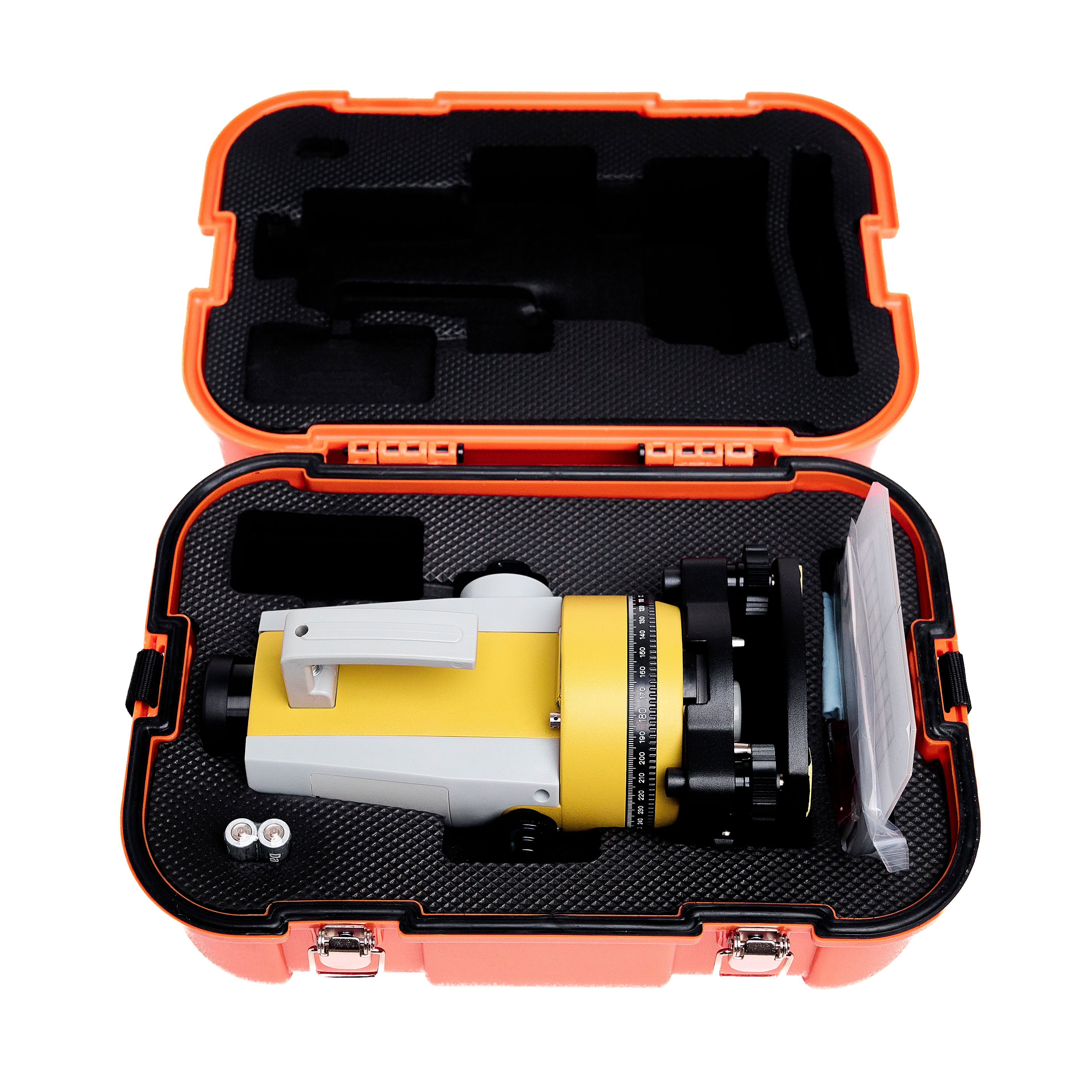

TUF DZJ400 Laser Plummet
- Equipped with two laser diodes (up & down) and optical scope with 24x magnification.
- High precision laser plummet with both up and down beams
- Sturdy and durable housing
- IP54 water resistant
- Fits for flat and dome head tripod
- Laser beam can be adjusted to a sharp and clear dot in any situation
| Telescope Optical Magnification | 25x |
| Field of View (FOV) | 1° 20' |
| Accuracy (Vertical upward laser) | ± 2.5mm/100 |
| Accuracy (Vertical downward laser) | ± 1mm/1.5m |
| Objective Diameter | 36 mm |
| Plate Level Sensitivity | 30" / 2 mm |
| Laser Diode / Class | Red / Class 2 |
| Spot Size | 3 mm / 50 m |
| Max. visible distance/day | ≥ 120 m |
| Max. visible distance/night | ≥ 250 m |
| Deviation to optical axis | ≥ 5" |
| Accuracy | ± 2.5 mm/100 m |
| Power Supply | 10 h / Li-Ion |
| Operation Temperature |
-10 °C to ± 50 °C |
| Dust / Weter Protection | IP 54 |
| Weight | 2.8kg |
Brand: TUF |
Code: TUF-DZJ400
APN: 9319499296155 |
Supplier Code: DZJ400
Brand: TUF |
Code: TUF-DZJ400
APN: 9319499296155 |
Supplier Code: DZJ400
At a glance
- Equipped with two laser diodes (up & down) and optical scope with 24x magnification.
- High precision laser plummet with both up and down beams
- Sturdy and durable housing
- IP54 water resistant
- Fits for flat and dome head tripod
- Laser beam can be adjusted to a sharp and clear dot in any situation
| Telescope Optical Magnification | 25x |
| Field of View (FOV) | 1° 20' |
| Accuracy (Vertical upward laser) | ± 2.5mm/100 |
| Accuracy (Vertical downward laser) | ± 1mm/1.5m |
| Objective Diameter | 36 mm |
| Plate Level Sensitivity | 30" / 2 mm |
| Laser Diode / Class | Red / Class 2 |
| Spot Size | 3 mm / 50 m |
| Max. visible distance/day | ≥ 120 m |
| Max. visible distance/night | ≥ 250 m |
| Deviation to optical axis | ≥ 5" |
| Accuracy | ± 2.5 mm/100 m |
| Power Supply | 10 h / Li-Ion |
| Operation Temperature |
-10 °C to ± 50 °C |
| Dust / Weter Protection | IP 54 |
| Weight | 2.8kg |
