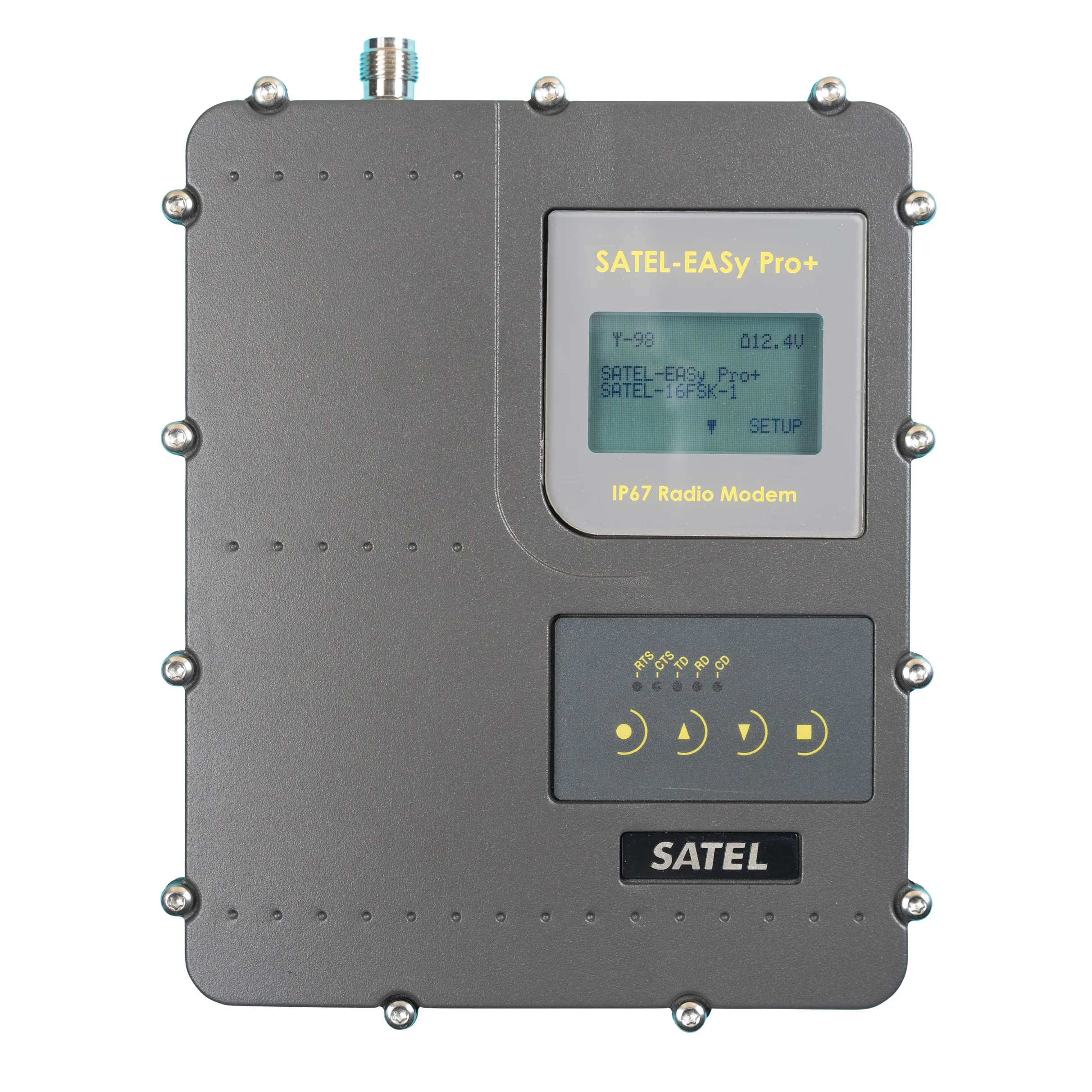

Satel Easy Pro+ UHF Base Radio Kit
$7,543.00
HURRY! Only 2 units left
- IP67 UHF radio modem.
- High power output (5W to 25W)
- Wide frequency range (403…473 MHz)
- Supported AES128 (by default) / AES256 (as an order option) encryption
- Transmits distances more than 80 kilometres
- Compatible with widely used SATELLINE-EASy and SATEL-EASy+ products.
| Frequency range | 403 … 473 MHz |
| Tuning range | 70 MHz |
| Channel spacing | 12.5 / 20 / 25 kHz software selectable |
| Sensitivity max. / Carrier power | -114 dBm / 1 … 35 W (Limited 25W output power is available as an order option) |
| Interface | RS-232 / HW model with data port 2: RS-232/-485/-422 (data/NMS) |
| Data speed max. | Radio 28800 / RS 115200 bps |
| Modulation | 4FSK, 8FSK, 16FSK |
| Operating voltage | +9 … +30 Vdc (-15% / +20%) |
| Power consumption | TX: 9 … 10 W @ 1W output power TX: 60 … 72 W @ 25 W output power TX: 84 … 97 W @ 35 W output power RX: 1.8 … 2.3 W Sleep mode: 0.9 … 1.4 W |
| Size | 180 x 138 x 71 mm with connectors |
| Weight | 1400 g |
| Connectors | Data 8-pin ODU / Antenna TNC female / Power 2-pin ODU |
| Brochures | |
|---|---|
| RJ-EASYPRO+ - Brochure | Product Manuals |
| Satel Easy Pro+ UHF Base Radio Kit - Product Manual |
Related Categories
UHF Radios
Brand: Satel |
Code: RJ-EASYPRO+
APN: 9319499265632 |
Supplier Code: SAT-EASYPRO+-5W-CRKP
Brand: Satel |
Code: RJ-EASYPRO+
APN: 9319499265632 |
Supplier Code: SAT-EASYPRO+-5W-CRKP
At a glance
- IP67 UHF radio modem.
- High power output (5W to 25W)
- Wide frequency range (403…473 MHz)
- Supported AES128 (by default) / AES256 (as an order option) encryption
- Transmits distances more than 80 kilometres
- Compatible with widely used SATELLINE-EASy and SATEL-EASy+ products.
