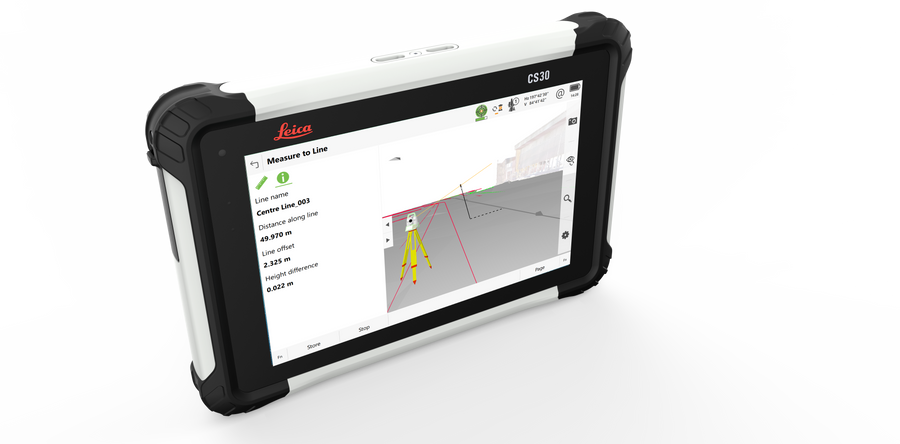

Leica CS30 Captivate LTE LRBT Windows 7" Tablet
- Lightweight Windows tablet computer with 7” Screen.
- Designed for surveyors running Leica Captivate software.
- Compatible with Leica GKP100 detachable keypad.
- IP68 weather resistant.
- Drop proof from 1.5m
- Long Range Bluetooth with 800m range.
- LTE modem for SIM card.
- Touchscreen suitable for gloved and naked fingers.
LIGHTWEIGHT
The CS30 tablet is remarkably lightweight, making it easy to carry and handle. It allows surveyors to move freely and work efficiently without being weighed down.

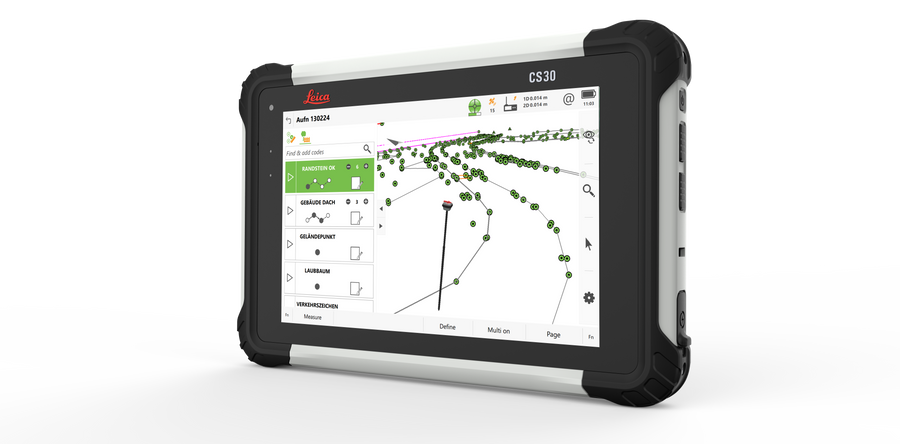

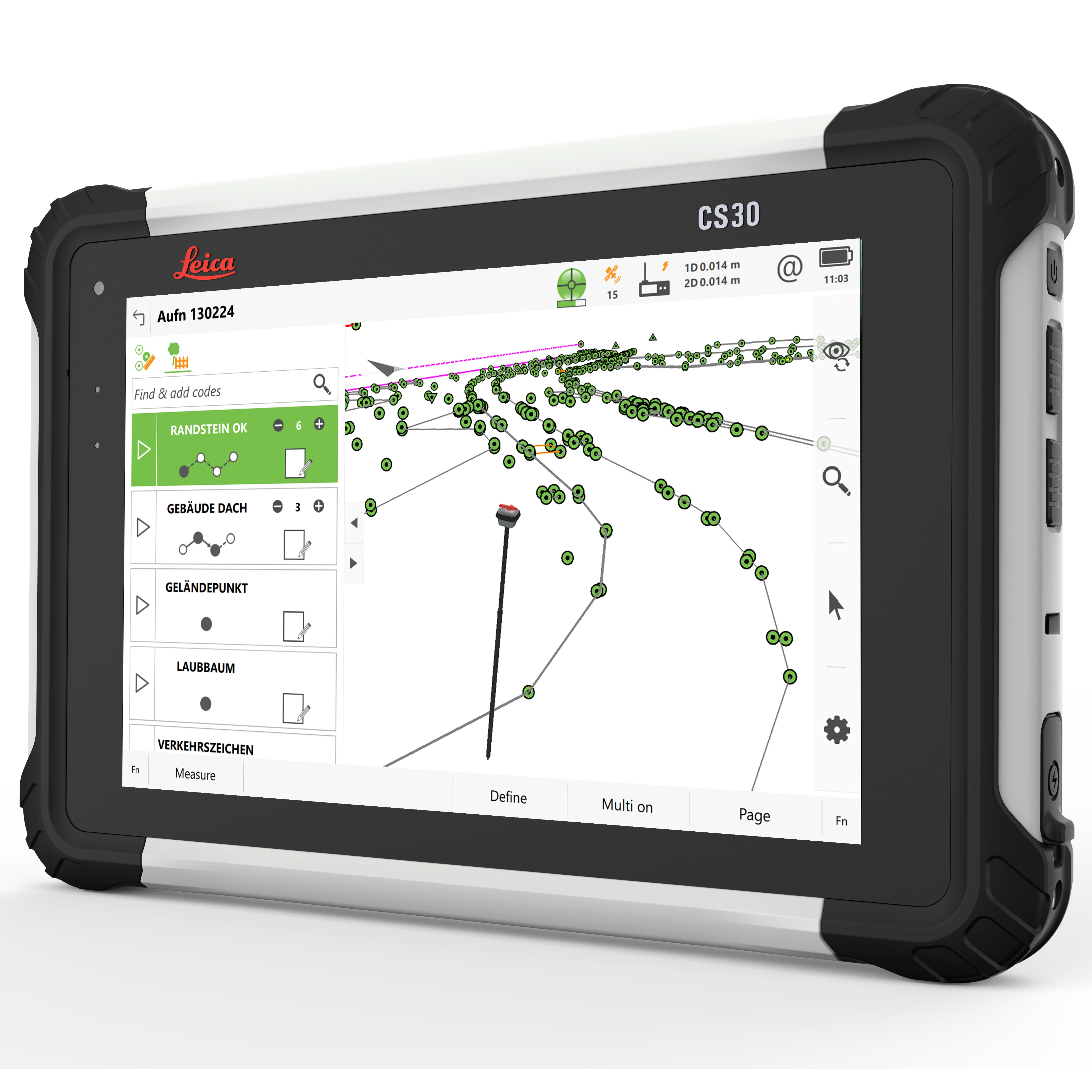

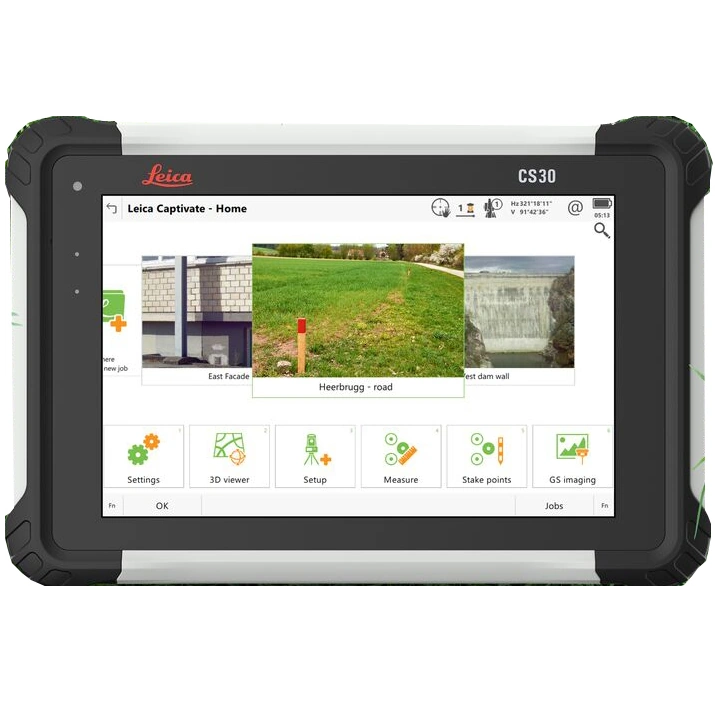

7" SCREEN
With a 7-inch display, the CS30 tablet offers a perfect balance of clarity and usability. The screen is large enough to comfortably view detailed data in Leica Captivate while keeping the tablet compact.

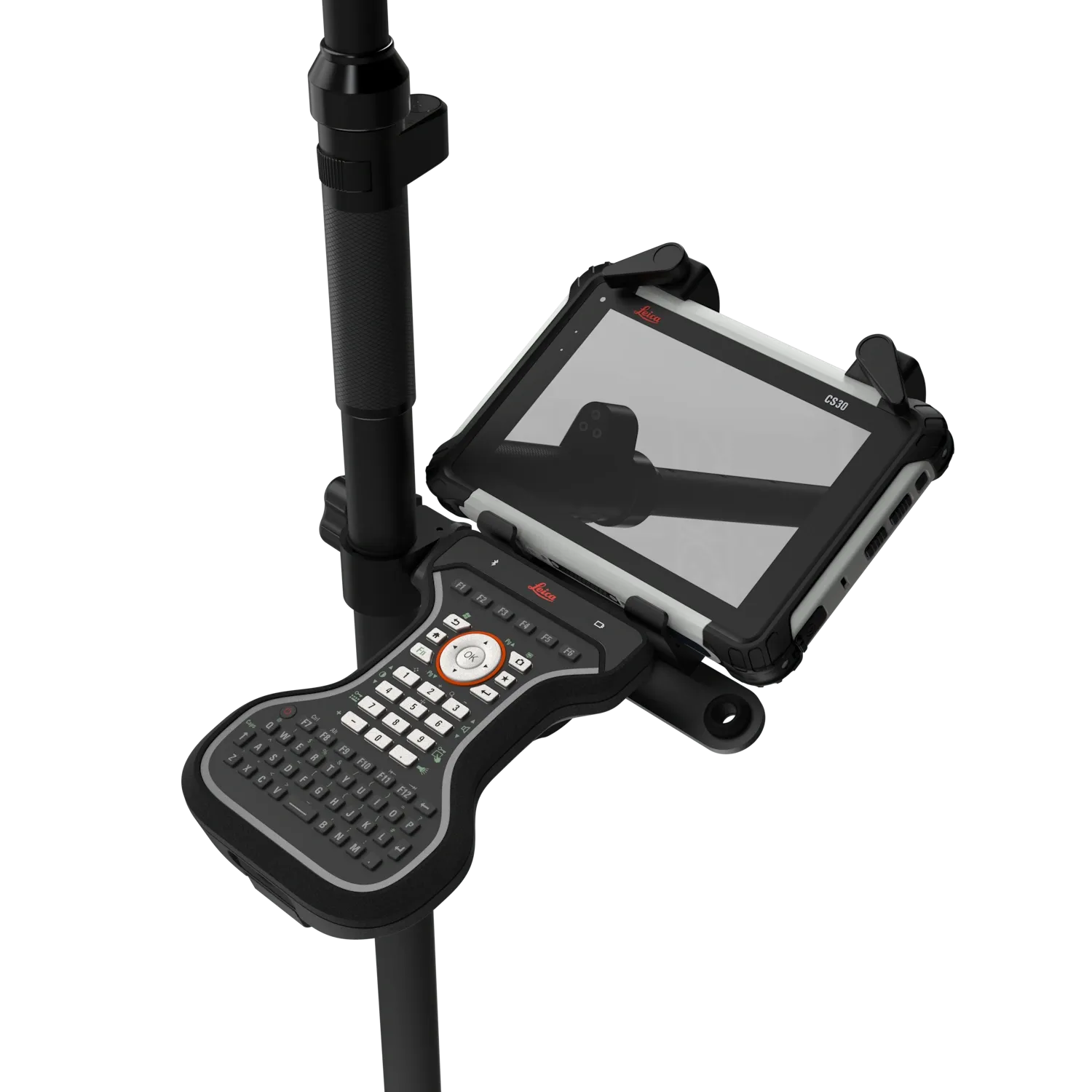

OPTIONAL KEYPAD
If you prefer using a physical keypad with the CS30, simply add the Leica GKP100 detachable keypad and enjoy the freedom to choose your preferred input method: touchscreen, keypad, or both.

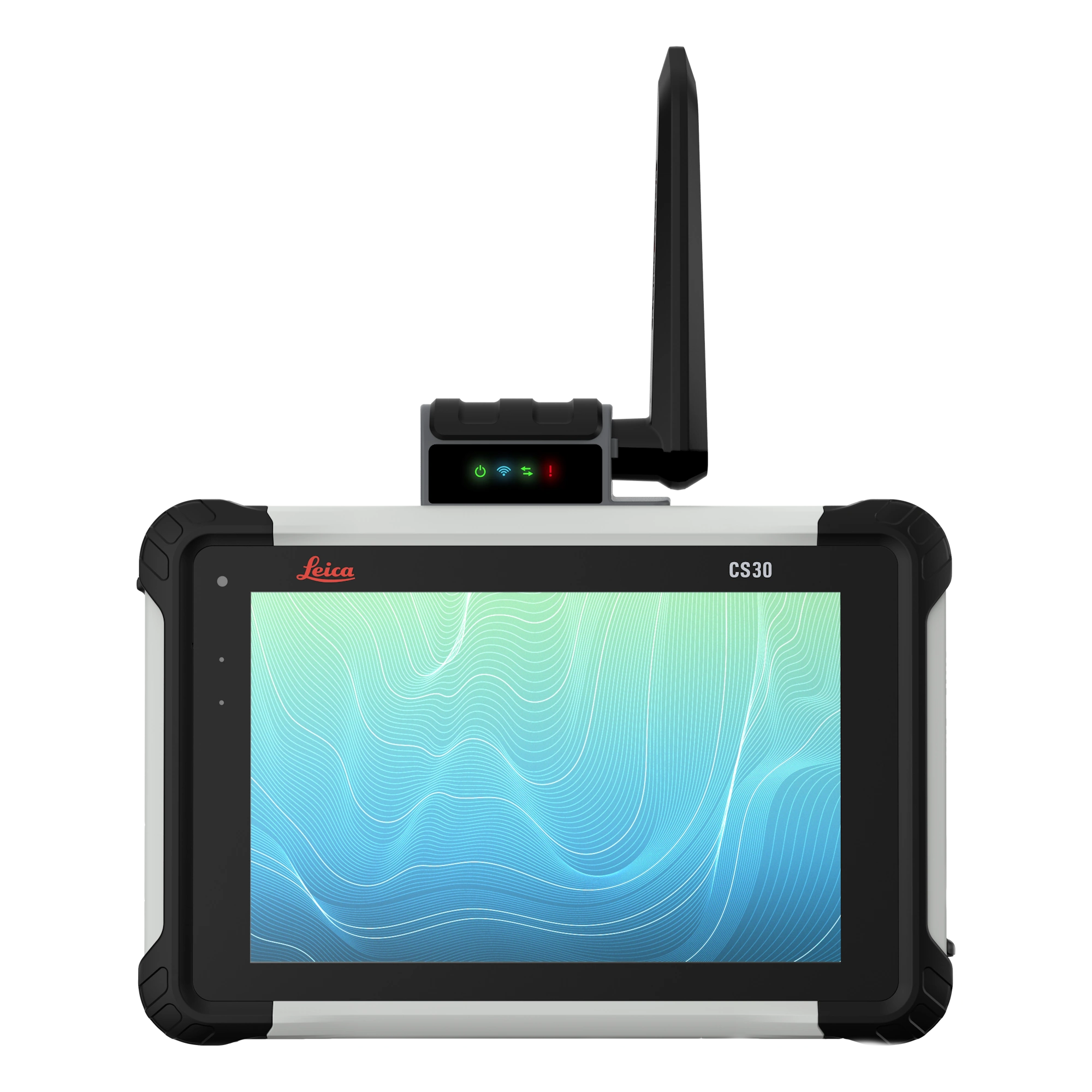

OPTIONAL LONG-RANGE BLUETOOTH
The CS30 has an optional long-range Bluetooth module and antenna for working at long distances with total stations. This results in less time spent moving the instrument and ultimately, more points measured.
| Operating system | Microsoft Windows Enterprise 10 LTSC 64bit |
| CPU platform | Intel® ApolloLake N3550 (1.1GHz up to 2.4GHz) |
| RAM / Data storage | 4GB / 64GB |
| Display | 7“, 1280 x 800 resolution, capacitive multitouch, glove‘ and ‚normal‘ touchscreen modes |
| Buttons | Power, 2x user-definable |
| I/O ports | 1x USB-C, 1x USB-A, 1x DC-In jack |
| Weight (including battery) | 0.760kg (1.68lb) |
| Size (length x width x height) | 210 x 140 x 23mm |
| Battery | Li-Ion, 11.1V, 3000mAh (33.3Wh), Indicator LEDs |
| Battery | 3 Ah, |
| Battery Life On Desk | Up to 8 hours |
| Bettery Life Connected to GS/ with SIM usage on tablet | Up to 3.5 - 3.75 hours |
| Integrated Communications | 3G/4G LTE with SIM card support, WLAN, 802.11, Bluetooth® v4.2 |
| Integrated camera | 8 MP auto-focus rear-facing camera with flash |
| TPS working range with long-range Bluetooth | Up to 800m |
| TPS working range without long-range Bluetooth | Up to 200m |
| Docking station available | Yes (35 pin connector) |
| Dust / water resistance | IP6x/IPx6, IPx8 |
| Drop | 1.5m |
| Audio | Microphone & speaker |
| Operating temperature | -25°C to +55°C |
| Brochures | |
|---|---|
| LG926415 - Brochure | Datasheets |
| Leica CS30 Captivate LTE LRBT Windows 7" Tablet - Datasheet |
Brand: Leica Geosystems |
Code: LG926415
APN: 9319499229580 |
Supplier Code: 926415
Brand: Leica Geosystems |
Code: LG926415
APN: 9319499229580 |
Supplier Code: 926415
At a glance
- Lightweight Windows tablet computer with 7” Screen.
- Designed for surveyors running Leica Captivate software.
- Compatible with Leica GKP100 detachable keypad.
- IP68 weather resistant.
- Drop proof from 1.5m
- Long Range Bluetooth with 800m range.
- LTE modem for SIM card.
- Touchscreen suitable for gloved and naked fingers.
LIGHTWEIGHTThe CS30 tablet is remarkably lightweight, making it easy to carry and handle. It allows surveyors to move freely and work efficiently without being weighed down. |
|
|
|
7" SCREENWith a 7-inch display, the CS30 tablet offers a perfect balance of clarity and usability. The screen is large enough to comfortably view detailed data in Leica Captivate while keeping the tablet compact. |
OPTIONAL KEYPADIf you prefer using a physical keypad with the CS30, simply add the Leica GKP100 detachable keypad and enjoy the freedom to choose your preferred input method: touchscreen, keypad, or both. |
|
|
|
OPTIONAL LONG-RANGE BLUETOOTHThe CS30 has an optional long-range Bluetooth module and antenna for working at long distances with total stations. This results in less time spent moving the instrument and ultimately, more points measured. |
