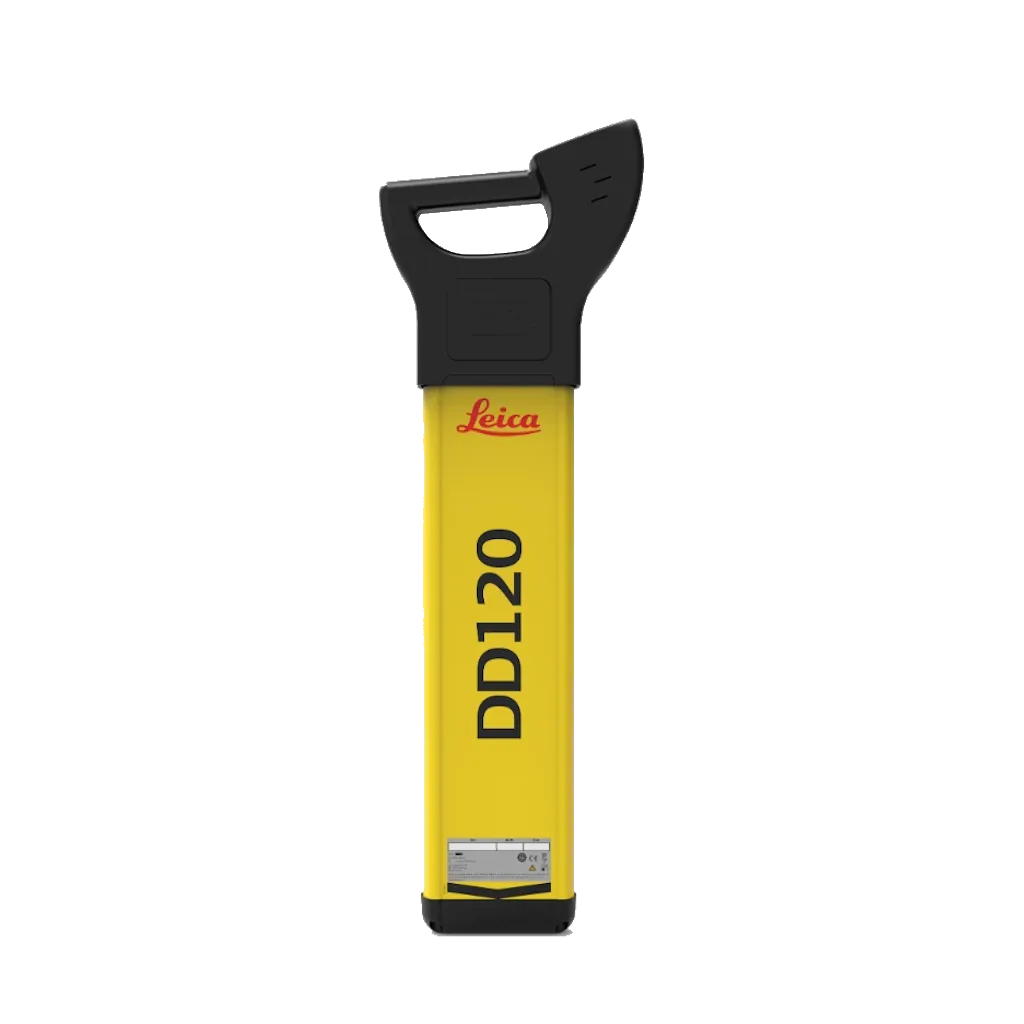

Leica DD120 Utility Avoidance Locator (50Hz), Alkaline Batt L-DD
$1,936.00
In Stock
- The Leica DD120 Series cable locators feature advanced automatic controls.
- Designed for ease of use, requiring minimal user experience.

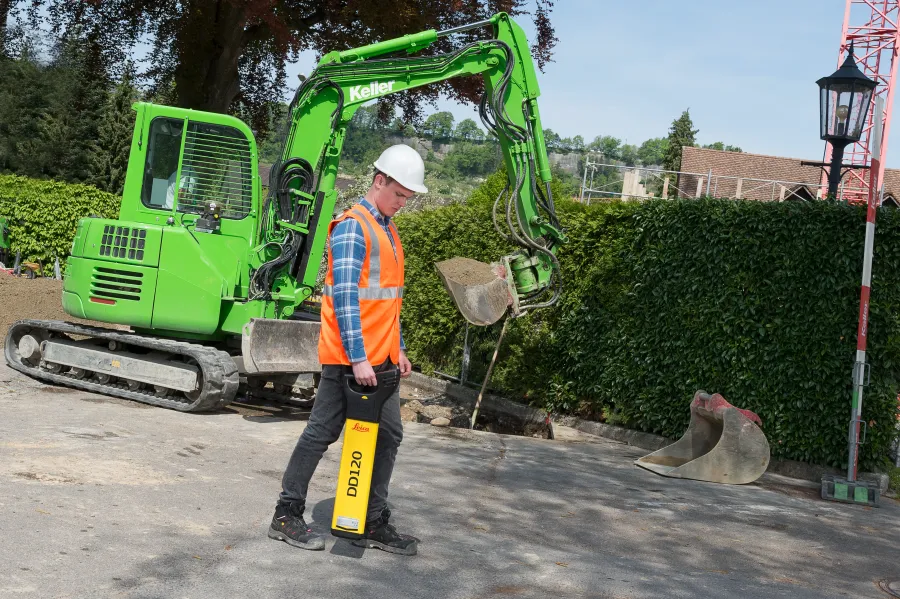

- Ideal for detecting buried cables and pipes before excavation work.
- Helps avoid underground utilities, a major concern on construction sites.
- Prevents operator injury, asset damage, and costly delays.
- Enhances safety, efficiency, and project planning accuracy.
- Use the DD120 cable locator series in conjunction with a DA175 signal transmitter or range of accessories to achieve improved accuracy and application scope. With the latest DD120 locator take advantage of Bluetooth and GPS connection for sharing data with the existing DX Software Suite.
- With Automatic Pinpointing there is no need for you to manually adjust the sensitivity of your cable locator ensuring you're using the optimum sensitivity for the environment you are detecting the underground utilities.
- Reducing the likelihood of human error and enabling easier and more efficient cable and pipe locating. Ultimately saving you time and money.
| DD120 | ||
| Power | 50Hz / 60Hz model | |
| Radio | 15kHz - 60kHz | |
| Auto | Power, Radio, 33kHz | |
| Depth Range | Line 0.3m to 3m / 1ft to 10 ft Sonde 0.3m to 3m / 1ft to 10 ft | |
| Depth Accuracy* | 10% | |
| Environmental Standard | IP54 | |
| Operating Temperature | -20° C to +50° C -4° F to +122° F | |
| Battery | 6 x LR6 (AA) Alkaline | |
| Battery Operating Time** | 15 hours | |
| Dimensions (HxWxD) | 760 x 250 y 85mm (30 x 10 x 3.4 inches) | |
| Weight with Batteries | 2.7Kg 5.95 lbs | |
| Internal Data Storage | ✘ | |
| Data Logging | ✘ | |
| GPS | ✘ | |
| Bluetooth | ✘ | |
| * Depth to an undistorted signal ** Constant use at 20°C/68°F |
Brand: Leica Geosystems |
Code: LG872938
APN: 9319499329891 |
Supplier Code: 872938
Brand: Leica Geosystems |
Code: LG872938
APN: 9319499329891 |
Supplier Code: 872938
At a glance
- The Leica DD120 Series cable locators feature advanced automatic controls.
- Designed for ease of use, requiring minimal user experience.
- Ideal for detecting buried cables and pipes before excavation work.
- Helps avoid underground utilities, a major concern on construction sites.
- Prevents operator injury, asset damage, and costly delays.
- Enhances safety, efficiency, and project planning accuracy.
