Leica BLK3D Imager

The Leica BLK3D is a real-time, in-picture 3D measurement solution. By combining measurement sensors, software, and on-device edge data processing capabilities, the Leica BLK3D makes in-picture measurements with professional-grade accuracy in real-time possible. Every image captured is a complete and precise 3D measurement record.

Its edge computing capabilities eliminate the need for network connections and cloud services, ensuring professionals can make faster decisions within their daily workflows – whether measuring inaccessible locations, creating floor plans, estimating building installations, documenting construction site progress or creating measurable, as-built documentation.

BLK3D ACCURACY

The BLK3D represents a new way to capture and document reality by combining measurement sensors, software, and on-device data processing. Its integrated stereo-camera captures images that provide a complete 3D record, with:

• EDM accuracy of 1mm
• 2D in-picture accuracy of +/- 3mm
• 3D in-picture accuracy of +/- 6mm

Mobile Software

Reality Capture: Capture 3D measurable images.

Laser: Use the integrated Laser EDM to add highly accurate measurements to 3D images, or to take stand-alone measurements.

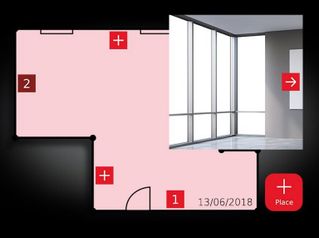

Sketch & Document: Create floorplans and attach measurable images to them. Useful for documenting construction progress over time.

New Project: Group 3D images and floorplans as a Project

Organiser: Organize projects.

Desktop Software

3D IMAGES ON THE BIG SCREEN

Pick up in the office where you left off in the field.

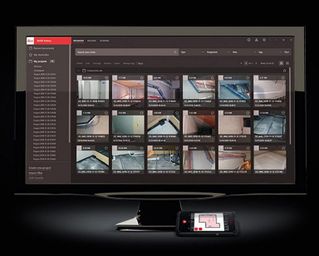

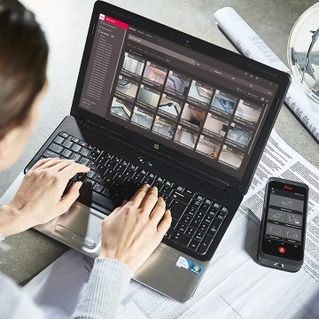

Transfer 3D images to the desktop to add measurements and organize projects.

Measure distance or area in 3D with the aid of the same advanced snapping algorithms that are on board the BLK3D itself.

The BLK3D Desktop keeps projects organized and can export measurements as CAD drawings, JPGs, or PDFs.

BLK3D Desktop software is compatible with 64-bit versions of Windows 7, 8.1, and 10 and requires a minimum of 6 GB of RAM.

ENHANCED FUNCTIONALITY:
3D MODELER

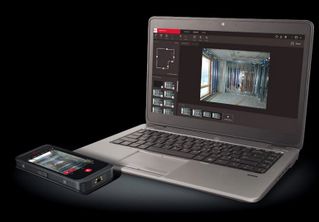

Create 3D CAD models from measurements with the optional 3D Modeler.

Hardware

HANDHELD 3D IMAGING

The combination of a calibrated stereo-camera, advanced algorithms and real-time edge computing.

Size and weight : 180 x 77 x 27 mm (7.1 x 3.1 x 1.1 in), 480 g / 17 oz

STEREO CAMERAS CREATE 3D IMAGES AND PLACE PRECISE MEASUREMENTS AT YOUR FINGERTIPS, IN REAL-TIME.

2x 10 MP (158.00 mm diagonal calibrated base line)

Field of view: 80°

Focal length: 4.0 mm (22 mm in 35 mm equiv. in 1:1)

Aperture: F3.0

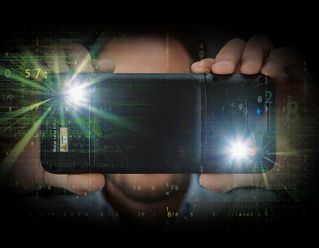

2x Synchronous LED Flash

PERFORMANCE

Intuitive Android OS, 64GB Storage: Holds thousands of 3D images, Fast internet connection with newest WLAN standards, Battery lasts a full day and can be exchanged

QUALITY MATERIALS

Aluminum housing for stability and durability, Chemically hardened, sunlight visible, multi-touch screen, Protective overmold for grip and shock absorption

LASER ACCURACY

Use the laser EDM combined with smart mapping tools to sketch accurate floorplans and combine them with 3D images.
Achieve 1mm accuracy by assigning laser measurements to image measurements.
