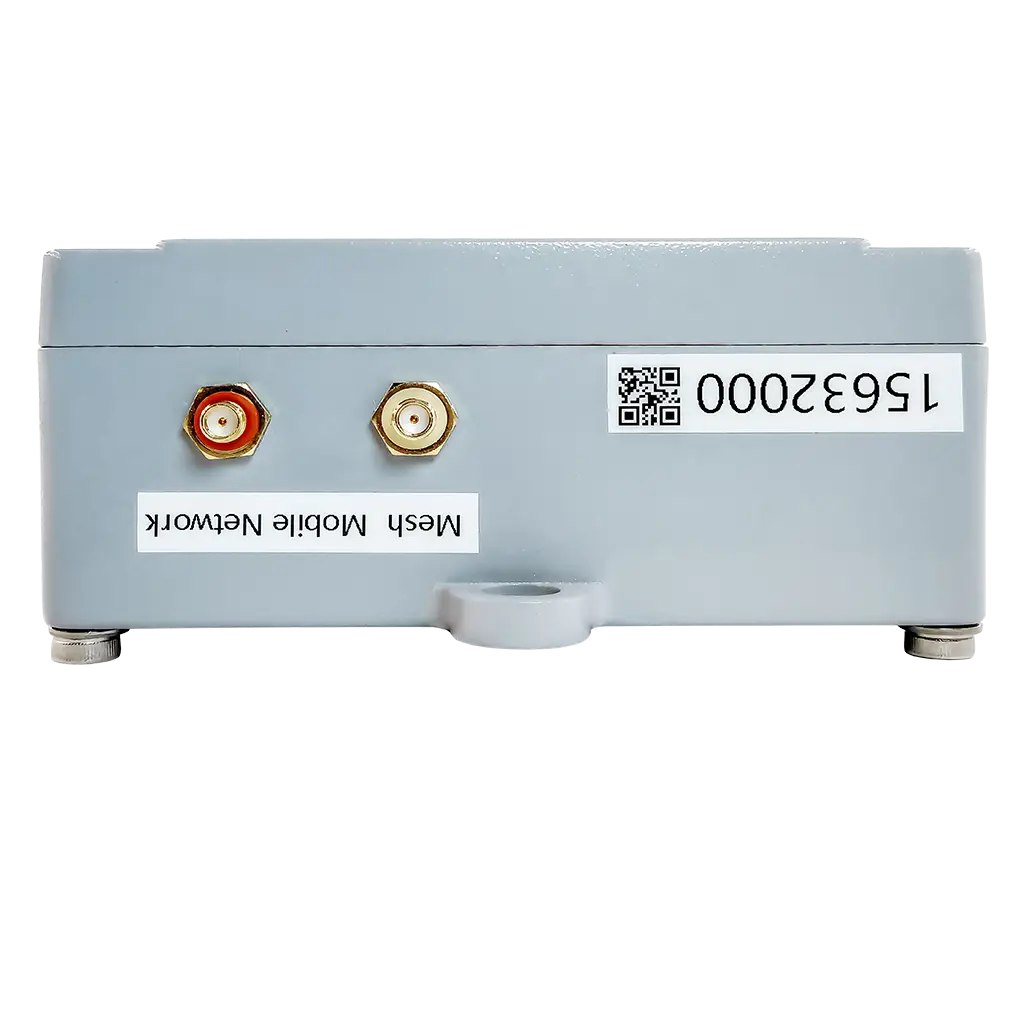

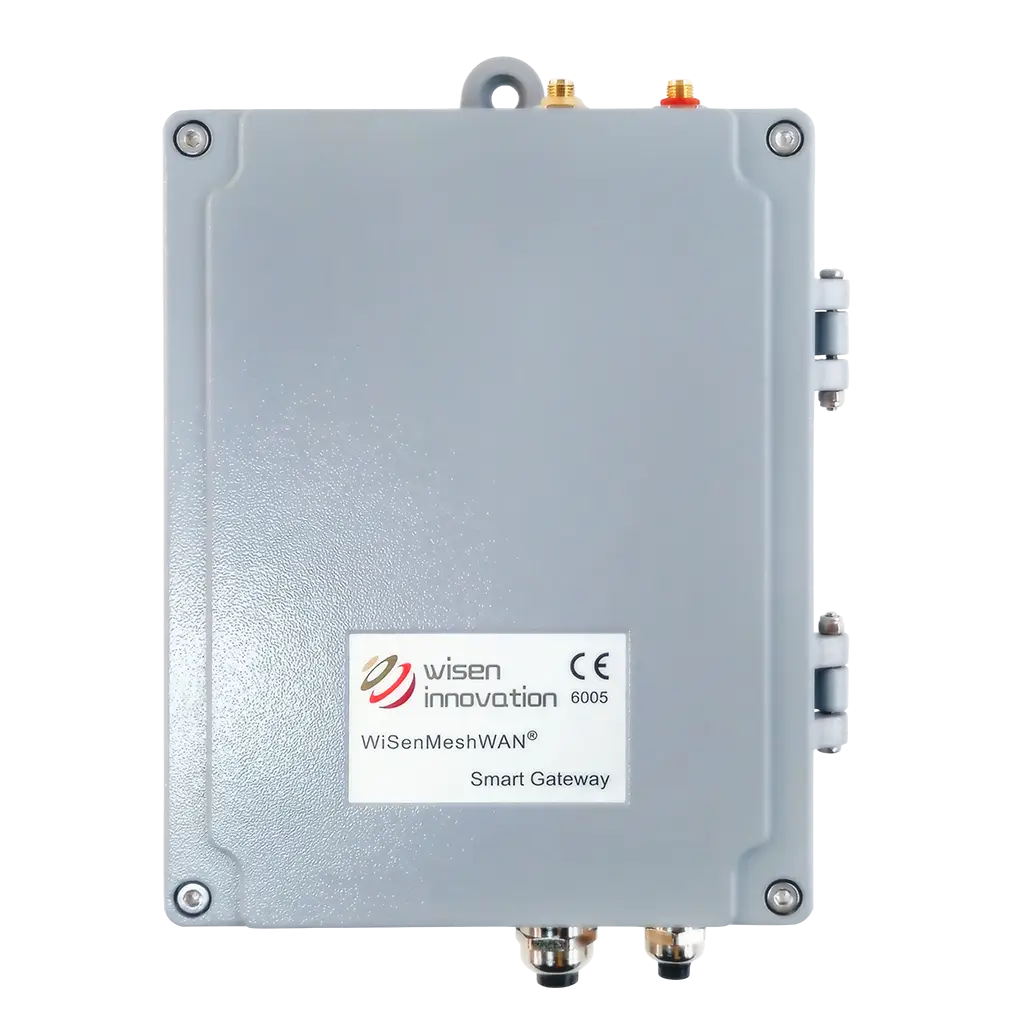

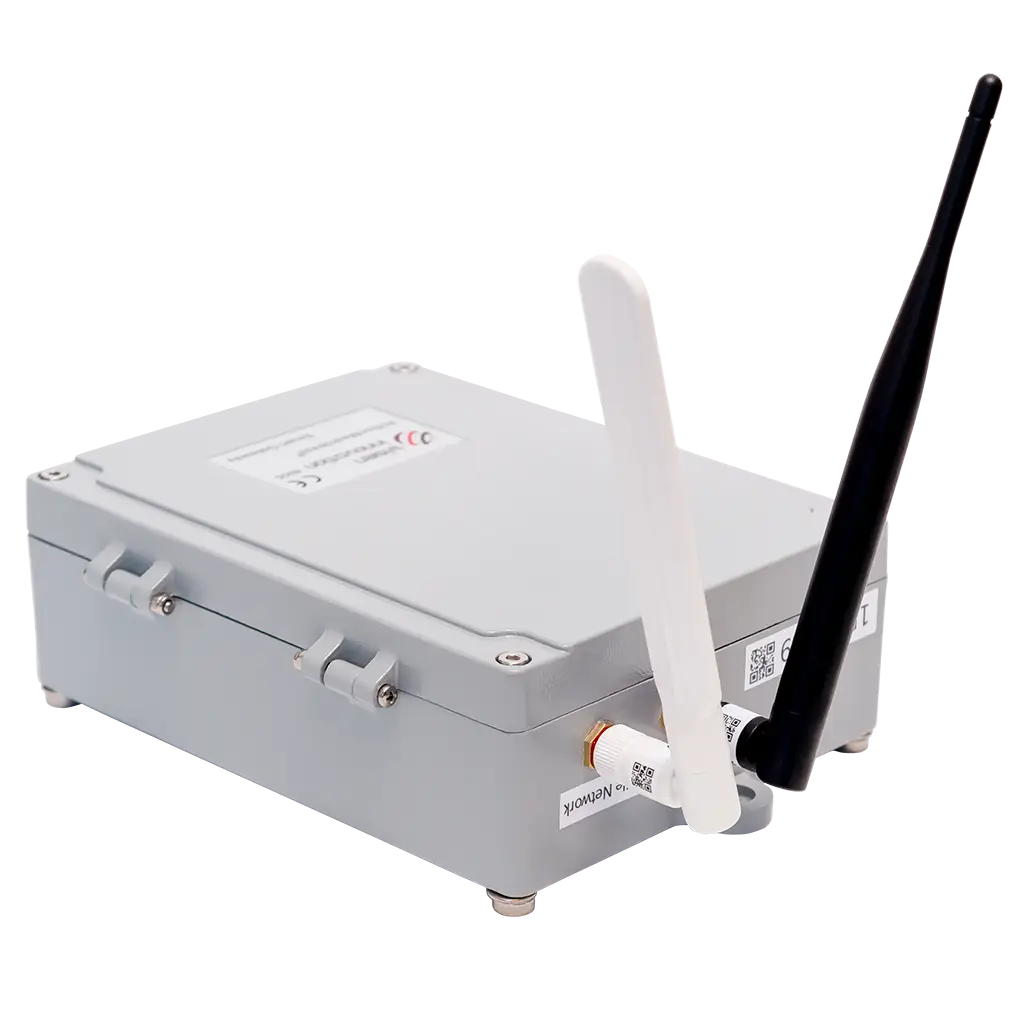

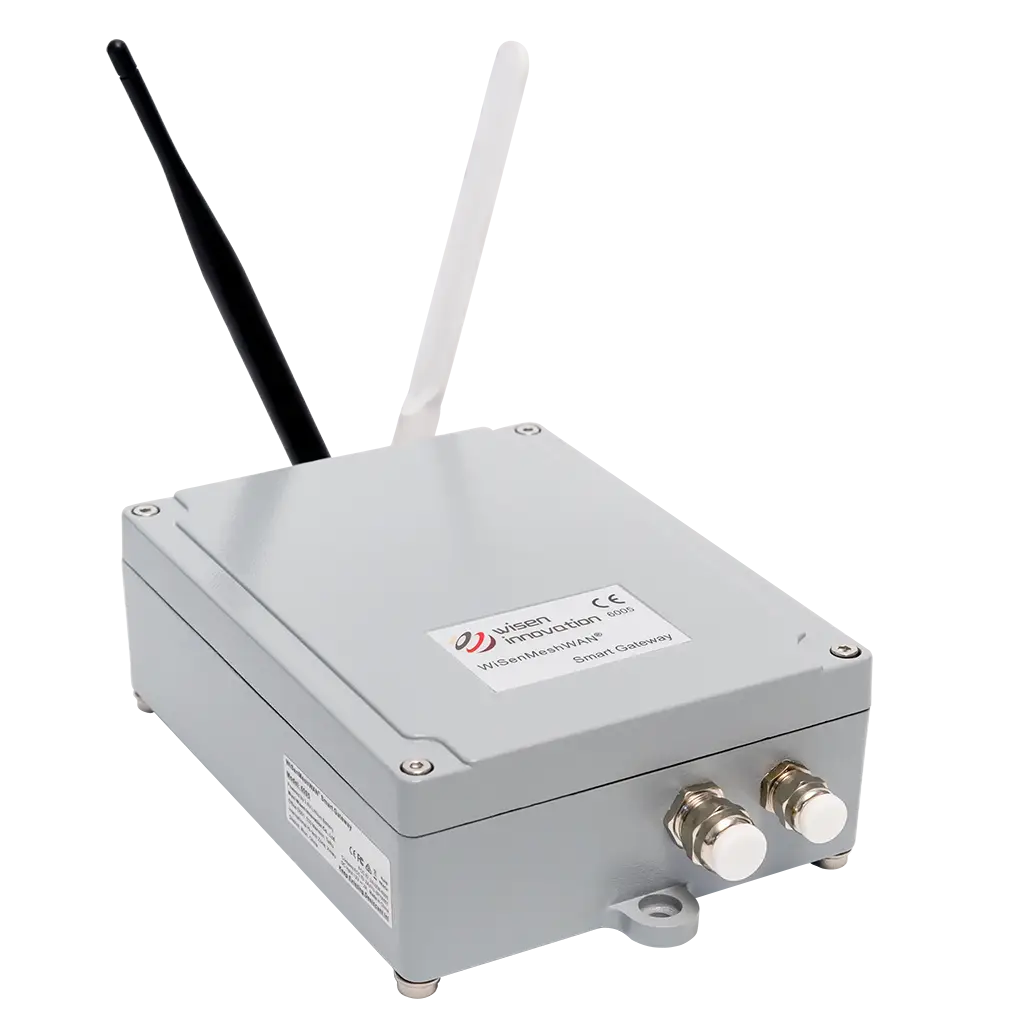

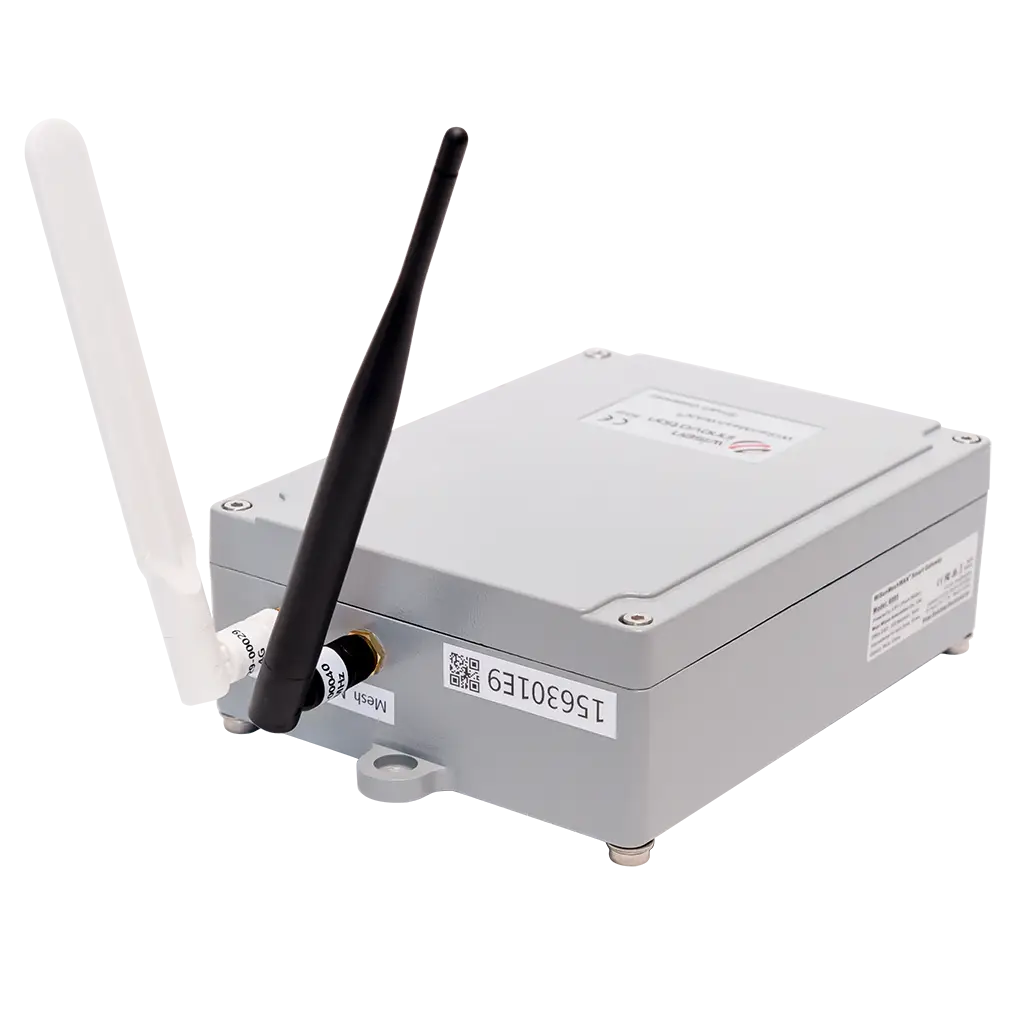

WiSenMeshWAN SmartGateway incl. 8252875 + 8251262 + 8252578
Applications: A gateway is used as a key unit in Wireless Sensor Network system. It is responsible for the command issuing (such as T modifications) to and data collection from all the nodes involved in a mesh network (L-Series); meanwhile, it forwards the data and system information to the remote server via mobile network or the local server via standard RS232 connections.
| 6005 Type - WiSenMeshWAN® Smart Gateway | |||
| Basics | |||
| Primary Battery Power (Internal) | Qty. x 4 (3.6V Lithium primary D-Cell ER34615) | ||
| Battery Connection | Standard Aluminium Battery Holder | ||
| Secondary DC Power (External) | 7 - 32VDC @ Min. 2A (e.g. 110-240VAC to 12VDC adaptor) | ||
| Tertiary Power (External) | 3.6VDC Battery Unit or Solar Unit | ||
| Mobile Network Stop Voltage | ≥ 2.65VDC | ||
| Local Storage | 8GB (Min. 1.5 Yrs Storage) | ||
| L x W x H | 180 x 140 x 60mm | ||
| Weight | ≤ 2.0kg | ||

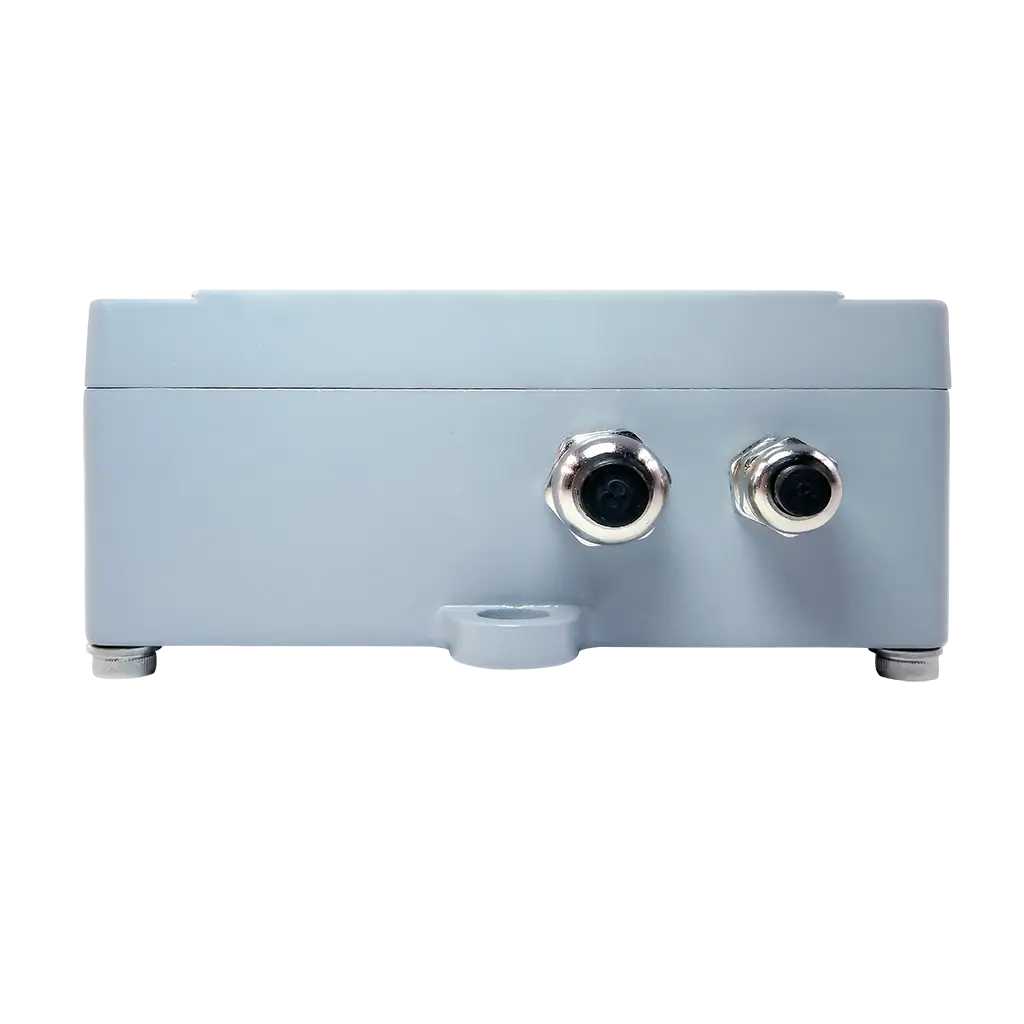

| Cable Gland |
Qty. 1 x EMC-CMA12 for external RS232 connection Qty. 1 x EMC-CMA14 for external DC input power connection |
||
| Wire Connection | DC In - Spring type wiring terminal | ||
| External Interface | |||
| Wireless Module | Compatible with 2G/2.5G/3G/4G of Micro SIM card | ||
| Wired Port | RS232 | ||
| WSN Interface | |||
| Mesh Wireless Interface | WiSenMeshWAN® Protocol | ||
| Low Power Mode | T≥5min and Server Connection Ratio DTU_T = [1,99]T | ||
| Standard System Parameter | |||
| Temperature | Measurement Range: -40 to 85°C; Accuracy: ±1°C, typical 0.5°C; Resolution: 0.1°C | ||
| Voltage | Accuracy: ± 0.1V | ||
Brand: Wisen |
Code: LG8251516
APN: 9319499235758 |
Supplier Code: 8251516
Brand: Wisen |
Code: LG8251516
APN: 9319499235758 |
Supplier Code: 8251516
At a glance
Applications: A gateway is used as a key unit in Wireless Sensor Network system. It is responsible for the command issuing (such as T modifications) to and data collection from all the nodes involved in a mesh network (L-Series); meanwhile, it forwards the data and system information to the remote server via mobile network or the local server via standard RS232 connections.
