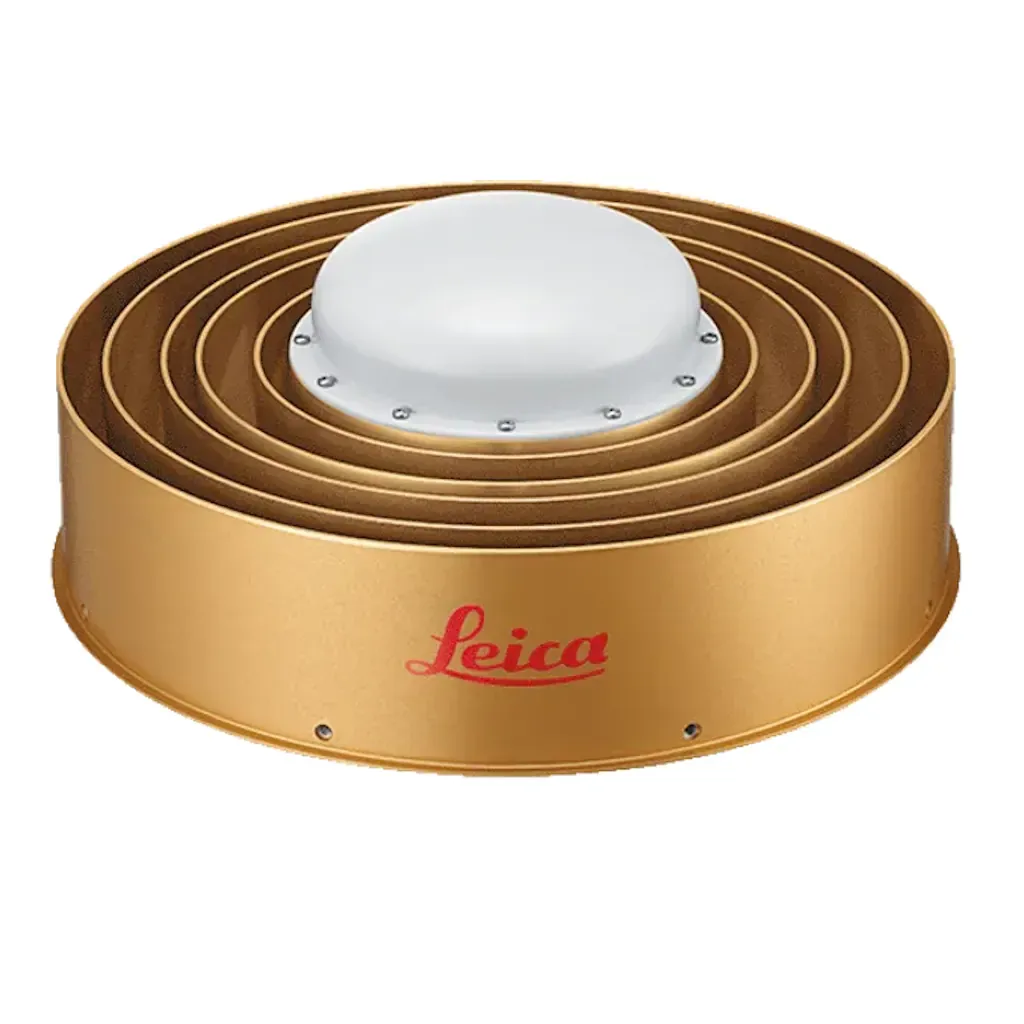

Leica Radome for AR20 GNSS Antenna

The Leica AR20 is designed for permanent and semi-permanent reference network installations, and meets all requirements for a reliable and long lasting antenna. It is future proof for all GNSS satellite signals.

New innovative design choke ring antenna

The AR20 provides superior tracking performance by using different depth and width choke rings. The precision design also allows for very low and stable phase center offsets and very smooth symmetry of the phase center variations versus azimuth and elevation.

Superior multipath performance

With an excellent axial ratio at low elevations, the AR20 provides results with superior multipath rejection across all GNSS frequency bands including L5, thanks to the new 3D inside design. Traditional 2D choke ring designs are only optimized for a specific frequency band.

Robust for long durability
The newly designed AR20 choke rings are treated with a new and robust double treatment for longer lasting durability in all environments. An optional radome cover is also available for added protection.
