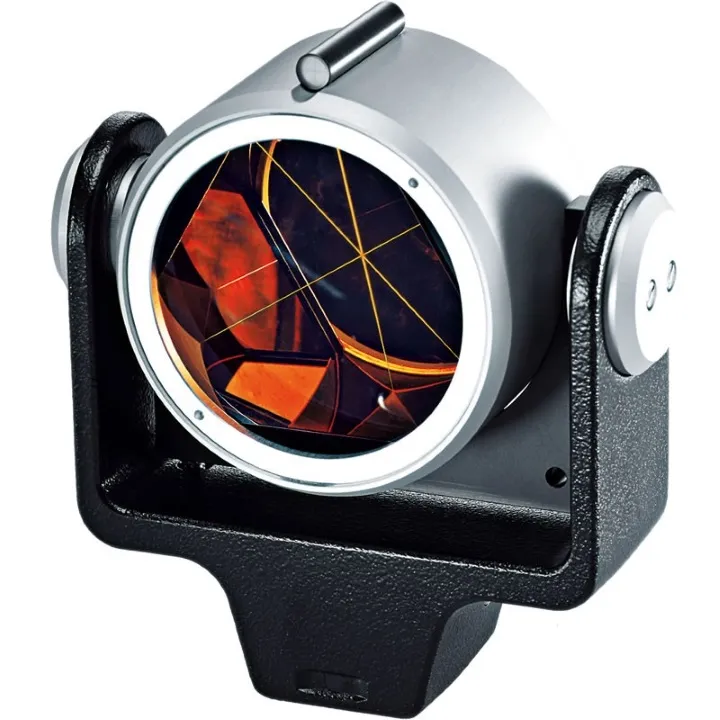

Leica GPH1P Single Prism Precision Reflector
$3,644.00
ETA: 15/06/2026
- Single prism relfector ideal for long range and precise measurements.
- Copper coated for resistance to environmental degradation.
- Single Tilt Assembly
- Black, metal holder
- Prism Constant: 0mm
- Centering Accuracy: 0.3mm
- Range: 3500m
Precisely machined reflector, for high accuracy requirements.
The prism is slightly tilted to prevent any EDM reflection from the front surface, thereby increasing measurement accuracy.
Centring accuracy 0.3mm, range 3500m.
|
Surface Coating |
Copper |
|
Prism Constant |
0.0mm |
|
Centring Accuracy |
0.3mm |
|
Range |
3500m |
| Comparison Charts | |
|---|---|
| Leica Prism Dimensions - Comparison Chart | Brochures |
| LG555631 - Brochure | Datasheets |
| Leica GPH1P Single Prism Precision Reflector - Datasheet | Product Manuals |
| Leica GPH1P Single Prism Precision Reflector - Product Manual |
Brand: Leica Geosystems |
Code: LG555631
Supplier Code: 555631
Brand: Leica Geosystems |
Code: LG555631
Supplier Code: 555631
At a glance
- Single prism relfector ideal for long range and precise measurements.
- Copper coated for resistance to environmental degradation.
- Single Tilt Assembly
- Black, metal holder
- Prism Constant: 0mm
- Centering Accuracy: 0.3mm
- Range: 3500m
