DJI Matrice 4T Thermal Emergency Service Package
$12,359.00
ETA: 17/03/2025
- DJI Matrice 4T Thermal RPAS Kit with 6 x batteries, landing pad, memory card, 65W charger, DJI AS1 Speaker & DJI AL1 Spotlight.
- Features built-in GNSS RTK module with extended L5 frequency
- Equipped with advanced features such as smart detection and measurement with laser range finder.
- Designed for a wide range of industries, including electricity, emergency response, public safety, and forestry conservation.
Kit Contents
Intelligent Operations With AI
DJI Matrice 4 Series offers real-time AI detection of people, vehicles, and boats, featuring intelligent capabilities like FlyTo, POI, Smart Track, and Cruise, along with advanced tools such as Observed View, Line & Area Drawing with LRF.

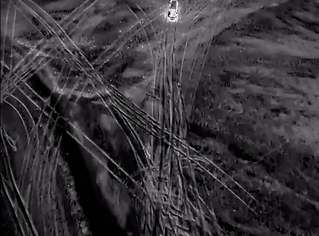

Thermal Imaging
The Matrice 4T supports infrared High-Res Mode, with image resolutions up to 1280 × 1024. It also offers Ultra-High Resolution, revealing small temperature details for various operations. Each device undergoes temperature accuracy calibration and utilizes an onboard temperature sensor to provide real-time temperature measurements.
Elevated Flight Safety
DJI M4 Series features a built-in RTK module with extended L5 frequency and low-light fisheye vision sensors. It also includes automatic RTH path planning, preloaded obstacle data, and detailed maps/models for enhanced operational efficiency.
| Aircraft | |
| Takeoff Weight (with propellers) | 1219g |
| Max Payload | 200g |
| Propeller Size | 10.8" |
| Diagonal Wheelbase | 438.8 mm |
| Max Ascent Speed | 10 m/s |
| Max Descent Speed | 8 m/s |
| Max Horizontal Speed | 21 m/s |
| Max Altitude | 6000m |
| Max Flight Time | 49 min (standard propellers) |
| Max Hover Time (without wind) | 42 min (standard propellers) |
| Max Wind Speed Resistance | 12 m/s |
| Max Pitch Angle | 35° |
| Operating Temperature | -10℃ to 40℃ |
| GNSS | GPS + Galileo + BeiDou + GLONASS |
| Hovering Accuracy Range | ±0.1 m (with Vision System); ±0.5 m (with GNSS); ±0.1 m (with RTK) |
| RTK GNSS Accuracy | 1 cm + 1 ppm (horizontal), 1.5 cm + 1 ppm (vertical) |
| Beacon | Built into the aircraft |
| Camera | |
| Image Sensor | Wide: 1/1.3-inch CMOS, Effective Pixels: 48 MP |
| Medium: 1/1.3-inch CMOS, Effective Pixels: 48 MP | |
| Telephoto: 1/1.5-inch CMOS, Effective Pixels: 48 MP | |
| Lens | Wide: |
| FOV: 82° | |
| Equivalent Focal Length: 24 mm | |
| Aperture: f/2.8-f/11 | |
| Focus: 1 m to ∞ | |
| Medium Tele Camera | |
| FOV: 35° | |
| Equivalent Focal Length: 70 mm | |
| Aperture: f/2.8 | |
| Focus: 3 m to ∞ | |
| Tele camera | |
| FOV: 15° | |
| Equivalent Focal Length: 168 mm | |
| Aperture: f/2.8 | |
| Focus: 3 m to ∞ | |
| Shutter Speed | 2-1/8000 s |
| Max Photo Size | Wide: 8064 × 6048 Medium Telephoto: 8064 × 6048 Telephoto: 8192 × 6144 |
| Minimum Photo Interval | 0.7s |
| Laser Rangefinder | |
| Measurement Range: | 1800 m (1 Hz) @20% reflectivity target |
| Distance Measurement Accuracy | 1-3 m: System Error <0.3 m, Random Error <0.1 meters @1σ |
| Other Distances: ±(0.2+0.0015D) (D represents the measurement distance in meters) | |
| Infrared Thermal Camera (Matrice 4T only) | |
| Thermal Imager | uncooled vanadium oxide (VOx) |
| Resolution | 640 × 512 pixels |
| Pixel Pitch | 12 μm |
| Frame Rate | 30 Hz |
| Lens | DFOV: 45°±0.3° Equivalent focal length: 53 mm Aperture: f/1.0 Focus: 5 m to ∞ |
| Sensitivity | ≤50mk@F1.0 |
| Temperature Measurement Method | Spot Meter, Area Measurement |
| Measurement Range | High Gain Mode: -20℃ to 150℃ Low Gain Mode: 0℃ to 550℃ |
| Palette | White Hot/Black Hot/Tint/Iron Red/Hot Iron/Arctic/Medical/Fulgurite/Rainbow 1/Rainbow 2 |
| Photo Format | JPEG (8bit)、 R-JPEG (16bit) |
| Video Resolution | 1280 × 1024@30fps (Super Resolution enabled, Night Mode not activated) Other conditions: 640 × 512@30fps |
| Video Bitrate | 6.5Mbps (H.264 640 × 512@30fps) 5Mbps (H.265 640 × 512@30fps) 12Mbps (H.264 1280 × 1024@30fps) 8Mbps (H.265 1280 × 1024@30fps) |
| Video Format | MP4 |
| Still Photography Modes | Single: 1280 × 1024/640 × 512 Interval: 1280 × 1024/640 × 512 JPEG: 0.7/1/2/3/5/7/10/15/20/30/60 s |
| Photo Resolution | Infrared: 1280 × 1024 (Super Resolution on) 640 × 512 (Super Resolution off) |
| Digital Zoom | 28x |
| Infrared Wavelength | 8um to 14um |
| Infrared Temperature Measurement Accuracy | High Gain: ±2℃ or ±2%, whichever is greater Low Gain: ±5℃ or ±3%, whichever is greater |
| Product Manuals | |
|---|---|
| DJI Matrice 4T Thermal Emergency Service Package - Product Manual |
- 1 x DJI Matrice 4T aircraft
- 6 x DJI Matrice 4 Series Battery
- 1 x DJI RC Plus 2 Enterprise remote controller
- 1 x DJI 100W USB-C Power Adapter
- 1 x DJI Matrice 4 Series Charging Hub
- 1 x microSD Card
- 1 x DJI Matrice 4T Gimbal Protector
- 1 x DJI Cellular Dongle 2 Pry Bar
- 3 x DJI Matrice 4 Series Propellers (Pair)
- 1 x 100W Power Adaptor AC Cable
- 1 x USB-C to USB-C Data Cable
- 1 x USB-A to USB-C Data Cable
- 1 x DJI Matrice 4 Series Storage Case
- 1 x DJI Matrice 4 Series Storage Case Shoulder Strap
- 1 x DJI Care Enterprise Plus (Auto-Activated)
- 2 x SanDisk Extreme PRO microSDXC 256GB Memory Card
- 1 x CYNOVA Universal Drone Landing Pad - 65 x 65cm
- 1 x DJI 65W USB-C Car Charger
- 1 x DJI AS1 Speaker For Matrice 4 Series
- 1 x DJI AL1 Spotlight For Matrice 4 Series
