$26,830.00 ETA: 24/12/2024

  • Built for long distance delivery of heavy payloads.
  • 40 kg Max Payload
  • 28 km Max Flight Range
  • DeliveryHub Software Integration

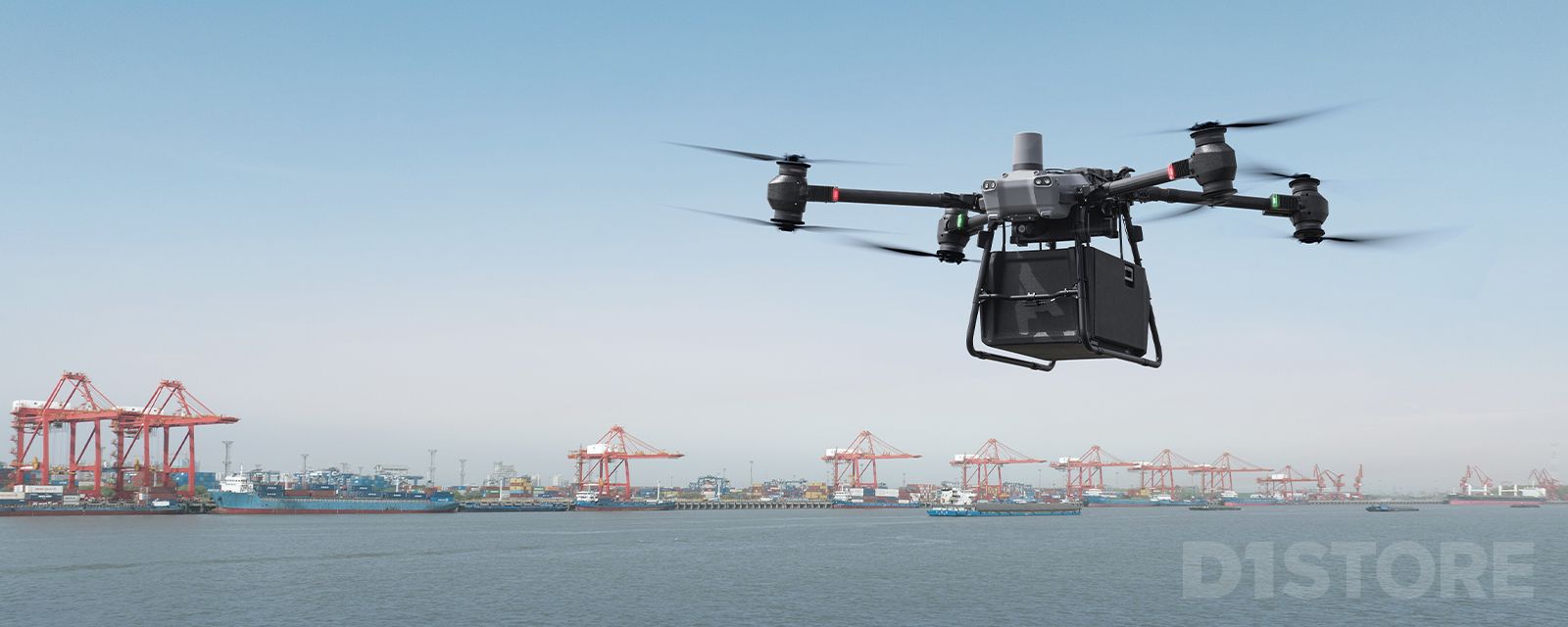

Designed to Deliver

Representing the culmination of countless industry-leading technologies, the DJI FlyCart 30 reimagines aerial delivery with a versatile, powerful delivery solution in a portable, foldable form factor.

FlyCart 30 sports a maximum payload capacity of 40 kg with a single battery and can fly up to 16 km with a full payload, making it suitable for countless delivery applications.

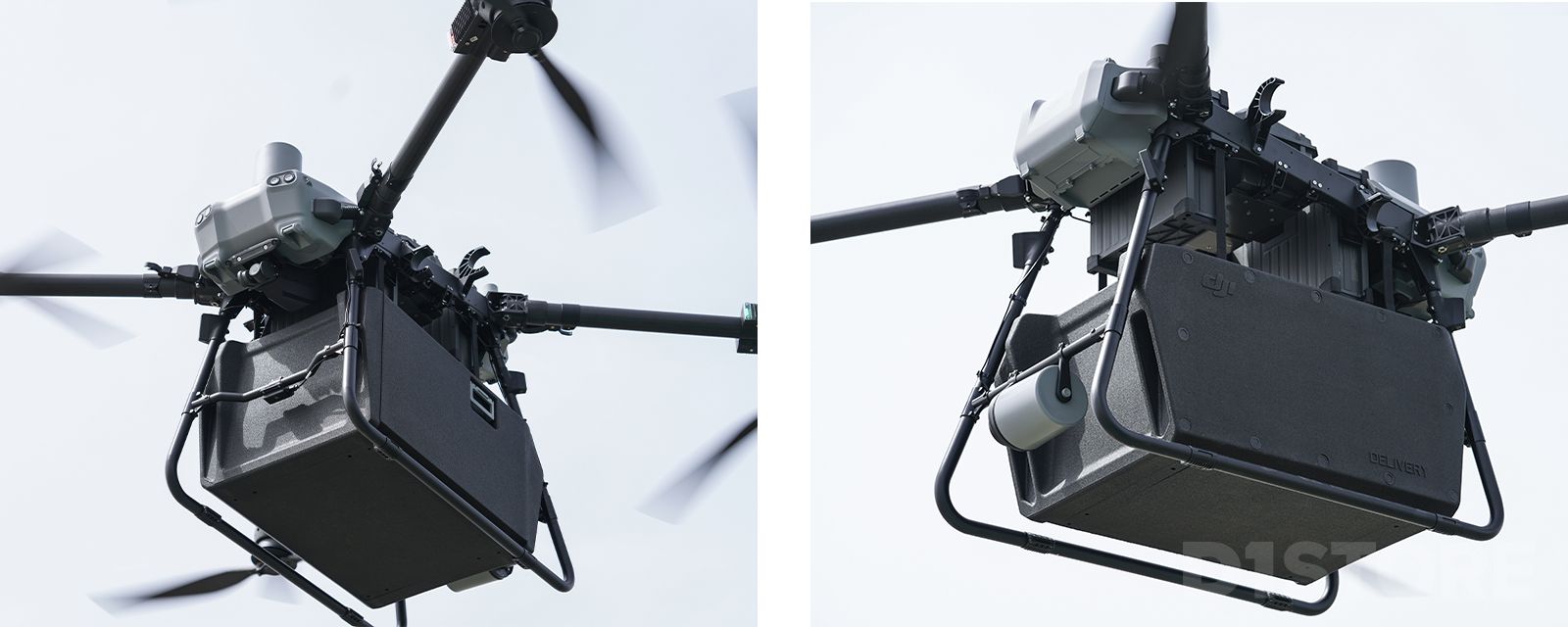

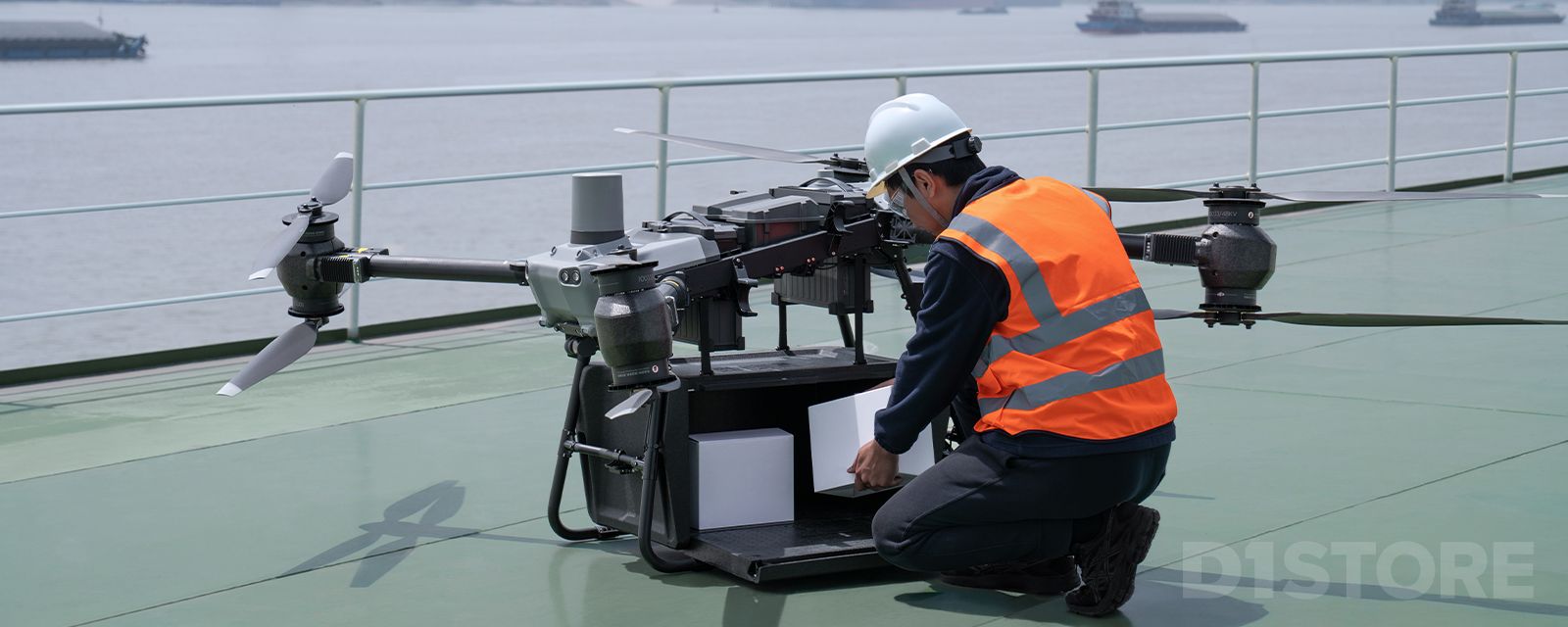

Carry Your Cargo

One of two operating modes, Cargo Mode is designed to facilitate aerial deliveries to hard-to-reach locales.

FlyCart’s large attachable EPP cargo case features a 70 L capacity, ideal for cargo of different shapes and sizes. With cargo mode engaged, FC30 supports a 30 kg maximum payload with dual batteries and an increased 40 kg payload support with a single battery.

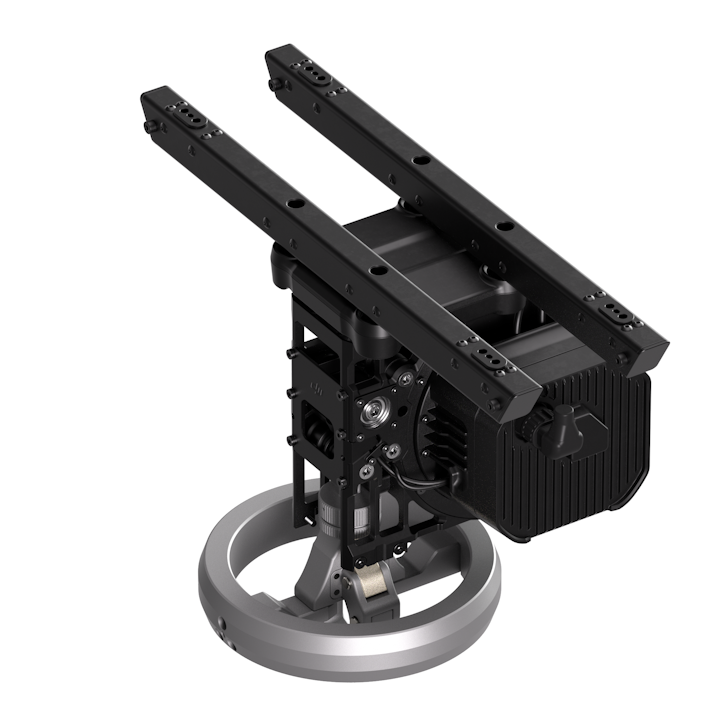

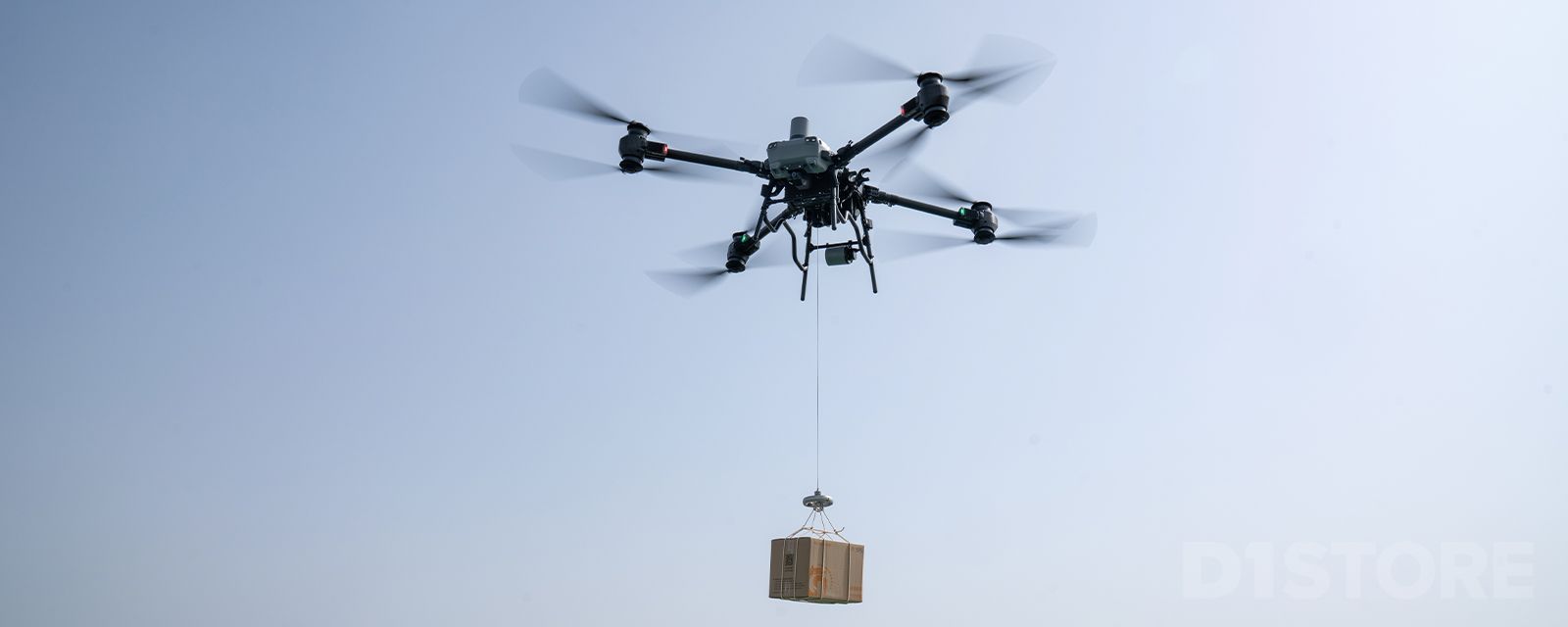

Winch It Up

Deploy the FlyCart 30 Winch System to deliver winched cargo via a retractable 20m cable. Control the cable retraction manually or use intelligent automatic delivery and detachment for maximum safety.

Winch Mode is ideal for delivering larger and awkwardly-shaped payloads including solar panels, equipment and more.

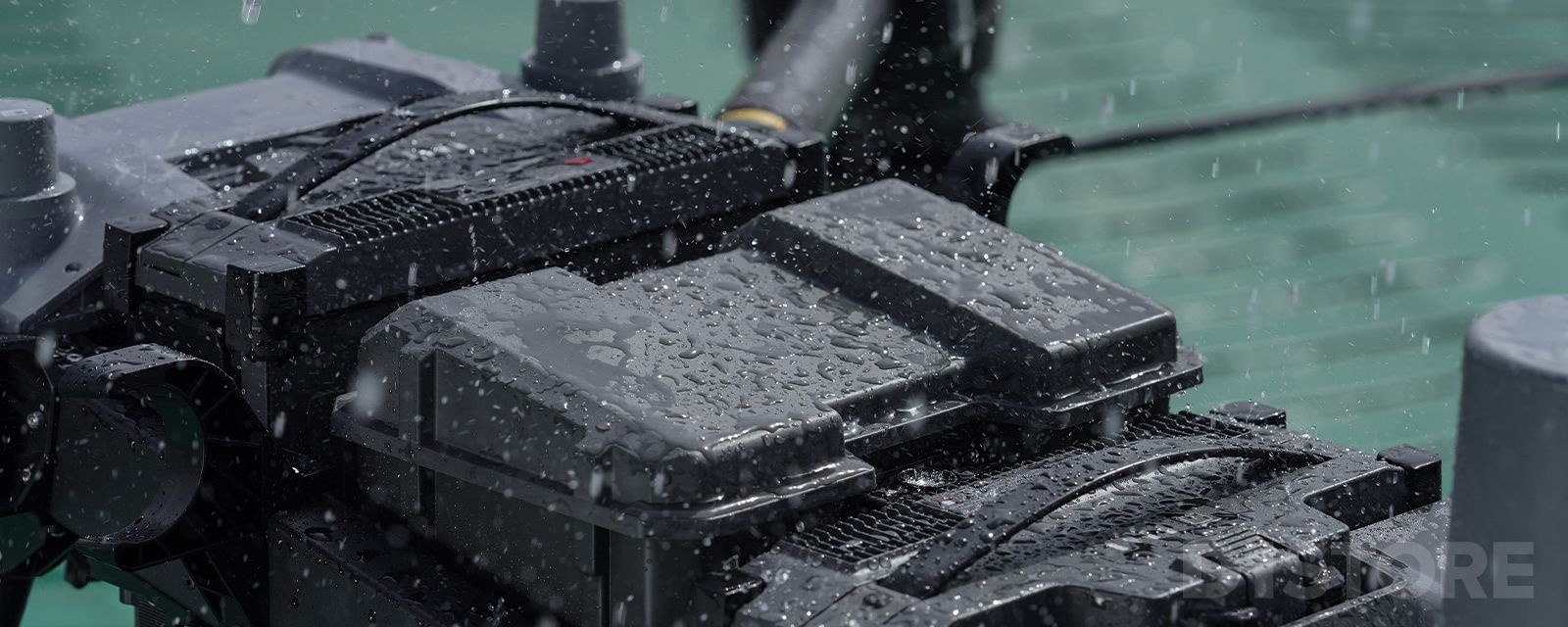

Fly in Rain or Shine

FlyCart 30 is built to perform, whether rain or shine. With an operating temperature of -20° to 45° C and maximum wind resistance of 12 m/s, FlyCart 30 can handle practically anything the weather throws at it.

Plus, an IP55 protection rationing ensures that FlyCart remains fully functional, even in the rain.

Far Away Flying

DJI FlyCart 30 features a best-in-class maximum video transmission range of 20 km. Powered by the DJI O3 video transmission protocol, FC30 achieves stable long-range transmission with a four-antenna transceiver system that can be further supported with the DJI Cellular Dongle.

FlyCart supports a maximum flight distance of 28 km using dual batteries with a cruising speed of 15 m/s. Dual Operator Mode facilitates secure handover of controls for extended range missions.

Superior Safety

With Front and Rear Phased Array Radars in addition to a dual Binocular Vision System, FlyCart 30 can detect obstacles from multiple directions to maintain safe flight.

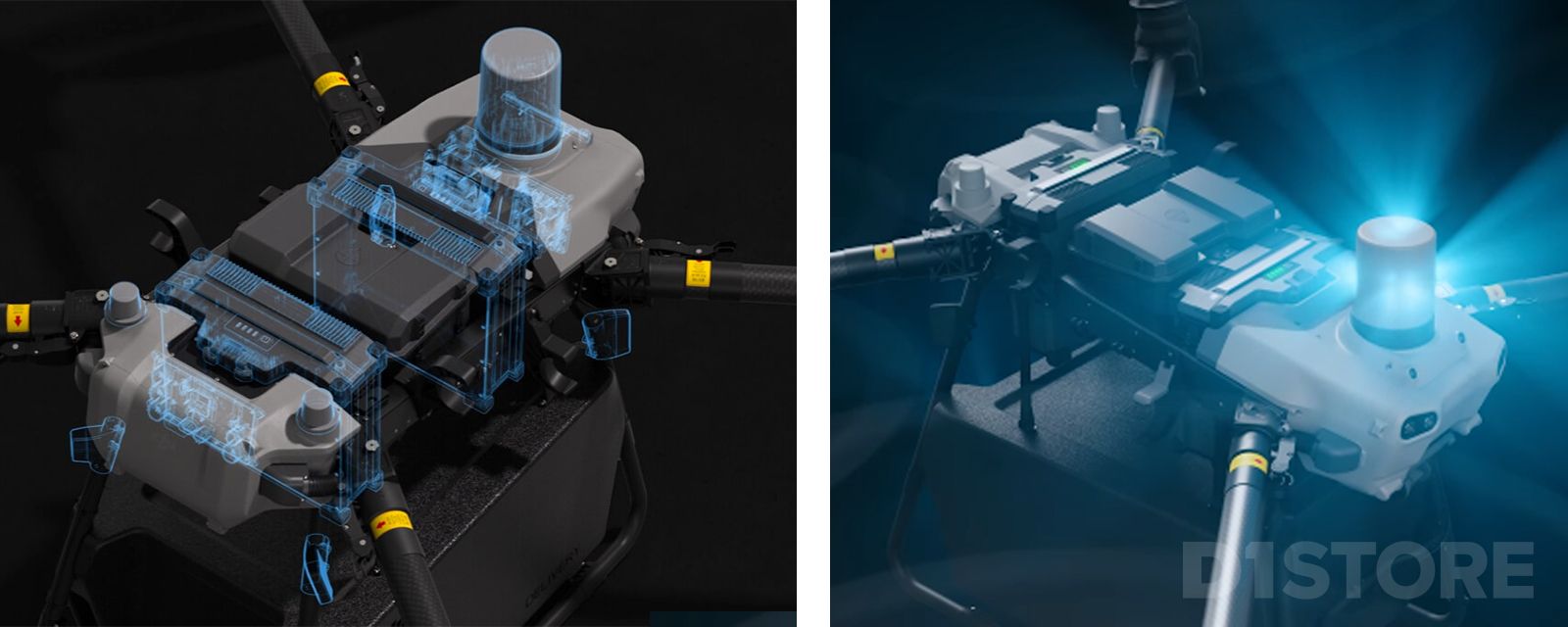

Reliable Redundancies: FC30 sports countless redundancy system with dual IMUs, barometers and batteries. Plus, a built-in parachute that deploys in emergency scenarios for safe landings.

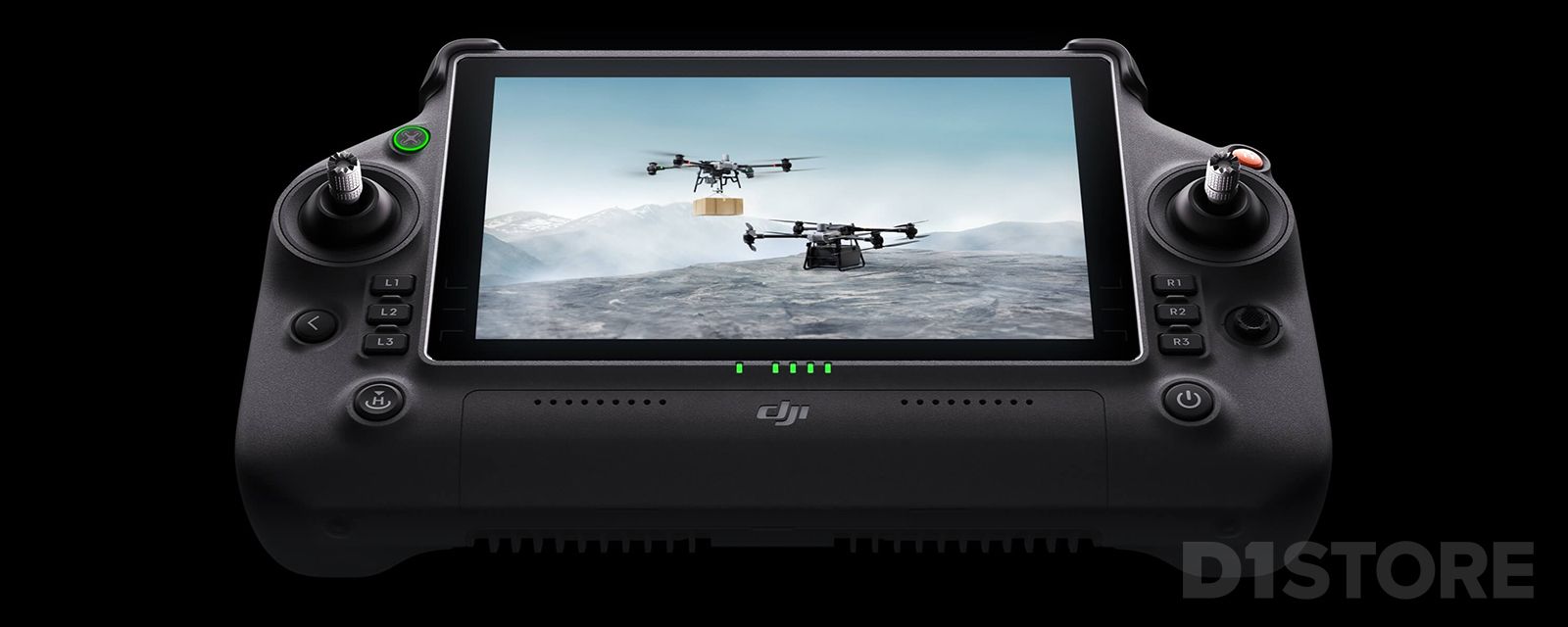

DJI RC Plus

Control FlyCart 30 with the DJI RC Plus, a powerful controller featuring a 7” high-bright screen, 6 hour battery life and IP54 protection.

With Dual Operator Mode controls can be seamlessly be handed off from one controller to another when needed.

It’s the best drone controller in the business, and fully optimised for FlyCart.

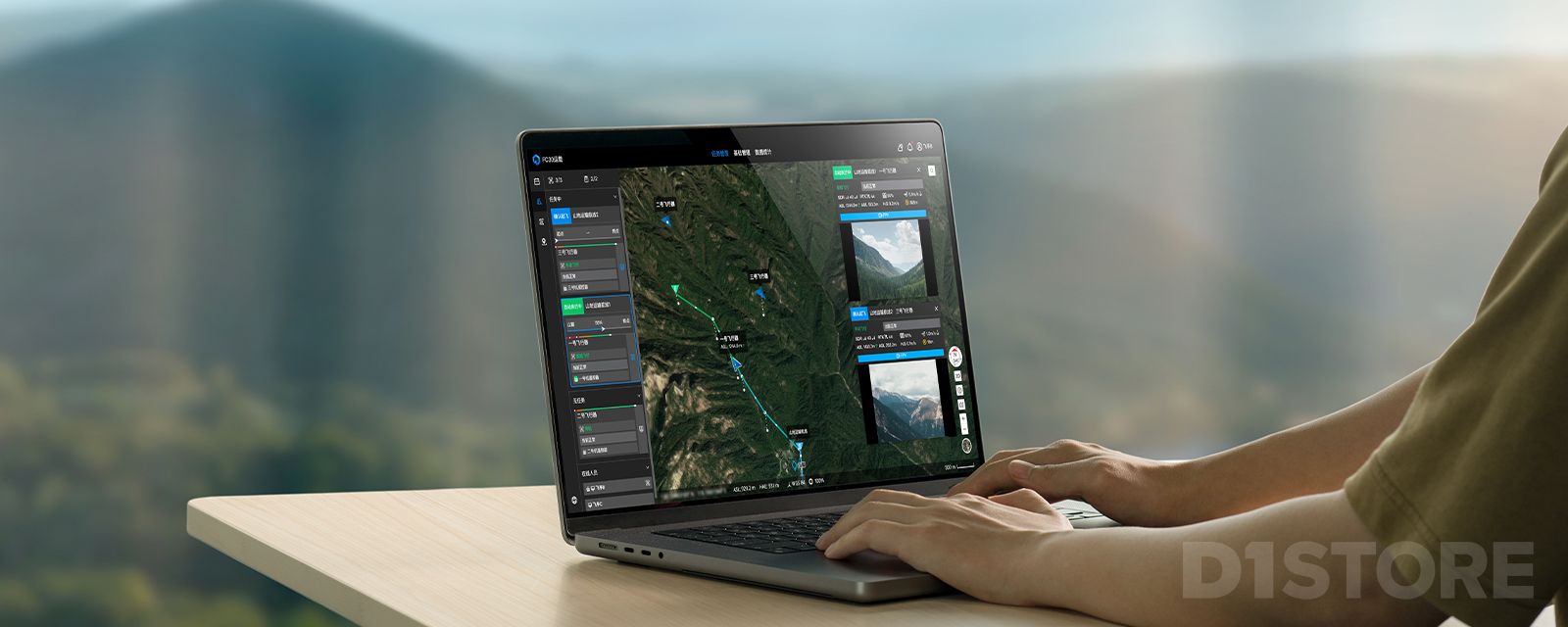

Superb Software

DJI Pilot 2: DJI Pilot 2 provides operators with key information, real-time status reporting and in-depth, intelligent flight controls for a smooth user experience with each flight.

DJI DeliveryHub: The new DJI DeliverHub software integrates seamlessly with FlyCart as an all-in-one delivery management platform. DeliveryHub facilitates centralised planning, status monitoring and resource management to ensure mission success.

Weight

42.5kg (without battery)
65kg (with two DB2000 batteries)

Max Takeoff Weight

95kg (With cargo, at sea level)

Max Diagonal Wheelbase

2200mm

Dimensions

1590 x 1900 x 947 mm(LxWxH) (arms unfolded, propellers folded)

Dimensions

2800x3085x947 mm(LxWxH) (arms&propellers unfolded)

Dimensions

1115x760x1027 mm(LxWxH)  (arms&propellers folded)

Folding Method

Towards body

Loadable Battery Quantity

2

Hovering Endurance (empty weight, with max battery capacity)

29min(dual battery mode)
15min(single battery mode)
The data was measured in controlled conditions: zero altitude and windless environment, for reference only.

Hovering Endurance (max weight, with max battery capacity)

18min(30kg weight load,dual battery mode)
15min(40kg weight load,single battery mode)
The data was measured in controlled conditions: zero altitude and windless environment, for reference only.

Max Flight Distance (empty weight, with max battery capacity)

28km(dual battery mode)
12km(single battery mode)
The data was measured in controlled conditions: zero altitude and windless environment, at a constant speed of 15m/s, C

Max Flight Distance (max weight, with max battery capacity)

16km(30kg weight load,dual battery mode)
8km(40kg weight load,single battery mode)
The data was measured in windless, zero altitude experimental environment, at a constant speed of 15m/s, for reference only.

Max Flight Time (max weight, with max battery capacity)

18min(30kg weight load,dual battery mode)
9min(40kg weight load,single battery mode)
The data was measured in windless, zero altitude experimental environment, at a constant speed of 15m/s, for reference only.

Operating Temperature

-20° to 45° C

Ingress Protection Rating

IP55

Hovering Accuracy (with strong GNSS signal)

RTK positioning enabled:
±10 cm horizontal, ±10 cm vertical
RTK positioning disabled:
±60 cm horizontal and ±30 cm vertical (radar enabled: ±10 cm)

RTK/GNSS Operating Frequency

RTK: GPS L1/L2、Galileo F1/F2、BeiDou B1I/B2I/B3I、Galieo E1/E5b、QZSS L1/L2、GNSS: GPS L1、BeiDou B1I、Galileo F1、Galieo E1、QZSS L1

Max Pitch Angle

30°

Max Ascent Speed

5m/s
The data was measured in an experimental environment with zero altitude and no wind,
with 30kg load weight, for reference only.

Max Descent Speed

3m/s(vertical)
5m/s(tilted descent)
The data was measured in an experimental environment with zero altitude and no wind,
with 30kg load weight, for reference only.

Max Horizontal Speed

20m/s
The data was measured in an experimental environment with zero altitude and no wind,
with 30kg load weight, for reference only.

Max Flight Altitude

6000m (empty weight)

Max Wind Speed Resistance

12m/s
The data was measured in an experimental environment with zero altitude,
with 30kg load weight, for reference only.

Stator Size

100x33 mm

Motor KV Value

48rpm/V

Max Motor Power

4000W/rotor

Propellers Material

Carbon fiber composite

Propellers Diameter

54 inch

Propellers Type

Foldable double-blade propeller propeller

Main-rotor Diameter

1375mm

Rotor Quantity

8

Product Manuals
DJI FlyCart 30 Delivery Drone / RPAS - Product Manual

  • DJI FlyCart 30 Aircraft
  • DJI RC Plus remote controller
  • Remote controller strap
  • Power cable
  • USB-A to USB-C cable
  • USB-C to USB-C cable
  • Battyer cover
  • 100W USB-C power adapter
  • WB37 battery
  • Goggles
