Leica DD175 Cable & Pipe Avoidance Locator Kit with GPS
$4,981.99
ETA: 23/07/2026

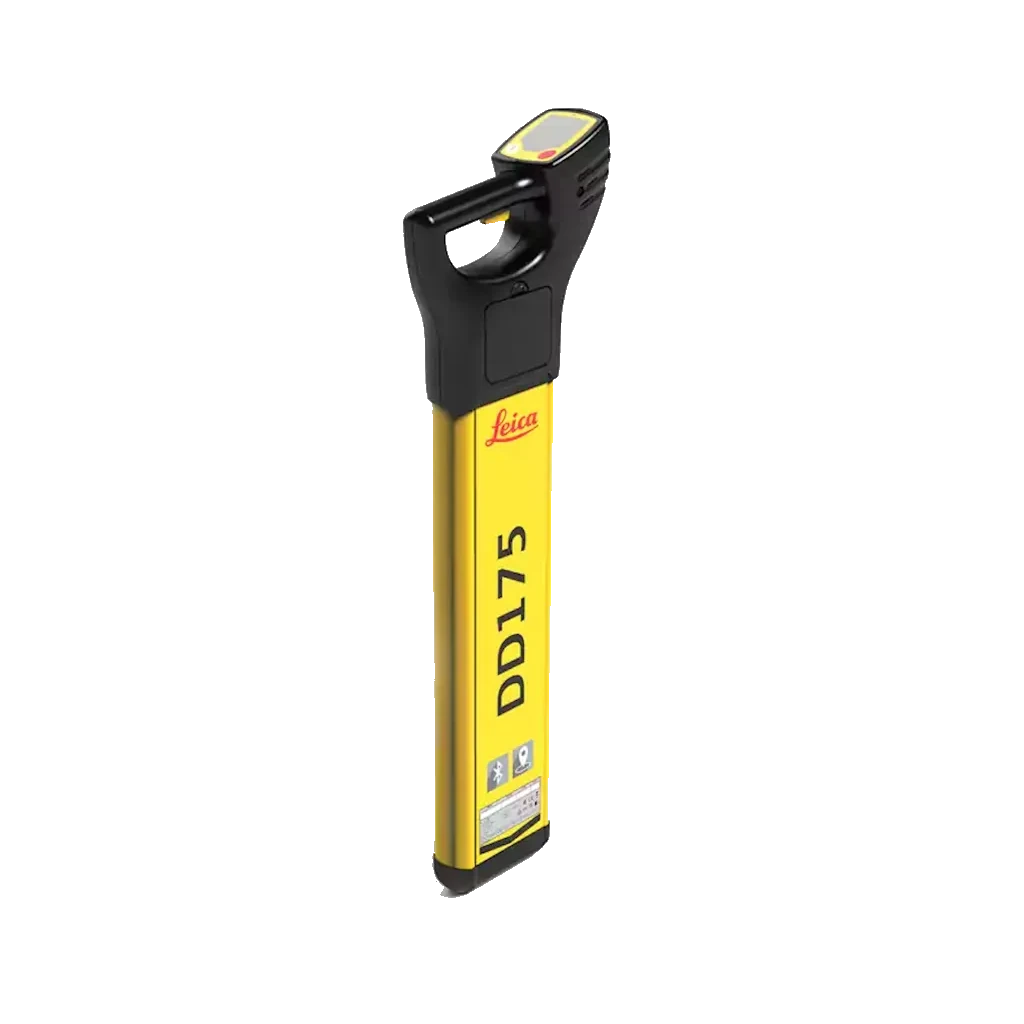

- The Leica DD175 Series cable locators feature advanced automatic controls.
- Designed for ease of use, requiring minimal user experience.
- Ideal for detecting buried cables and pipes before excavation work.
- Helps avoid underground utilities, a major concern on construction sites.
- Prevents operator injury, asset damage, and costly delays.
- Enhances safety, efficiency, and project planning accuracy.

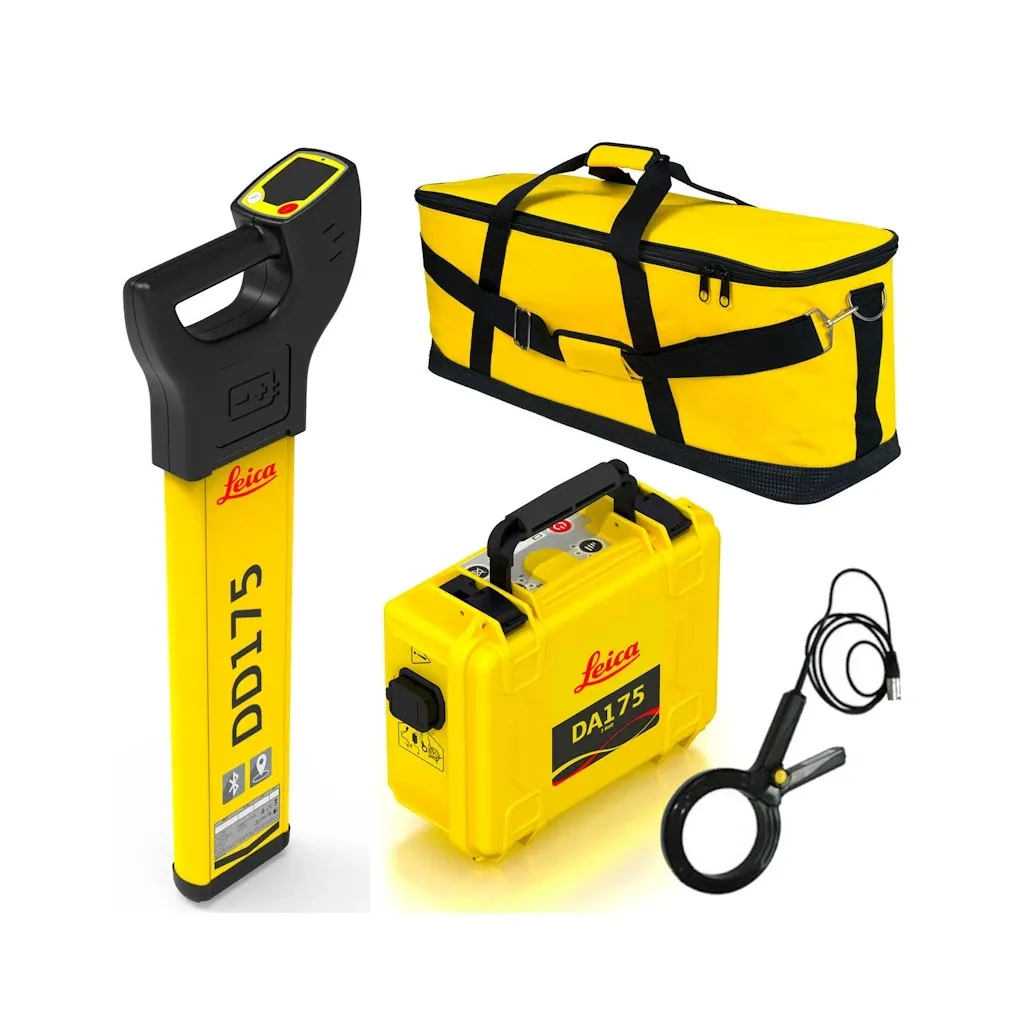

Kit Contents
- Use the DD175 cable locator series in conjunction with a DA175 signal transmitter or range of accessories to achieve improved accuracy and application scope. With the latest DD175 locator take advantage of Bluetooth and GPS connection for sharing data with the existing DX Software Suite.
- With Automatic Pinpointing there is no need for you to manually adjust the sensitivity of your cable locator ensuring you're using the optimum sensitivity for the environment you are detecting the underground utilities.
- Reducing the likelihood of human error and enabling easier and more efficient cable and pipe locating. Ultimately saving you time and money.

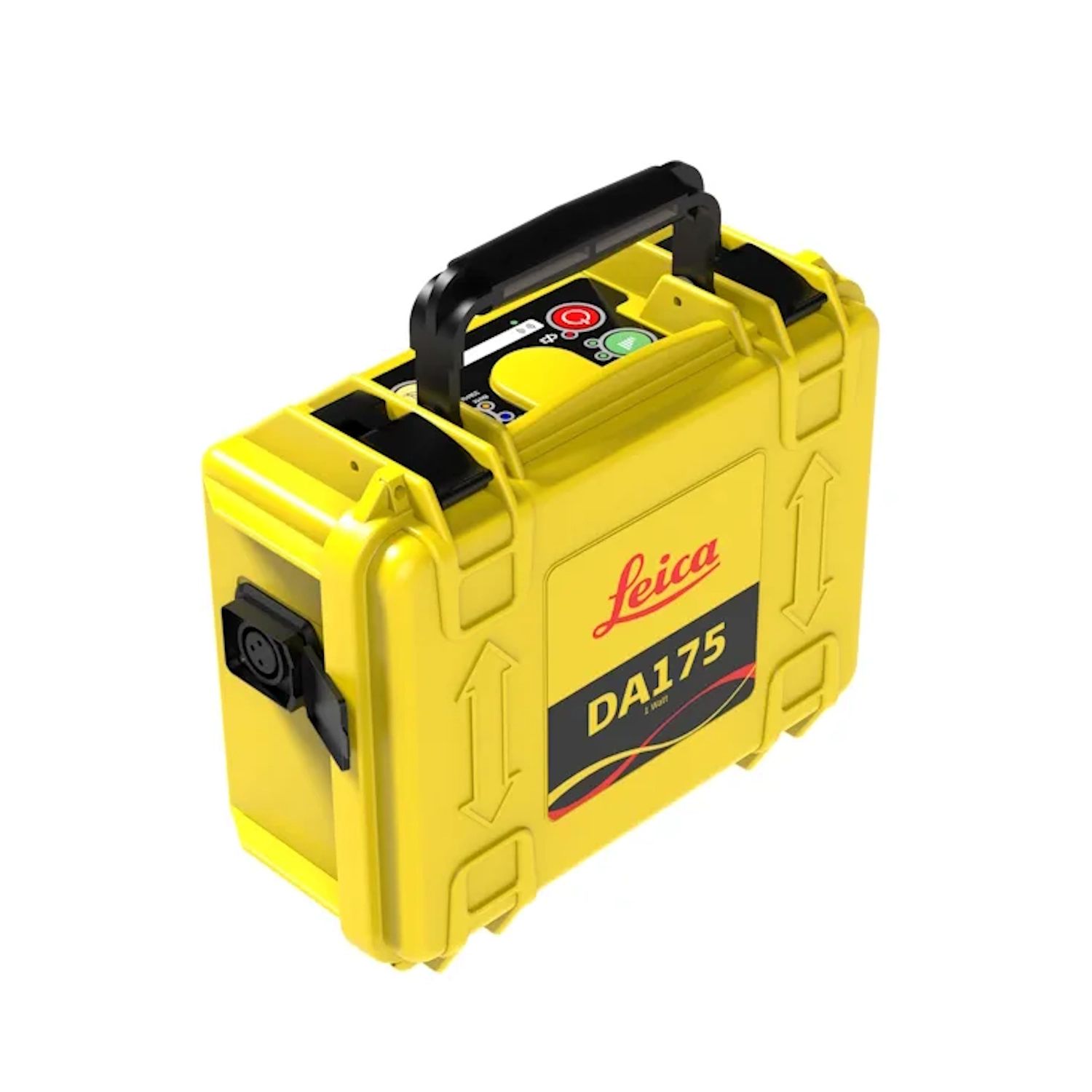

- The Leica DA signal transmitters apply a signal onto underground cables or pipes that may not carry a detectable signal. The Leica DD SMART cable locators can then be used to locate the signal from the Leica DD signal transmitter.
- The DA signal transmitters are compact, robust, and easy to use. They have been designed in conjunction with the DD SMART cable locators to easily and accurately avoid, trace, or locate buried cables and pipes.

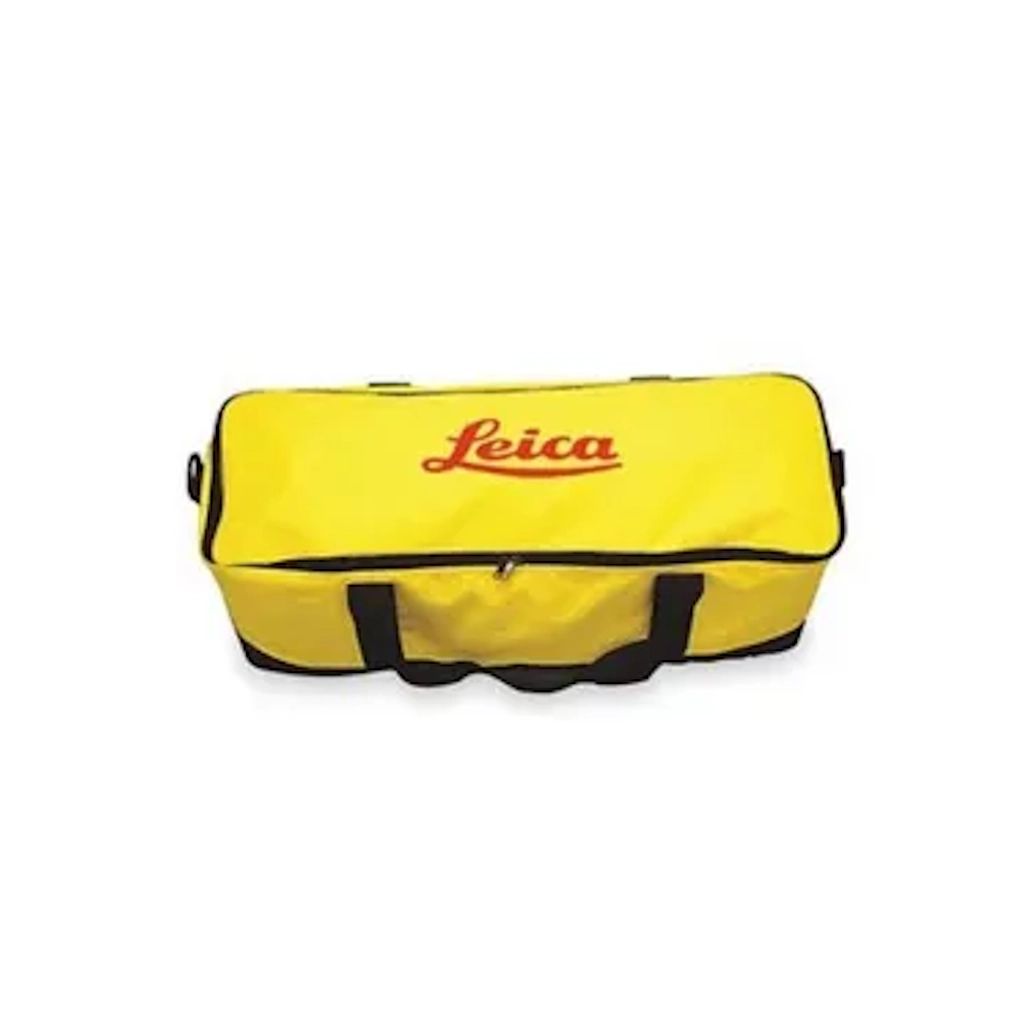

- The kit includes a handy system carry bag for locators, signal transmitters, and accessories.
| DD175 | ||
| Power | 50Hz / 60Hz model | |
| Radio | 15kHz - 60kHz | |
| Auto | Power, Radio, 33kHz | |
| Transmitter Modes | 32.768 (33) kHz 8.192 (8) kHz 512 Hz 640 Hz | |
| Depth Range | Line 0.3m to 3m / 1ft to 10ft Sonde 0.3m to 9.99m / 1 ft to 32.77 ft | |
| Depth Accuracy* | 10% | |
| Environmental Standard | IP54 | |
| Operating Temperature | -20° C to +50° C -4° F to +122° F | |
| Battery | 6 x LR6 (AA) Alkaline | |
| Battery Operating Time** | 15 hours | |
| Dimensions (HxWxD) | 760 x 250 y 85mm (30 x 10 x 3.4 inches) | |
| Weight with Batteries | 2.7Kg 5.95 lbs | |
| Internal Data Storage | ✔ | |
| Data Logging | ✔ | |
| GPS | ✔ | |
| Bluetooth | ✔ | |
| * Depth to an undistorted signal ** Constant use at 20°C/68°F |
| Datasheets | |
|---|---|
| Leica DD175 Cable & Pipe Avoidance Locator Kit with GPS - Datasheet | Product Manuals |
| Leica DD175 Cable & Pipe Avoidance Locator Kit with GPS - Product Manual |
Brand: Leica Geosystems |
Code: DIGISYSTEM175
Brand: Leica Geosystems |
Code: DIGISYSTEM175
At a glance
- The Leica DD175 Series cable locators feature advanced automatic controls.
- Designed for ease of use, requiring minimal user experience.
- Ideal for detecting buried cables and pipes before excavation work.
- Helps avoid underground utilities, a major concern on construction sites.
- Prevents operator injury, asset damage, and costly delays.
- Enhances safety, efficiency, and project planning accuracy.
