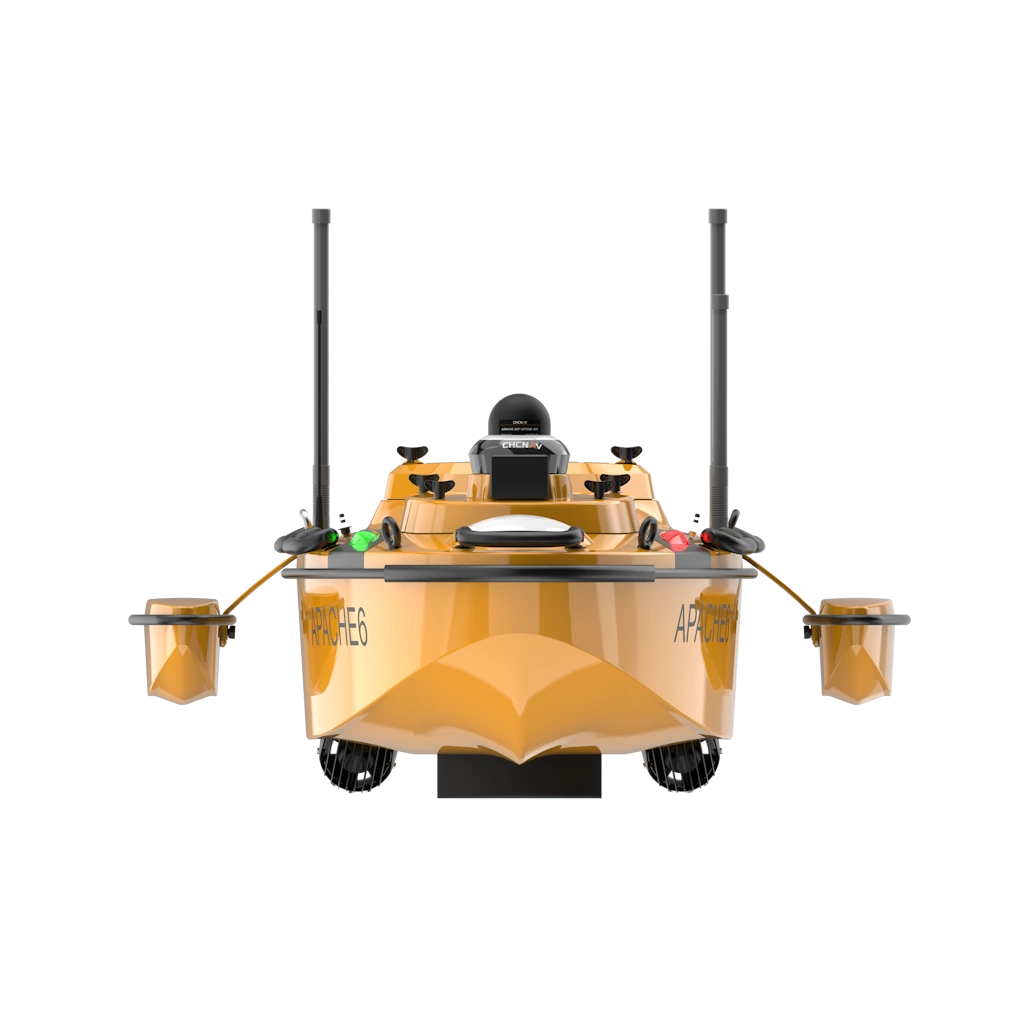

CHCNAV Apache 6 USV Marine Drone
- Compatible with Norbit Multibeam Echosounder
- Compatible with CHCNAV HN-400W Multibeam Echosounder
- Compatible with CHCNAV HA-200 iLiDAR System
- Use Cases include Port Surveys, Bridge and Dam Inspections and detailed Multibeam surveys.

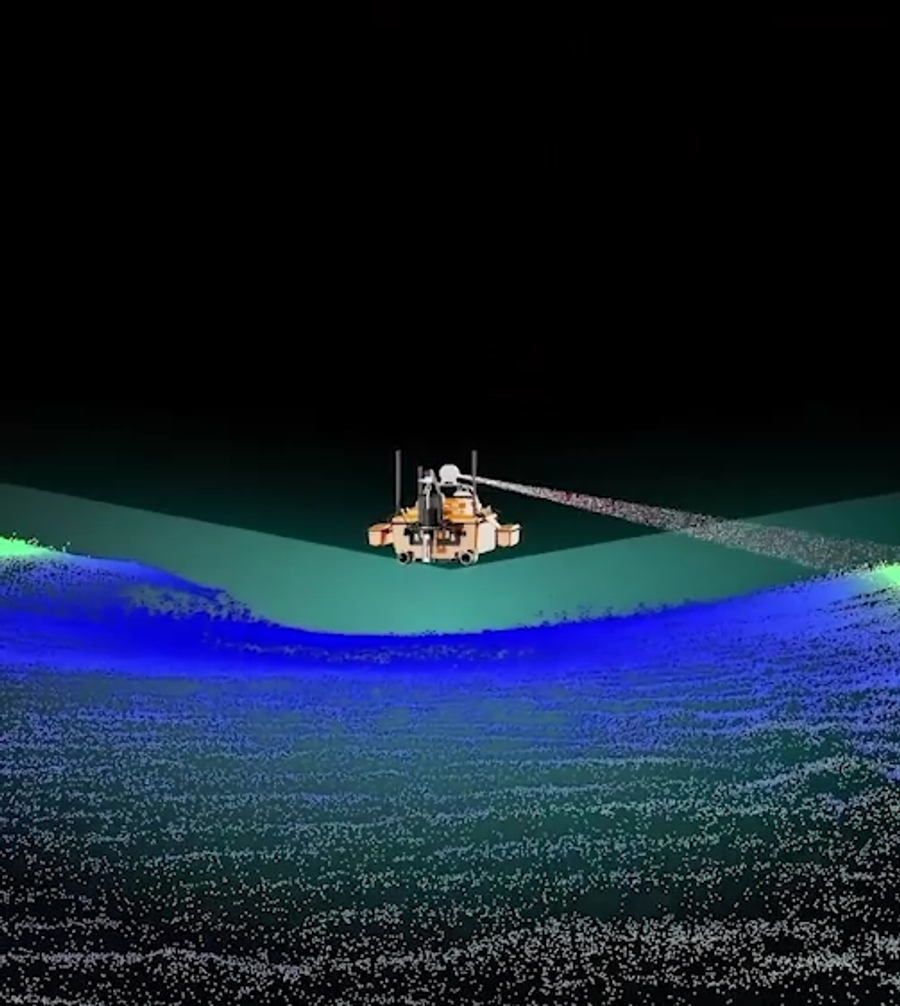

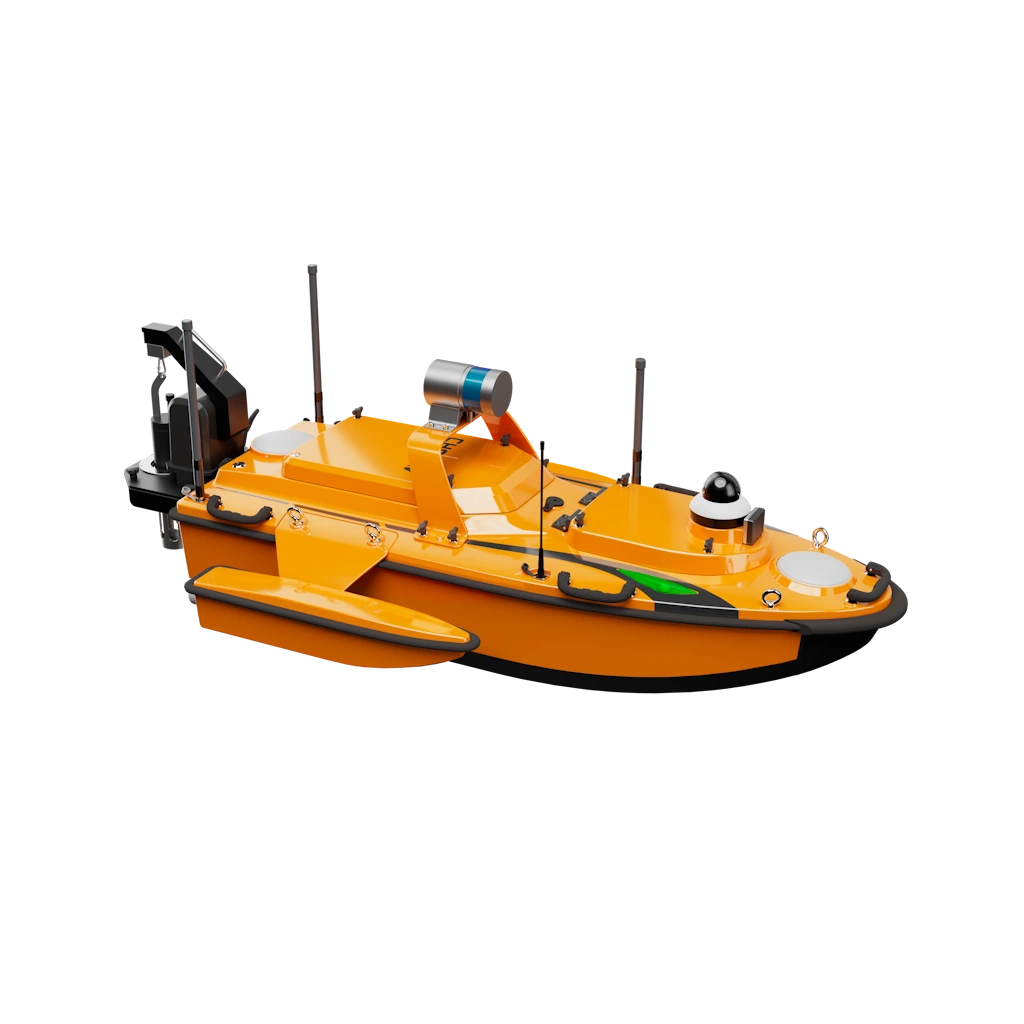

Multifunctional USV platform
Perform accurate 3D bathymetric surveys with optional multibeam echosounders and LiDAR scanner. Collect high-resolution data and improve the accuracy of underwater object location and offshore construction.

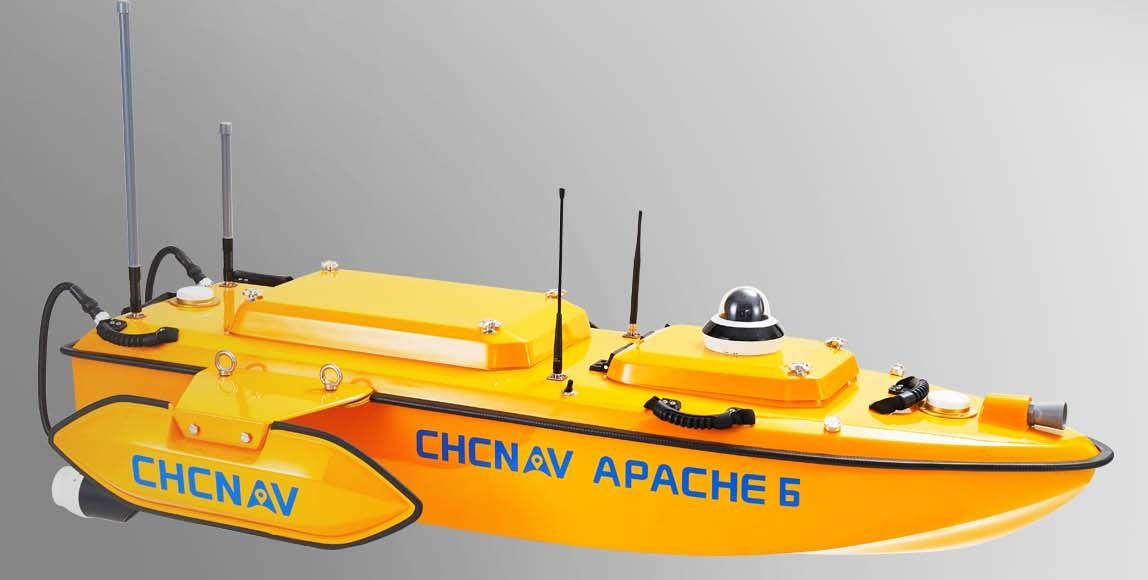

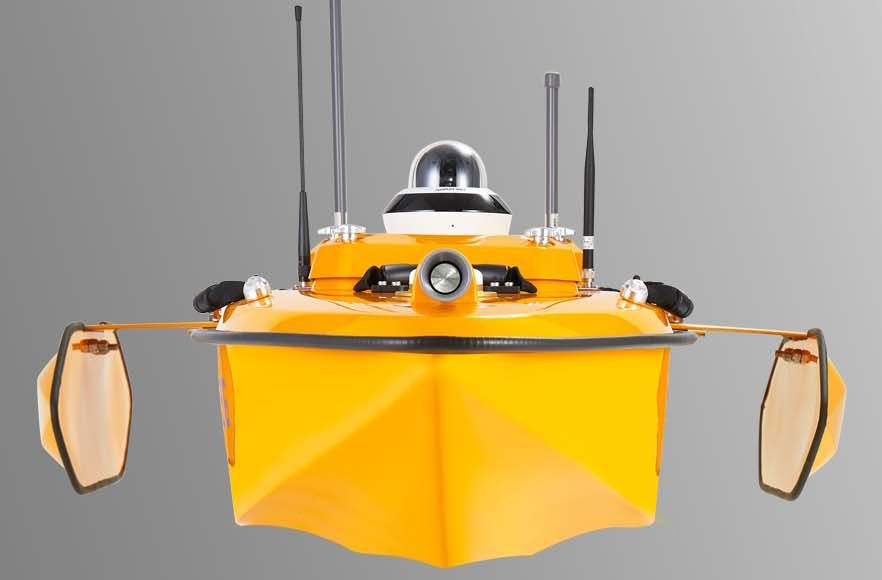

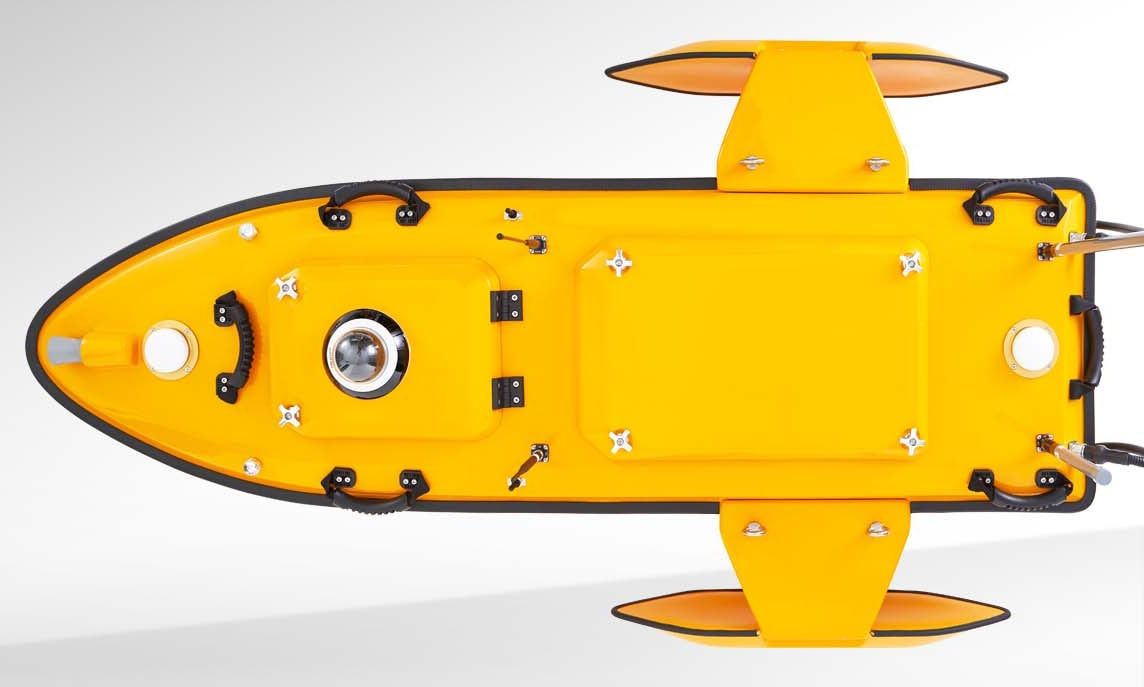

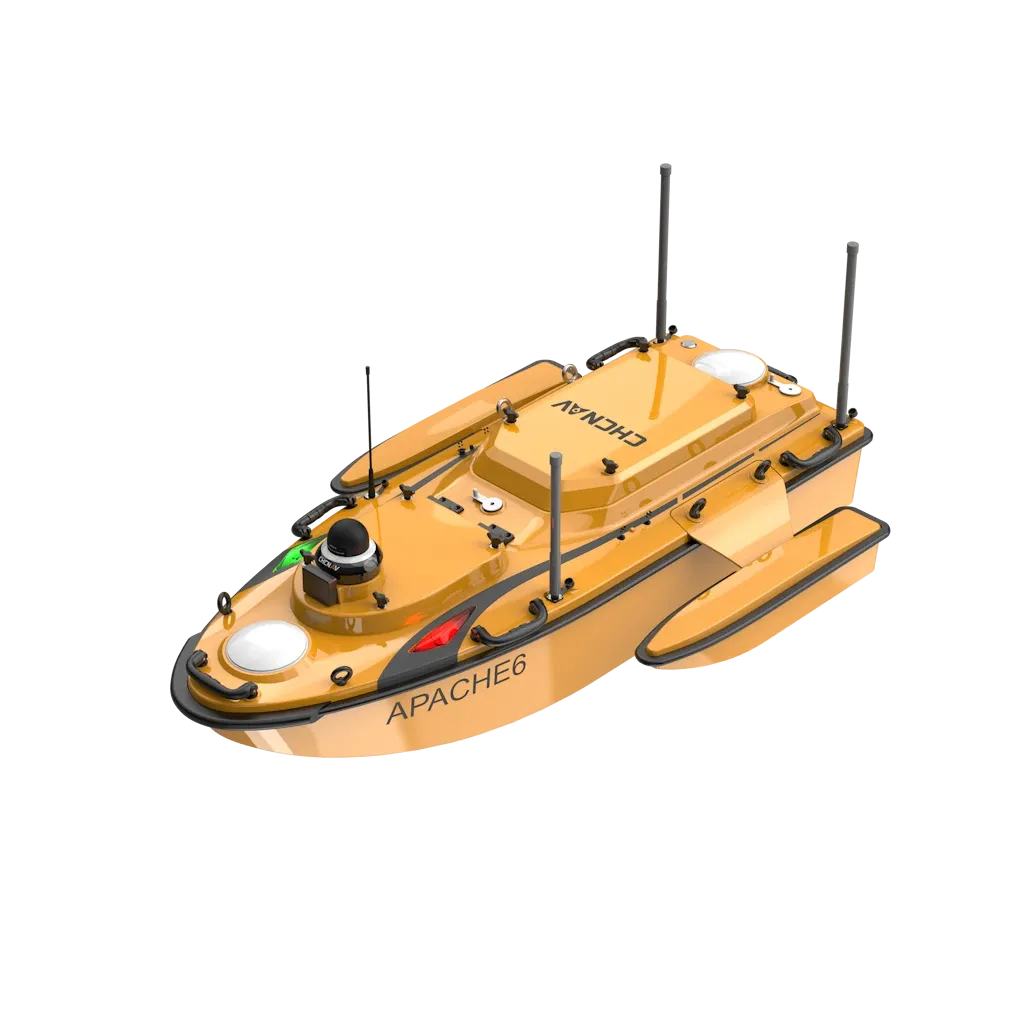

Stable Triple-Hulled Vessel
The APACHE 6 tri-hull design and detachable side floats offer a stable position and greater adaptability to ensure optimum stability even in fast currents.

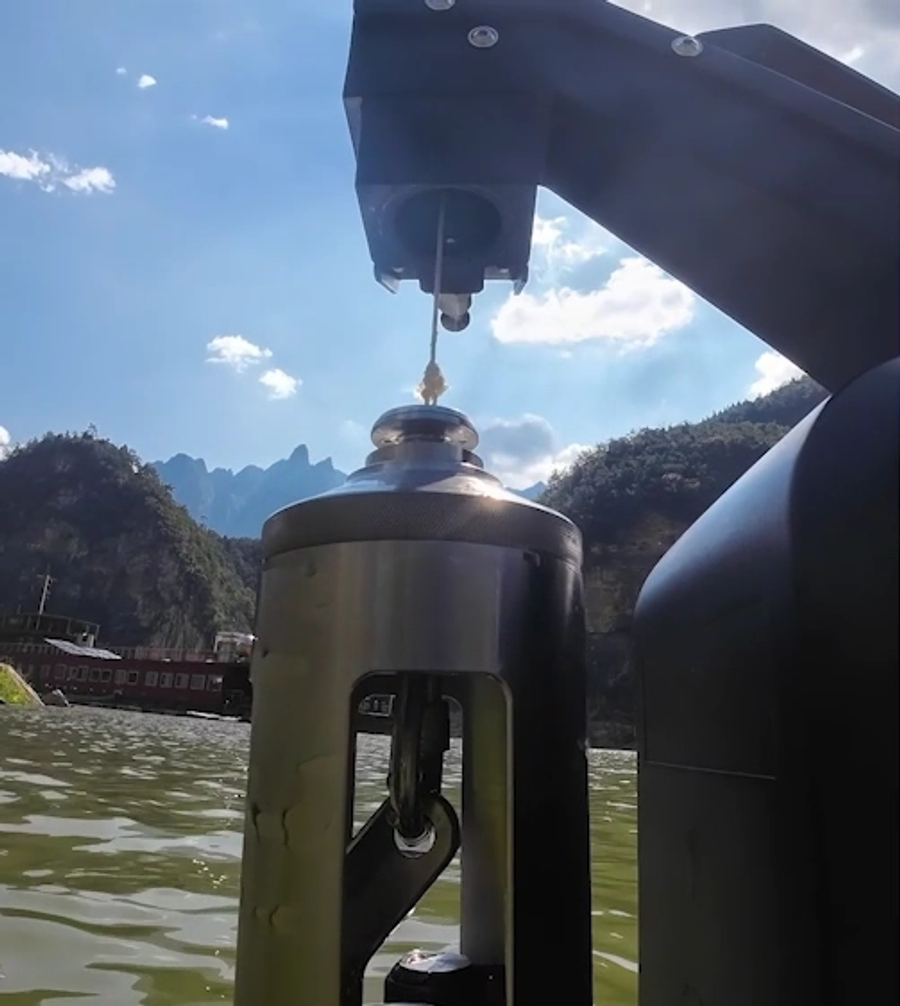

Automated SVP Measurement
The APACHE 6 supports an optional automatic sound velocity profiler kit, which can be controlled via the remote controller. The kit can be installed or removed in under one minute, providing a complete multibeam echo sounder solution for the USV.

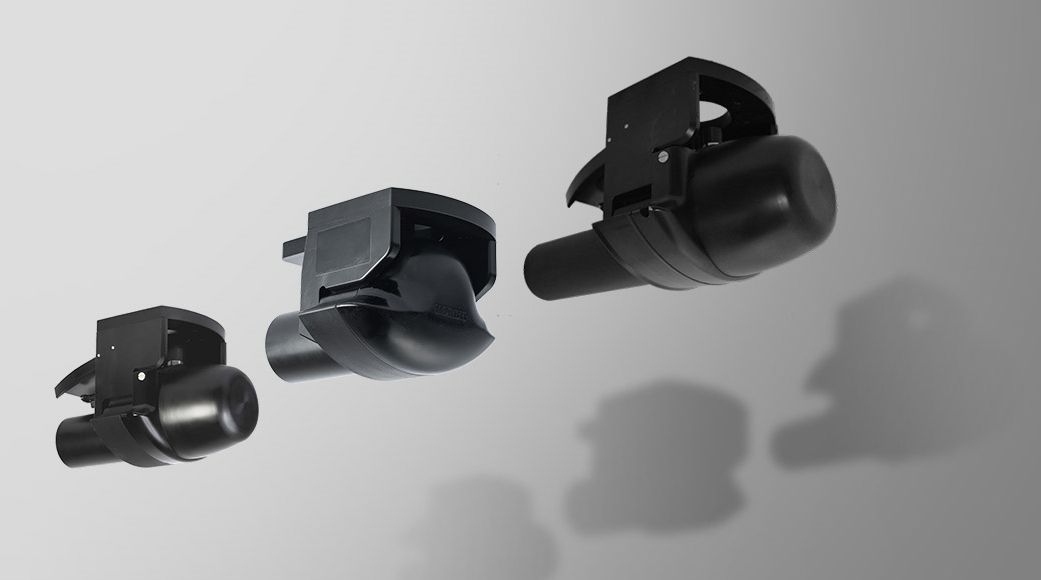

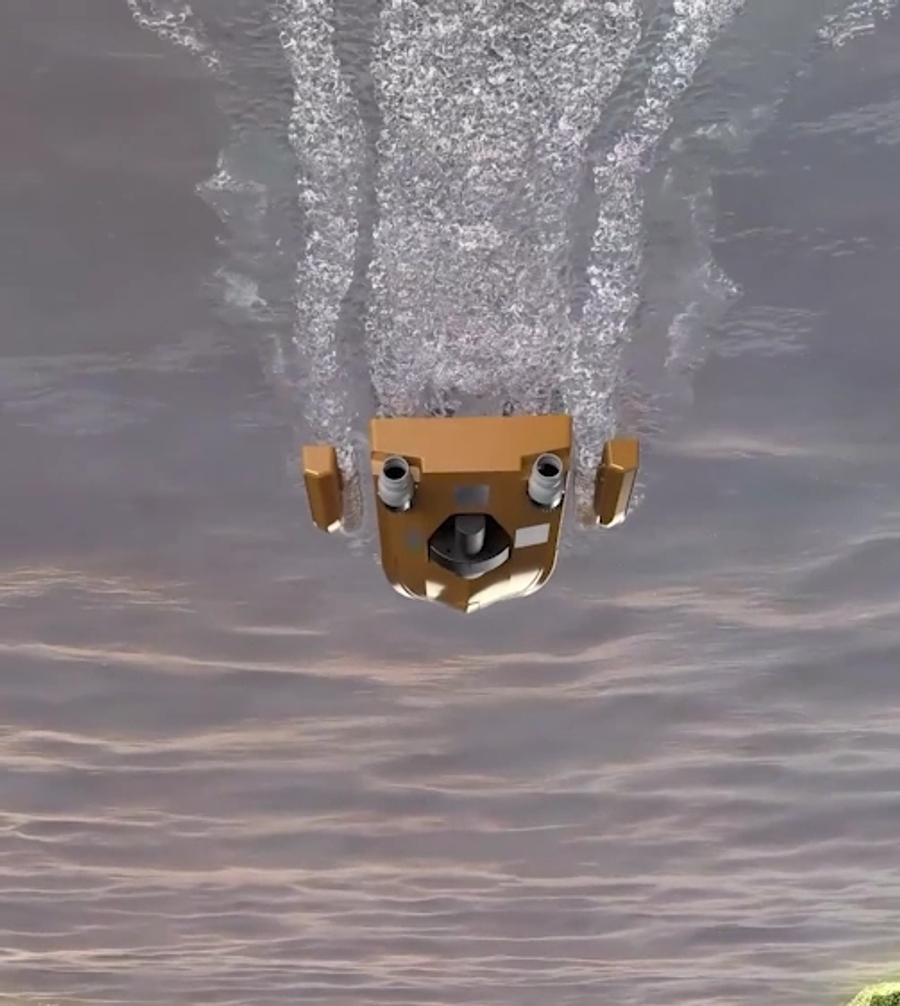

Rotating Propellers
The APACHE 6 utilizes intelligent rotating propeller technology to adjust the direction of water flow. It allows the USV to achieve a turning radius of just 2 meters, making it ideal for operation in narrow waterways. It also enhances the efficiency of multibeam echo sounder bathymetric surveys.

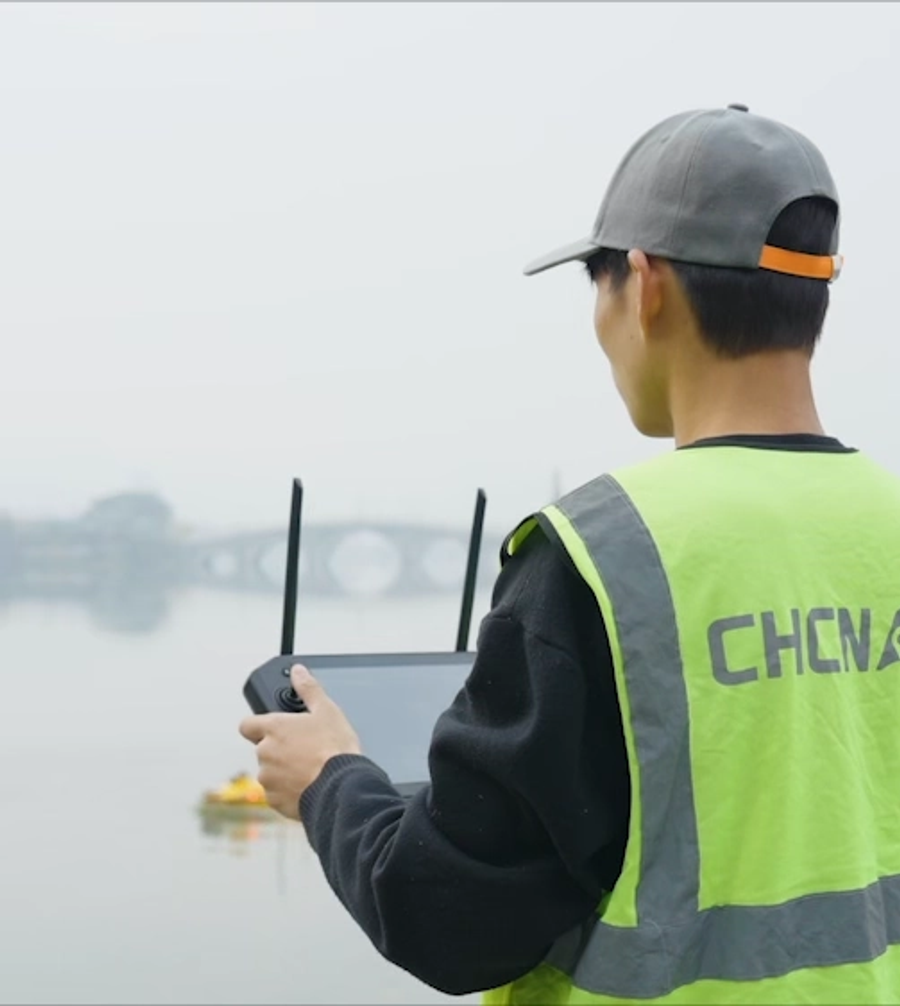

Smart Remote Control
The Android remote control provides real-time access to vessel status and survey data, eliminating the need for a computer. Its intuitive interface ensures efficient survey operations, while a multi-link communication enables long-distance data transmission for seamless control of the APACHE 6.
| Performances | Speed max. | 6 m/s max |
| Payload capacity | Up to 60 kg | |
| Draft | 7.5 cm | |
| Positioning | Full GNSS + IMU | |
| Echosounder | Type | Single beam, 200 kHz |
| Range | 0.1 to 200 m | |
| Accuracy | ±0.01 m + 0.1% x D | |
| Sensors | Camera | 360° video |
| Brochures | |
|---|---|
| APACHE6 - Brochure | Datasheets |
| CHCNAV Apache 6 USV Marine Drone - Datasheet |
Brand: CHCNAV |
Code: APACHE6
Supplier Code: 8004010020
Brand: CHCNAV |
Code: APACHE6
Supplier Code: 8004010020
At a glance
- Compatible with Norbit Multibeam Echosounder
- Compatible with CHCNAV HN-400W Multibeam Echosounder
- Compatible with CHCNAV HA-200 iLiDAR System
- Use Cases include Port Surveys, Bridge and Dam Inspections and detailed Multibeam surveys.
Multifunctional USV platformPerform accurate 3D bathymetric surveys with optional multibeam echosounders and LiDAR scanner. Collect high-resolution data and improve the accuracy of underwater object location and offshore construction. |
|
|
|
Stable Triple-Hulled VesselThe APACHE 6 tri-hull design and detachable side floats offer a stable position and greater adaptability to ensure optimum stability even in fast currents. |
Automated SVP MeasurementThe APACHE 6 supports an optional automatic sound velocity profiler kit, which can be controlled via the remote controller. The kit can be installed or removed in under one minute, providing a complete multibeam echo sounder solution for the USV. |
|
|
|
Rotating PropellersThe APACHE 6 utilizes intelligent rotating propeller technology to adjust the direction of water flow. It allows the USV to achieve a turning radius of just 2 meters, making it ideal for operation in narrow waterways. It also enhances the efficiency of multibeam echo sounder bathymetric surveys. |
Smart Remote ControlThe Android remote control provides real-time access to vessel status and survey data, eliminating the need for a computer. Its intuitive interface ensures efficient survey operations, while a multi-link communication enables long-distance data transmission for seamless control of the APACHE 6. |
|
