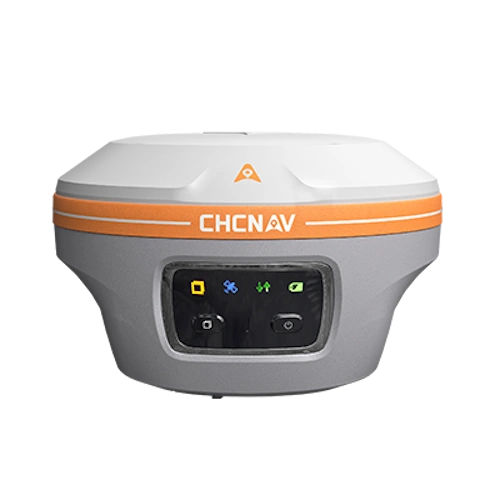

CHCNAV i85 RTK GNSS with Laser Distance Meter
- Compact, high-performance RTK GNSS antenna with built in IMU, dual cameras and laser rangefinder.
- Featuring a 1408-channel GNSS module
- Reliable positioning in challenging environments, even under high solar activity.
- Weigh: 800g
- Rugged waterproof IP68 rating
- Long 20-hour battery life
Measure Inaccessible Points
With its laser-based surveying capabilities and high-precision heading information, the i85 enables accurate measurements of points that are otherwise inaccessible, expanding your reach without sacrificing accuracy.
Advanced GNSS Performance
Powered by the iStar2.0 algorithm and ionospheric interference rejection, the i85 achieves a 96% fix reliability in low-latitude regions affected by solar activity. It ensures robust signal tracking in challenging environments.
Smart Aiming Assistance
A true 8-megapixel front-facing camera supported by edge computing provides adaptive 6x zoom and enhanced imagery. Low visibility and distant points can be identified and targeted with precision.
AR Visual Navigation and Stakeout
The i85’s AR-based navigation and stakeout tools simplify workflows and reduce operator effort by up to 50%. With accuracy up to 10 times greater than conventional gyroscope-based systems, it improves results even for less experienced users.
High-Precision Auto-IMU
The 200Hz IMU supports automatic tilt compensation with no manual initialization required. The i85 maintains 3 cm accuracy within a 60° tilt range, delivering consistent results.

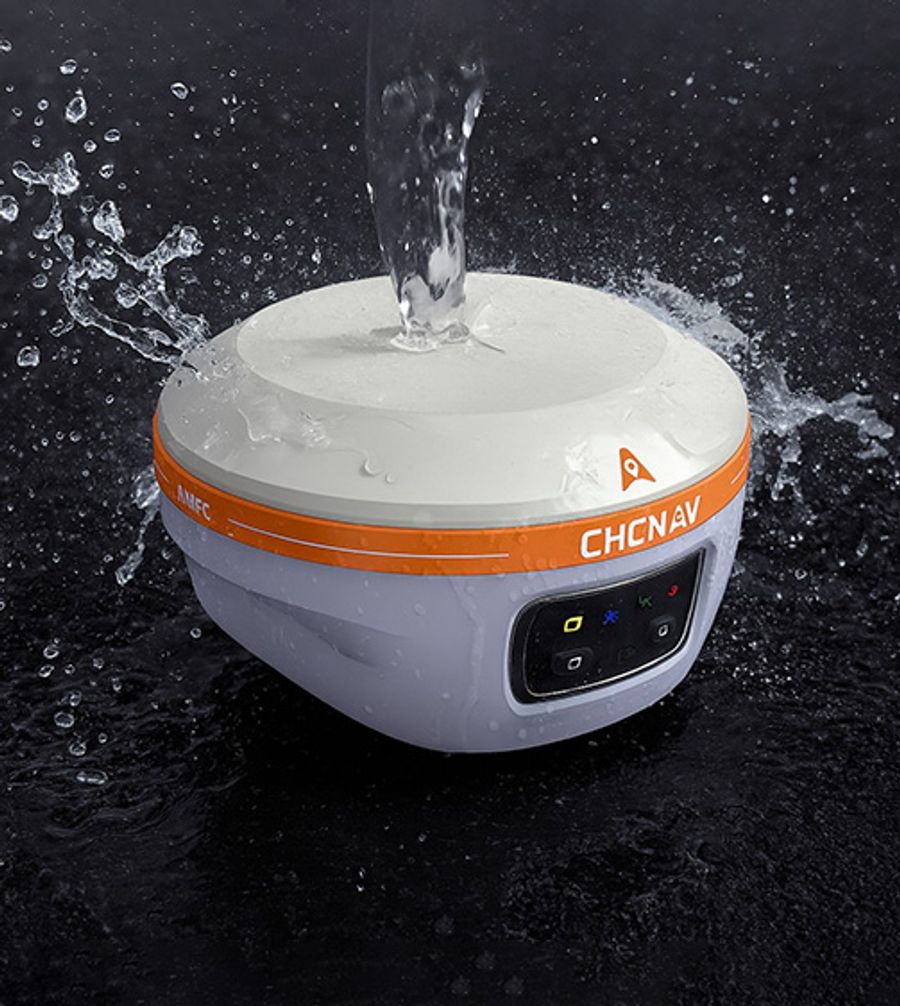

Rugged, Compact Design
Built for demanding field use, the i85 combines all key components into a single compact 800 g unit. It is IP68-rated for water and dust resistance and can withstand a 2-meter pole drop.
- CHCNAV i85 GNSS Receiver
- UHF Whip Antenna(410-470MHz）
- Type-C USB Cable
- Range Pole (AR)
- Auxiliary H.I. Tool (Silver)
- Power Adapter (5V2.4A)
- Transport Hard Case/ Rover
Brand: CHCNAV |
Code: 8001010460
APN: 9319499326838 |
Supplier Code: 8001010460
Brand: CHCNAV |
Code: 8001010460
APN: 9319499326838 |
Supplier Code: 8001010460
At a glance
- Compact, high-performance RTK GNSS antenna with built in IMU, dual cameras and laser rangefinder.
- Featuring a 1408-channel GNSS module
- Reliable positioning in challenging environments, even under high solar activity.
- Weigh: 800g
- Rugged waterproof IP68 rating
- Long 20-hour battery life
Measure Inaccessible PointsWith its laser-based surveying capabilities and high-precision heading information, the i85 enables accurate measurements of points that are otherwise inaccessible, expanding your reach without sacrificing accuracy. |
|
|
|
Advanced GNSS PerformancePowered by the iStar2.0 algorithm and ionospheric interference rejection, the i85 achieves a 96% fix reliability in low-latitude regions affected by solar activity. It ensures robust signal tracking in challenging environments. |
Smart Aiming AssistanceA true 8-megapixel front-facing camera supported by edge computing provides adaptive 6x zoom and enhanced imagery. Low visibility and distant points can be identified and targeted with precision. |
|
|
|
AR Visual Navigation and StakeoutThe i85’s AR-based navigation and stakeout tools simplify workflows and reduce operator effort by up to 50%. With accuracy up to 10 times greater than conventional gyroscope-based systems, it improves results even for less experienced users. |
High-Precision Auto-IMUThe 200Hz IMU supports automatic tilt compensation with no manual initialization required. The i85 maintains 3 cm accuracy within a 60° tilt range, delivering consistent results. |
|
|
|
Rugged, Compact DesignBuilt for demanding field use, the i85 combines all key components into a single compact 800 g unit. It is IP68-rated for water and dust resistance and can withstand a 2-meter pole drop. |
