Nedo Shaft & Elevating Tripod - Includes 4 x 1m Poles

Loading
  • Nedo Shaft & Elevating Tripod - Includes 4 x 1m Poles
  • Nedo Shaft & Elevating Tripod - Includes 4 x 1m Poles
  • Nedo Shaft & Elevating Tripod - Includes 4 x 1m Poles
  • Nedo Shaft & Elevating Tripod - Includes 4 x 1m Poles
$2,200.00 In Stock

  • Designed for use with 3D laser scanners (Leica, Faro, Trimble, Topcon, Z+F, etc).
  • Ideal for scanning in shafts, tanks, manholes, etc.
  • Suitbale for both elevating and lowering scanners.
  • Maximum effective height: 5.0m
  • Maximum effective depth: 4.0m (below surface)
  • Maximum payload weight: 20kg.

Designed specifically for use with 3D laser scanners (Leica, Faro, Trimble, Topcon, etc), the new Industrial Line shaft tripod is inserted through a shaft cover to the shaft compartment.

This tripod features an extendable toothed column and comes with additional rack elements which are inserted in to the head and connected securely with the use of an ingenious locking system.

The Industrial elevating tripod is graded for heavy loads and as it comes with a gear unit which allows for very heavy 3D scanners to be adjusted and moved with minimal effort.

Maximum depth 4.0m (below surface)
Maximum height 5.00 metres
Retracted length 1.28 metres
Weight 10 kilograms
Telescopic section 4 x 1m sections
Maximum load 20 kilograms


  • Nedo two-way elevating tripod incl. basic gear column

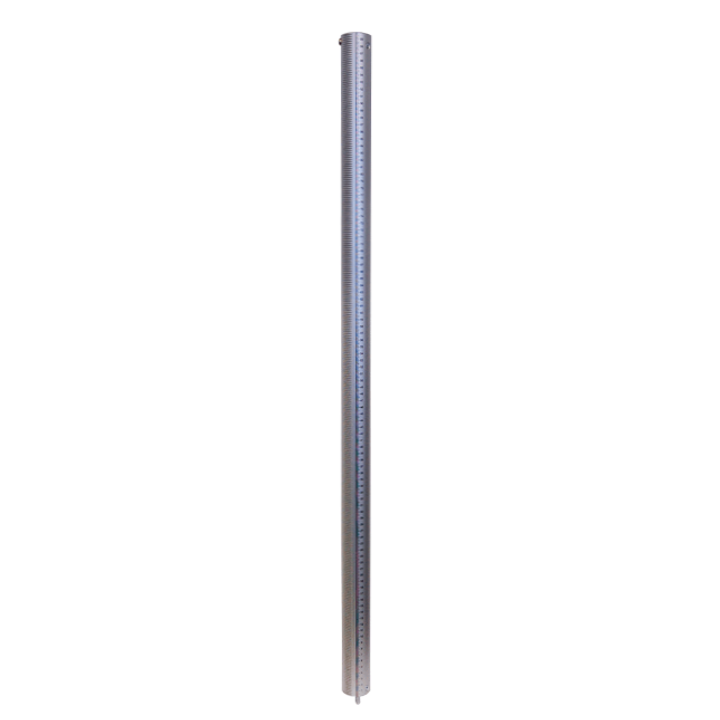

  • 4 x 1 m rack elements
  • Carrying bag
  • 5 mm allen key
  • Magnetic bit holder for cordless screwdriver
  • Hand crank with magnetic bit holder
  • Combi tripod feet

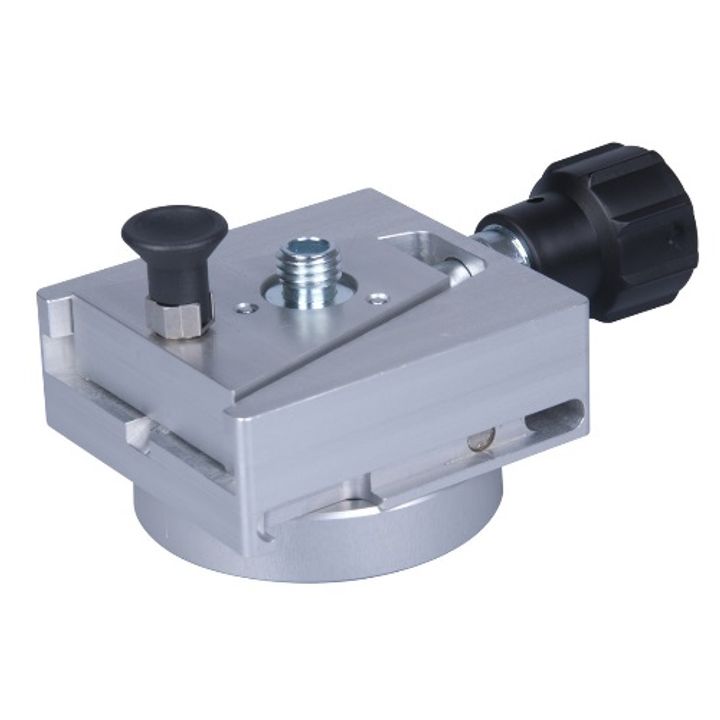

  • 3/8“ Tripod adapter

Note, tripod dolly sold separately.

Brand: Nedo | Code: 210710T
APN: 9319499031046 | Supplier Code: 210710

Brand: Nedo | Code: 210710T
APN: 9319499031046 | Supplier Code: 210710
