CHCNAV RS3600D ADCP
- Compatible with CHCNAV Apache 4 Lite and Pro USV
- Dual Frequency Supports 1200kHz and 3600 kHz
- 9 Beam Transducer
- Android Software

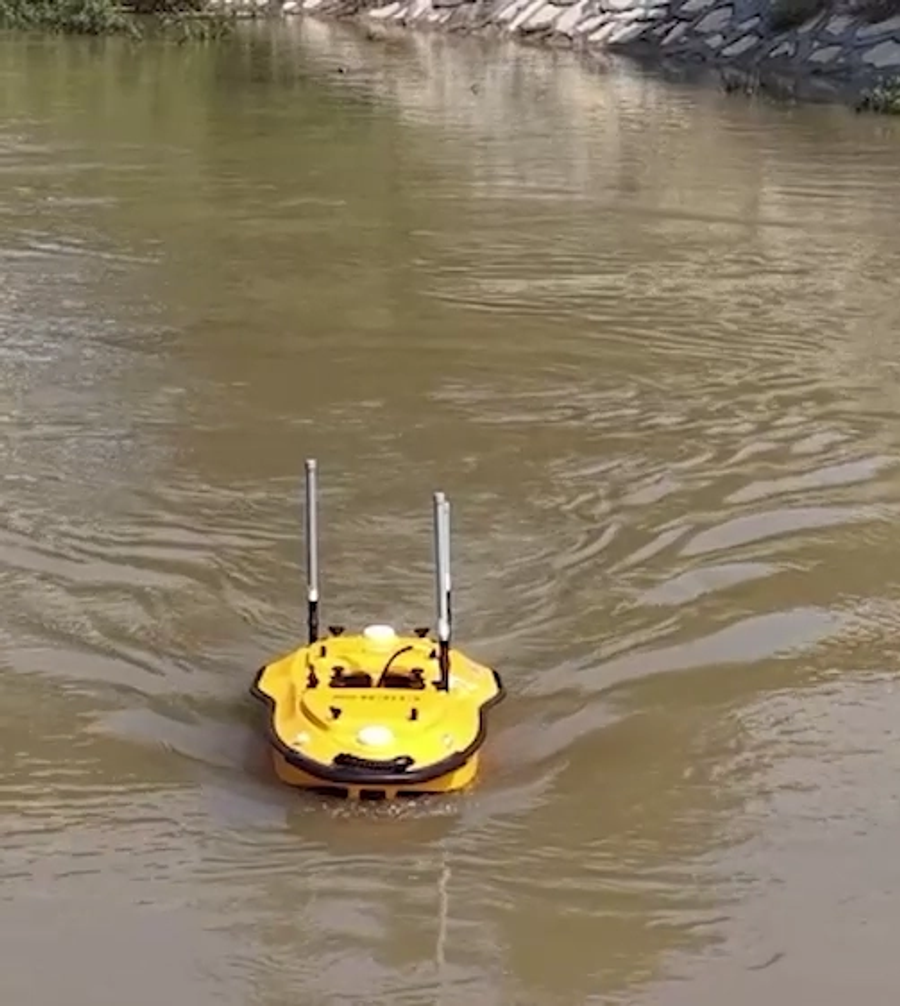

Wide Adaptability
The RS3600D measures only 12 cm in diameter and weighs 2 kg. Compatible with the APACHE 4 series USV, it can also be mounted on trimarans, cableway towing systems, motorized survey vessels, and channel buoys. Its versatility supports effective deployment across a wide range of hydrological survey applications.
High-Precision Measurement
OADCPs often struggle to provide accurate data in near-still water where flow velocities fall below 5 mm/s due to signal noise limitations. The RS3600D offers a minimum velocity measurement resolution of 1 mm/s, enabling precise data acquisition in low-velocity environments.

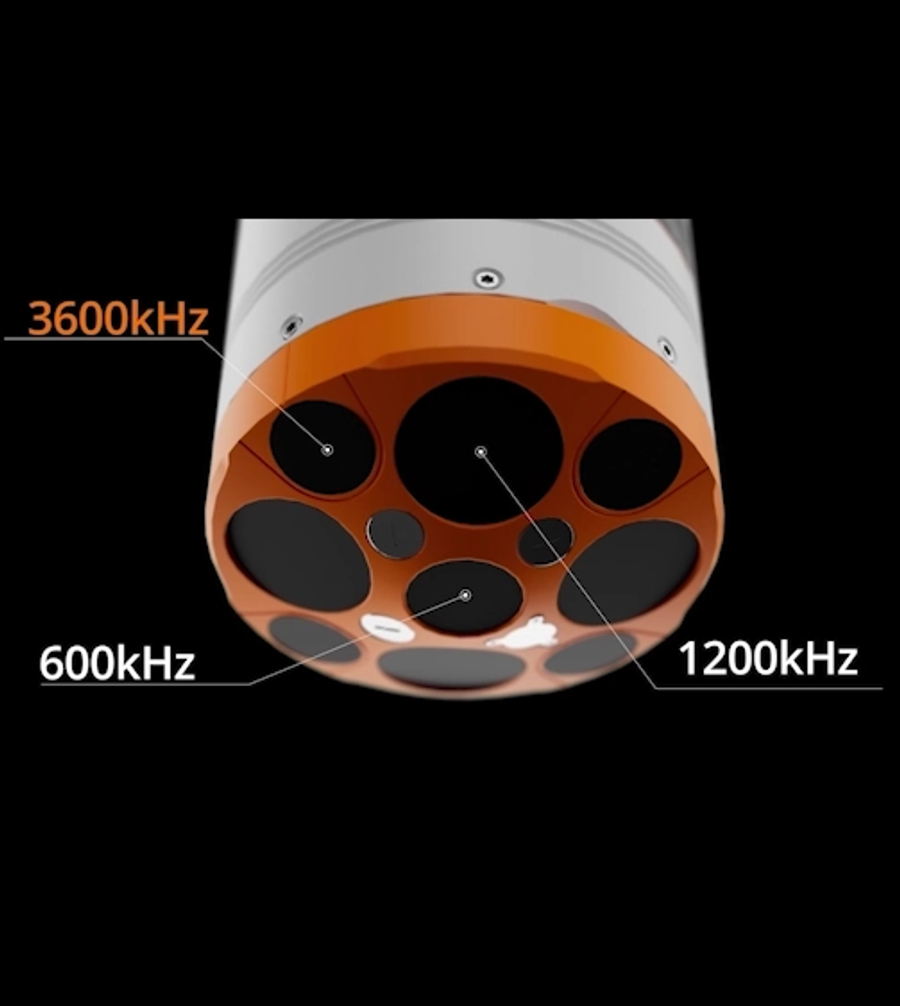

Multi-Purpose Sensor
The RS3600D ADCP features a 9-beam design with dual current measurement frequencies of 1200 kHz and 3600 kHz, and a standard 600 kHz central depth measurement frequency. It supports both deep and shallow water surveys, as well as high and low flow rate conditions, delivering versatile operation in a single instrument.
Smart Frequency Conversion
The RS3600D ADCP automatically adjusts its measurement frequency based on water conditions, removing the need for manual assessment and adjustment. Its automatic measurement mode maximizes efficiency, reduces time spent on parameter settings, and allows operators to focus on on-site survey tasks

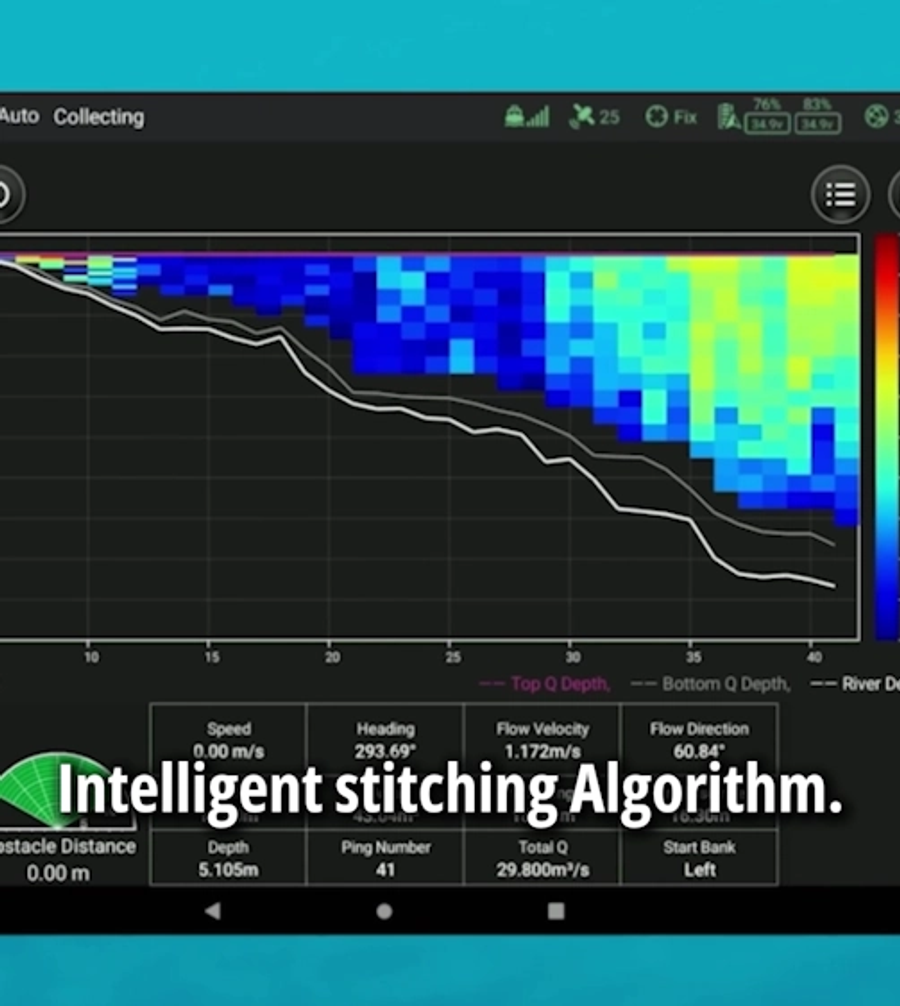

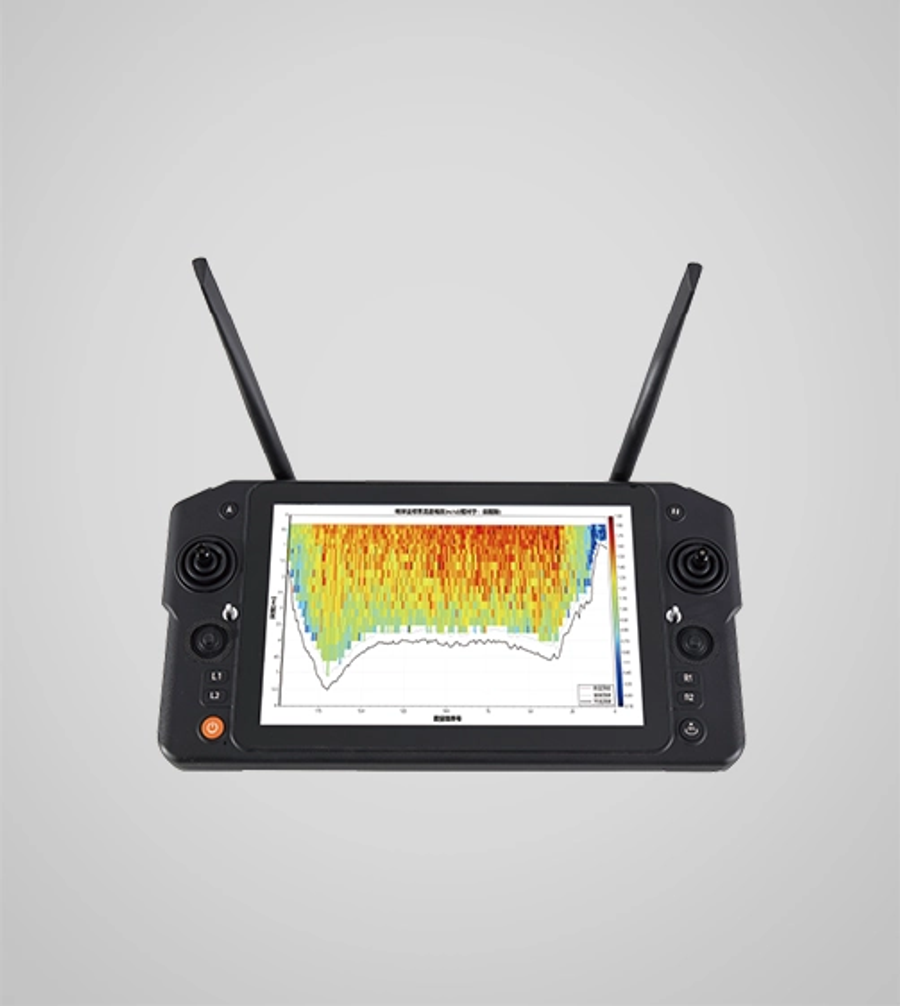

User-Friendly Software
HydroProfiler for PC provides efficient and flexible data management for comprehensive hydrological analysis. EasySail for the CHCNAV APACHE 4 USV supports the output of flow summary tables, flow test records, and results tables, and includes one-click file transfer and code sharing to a computer.
| ADCP | Type | 1200 kHz & 3600 kHz |
| Transducer | 9 beams | |
| Accuracy | ±0.25% ±2 mm/s | |
| Physical | Weight | 2 kg |
| Dimensions | 191 × 126 mm | |
| Sensors | Temperature | Yes |
| Tilt | Yes | |
| Compass | Yes |
| Datasheets | |
|---|---|
| CHCNAV RS3600D ADCP - Datasheet |
Brand: CHCNAV |
Code: 1100060004
Supplier Code: 1100060004
Brand: CHCNAV |
Code: 1100060004
Supplier Code: 1100060004
At a glance
- Compatible with CHCNAV Apache 4 Lite and Pro USV
- Dual Frequency Supports 1200kHz and 3600 kHz
- 9 Beam Transducer
- Android Software
Wide AdaptabilityThe RS3600D measures only 12 cm in diameter and weighs 2 kg. Compatible with the APACHE 4 series USV, it can also be mounted on trimarans, cableway towing systems, motorized survey vessels, and channel buoys. Its versatility supports effective deployment across a wide range of hydrological survey applications. |
|
|
|
High-Precision MeasurementOADCPs often struggle to provide accurate data in near-still water where flow velocities fall below 5 mm/s due to signal noise limitations. The RS3600D offers a minimum velocity measurement resolution of 1 mm/s, enabling precise data acquisition in low-velocity environments. |
Multi-Purpose SensorThe RS3600D ADCP features a 9-beam design with dual current measurement frequencies of 1200 kHz and 3600 kHz, and a standard 600 kHz central depth measurement frequency. It supports both deep and shallow water surveys, as well as high and low flow rate conditions, delivering versatile operation in a single instrument. |
|
|
|
Smart Frequency ConversionThe RS3600D ADCP automatically adjusts its measurement frequency based on water conditions, removing the need for manual assessment and adjustment. Its automatic measurement mode maximizes efficiency, reduces time spent on parameter settings, and allows operators to focus on on-site survey tasks |
User-Friendly SoftwareHydroProfiler for PC provides efficient and flexible data management for comprehensive hydrological analysis. EasySail for the CHCNAV APACHE 4 USV supports the output of flow summary tables, flow test records, and results tables, and includes one-click file transfer and code sharing to a computer. |
|
