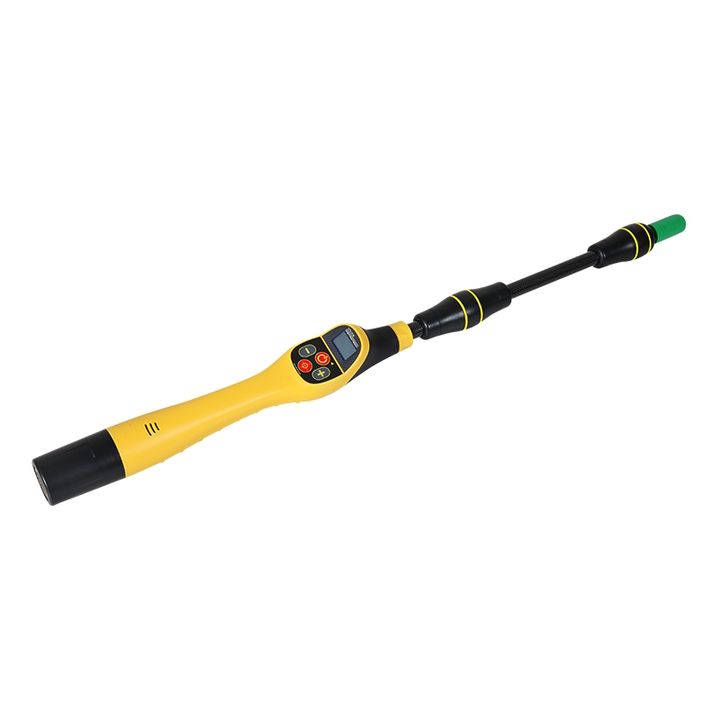

Vivax VM-540 Sonde Locator with Carry Bag VM-540
- Comes standard with sonde/camera frequencies of 33kHz, 512Hz, and 640Hz.
- Equipped with "Passive" power mode to detect the presence of some live cables and metallic pipes.
- Push-button depth displays
- Visual and audio response
- Ergonomic and lightweight design at 2kg
| Construction | High impact ABS injection molded housing with carbon fiber reinforced tube |
| Weight | 0.62kg |
| Dimensions | 955mm x 80mm x 70mm |
| Display | Dot Matrix, 98 x 64 dots, COG LCD with backlight |
| Battery | 2 x AA Alkaline batteries |
| Battery Life | 20 hours of intermittent use |
| Operating frequencies | Sonde mode - 512Hz, 640Hz, 33kHz Power mode - 50Hz or 60Hz |
| Environmental Rating | IP54 and NEMA 4 |
| Brochures | |
|---|---|
| 1.215.05.00004 - Brochure | Product Manuals |
| Vivax VM-540 Sonde Locator with Carry Bag VM-540 - Product Manual | Specifications |
| Vivax VM-540 Sonde Locator with Carry Bag VM-540 - Specifications |
- Vivax Metrotech VM-540 Sonde Locator
- 2 x AA Batteries
- Battery holder
- USB cable
- User manual
- Carry Bag
Brand: Vivax Metrotech |
Code: 1.215.05.00004
APN: 9319499298456 |
Supplier Code: 1.215.05.00004
Brand: Vivax Metrotech |
Code: 1.215.05.00004
APN: 9319499298456 |
Supplier Code: 1.215.05.00004
At a glance
- Comes standard with sonde/camera frequencies of 33kHz, 512Hz, and 640Hz.
- Equipped with "Passive" power mode to detect the presence of some live cables and metallic pipes.
- Push-button depth displays
- Visual and audio response
- Ergonomic and lightweight design at 2kg
| Construction | High impact ABS injection molded housing with carbon fiber reinforced tube |
| Weight | 0.62kg |
| Dimensions | 955mm x 80mm x 70mm |
| Display | Dot Matrix, 98 x 64 dots, COG LCD with backlight |
| Battery | 2 x AA Alkaline batteries |
| Battery Life | 20 hours of intermittent use |
| Operating frequencies | Sonde mode - 512Hz, 640Hz, 33kHz Power mode - 50Hz or 60Hz |
| Environmental Rating | IP54 and NEMA 4 |
