Leica Pegasus TRK500/700 Neo Mobile Mapping Package
Product options:
Introducing The New Pegasus TRK range:
Leica Pegasus TRK500 Neo
- Single scanner with 500,000 measurements per second
- Single line point cloud pattern
- Weight 18kg
Leica Pegasus TRK700 Neo
- Dual scanner with 1,000,000 measurements per second
- Crossed line point cloud pattern
- Weight 23kg
Makes Life Easier. Everyday.

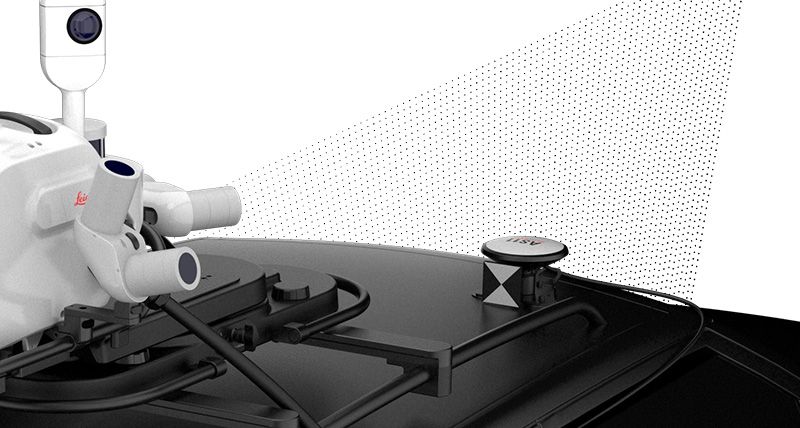

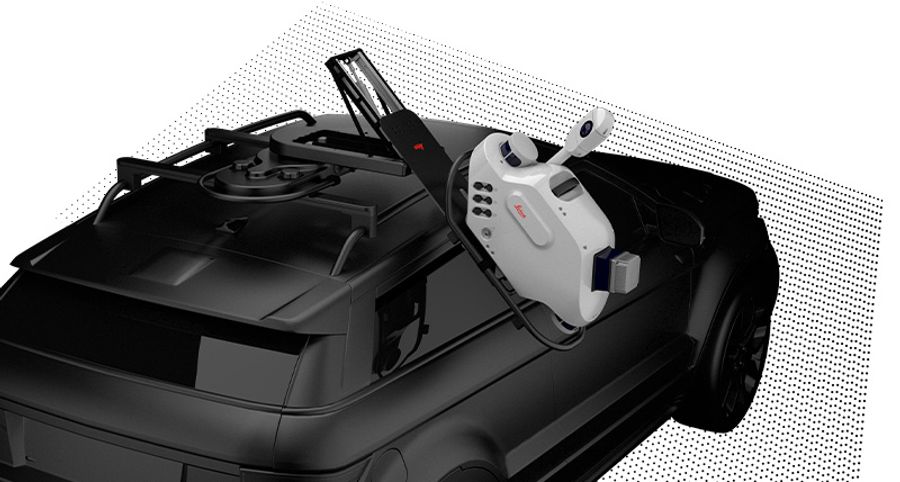

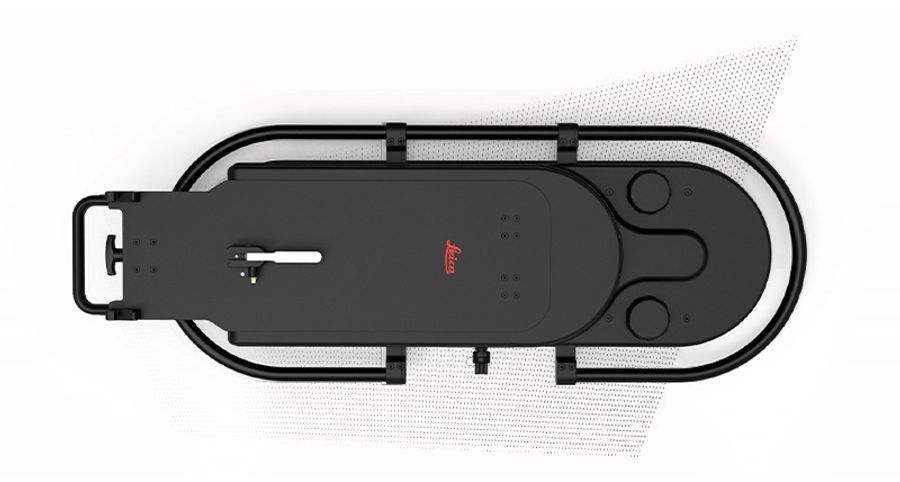

With a unique rotation-tilting mounting platform and ergonomic design, Pegasus TRK can be set up and operated by just one person. It reduces the system lifting height by 36cm avoiding risky lifting operations.
![](https://d288rxaqnhe6ck.cloudfront.net/ts1725730983/attachments/Product/102044/00ZLGPEGASUSTRK.tag.O1.jpg)
![](https://d288rxaqnhe6ck.cloudfront.net/ts1725730983/attachments/Product/102044/00ZLGPEGASUSTRK.tag.O2.jpg)
Lightweight. Heavily Designed.
The ingenious rotation-tilting movement keeps personnel and system safe during the mounting and dismounting operation. The Pegasus TRK handle and handlebar provides full control and comfortable ergonomics.
Three Positions, Two Steps, One Person.

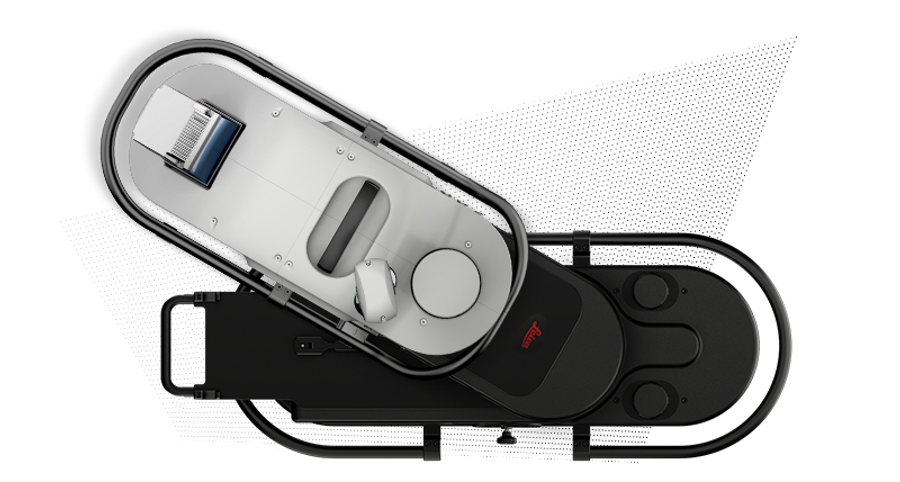

Three rotating positions (-30°/0°/+30°) allows TRK500 users to achieve a crossed point cloud pattern during multi pass acquisitions to reduce shadows in the acquired data - mimicking a dual scanner deliverable.
![](https://d288rxaqnhe6ck.cloudfront.net/ts1725730983/attachments/Product/102044/00ZLGPEGASUSTRK.tag.O3.png)
![](https://d288rxaqnhe6ck.cloudfront.net/ts1725730983/attachments/Product/102044/00ZLGPEGASUSTRK.tag.O4.jpg)
Additional Features
- Haptic Feedback - All mounting points have an embedded torque indicator, System locker is double secured
- Speed - Capable of supporting speeds up to 130km/h, Aerodynamic design minimises fuel consumption
- Safety - TÜV safety certification, Designed to withstand emergency brake and lane line changes (elk test)
- Compatibility - Natively compatible with several Thule® roof bar systems, Will fit on the large majority of vehicles
Power Is Nothing Without Control

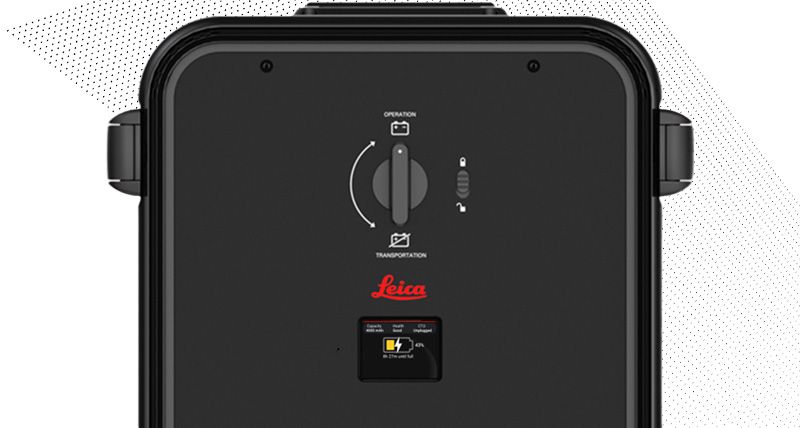

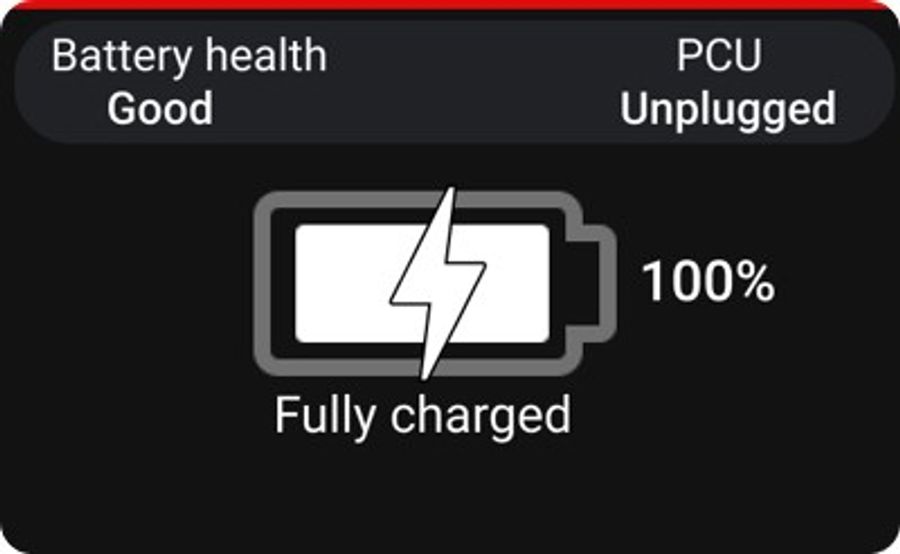

Get full status control with the 2.4 inch colour LCD displaying real-time battery health information. An intelligent monitoring processor checks constantly the Li-Ion cells providing the actual battery capacity and assuring longevity.
![](https://d288rxaqnhe6ck.cloudfront.net/ts1725730983/attachments/Product/102044/00ZLGPEGASUSTRK.tag.O5.jpg)
![](https://d288rxaqnhe6ck.cloudfront.net/ts1725730983/attachments/Product/102044/00ZLGPEGASUSTRK.tag.O6.jpg)
Makes Transportation Safe

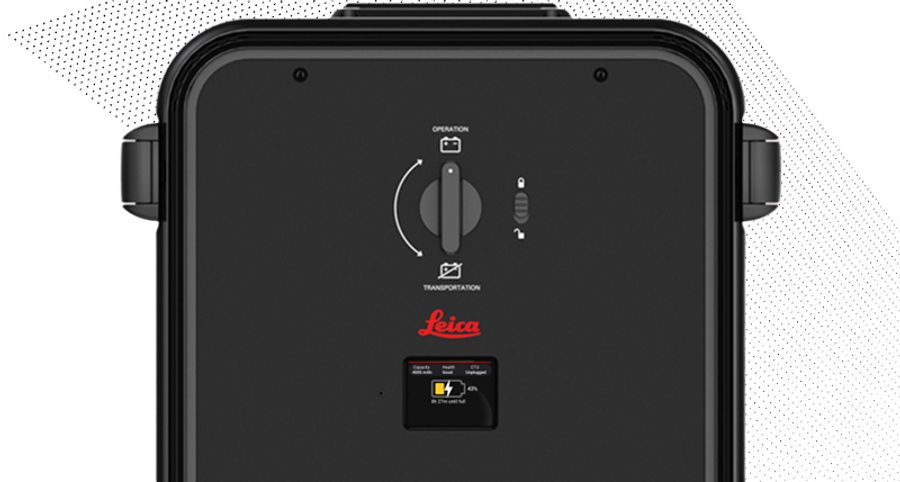

The main switch activates transportation mode for ground and aircraft shipping - making the battery fully compliant to dangerous goods regulation UN 3480/3481.
Expand To Extend
Expand to up to three batteries for massive data capture. The hot-swap logic manages automatically the power source extending the Pegasus TRK operational time up to 21h.
![](https://d288rxaqnhe6ck.cloudfront.net/ts1725730983/attachments/Product/102044/00ZLGPEGASUSTRK.tag.O7.jpg)
![](https://d288rxaqnhe6ck.cloudfront.net/ts1725730983/attachments/Product/102044/00ZLGPEGASUSTRK.tag.O8.jpg)
Additional Features
- Hot-swap - Up to 3 hot-swap batteries with automatic switch to next battery power source, Fast charging management, fully charged in 5.5h
- Information - Battery health notfication and alerts over the colour LCD display and Pegasus FIELD
- Environment - IP54, limited protection against dust and ingress protected against splash water from any direction

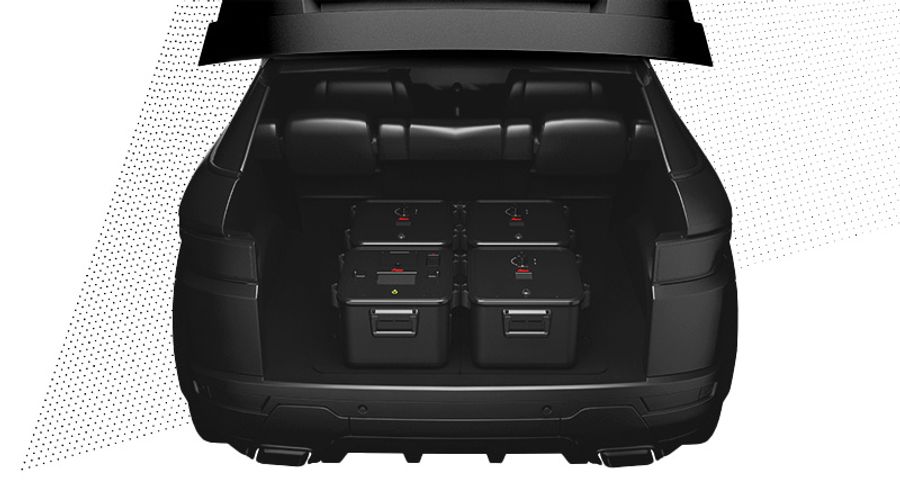

- Weight & Size - 13kg lightweight, Minimised size to fit in any vehicle, Dedicated car trunk fixation plate to position safely the batteries during the drive
As Simple As A Touch

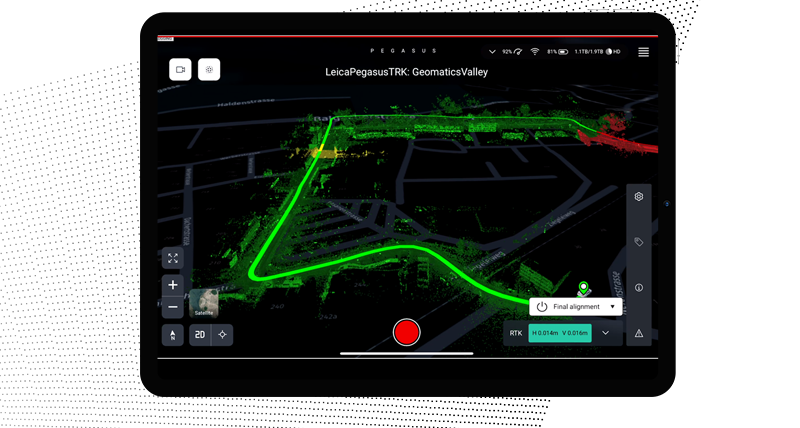

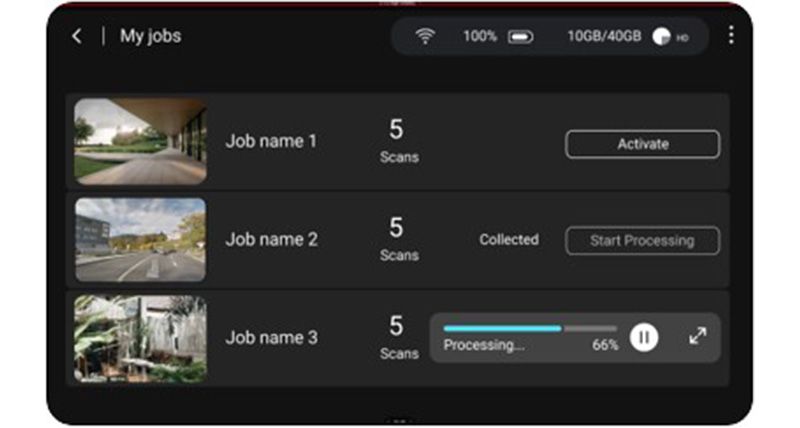

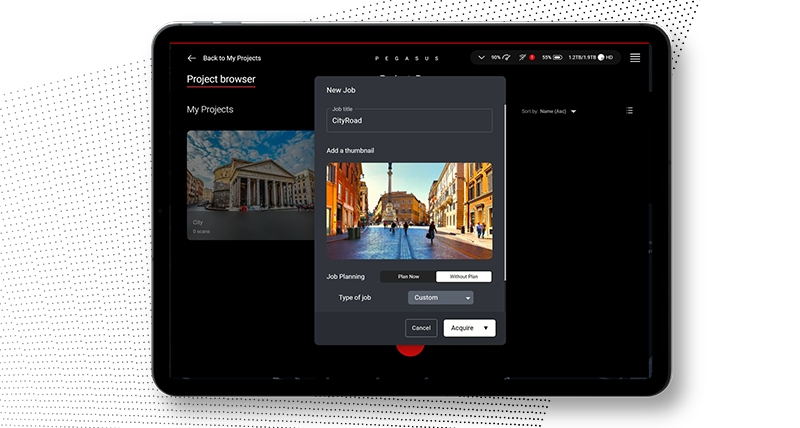

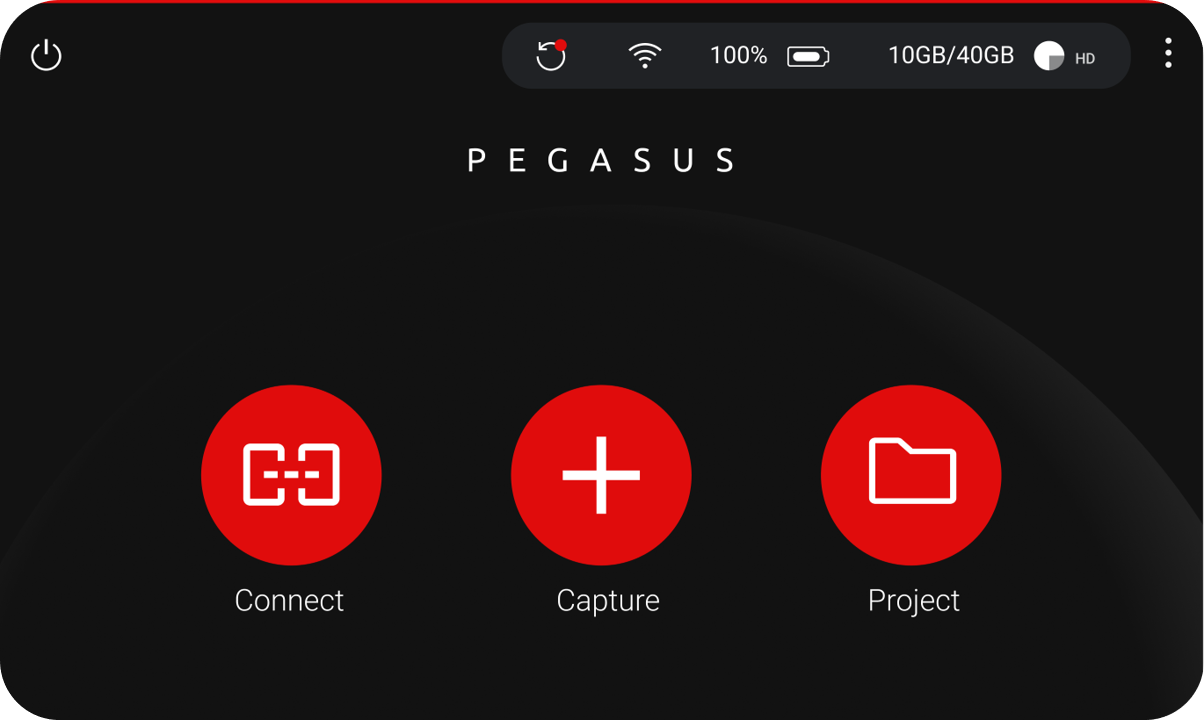

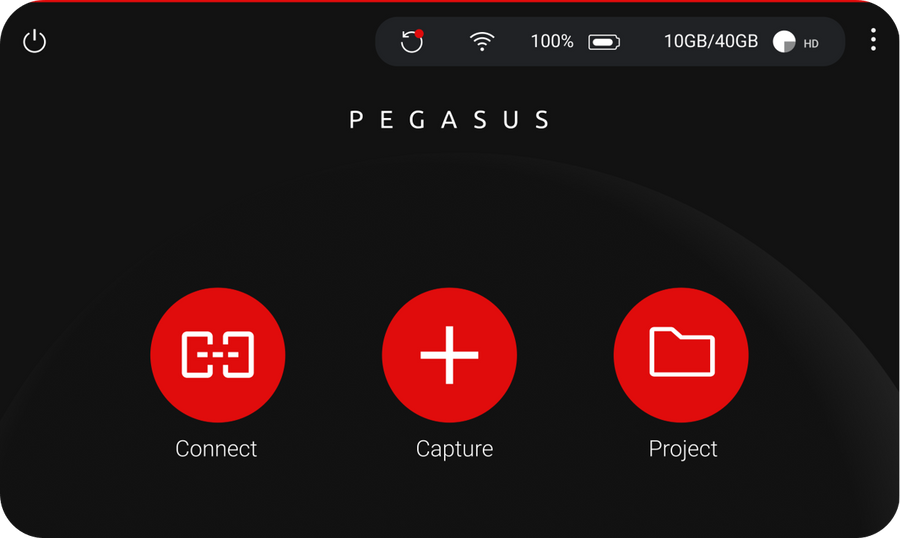

Created to transform the workflow for reality capture professionals, the control unit allows you to go straight from data capture to processing on-the-fly, right when you need it. No more time-consuming transcoding, storage overhead, or errors during data transfer.
![](https://d288rxaqnhe6ck.cloudfront.net/ts1725730983/attachments/Product/102044/00ZLGPEGASUSTRK.tag.O9.png)
![](https://d288rxaqnhe6ck.cloudfront.net/ts1725730983/attachments/Product/102044/00ZLGPEGASUSTRK.tag.O10.jpg)
Works While You Rest

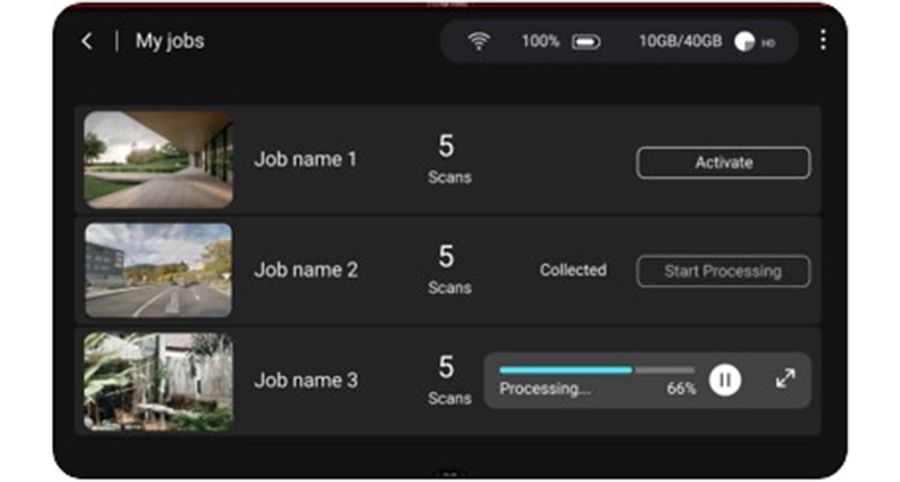

Keep moving and deliver on time. Launch 3D data pre-processing with a single touch to ensure the system works as you travel back to the office.
All In Yours Hands

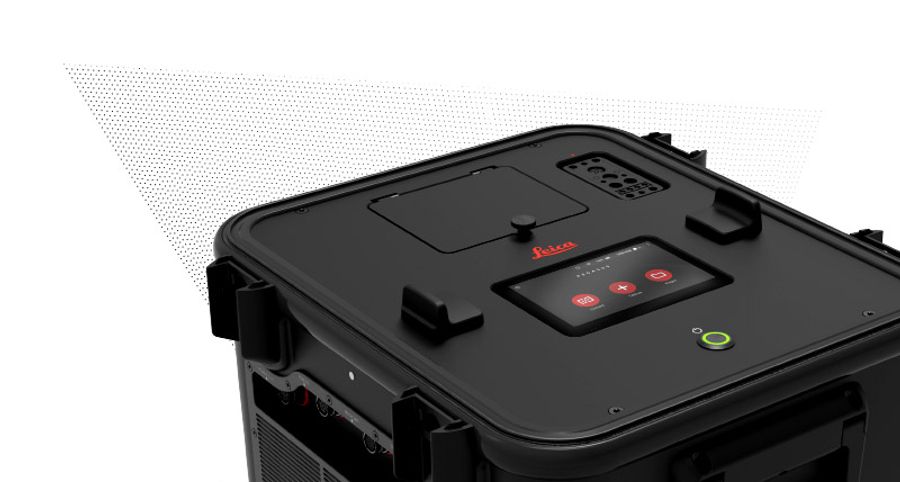

Data logistics are simplified. Add storage on-the-fly or share performed missions with colleagues, the data is safely stored in a ruggedised case.
![](https://d288rxaqnhe6ck.cloudfront.net/ts1725730983/attachments/Product/102044/00ZLGPEGASUSTRK.tag.O11.jpg)
![](https://d288rxaqnhe6ck.cloudfront.net/ts1725730983/attachments/Product/102044/00ZLGPEGASUSTRK.tag.O12.jpg)
Additional Features
- On-Devices AI - Built-in AI module, Real-time blurring recognition, Compliant with GDPR privacy regulations
- On-board Processing - Automatic one-click project pre-processing workflow, Direct data storage to removable SSD
- Storage - Supports 4TB and 7.6TB storage, High performance industrial grade SSD’s
- Connectivity - Integrated Wi-Fi and LAN access, Power management system, Hot-plug accessory hub
