Vivax Metrotech vLoc3 RTK-Pro 5-Watt Kit with Bluetooth

Loading
  • Vivax Metrotech vLoc3 RTK-Pro 5-Watt Kit with Bluetooth
  • Vivax Metrotech vLoc3 RTK-Pro 5-Watt Kit with Bluetooth
  • Vivax Metrotech vLoc3 RTK-Pro 5-Watt Kit with Bluetooth
  • Vivax Metrotech vLoc3 RTK-Pro 5-Watt Kit with Bluetooth
  • Vivax Metrotech vLoc3 RTK-Pro 5-Watt Kit with Bluetooth
  • Vivax Metrotech vLoc3 RTK-Pro 5-Watt Kit with Bluetooth

  • Fully-integrated RTK GNSS
  • One-hand locating and mapping
  • Cloud-based data management
  • Survey-grade GNSS Accuracy
  • Simplistic locating modes
  • Reduces multiple field equipment

One-hand locating and mapping

Vivax Metrotech vLoc3 RTK-Pro 5-Watt Kit with Bluetooth Vivax Metrotech vLoc3 RTK-Pro 5-Watt Kit with Bluetooth

Survey-grade GNSS Accuracy

Fully-integrated RTK GNSS

Vivax Metrotech vLoc3 RTK-Pro 5-Watt Kit with Bluetooth

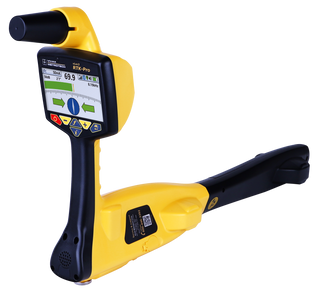

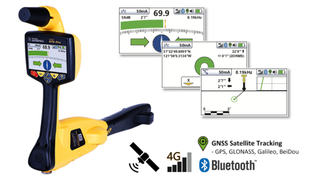

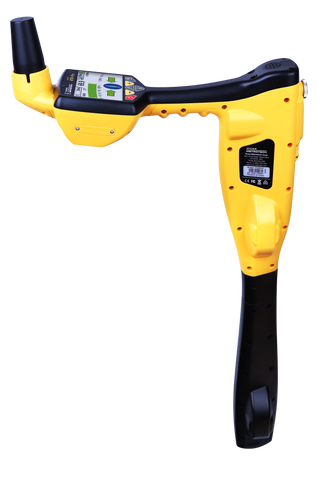

The vLoc3 RTK-Pro receiver is the first to add RTK GNSS accuracy to a utility locator. Using the RTK-Pro internal cellular module with 4G LTE capabilities, the operator has the ability to connect to NTRIP RTK (Real-Time Kinematic ) caster that provides RTCM 3 corrections. By utilizing these corrections, the operator can collect both utility location data along with the geographical location of the utility with survey-grade accuracy.

The RTK-Pro was designed for use at all operator levels, utilizing user-friendly and intuitive locate screens. Operators simply confirm the utility data with the press of a button and align the electronic spirit level to store the data. All field data is sent to the cloud and retained in the receivers onboard storage for review and exporting to external mapping programs.

The highly user-configurable vLoc3 series contains eight passive locate modes, fault find mode, SD (showing the direction of outgoing current), and a range of configurable frequenciesn from 98Hz to 200 kHz. Visual and mechanical vibration alerts can also be configured by the user providing warnings for shallow depth, overload, overhead cables, and excessive swinging. Optional features include Tx-Link that enables the user to change the frequencies of the transmitter, power output and operate most of the features of the transmitter remotely.

Brochures
VLOC3 RTK 5W BT - Brochure
Specifications
Vivax Metrotech vLoc3 RTK-Pro 5-Watt Kit with Bluetooth - Specifications

  • vLoc3 RTK-Pro Receiver with Rechargeable Battery Pack
  • 5-Watt Transmitter,
  • Alkaline Batteries,
  • Connection Leads,
  • Ground Stake,
  • 5-Inch Signal Clamp
  • Carry Bag and Manual
Related Categories Utility Locators

Brand: Vivax Metrotech | Code: VLOC3_RTK_5W_BT MPN:
APN: 9319499246747 | Supplier Code:
Supplier Description:

Brand: Vivax Metrotech | Code: VLOC3_RTK_5W_BT MPN:
APN: 9319499246747 | Supplier Code:
Supplier Description:

At a glance

  • Fully-integrated RTK GNSS
  • One-hand locating and mapping
  • Cloud-based data management
  • Survey-grade GNSS Accuracy
  • Simplistic locating modes
  • Reduces multiple field equipment
