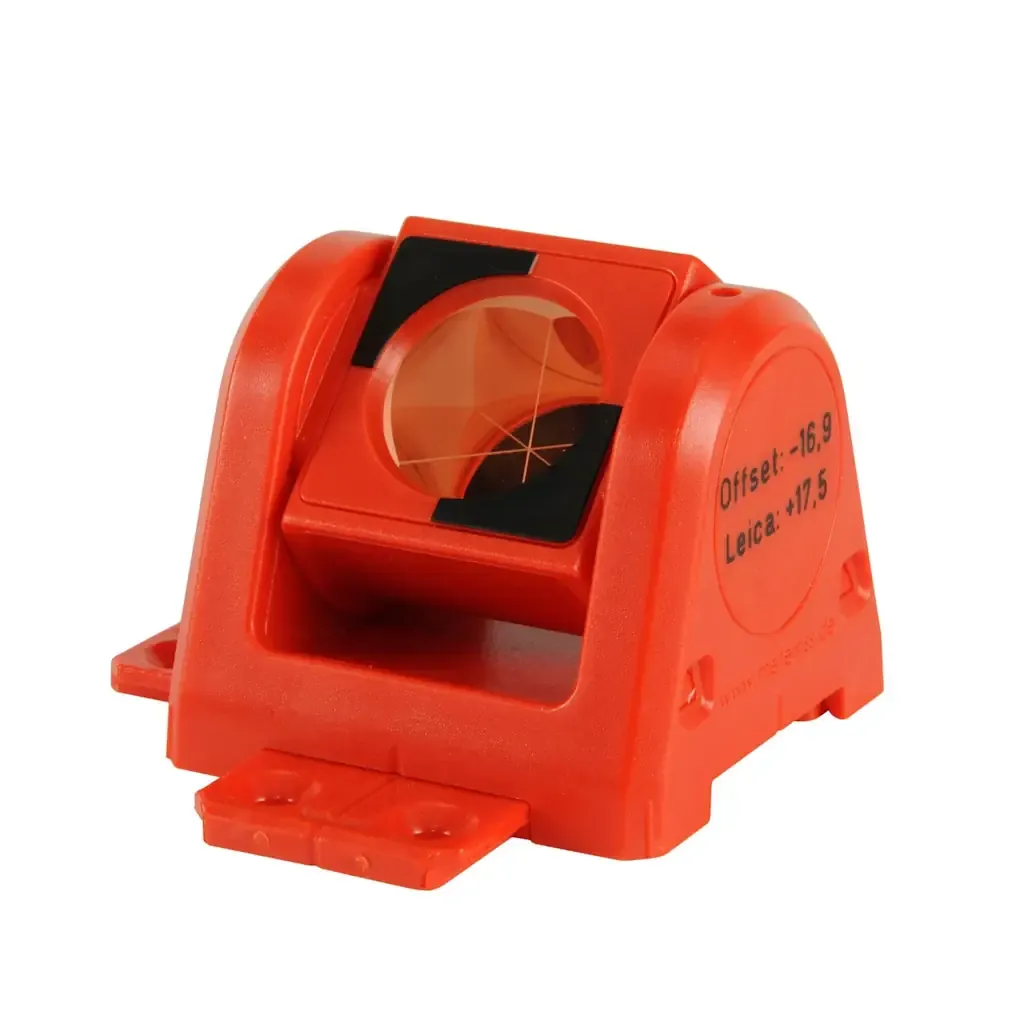

Rothbucher RSMP380-C Tilting Mini Prism 25.4mm Copper Coating

Rothbucher's RSMP380 tilting mini prism can be simply glued or fixed with dowels and screws, even on difficult bases, such as glass and marble facades, historic buildings, steel beams, rails, gas and oil pipelines, etc.

• Twistable, extensible 25.4 mm mini-prism made with a rugged plastic housing system
• Offset -16.9 mm (Leica +17.5 mm)
• Height of tilting axis: 30 mm
• Accuracy is 5 arc sec (+/-2 arc sec)

• the prism can always be aligned accurately with the measuring instrument
• the prism can be tilted in a radius of 180°, making it possible to use the same survey point from different directions
• bridges, facades, and many other structures can be monitored even more quickly and precisely
• several prisms can be combined with one another due to the integrated connector system, making it possible to survey from different directions without having to turn the prism

• permanent setting measurements can be carried out during the building work
• settling measurements are possible on railway tracks while under the load of rail traffic
• ATR mode ranges of 500 m to 700 m can be achieved*

*NOTE: The ranges are dependent on the type of instrument used and are affected by the weather and environmental conditions. When sighting measuring points that are already known, with robotic stations it is possible to achieve ranges of up to 1000 m. Depending on the focus, ranges of approx. 200 m are achieved for the measurements in manual mode.
