Riegl VZ-2000i Laser Scanner

Riegl VZ-2000i Laser Scanner

PRODUCT ENQUIRY
Based on a future-oriented, innovative new processing architecture, internet connectivity, and Riegl's latest waveform processing LiDAR technology, the Riegl VZ-2000i Long Range 3D Laser Scanning System combines proven user friendliness in the field with fast and highly accurate data acquisition.
Brand: Riegl Scanner    Code: RI42001
Supplier Code: RI42001

Its new processing architecture enables execution of different background tasks (such as point cloud registration, geo-referencing, orientation via integrated Inertial Measurement Unit, etc.) on-board in parallel to the acquisition of scan data. A full documentation of the scanner's software components - directly accessible on the RIEGL VZ-2000i - provides a sound basis for creation of your own Python apps to enhance the scanner functionality. The system provides highest flexibility by supporting numerous peripherals and asccessories such as the integrated GNSS unit for high accurate RTK solution, a SIM Card slot for 3G/4G LET, WLAN, LAN, USA, and different other ports of external units.

RIEGL's unique Waveform-LiDAR technology is the key to enabling such high speed, long range, high accuracy measurements even in poor visibitiliy and demanding multi-target situations caused by dust, haze, rain, vegetation, etc.

Features

  • High laser pulse repetition rate of up to 1.2 MHz
  • High speed data acquisition up to 500,000 measurements/sec
  • Eye safe operation at Laser Class 1
  • Wide field of view, 100°x360°

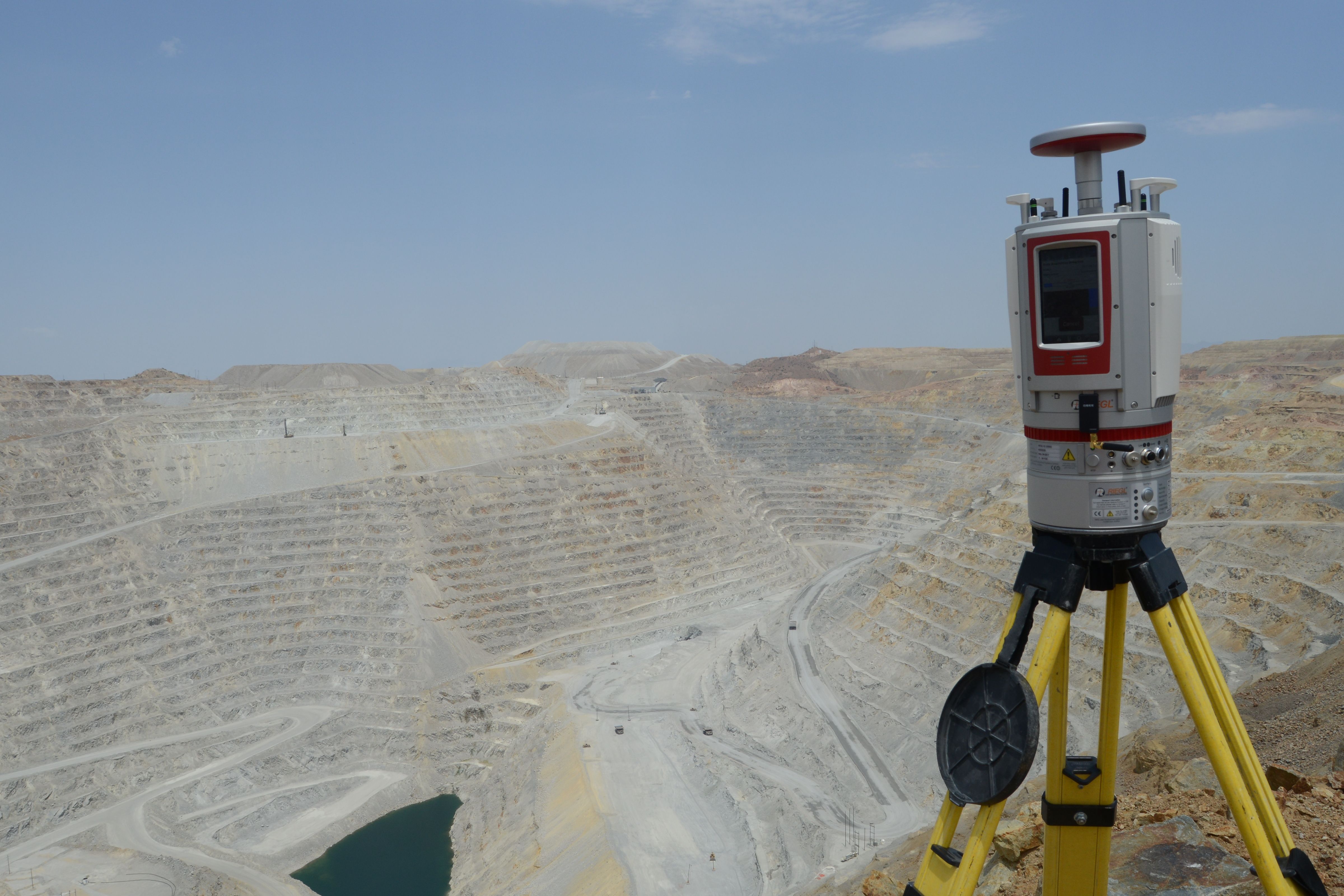

  • Range up to 2500 m, accuracy 5 mm
  • High accuracy, high precision ranging based on echo digitization, online waveform processing, and multiple-time-around processing
  • New, innovative processing architecture for data acquisition and simultaneous geo-referencing in real-time

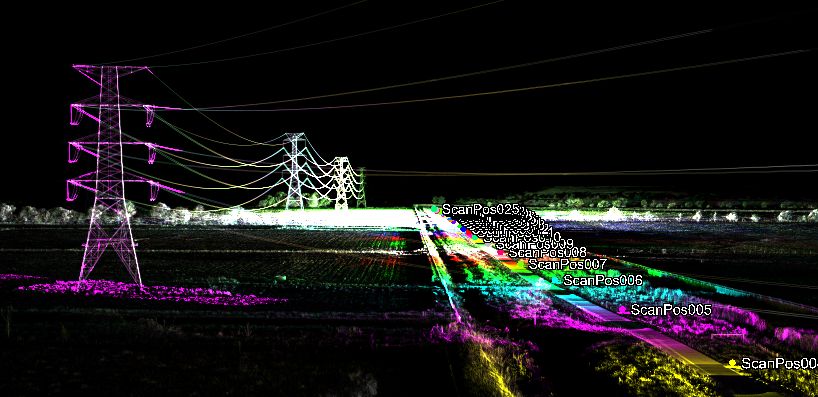

  • Automatic on-board registration
  • Easy to use – easy to train
    (e.g. user friendly touchscreen interface, single touch operation, etc.)
  • Cloud connectivity via Wi-Fi and 3G/4G LTE
  • Multiple target capability
  • Optional full waveform data output
  • Orientation sensor for pose estimation
  • Remote control
  • Integrated GNSS receiver
  • Fully compatible with the RIEGL VMZ Mobile Laser Mapping System

Main Applications

  • Topography & Mining
  • Surveying in Open-Pit Mining
  • Archaeology & Cultural Heritage
  • City Modeling
  • Civil Engineering
  • Monitoring
  • Forestry
  • Research
  • Stand-alone Static and (within RIEGL VMZ) Mobile Laser Scanning
BROCHURES
RI42001 - Brochure
DATASHEETS
Riegl VZ-2000i Laser Scanner - Datasheet
PRODUCT MANUALS
Riegl VZ-2000i Laser Scanner - Product Manual
SPECIFICATIONS
Riegl VZ-2000i Laser Scanner - Specifications

OVERVIEW

Its new processing architecture enables execution of different background tasks (such as point cloud registration, geo-referencing, orientation via integrated Inertial Measurement Unit, etc.) on-board in parallel to the acquisition of scan data. A full documentation of the scanner's software components - directly accessible on the RIEGL VZ-2000i - provides a sound basis for creation of your own Python apps to enhance the scanner functionality. The system provides highest flexibility by supporting numerous peripherals and asccessories such as the integrated GNSS unit for high accurate RTK solution, a SIM Card slot for 3G/4G LET, WLAN, LAN, USA, and different other ports of external units.

RIEGL's unique Waveform-LiDAR technology is the key to enabling such high speed, long range, high accuracy measurements even in poor visibitiliy and demanding multi-target situations caused by dust, haze, rain, vegetation, etc.

FEATURES

Features

  • High laser pulse repetition rate of up to 1.2 MHz
  • High speed data acquisition up to 500,000 measurements/sec
  • Eye safe operation at Laser Class 1
  • Wide field of view, 100°x360°
  • Range up to 2500 m, accuracy 5 mm
  • High accuracy, high precision ranging based on echo digitization, online waveform processing, and multiple-time-around processing
  • New, innovative processing architecture for data acquisition and simultaneous geo-referencing in real-time
  • Automatic on-board registration
  • Easy to use – easy to train
    (e.g. user friendly touchscreen interface, single touch operation, etc.)
  • Cloud connectivity via Wi-Fi and 3G/4G LTE
  • Multiple target capability
  • Optional full waveform data output
  • Orientation sensor for pose estimation
  • Remote control
  • Integrated GNSS receiver
  • Fully compatible with the RIEGL VMZ Mobile Laser Mapping System

Main Applications

  • Topography & Mining
  • Surveying in Open-Pit Mining
  • Archaeology & Cultural Heritage
  • City Modeling
  • Civil Engineering
  • Monitoring
  • Forestry
  • Research
  • Stand-alone Static and (within RIEGL VMZ) Mobile Laser Scanning

DOWNLOADS

BROCHURES
RI42001 - Brochure
DATASHEETS
Riegl VZ-2000i Laser Scanner - Datasheet
PRODUCT MANUALS
Riegl VZ-2000i Laser Scanner - Product Manual
SPECIFICATIONS
Riegl VZ-2000i Laser Scanner - Specifications
