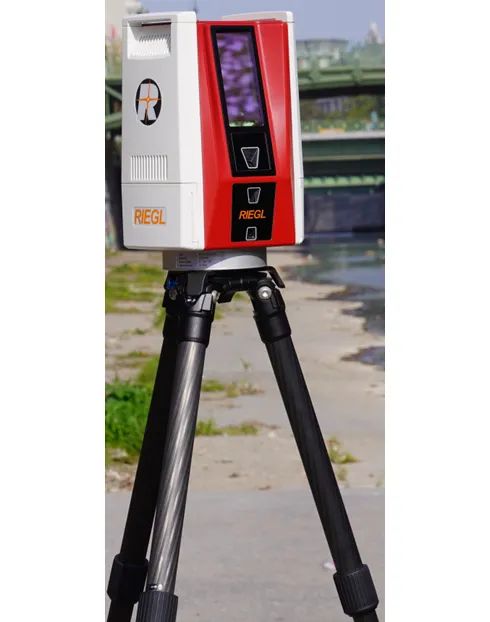

Riegl VZ-600i 3D Laser Scanner Inc RiSCAN PRO SNL, 2x battery charger, case
The latest RIEGL VZ-600i is a 3D Laser Scanning System which combines an innovative new processing architecture, internet connectivity, and a suite of MEMS sensors with RIEGL’s latest Laser Scanning Engine technology.
High Productivity
Rapid scanning, on-board registration, high-speed processing
- "One-Touch" Button Operation
- Riegl VZ-i Project Map App for scan project monitoring
- Concurrent scan and image data acquisition

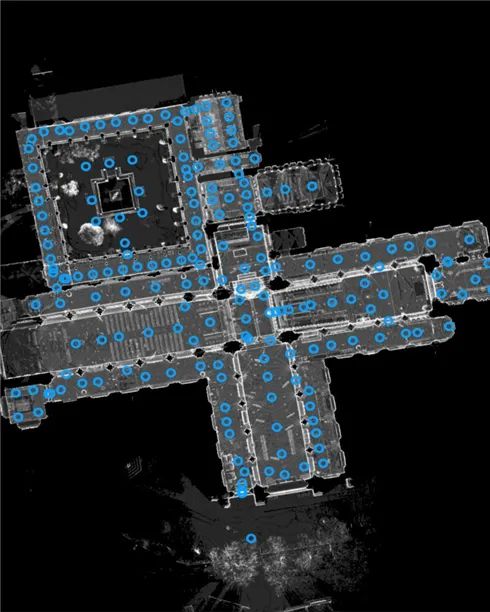

- Real-Time On-Board automatic registration
- "One-Touch" Processing Wizard for automatic production of end deliverables
Ultimate Performance
High pulse repetition rate and scanning speed 30 seconds for a "Panorama_6mm" scan
- Pulse Repetition rate up to 2.2 Mhz
- Scan Speed up to 420 lines/sec
- 30 sec scan time (6mm resolution @10m distance)
- High speed data download of up to 500MB/s
Extreme Versatility
- Suitable for various application
- Indoor and outdoor 3D mapping
- Short and long ranges
- Lightweight (approx. 6kg / 13lbs)
- Dual processor architecture for developing user-specific Python apps
Additional Mobility
- Prepared for robotic operation integration (ROS driver available)
- Option for kinematic laser scanning
- can be used with the RIEGL VMR Robotic Rail Scanning System
- Flexible mounting platform
| Brochures | |
|---|---|
| RI41600 RiPANO - Brochure | Datasheets |
| Riegl VZ-600i 3D Laser Scanner Inc RiSCAN PRO SNL, 2x battery charger, case - Datasheet | Specifications |
| Riegl VZ-600i 3D Laser Scanner Inc RiSCAN PRO SNL, 2x battery charger, case - Specifications |
Related Categories
3D Laser Scanners
Brand: Riegl Scanner |
Code: RI41600
Supplier Code: RI41600
Brand: Riegl Scanner |
Code: RI41600
Supplier Code: RI41600
At a glance
The latest RIEGL VZ-600i is a 3D Laser Scanning System which combines an innovative new processing architecture, internet connectivity, and a suite of MEMS sensors with RIEGL’s latest Laser Scanning Engine technology.
Related Categories
3D Laser Scanners
High ProductivityRapid scanning, on-board registration, high-speed processing
|
|
|
Ultimate PerformanceHigh pulse repetition rate and scanning speed 30 seconds for a "Panorama_6mm" scan
|
Extreme Versatility
|
|
|
Additional Mobility
|
Exceeding Your Expectations
RIEGL‘s latest generation of professional Terrestrial Laser Scanners stands out with extreme versatility, high productivity, ultimate performance and additional mobility – providing an excellent return on investment!
Main Features
- Pulse
- Broad range capability (0.5 m up to 1000 m)
- 5 sec scan time for low resolution overview scans
- 30 sec scan time for 6 mm resolution @ 10 m distance » 60 scan positions per hour (with image acquisition)
- 3D position accuracy up to 3 mm @ 50 m
- High laser pulse repetition rate of up to 2.2 MHz
- Scan speed up to 420 lines/sec
- Eye safe operation at Laser Class 1
- Precise real-time onboard registration
- Internal cameras & GNSS receiver
- Weight 6 kg / 13 lbs
- Prepared for mobile use
Main Applications
- Civil Engineering
- Archeology and Cultural Heritage Documentation
- Tunnel Surveying
- Forestry
- Research
- Monitoring
- Mining
- Long range scanning
