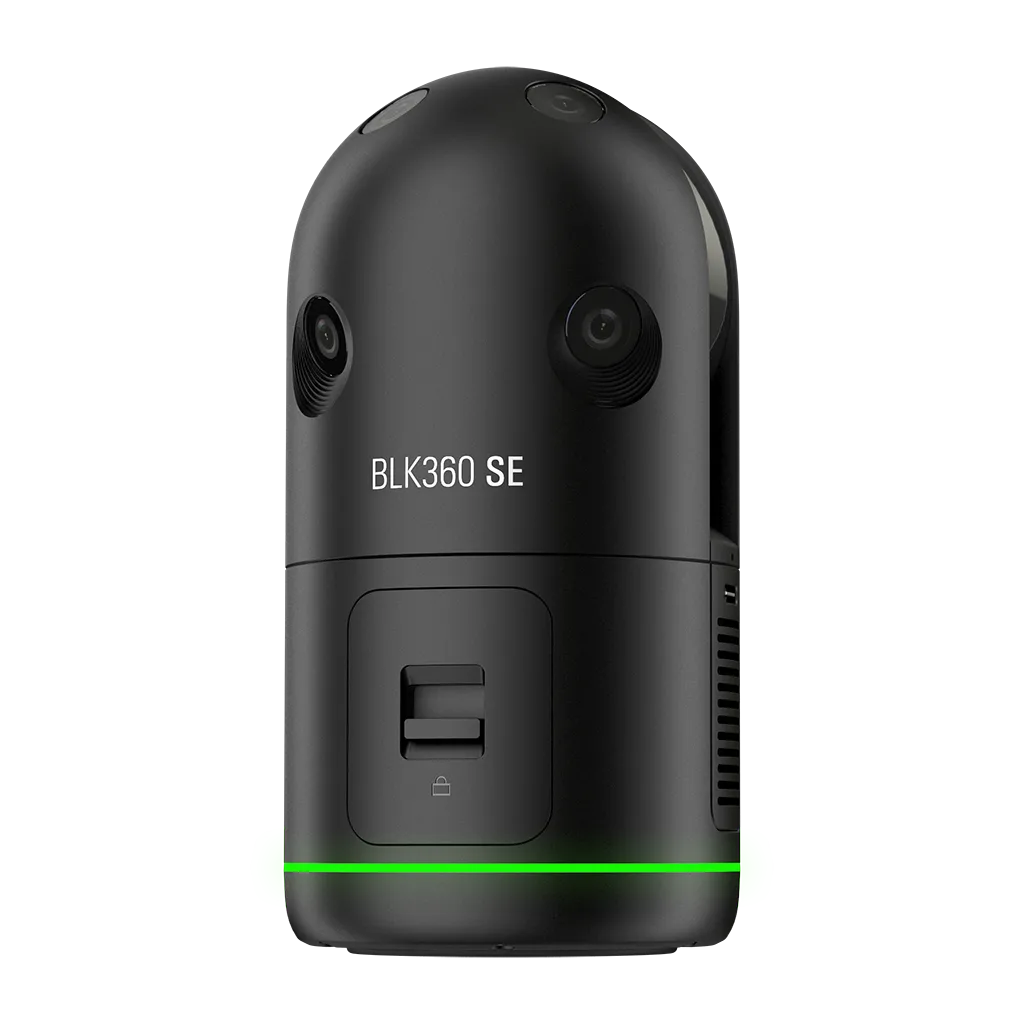

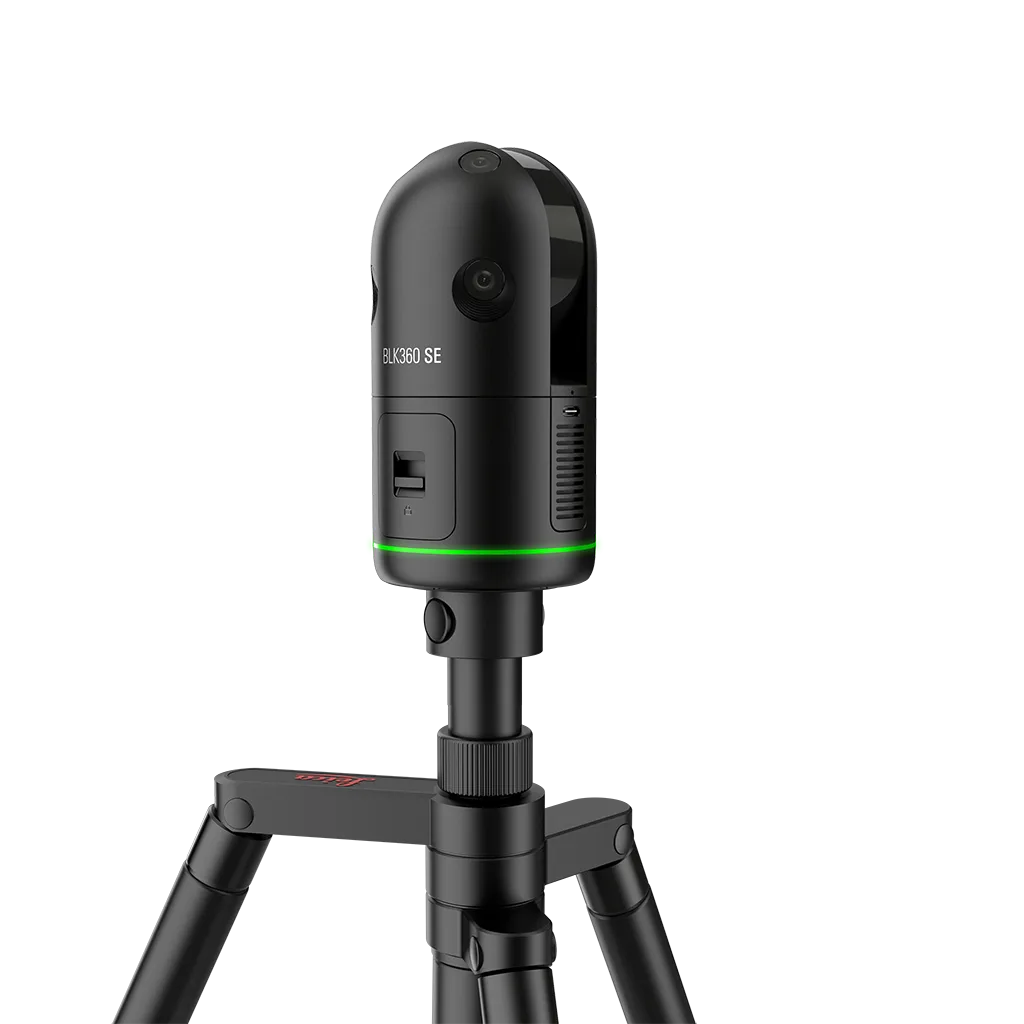

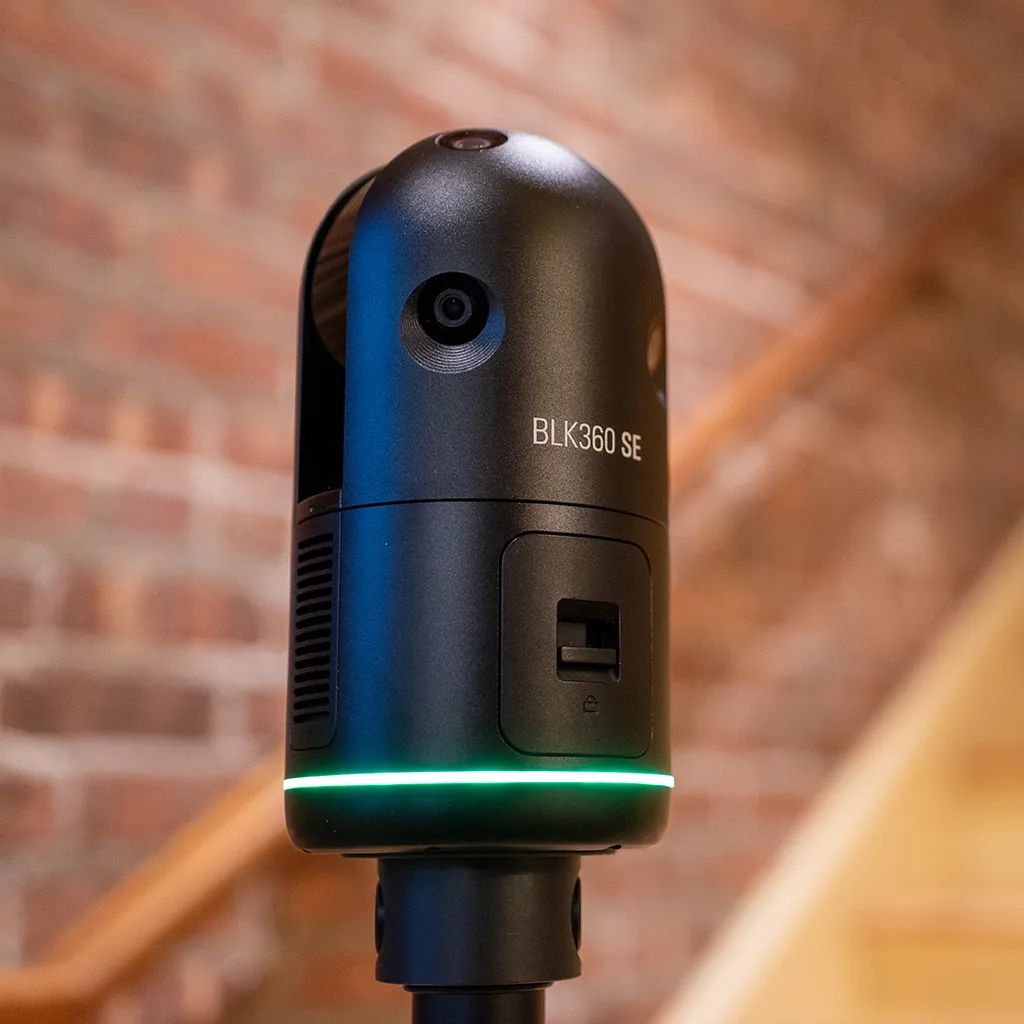

Leica BLK360 SE Imaging Laser Scanner
- Leica BLK360 SE Imaging Laser Scanner
- Capture data up to 340,000 points per second
- Rich high dynamic range (HDR) imagery.
- High speed data transfer via USB-C and WiFi.

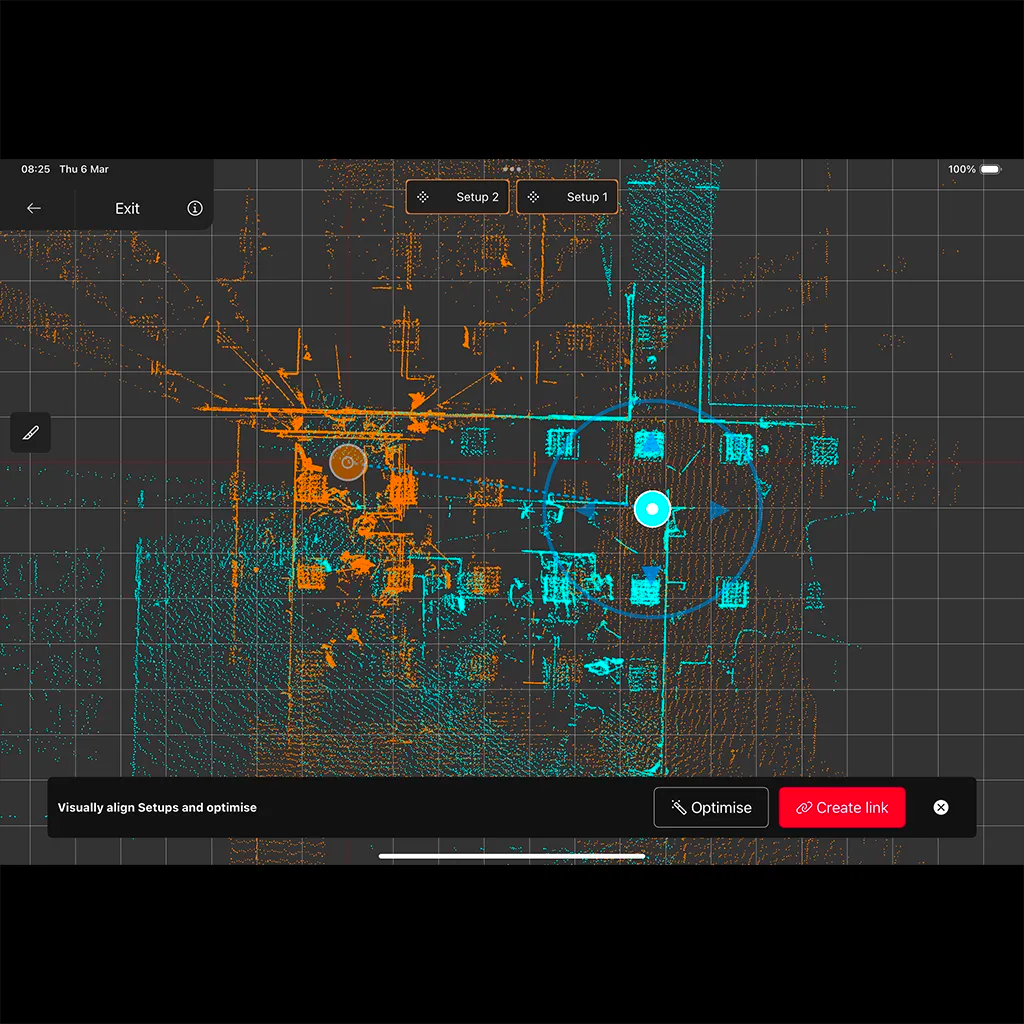

- New PinPoint Workflow

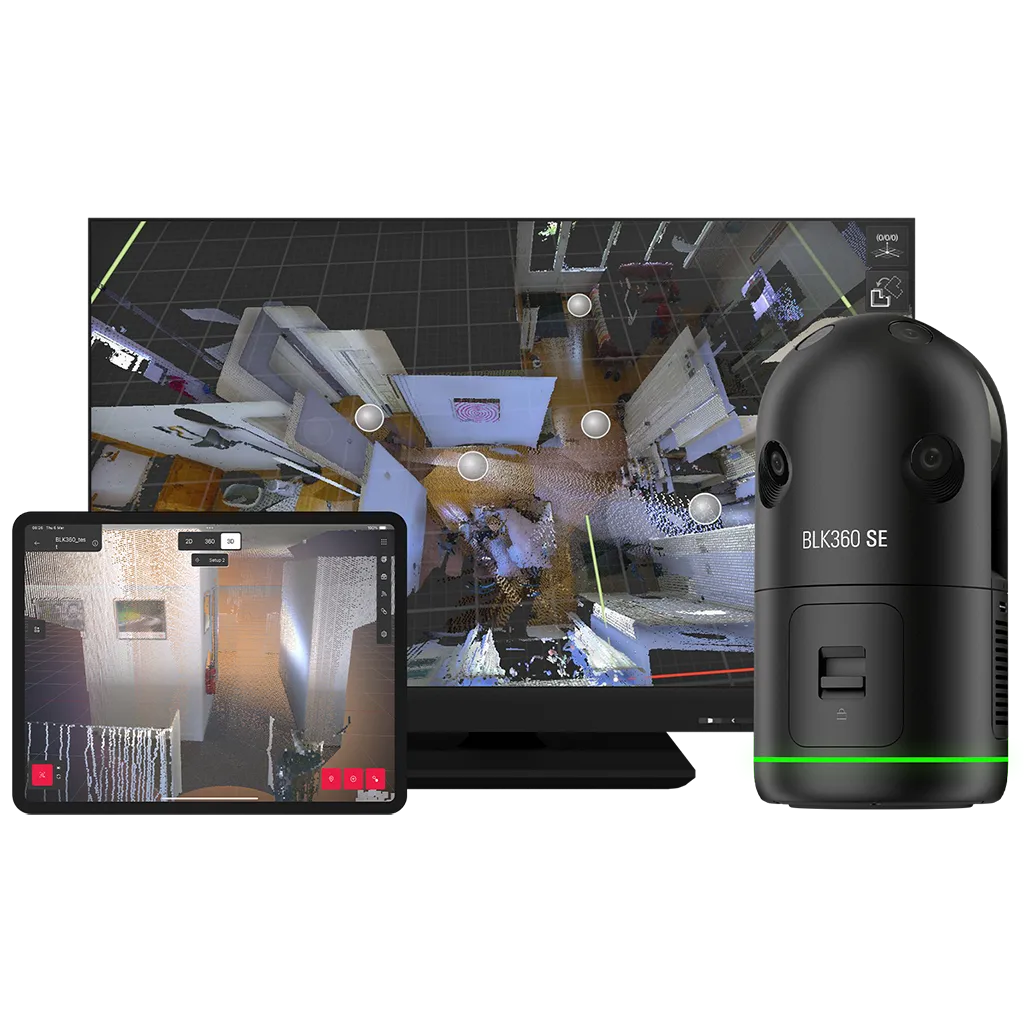

All-in-one Reality Capture Starter Solution
The Leica BLK360 SE is an imaging laser scanner designed for reality capture in architecture, engineering, and construction (AEC), real estate, and design. It captures 3D point clouds and spherical images, making it ideal for documenting existing conditions in smaller building projects or parts of larger projects.
Model Your World

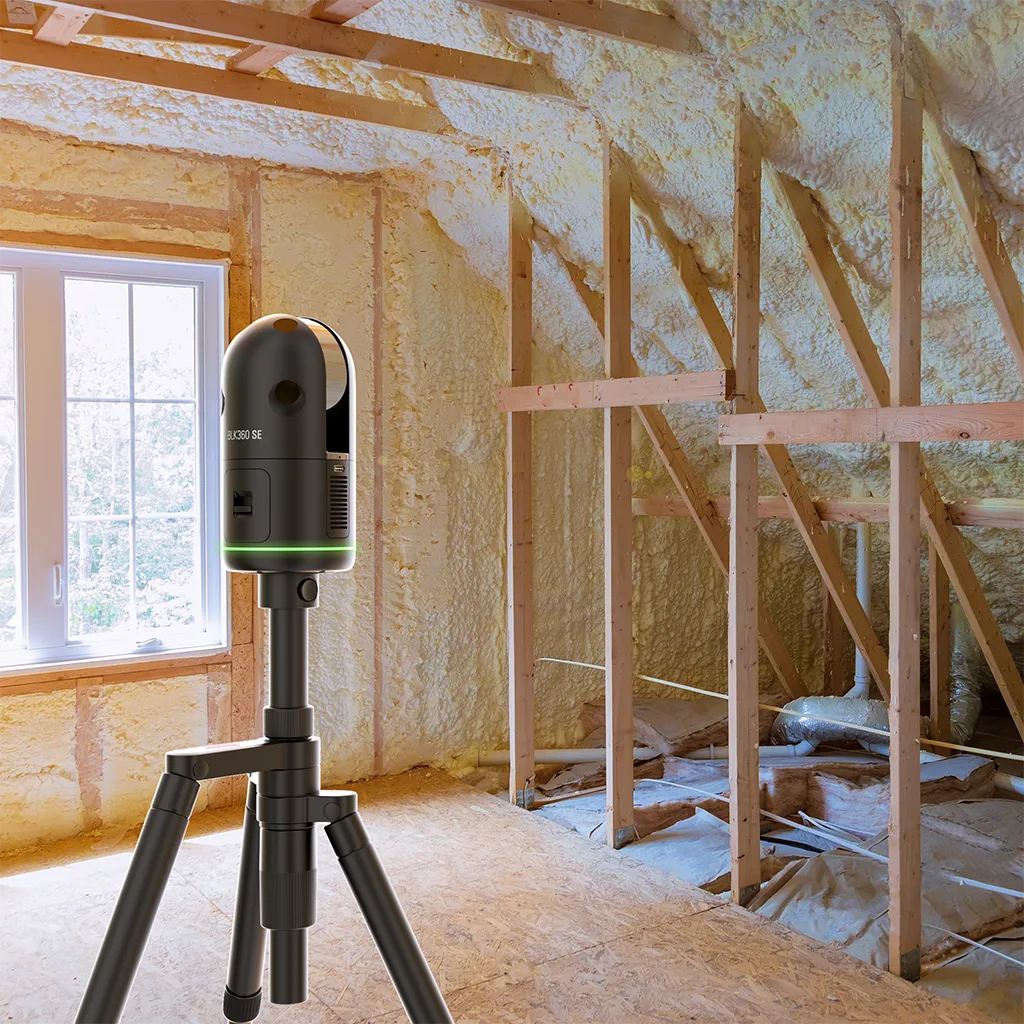

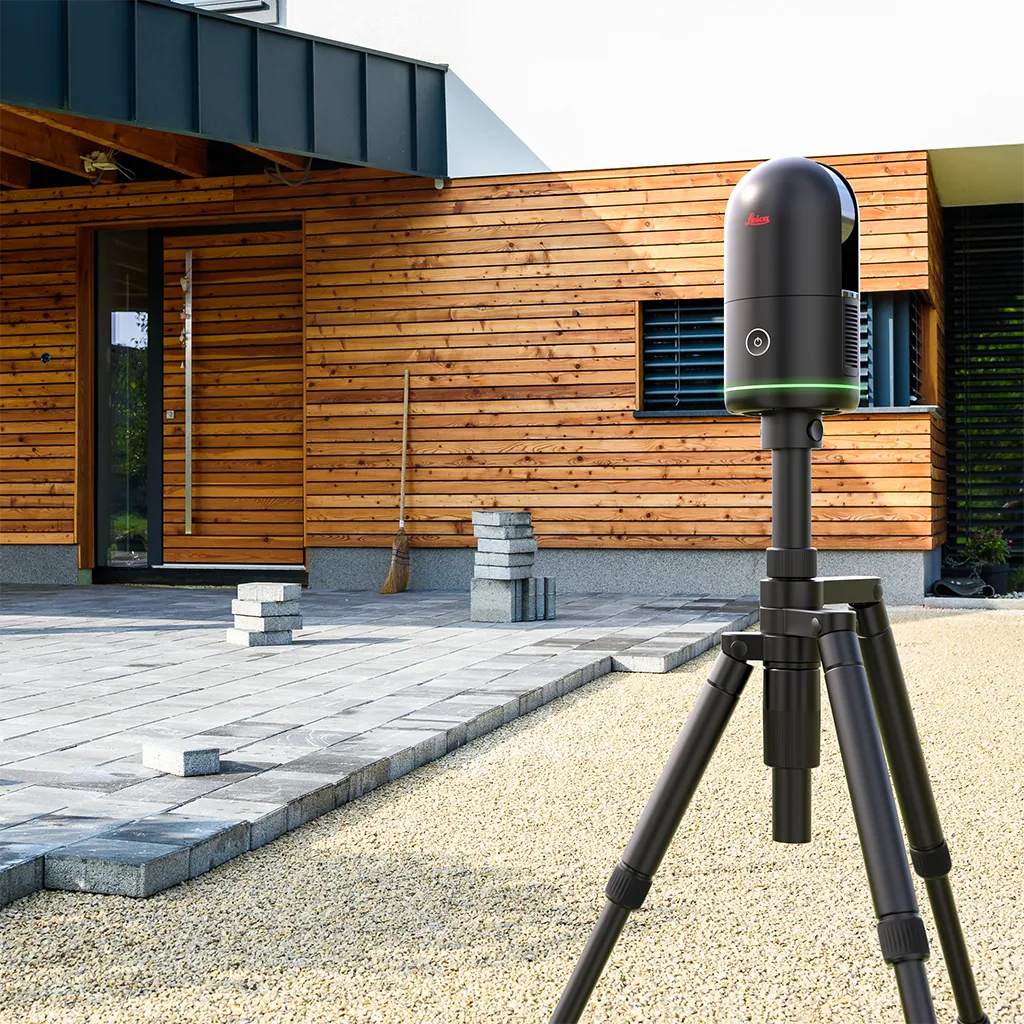

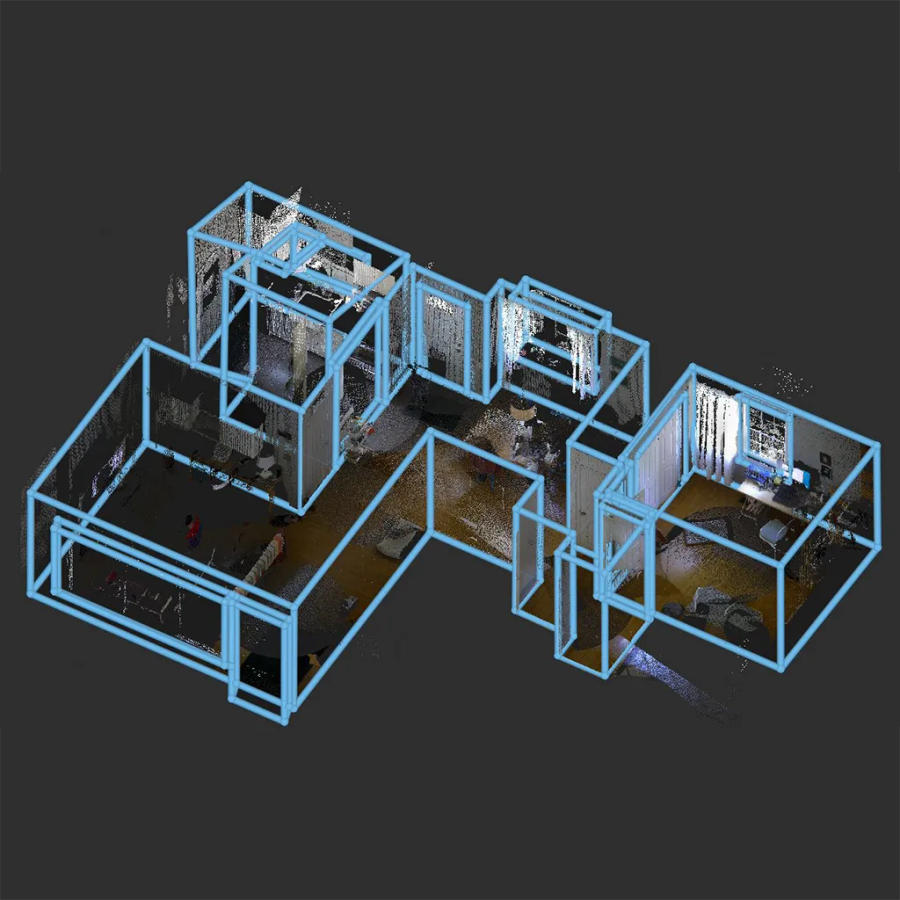

The Leica BLK360 SE is used to capture detailed 3D data of buildings, interiors, and exteriors for renovation, construction, or documentation purposes. Equipped with a laser scanner and HDR imaging, it provides a complete solution for creating accurate 3D models and point clouds.
The essentials you need to scan, process, and model your world.
- PORTABLE AND COMPACT: Lightweight and easy to transport, ideal for on-site scanning.
- HIGH-ACCURACY SCANNING: Captures 3D point clouds with 4 mm accuracy at 10 metres.
- HDR IMAGING: Provides high-quality spherical images for detailed documentation.
- FAST SCANNING: Completes full-dome scans in less than 1 minute with imagery.
- EASY OPERATION: One-button operation and intuitive mobile app for seamless workflow.

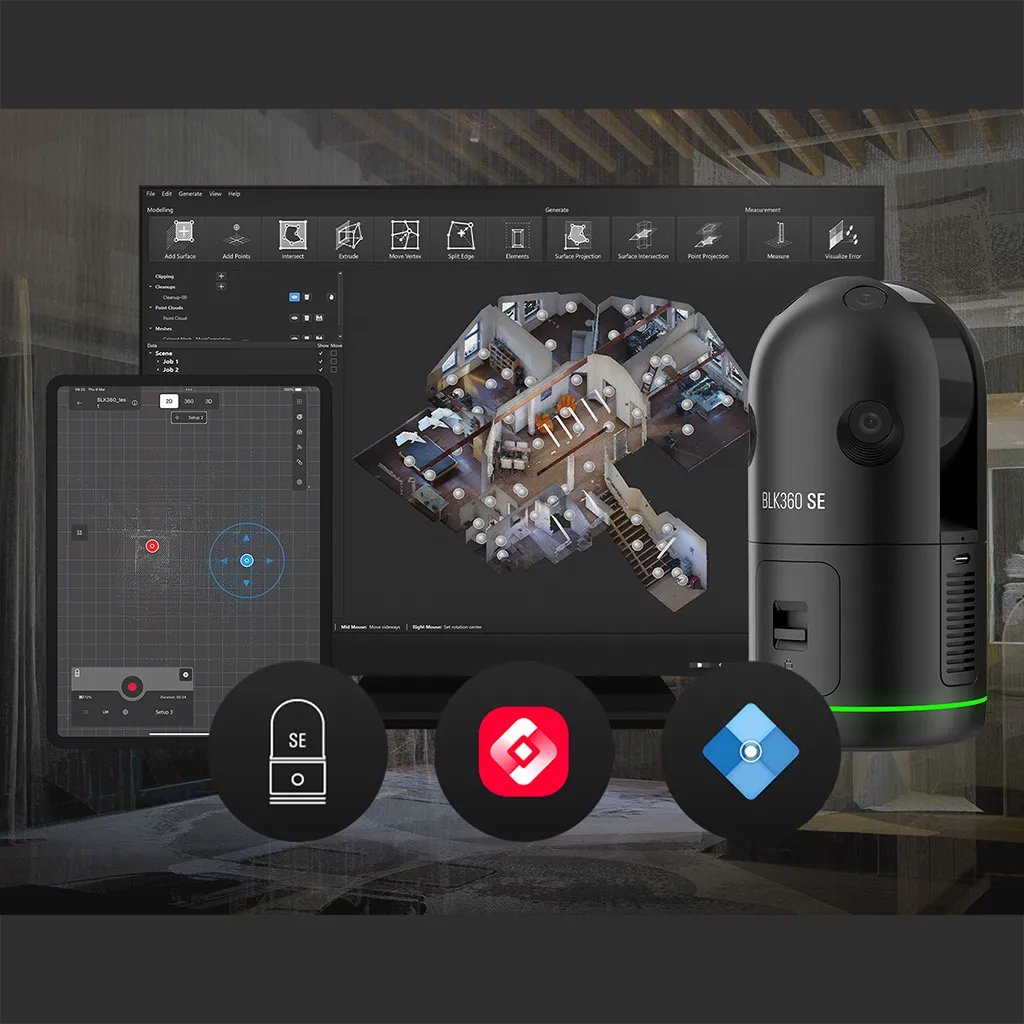

- COMPATIBLE SOFTWARE: Works with Leica Cyclone FIELD 360 and PinPoint for processing and modelling.
GENERAL
| BLK360 SE Imaging Scanner | 3D scanner with integrated high-speed HDR spherical imaging system |
DESIGN & PHYSICAL
| Housing | Black anodized aluminium |
| Dimensions | Height: 155 mm Diameter: 80 mm |
| Weight | 0.75 kg (0.85 kg incl. battery) |
| Transport cover | GVP739 Transportation cover |
| Mounting mechanism | Button-press quick release |
OPERATION
| Stand-alone operation | One-button operation |
| Mobile devices | BLK Live app for iOS and Android smartphones Leica Cyclone FIELD 360 app for iOS and Android tablet computers and smartphones |
| Wireless communication | Integrated wireless LAN (802.11 b/g/n) |
| Internal memory | Storage for up to 1500 setups |
| Instrument orientation | Upright and upside down |
POWER
| Battery type | Internal, rechargeable Li-Ion battery (Leica GEB825) |
| Capacity | Up to 70 setups per battery |
SCANNING
| Distance measurement system |
High speed time of flight enhanced by Waveform Digitizing (WFD) technology |
| Laser class | 1 (in accordance with IEC 60825-1:2014) |
| Wavelength | 830 nm |
| Field of view | 360° (horizontal) / 270° (vertical) |
| Range* | min. 0.5 m - up to 45 m |
| Point measurement rate | up to 340.000 pts/sec |
| Measurement modes | 3 user selectable resolution settings (6/12/25mm @ 10 m) |
IMAGING
| Camera system | 13 Mpixel 4-camera system captures 104 Mpx raw data for calibrated 360° x 270° spherical image |
| Speed | < 8 sec. for full spherical LDR image at any light conditions < 20 sec. for full spherical 5-brackets HDR image at any light conditions |
| Image modes | • Auto-exposed LDR • 5-brackets HDR • Off - scanning only |
PERFORMANCE
| Data acquisition | < Less than 60sec. for complete full dome scan and spherical HDR image with automatic tilt measurements |
| 3D point accuracy* | 4 mm @ 10 m |
ENVIRONMENTAL
| Robustness | Designed for indoor and outdoor use |
| Operating temperature | 0° C to + 40° C |
| Dust/Humidity | Solid particle/liquid ingress protection IP54 (IEC 60529) |
DATA PROCESSING
| Data transfer | Wireless and USB 3.0 |
| Desktop software | PinPoint, Leica Cyclone REGISTER 360 and Cyclone REGISTER 360 (BLK Edition) |
| Cloud software | HxDR Digital Reality: cloud-based digital reality platform |
* At 78% albedo
- 1x Leica BLK360 SE G2 Laser Scanner

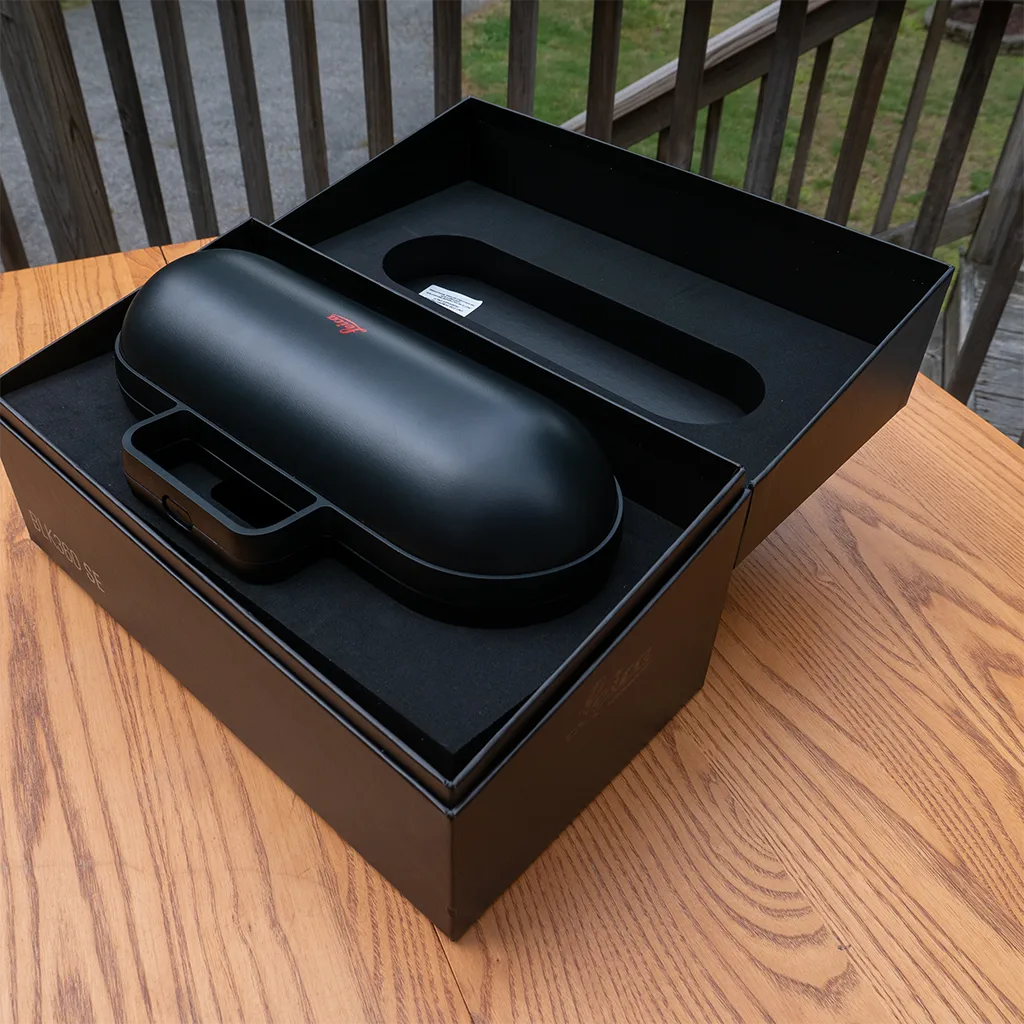

- 1x Leica GVP739 Transportation Case
- 3x Leica GEB825 Battery
- 1x Leica GKL825 Multicharger
- 1x Leica GEV278 USB Cable
- 1x Leica BLK cleaning cloth
- 1x Leica BLK360 G2 SE Quick Guide
- 1x Leica BLK360 G2 SE USB Documentation Card
Industries that would use the Leica BLK360 SE Imaging Laser Scanner include architecture, engineering, and construction (AEC), real estate, and design. It is particularly suited for professionals working on smaller building projects or parts of larger projects, such as renovations or single-floor documentation.
The 3D point accuracy of the Leica BLK360 SE Imaging Laser Scanner is 4 mm at 10 metres.
The Leica BLK360 SE Imaging Laser Scanner is the standard edition designed for scanning with a streamlined workflow. While specific differences depend on the All-New BLK360’s features, the BLK360 SE focuses on ease of use and affordability, optimised for users who need a complete scanning solution with bundled software for processing and modelling.
A typical Leica BLK360 SE Imaging Laser Scanner scan with HDR imaging can be completed in less than 1 minute for a full-dome scan, capturing spherical images and point clouds at resolutions of 6, 12, or 25 mm at 10 metres.
A typical Leica BLK360 SE Imaging Laser Scanner scan without imagery varies by resolution: approximately 28 seconds at 6 mm, 53 seconds at 12 mm, or 2 minutes and 50 seconds at 25 mm resolution at 10 metres, capturing a full-dome point cloud.
No, unless you are cleaning it. It’s enclosed for protection, and you should follow the manufacturer’s guidelines and instructions for cleaning to avoid damage.
The Leica BLK360 SE Imaging Laser Scanner can be used with the Leica Cyclone FIELD 360 (BLK Edition) mobile app for capturing scans. Users can pair it with the scanner for real-time control and feedback or use the scanner’s one-button operation for simplicity.
To import scan data from the Leica BLK360 SE Imaging Laser Scanner into Autodesk AutoCAD or Bentley MicroStation, you can use compatible software like Leica Cyclone REGISTER 360 PLUS or PinPoint. These allow processing and export to formats compatible with AutoCAD and MicroStation.
Yes, the Leica BLK360 SE Imaging Laser Scanner can be used for inverted scanning, such as in manholes or other inverted positions, due to its lightweight, compact design and versatile functionality.
The main differences include scanning range, speed, and target use. The BLK360 SE Imaging Laser Scanner has a range of 0.5 m to 45 m and captures up to 340,000 points per second, designed for smaller-scale projects. The RTC360 offers a longer range (up to 130 m), higher speed (up to 2 million points per second), and greater accuracy (±1.9 mm at 10 m), suited for larger, more complex projects.
