Amberg Slab Track GRP1000 System

Amberg Slab Track GRP1000 System

PRODUCT ENQUIRY

Highly efficient system for as-built surveying of existing railway lines including powerful interfacing for selective data transfer to other applications and subsequent analyses. Identify and inspect track positions to millimetre tolerances – with the integrated surveying solution for the construction and maintenance of slab track.


Brand: Amberg    Code: AM20474
Supplier Code: 20474

Project data management

  • Central database for input, visualisation and management of all track project data – including route data chronology, control points, and survey and construction progress.
  • Supports all common geometry element types for track axis, gradients, chainage axis, superelevation range, gauge range including gauge enlargement at high-speed points (e.g. FAKOP®).
  • Provision of all track project data for subsequent surveying tasks and evaluations.

Surveying

  • Determination of current track position during construction together with precision total station.
  • Display of relative deviations (direction and height) to design in real-time – Data update frequency up to 3 times per second.
  • Amberg Compensation Method – Real-time compensation of control point inaccuracies – resulting in improved track geometry quality already during construction.

Evaluation

  • Automatic survey data processing and evaluation – including automatic linking of subsequently surveyed track sections.
  • Complete surveyed data management including automatic incorporation of subsequent re-measurements.
  • Comprehensive analysis and documentation of inner and outer track geometry quality.
  • Interactive creation of correction lists supported with real-time simulations about the resulting final track position.
Within the GRP System FX family, the GRP 1000 is the robust system configuration for track measurement and construction, meeting the exacting demands of high productivity and accuracy. Integrated surveying solution, optimised for the typical requirements during construction, monitoring and maintenance of slab track projects.

Amberg Slab Track

Amberg Slab Track is the integrated surveying solution, optimised for the typical requirements during construction, monitoring and maintenance of slab track projects. Caters for the exact requirements of high speed rail and precise track tolerances.

Features

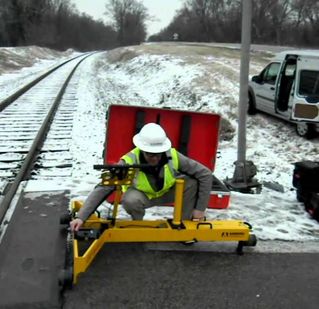

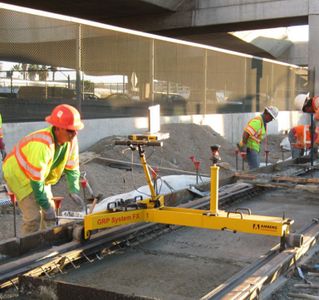

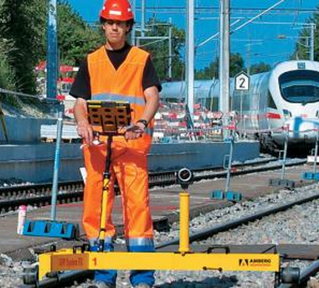

  • Robust track gauging trolley with integrated high precision sensors for measurement of gauge, superelevation (cant), stationing (chainage)
  • Precise 3D track coordinates for combinded operation of GRP system and precision total station
  • High data acquisition update frequency as basis for real-time computation
  • modular hardware design allowing flexible and cost-saving operation
  • Integrated power supply
  • Unlimited electro-magnetic compatibility - using PET wheels
  • Hardware fully expandable for other railway surveying tasks
  • Integrated Slab Track Surveying Solution (project management, measurement, evaluation and reporting)
  • High-precision sensors for superelevation and gauge measurement
  • Determination of the track coordinates with the eg. Leica TPS total station
  • Real time display of corrective values during track laying
  • Professional graphic and numeric reporting of results of the as-built analysis

The GRP 1000 is a powerful partner

  • Slab track construction
  • Slab track conformance
  • Quality control of track geometry

NEW: Amberg's slab track solutions with IMU technology inside

  • NEW: Amberg Slab Track IMS 1000
  • NEW: Amberg Slab Track IMS 3000





BROCHURES
AM20474 - Brochure
DATASHEETS
Amberg Slab Track GRP1000 System - Datasheet

OVERVIEW

Project data management

  • Central database for input, visualisation and management of all track project data – including route data chronology, control points, and survey and construction progress.
  • Supports all common geometry element types for track axis, gradients, chainage axis, superelevation range, gauge range including gauge enlargement at high-speed points (e.g. FAKOP®).
  • Provision of all track project data for subsequent surveying tasks and evaluations.

Surveying

  • Determination of current track position during construction together with precision total station.
  • Display of relative deviations (direction and height) to design in real-time – Data update frequency up to 3 times per second.
  • Amberg Compensation Method – Real-time compensation of control point inaccuracies – resulting in improved track geometry quality already during construction.

Evaluation

  • Automatic survey data processing and evaluation – including automatic linking of subsequently surveyed track sections.
  • Complete surveyed data management including automatic incorporation of subsequent re-measurements.
  • Comprehensive analysis and documentation of inner and outer track geometry quality.
  • Interactive creation of correction lists supported with real-time simulations about the resulting final track position.

FEATURES

Within the GRP System FX family, the GRP 1000 is the robust system configuration for track measurement and construction, meeting the exacting demands of high productivity and accuracy. Integrated surveying solution, optimised for the typical requirements during construction, monitoring and maintenance of slab track projects.

Amberg Slab Track

Amberg Slab Track is the integrated surveying solution, optimised for the typical requirements during construction, monitoring and maintenance of slab track projects. Caters for the exact requirements of high speed rail and precise track tolerances.

Features

  • Robust track gauging trolley with integrated high precision sensors for measurement of gauge, superelevation (cant), stationing (chainage)
  • Precise 3D track coordinates for combinded operation of GRP system and precision total station
  • High data acquisition update frequency as basis for real-time computation
  • modular hardware design allowing flexible and cost-saving operation
  • Integrated power supply
  • Unlimited electro-magnetic compatibility - using PET wheels
  • Hardware fully expandable for other railway surveying tasks
  • Integrated Slab Track Surveying Solution (project management, measurement, evaluation and reporting)
  • High-precision sensors for superelevation and gauge measurement
  • Determination of the track coordinates with the eg. Leica TPS total station
  • Real time display of corrective values during track laying
  • Professional graphic and numeric reporting of results of the as-built analysis

The GRP 1000 is a powerful partner

  • Slab track construction
  • Slab track conformance
  • Quality control of track geometry

NEW: Amberg's slab track solutions with IMU technology inside

  • NEW: Amberg Slab Track IMS 1000
  • NEW: Amberg Slab Track IMS 3000
