CHCNAV Alpha Air 450 Mobile / UAV LiDAR Mapping Unit
- Airborne LiDAR sensor for drones / RPAS with built-in IMU, GNSS and RBG camera.
- Compatible with DJI Matrice 300.

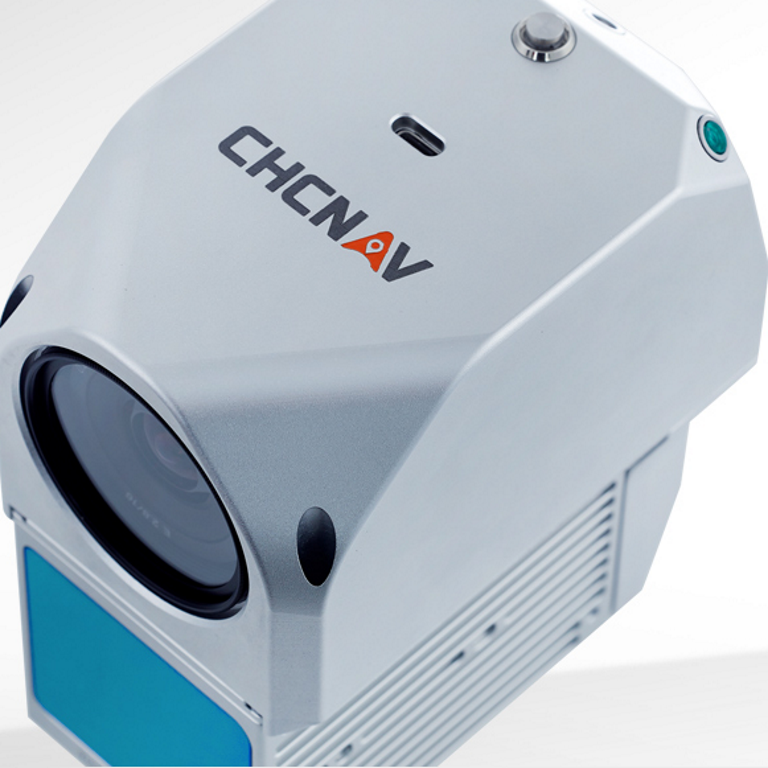

The AlphaAir 450 (AA450) is a major breakthrough in 3D mobile mapping technology, allowing its use by non-professional users in geospatial reality capture applications and to those who have never been able to access such technology before. The AlphaAir 450 offers ease of use and high precision capabilities at an affordable price point. AlphaAir 450 is the next generation of CHCNAV LiDAR system, which is widely used for power line inspection, topographic mapping, emergency response, agricultural and forestry surveys, and more. This all-in-one, lightweight and rugged system integrates a high-performance laser scanner with an industrial-grade professional 24 MP camera and a high-precision inertial navigation system for quality data collection.
ADVANCED ACCURACYIndustrial-grade GNSS and high-precision IMU onboard High accuracy INS is essential to collecting quality LiDAR data, because without it, point cloud would be nothing more than an arbitrary collection of points. It allows the AA450 to provide an absolute accuracy of 5 to 10 cm. With advanced calibration and point cloud optimization technology, the thickness (range noise) of the point cloud is only 30% compared to similar products, which effectively improves the precision of the collected data.
|
 |
 |

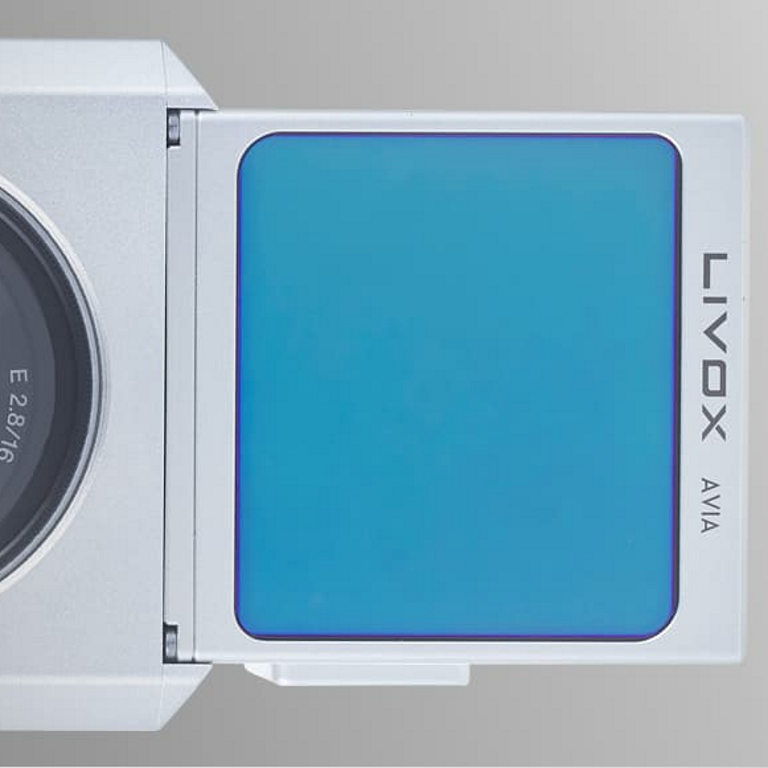

EFFICIENT SCANNINGLong range scanning combined with high resolution imaging Users will obtain a long range scanning up to 450 m with a high point's density on the measured surface. At a flying height of 100 m and a velocity of 5 m/s, the AlphaAir 450 (AA450) can deliver around 280 pts/m2 density. The built-in 24 MP high resolution camera has the same FOV width as the Livox LiDAR to provide complete point cloud coverage by RGB colorization.
|

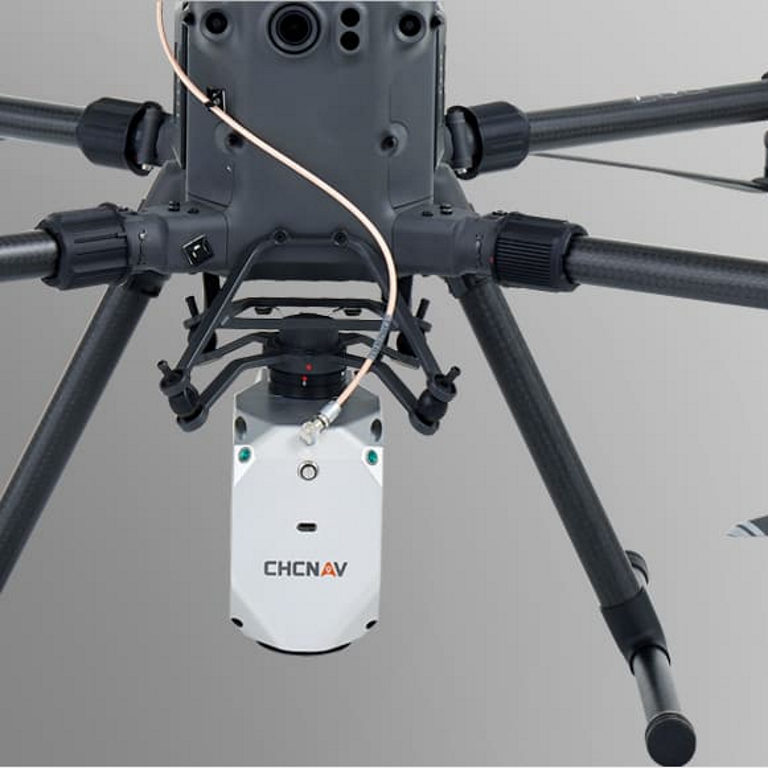

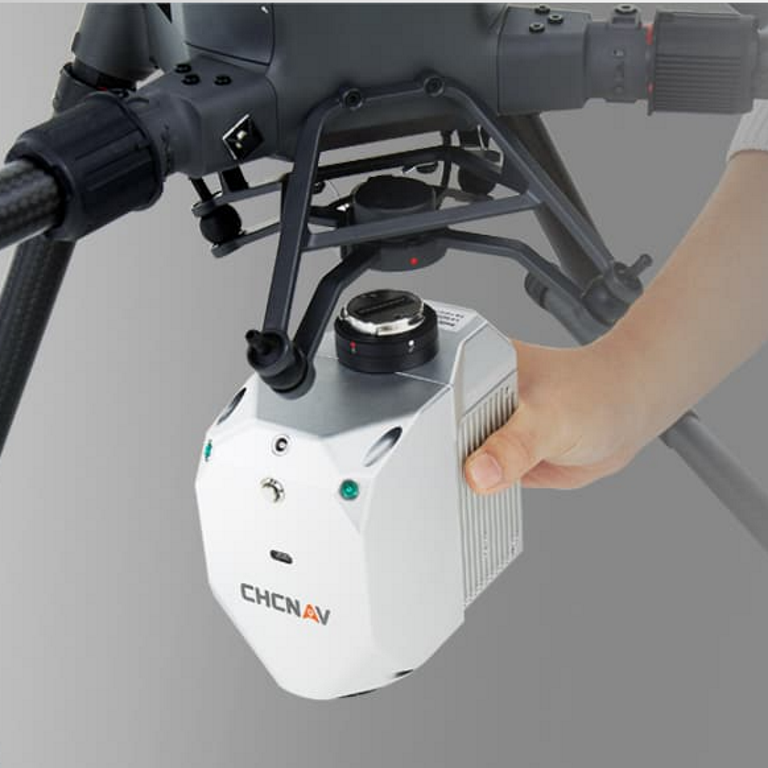

FLEXIBLE INTEGRATIONQuick installation on any UAV AlphaAir 450 is ready for direct connection to a DJI M300 via its integrated Skyport. Moreover, it can be installed on CHCNAV's BB4, other multirotor and VTOL UAVs easily. Finally, it can be fitted on any multirotor and fixed wing VTOL drones that can support its weight with dedicated mounts to attach it.
|
 |
 |
LIGHTEST UNIT IN ITS CLASS1 kg total weight with LiDAR and camera The design of the AlphaAir 450 continues to follow the rule - the lighter the unit, the higher the productivity, as the drone can fly longer. As an example, the DJI M300 with the AlphaAir 450 can fly for 30 minutes and collect data covering an area of 2 km2. If users choose the CHCNAV’s BB4 UAV, its endurance with the AlphaAir 450 will reach 55 minutes.
|
| Brochures | |
|---|---|
| ALPHAAIR450 - Brochure | Product Manuals |
| CHCNAV Alpha Air 450 Mobile / UAV LiDAR Mapping Unit - Product Manual |
Brand: CHCNAV |
Code: ALPHAAIR450
APN: 9319499225339 |
Supplier Code: Y1AS45179400000000
Brand: CHCNAV |
Code: ALPHAAIR450
APN: 9319499225339 |
Supplier Code: Y1AS45179400000000
At a glance
- Airborne LiDAR sensor for drones / RPAS with built-in IMU, GNSS and RBG camera.
- Compatible with DJI Matrice 300.
ADVANCED ACCURACYIndustrial-grade GNSS and high-precision IMU onboard High accuracy INS is essential to collecting quality LiDAR data, because without it, point cloud would be nothing more than an arbitrary collection of points. It allows the AA450 to provide an absolute accuracy of 5 to 10 cm. With advanced calibration and point cloud optimization technology, the thickness (range noise) of the point cloud is only 30% compared to similar products, which effectively improves the precision of the collected data.
|
|
|
EFFICIENT SCANNINGLong range scanning combined with high resolution imaging Users will obtain a long range scanning up to 450 m with a high point's density on the measured surface. At a flying height of 100 m and a velocity of 5 m/s, the AlphaAir 450 (AA450) can deliver around 280 pts/m2 density. The built-in 24 MP high resolution camera has the same FOV width as the Livox LiDAR to provide complete point cloud coverage by RGB colorization.
|
FLEXIBLE INTEGRATIONQuick installation on any UAV AlphaAir 450 is ready for direct connection to a DJI M300 via its integrated Skyport. Moreover, it can be installed on CHCNAV's BB4, other multirotor and VTOL UAVs easily. Finally, it can be fitted on any multirotor and fixed wing VTOL drones that can support its weight with dedicated mounts to attach it.
|
|
|
LIGHTEST UNIT IN ITS CLASS1 kg total weight with LiDAR and camera The design of the AlphaAir 450 continues to follow the rule - the lighter the unit, the higher the productivity, as the drone can fly longer. As an example, the DJI M300 with the AlphaAir 450 can fly for 30 minutes and collect data covering an area of 2 km2. If users choose the CHCNAV’s BB4 UAV, its endurance with the AlphaAir 450 will reach 55 minutes.
|
