CHCNAV Alpha Air 10 with Skyport UAV LIDAR Mapping

Loading
  • CHCNAV Alpha Air 10 with Skyport UAV LIDAR Mapping
  • CHCNAV Alpha Air 10 with Skyport UAV LIDAR Mapping
  • CHCNAV Alpha Air 10 with Skyport UAV LIDAR Mapping
  • CHCNAV Alpha Air 10 with Skyport UAV LIDAR Mapping

  • Measures up to 500,000 points per second.
  • Up to 8 returns per pulse.
  • Integrated industrial-grade full-frame orthophoto camera.
  • Compatible with the DJI Matrice 300 & 350 RTK drone.
  • Weighs just 1.55kg.
  • IP64 weather rating.

PRECISION AND ADVANCED SCANNING CAPABILITIES The AlphaAir 10’s (or AA10) high-precision navigation algorithm, in conjunction with the CHCNAV scanner, provides 5 mm repeated range accuracy and achieves exceptional absolute precision in the 2 to 5 cm range, even in complex environments. With the capability of long-range measurements up to 800 m, rapid scanning at 500,000 points per second, and a continuously rotating mirror that enables scanning speeds of 250 scans per second, the AA10 enhances the detail of aerial mapping operations.
YOUR-ALT-TEXT
YOUR-ALT-TEXT

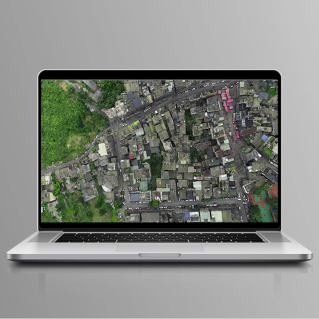

SEAMLESS DATA FUSION AND REAL-TIME DATA VIEW The AA10 accelerates the creation of mesh models by generating high-quality point clouds. Powered by a 45 MP orthographic internal camera, the system provides high-resolution image mapping textures for efficient 3D model reconstruction with realistic point cloud colorization. In addition, the AA10 supports automated reality capture and real-time data visualization accessible directly from the UAV controller, enabling informed decision-making throughout the survey operation. Complementing the solution, CoPre and CoProcess software suite streamline post-processing and feature extraction with an easy-to-use and efficient data workflow.

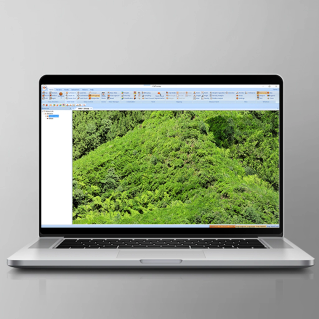

ENHANCED VEGETATION PENETRATION Leveraging advanced multi-target capabilities, the AA10 features up to 8 target echoes, enhancing its ability to penetrate dense vegetation. This feature allows the system to effectively acquire ground surfaces, resulting in accurate Digital Elevation Models (DEMs) and Digital Surface Models (DSMs), even in challenging environments with dense vegetation.
YOUR-ALT-TEXT
YOUR-ALT-TEXT

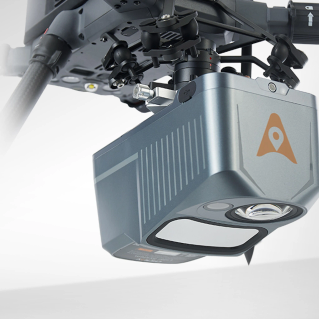

EFFICIENT DESIGN AND ROBUSTNESS The AA10 LiDAR system is impressively lightweight and compact, weighing just 1.55 kg, and provides a 30-minute operating time when integrated with drones such as the DJI M350. The installation process is simplified with AlphaPort's convenient one-click connection to the UAV's power source. The AA10 is also IP64-rated to ensure the system's resilience, allowing it to deliver consistent, reliable performance in varying operating conditions.


The CHCNAV AlphaAir 10 (or AA10) is an advanced aerial surveying solution that seamlessly integrates LiDAR and RGB sensors to meet the needs of professional UAV LiDAR mapping and drone photogrammetry.

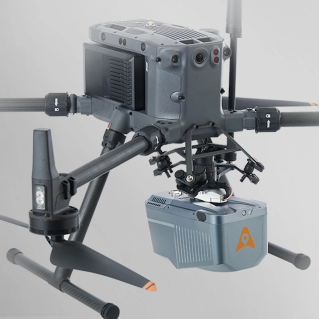

Photo of AlphaAir10 Setup
Leveraging CHCNAV's innovative LiDAR technology, the AA10 flawlessly integrates high-precision LiDAR, accurate GNSS positioning, IMU orientation, and an industrial-grade full-frame orthophoto camera. Combined with CHCNAV point cloud and image fusion modeling software, the AA10 provides a survey-grade, efficient, and cost-effective approach to 3D data acquisition and processing.
2nd Photo of AlphaAir10 Setup
The AA10 Airborne LiDAR + RGB System accelerates accurate 3D data collection within a single mission and simplifies the process of capturing 3D reality through a streamlined workflow.


GENERAL
Absolute Hz accuracy 2 cm ~ 5 cm RMS
Absolute Z accuracy 2 cm ~ 5 cm RMS
Mounting Quickly install & release design, easily
switch between various UAV platforms
Weight of instrument 1.55kg
Dimensions of instrument 210 mm x 112 mm x 131 mm
Data storage 512 GB
Coping speed 80 Mb/s
POSITIONING
GNSS system GPS: L1, L2, L5
GLONASS: L1, L2
BEIDOU: B1, B2, B3
GALILEO: E1, E5a, E5b
IMU update rate 500 Hz
Attitude accuracy
after post-processing
0.006° RMS pitch/roll
0.019° RMS heading
Position accuracy
after post-processing
0.010 m RMS horizontal
0.020 m RMS vertical
IMAGING SYSTEM
Resolution 45 MP
Focal length 21mm
Sensor size 36 × 24 mm (8184 × 5460)
Pixel size 4.4 μm
Min photoing interval 1s
FOV 81.2° × 59.5°
LASER SCANNER
Laser Class Class 1
Laser divergence angle 0.032°
Minimum Range 10m
Accuracy 15 mm (1σ,@150m)
Precision 5 mm (1σ,@150m)
Field of View 75°
Max. Effective measurement rate 500,000 meas / sec
Scan speed (selectable) 50-250 scans / sec
Max. Number of return pulses Up to 8
Angular resolution 0.001°
Max.Measuring Range@ρ> 80% 800m @ 100 KHz
Max.Operating Flight Altitude AGL
@ρ>20%
317m @ 100 KHz

Brochures
ALPHAAIR10 - Brochure

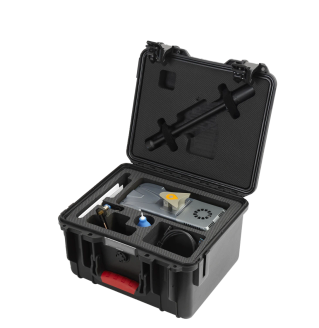

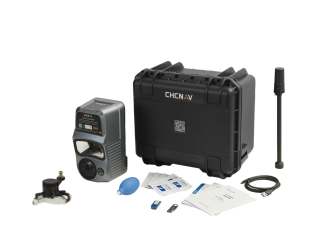

In the Box - AlphaAir10
  • CHCNAV Alpha Air 10 Mobile Mapping Unit with
  • Type-C to USB3.1 data copy cable (1 m)
  • CZ73-32G USB disk
  • Lens cleaning kit
  • Transport case
  • CoPre Standard License
  • USB dongle (for Copre)
  • AlphaportM to Skyport

Contents - AlphaAir10

Brand: CHCNAV | Code: ALPHAAIR10
Supplier Code: ALPHAAIR10
Supplier Description: Alpha Air 10 with accessories

Brand: CHCNAV | Code: ALPHAAIR10
Supplier Code: ALPHAAIR10
Supplier Description: Alpha Air 10 with accessories

At a glance

  • Measures up to 500,000 points per second.
  • Up to 8 returns per pulse.
  • Integrated industrial-grade full-frame orthophoto camera.
  • Compatible with the DJI Matrice 300 & 350 RTK drone.
  • Weighs just 1.55kg.
  • IP64 weather rating.
