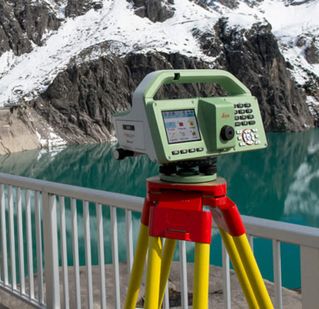

Leica LS10 & LS15 Digital Levels

Leica LS10 & LS15 Digital Levels

CHOOSE OPTIONS
PRODUCT ENQUIRY

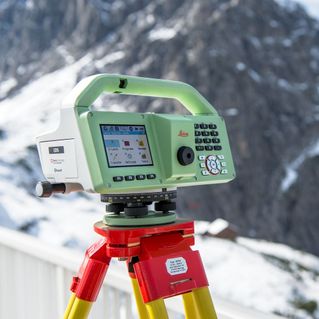

Leica LS15 and LS10 digital levels alleviate demanding levelling tasks on any site. Automated functions and industry-leading 0.2mm accuracy allow users to easily demonstrate their measuring skills while effectively completing any project.

Brand: Leica Geosystems    Code: 00Z804
Supplier Code:

Faster staff sighting

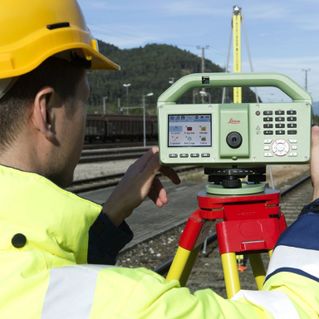

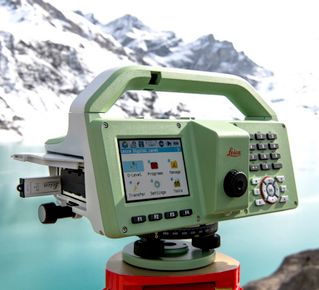

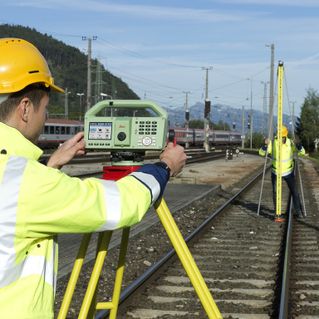

The Leica LS15 Digital Level is the only one on the market which is equipped with a camera and enables target staffs to be sighted quicker. Operators need to simply locate the staff on the cameras touch screen display and press the measuring button which automatically records the staff reading and measurement data.

Precise hardware

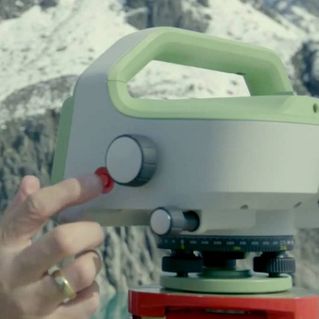

Automated functions and industry-leading 0.2 mm accuracy to standard Invar staffs deliver unmatched reliability. Precision begins by using the electronic level bubble to set up instruments. After one button press, automatic tilt checks are made prior to each measurement. Integrated autofocus not only finds your target faster, it increases measurement accuracy by maximising contrast of the staff.

Infinitely bridging field to office

The field experience of Leica LS digital levels does not finish in the field. After easily transferring your data to the office via a USB or Bluetooth®, Leica Infinity processes your results hassle-free back in the office. This intuitive software enables easy-tounderstand displays of complex levelling data. Combine tables with graphics or even cross check project data in one window for one overall view of level lines, line calculations or adjustments.

Highest Accuracy

  • 0.2 mm accuracy even with standard Invar staffs
  • Electronic level bubble for perfect instrument setup
  • Tilt check prior to each measurement
  • Autofocus for maximal contrast of staff

Efficiency of Work

  • Digital camera enables fast and accurate staff sighting
  • Streamline levelling processes with just one push of a button
  • Fast and easy data transfer using USB and Bluetooth® connectivity

Field Experience

  • Visualisation of level lines in the field and in the office
  • Screenshots document site and field results
  • Step-by-step display guidance for levelling line flows
Item Number LS10 - LG804550  LS15 - LG804549   LS15 - LG804548
Height Measurement
Accuracy (using standard Invar staff) 0.3 mm  0.3 mm  0.2 mm
Accuracy (using standard staff) 1.0 mm  1.0 mm  1.0 mm
Distance Measurement
Accuracy 15 mm at 30 m  15 mm at 30 m  15 mm at 30 m
Autofocus
Working Range 1.8 m to infinity  1.8 m to infinity  1.8 m to infinity
Time to Focus Typically 4 sec  Typically 4 sec
Overview Camera
Field of View 6° x 4.8° (7.7° diagonal)  6° x 4.8° (7.7° diagonal)
Frame rate Up to 20 frames per second  Up to 20 frames per second
Focus 3 m to infinity  3 m to infinity
Digital Compass
Accuracy 3 gon / 2.7°  3 gon / 2.7°
Interfaces
RS232/ USB Yes  Yes
Bluetooth Yes  Yes  Yes
Mini USB Yes  Yes  Yes
Electronic Level Bubble   Working range: 0.07 gon / 0.063°
Accuracy: 0.015 gon / 0.013°
Working range: 0.07 gon / 0.063°
Accuracy: 0.015 gon / 0.013°
Weight (including battery) 3.7 Kg  3.9 Kg  3.9 Kg
External Power 12.8 V DC  12.8 V DC
BROCHURES
LG804548 - Brochure
DATASHEETS
Leica LS10 & LS15 Digital Levels - Datasheet

Leica Geosystems has developed an online learning platform for a wide range of products, to further educate customers to maximise the functionality of their instruments.

Our products have many excellent features which all contribute to increasing efficiency on site and the online learning platform assists you to gain the most value from your products.

The online learning courses are available to anyone who has a Leica Geosystems myWorld account, and an active Customer Care Package (CCP) for supported products.




OVERVIEW

Faster staff sighting

The Leica LS15 Digital Level is the only one on the market which is equipped with a camera and enables target staffs to be sighted quicker. Operators need to simply locate the staff on the cameras touch screen display and press the measuring button which automatically records the staff reading and measurement data.

Precise hardware

Automated functions and industry-leading 0.2 mm accuracy to standard Invar staffs deliver unmatched reliability. Precision begins by using the electronic level bubble to set up instruments. After one button press, automatic tilt checks are made prior to each measurement. Integrated autofocus not only finds your target faster, it increases measurement accuracy by maximising contrast of the staff.

Infinitely bridging field to office

The field experience of Leica LS digital levels does not finish in the field. After easily transferring your data to the office via a USB or Bluetooth®, Leica Infinity processes your results hassle-free back in the office. This intuitive software enables easy-tounderstand displays of complex levelling data. Combine tables with graphics or even cross check project data in one window for one overall view of level lines, line calculations or adjustments.

Highest Accuracy

  • 0.2 mm accuracy even with standard Invar staffs
  • Electronic level bubble for perfect instrument setup
  • Tilt check prior to each measurement
  • Autofocus for maximal contrast of staff

Efficiency of Work

  • Digital camera enables fast and accurate staff sighting
  • Streamline levelling processes with just one push of a button
  • Fast and easy data transfer using USB and Bluetooth® connectivity

Field Experience

  • Visualisation of level lines in the field and in the office
  • Screenshots document site and field results
  • Step-by-step display guidance for levelling line flows

SPECIFICATIONS

Item Number LS10 - LG804550  LS15 - LG804549   LS15 - LG804548
Height Measurement
Accuracy (using standard Invar staff) 0.3 mm  0.3 mm  0.2 mm
Accuracy (using standard staff) 1.0 mm  1.0 mm  1.0 mm
Distance Measurement
Accuracy 15 mm at 30 m  15 mm at 30 m  15 mm at 30 m
Autofocus
Working Range 1.8 m to infinity  1.8 m to infinity  1.8 m to infinity
Time to Focus Typically 4 sec  Typically 4 sec
Overview Camera
Field of View 6° x 4.8° (7.7° diagonal)  6° x 4.8° (7.7° diagonal)
Frame rate Up to 20 frames per second  Up to 20 frames per second
Focus 3 m to infinity  3 m to infinity
Digital Compass
Accuracy 3 gon / 2.7°  3 gon / 2.7°
Interfaces
RS232/ USB Yes  Yes
Bluetooth Yes  Yes  Yes
Mini USB Yes  Yes  Yes
Electronic Level Bubble   Working range: 0.07 gon / 0.063°
Accuracy: 0.015 gon / 0.013°
Working range: 0.07 gon / 0.063°
Accuracy: 0.015 gon / 0.013°
Weight (including battery) 3.7 Kg  3.9 Kg  3.9 Kg
External Power 12.8 V DC  12.8 V DC

DOWNLOADS

BROCHURES
LG804548 - Brochure
DATASHEETS
Leica LS10 & LS15 Digital Levels - Datasheet
