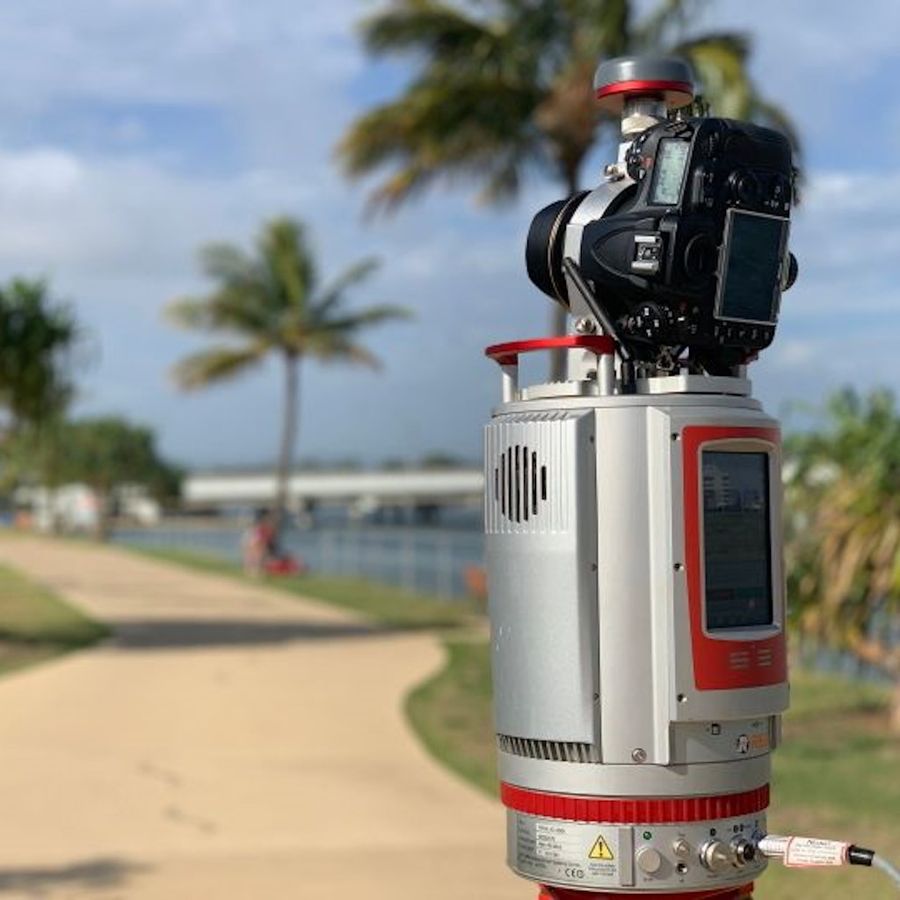

The RIEGL VZ-400i is a 3D Laser Scanning System which combines an innovative new processing architecture, internet connectivity, and a suite of MEMS sensors with RIEGL’s latest Laser Scanning Engine technology.
Brand: Riegl Scanner    Code: RI40400
APN: 9319499022563    Supplier Code:

Flexible Applications

Can be used for a variety of applications including Mining, Heritage, Carbon Capture, Forestry, Research, Coastal Erosion, and the list goes on…


Onboard Registration

The Riegl VZ 400i has dual CPU’s, thus enabling the scanner to perform real time onboard registration. To perform such a task this scanner registers scans together in parallel while performing its scanning duties, utilising its orientation sensor (MEMS IMU, Compass, and barometer) and its L1 GNSS.

Multiple Target Capabilities

Riegl’s TLS Sensors can return multiple targets per single LiDAR beam. This allows the user to perform in-depth analysis on the pointcloud identifying where the beam split. Such information can be used for advanced pointcloud cleaning, better penetration for forestry and Carbon Capture environments and waveform analysis.


Long Range

Up to 800m range, High accuracy, high precision ranging based on echo digitization, online waveform processing, and multiple-time-around processing.

Before Removing Rain & Fog

Using the multiple returns, we’re able to remove the rain and fog from the scene leaving behind the data that really matters


After Removing Rain & Fog

Onboard Dual Processor Capability

Processor 1

  • Scan data acquisition.
  • Acquisition of photographs.
  • Pose estimation (using GNSS/IMU/environment sensors).

Processor 2

  • Conversion of scan data into RIEGL data base.
  • Onboard multiple time around resolution.
  • Registration of scan data as a background process.

This real-time data flow is enabled through dual processing platforms; a dedicated processing system for data acquisition, waveform processing and system operations, and a second processing platform which enables real-time data registration, georeferencing, filtering and analysis to be executed simultaneously. The VZ-400i harnesses this power by streaming it in real-time via the integrated 3G/4G/LTE modem, WiFi, Bluetooth, and Ethernet communications hardware.

With its integrated gyroscope, accelerometer, compass and barometer, the VZ-400i’s 1200kHz pulse repetition rate can be fully utilized in nearly any environment and orientation. The system enables an incredible range of flexibility by providing support for numerous external peripherals and accessories via its integrated USB Ports and stable mounting points.

Features

  • High laser pulse repetition rate of up to 1.2 MHz
  • High speed data acquisition up to 500,000 measurements/sec
  • Eye safe operation at Laser Class 1
  • Wide field of view, 100°x360°
  • Range up to 800 m, accuracy 5 mm
  • High accuracy, high precision ranging based on echo digitization, online waveform processing, and multiple-time-around processing
  • Innovative processing architecture for data acquisition and simultaneous geo-referencing in real-time
  • New automatic on-board registration
  • Easy to use – easy to train
    (e.g. user friendly touchscreen interface, single touch operation)
  • User-developed apps via python software
  • Cloud connectivity via Wi-Fi and 3G/4G LTE
  • fully compatible with the RIEGL VMZ Hybrid Mobile Laser Mapping System
  • Multiple target capability
  • Optional full waveform data output
  • Orientation sensor for pose estimation
  • Integrated GNSS receiver

Main Applications

  • As-Built Surveying
  • Architecture & Facade Measurements
  • Archaeology & Cultural Heritage
  • Building Infrastructure Management (BIM)
  • Forensics & Crash Scene Investigation
  • City Modeling
  • Tunnel Surveying
  • Civil Engineering
  • Forestry
  • Research
  • Monitoring
BROCHURES
RI40400 - Brochure
DATASHEETS
Riegl VZ-400i Scanner - Datasheet
SPECIFICATIONS
Riegl VZ-400i Scanner - Specifications
  • 3D Laser Scanner RIEGL VZ-400i includes
  • High-resolution (800x480px) 5” color display with touchscreen.
  • 1TB internal SSD for data storage.
  • GPS receiver L1, MEMS IMU, integrated 3-axis accelerometer, gyroscope, magnetometer compass and barometer.
  • Laser plummet.
  • Internal power supply electronics with an input voltage of 11 - 34 V DC
  • LAN, WLAN, LTE 4G/3G.
  • USB 3.0, SDXC Card for external storage devices.
  • Connector for serial interface and external GPS synchronization pulse (1PPS) with the interface and connector for external GNSS receiver.
  • 5/8” standard tripod mounting thread.
  • TCP/IP cable M12-M12, 3 m
  • TCP/IP cable M12-RJ45, 0.3m
  • Power Supply Cable, 7 pole to 2 pole for V-Line, 2m
  • USB Debug Cable for VUX and VZ-i Series, 1.5m
  • Set of Protection Caps for VZ-400i instruments
  • Retroreflectors - 100 pcs. of flat circular retroreflectors, white, diameter 50 mm
  • RiSCAN PRO Viewer, Acquisition & Processing Software, for detailed description of main functions see RiSCAN PRO datasheet
  • VZ-xx Standalone - Reflector Search and Fine-Scanning
  • Automatic On-board Registration
  • User Manual

OVERVIEW

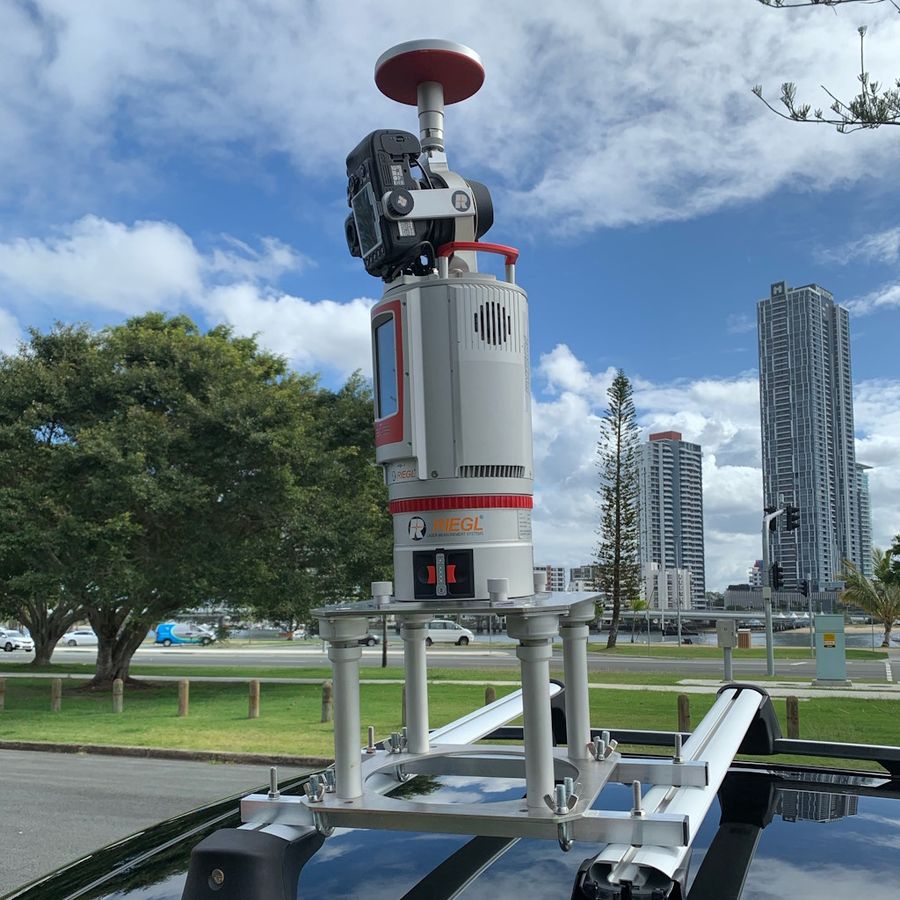

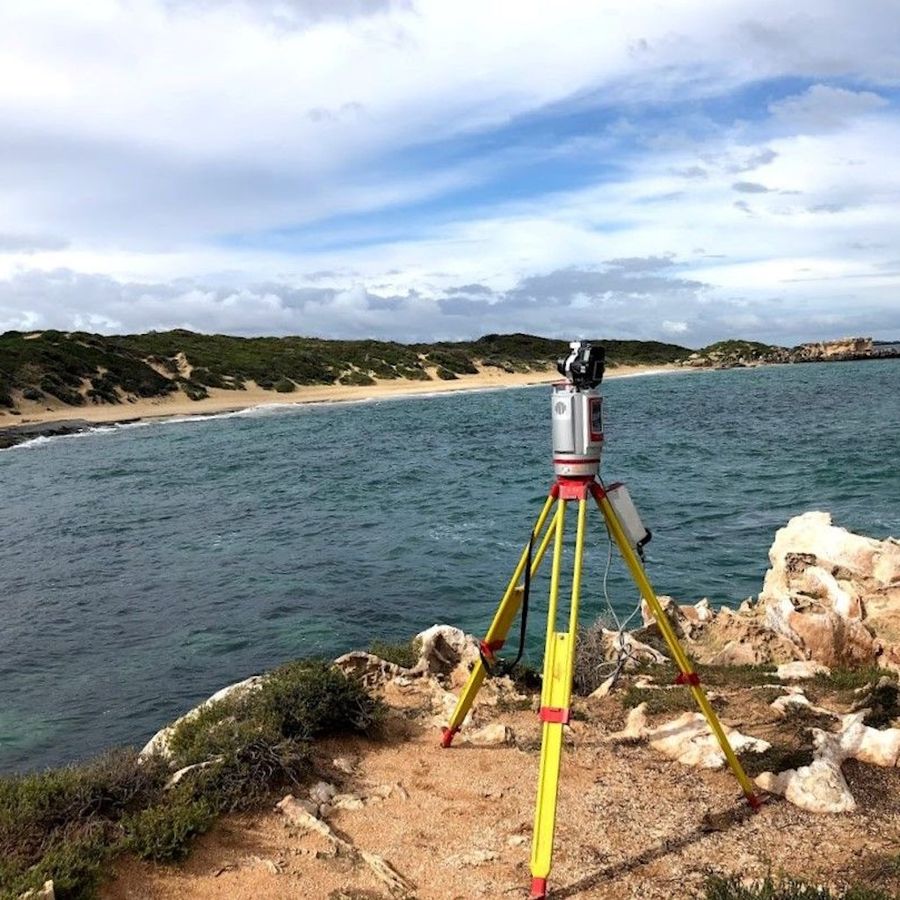

Flexible Applications

Can be used for a variety of applications including Mining, Heritage, Carbon Capture, Forestry, Research, Coastal Erosion, and the list goes on…

RI40400.tag.T1.jpg RI40400.tag.T2.jpg

Onboard Registration

The Riegl VZ 400i has dual CPU’s, thus enabling the scanner to perform real time onboard registration. To perform such a task this scanner registers scans together in parallel while performing its scanning duties, utilising its orientation sensor (MEMS IMU, Compass, and barometer) and its L1 GNSS.

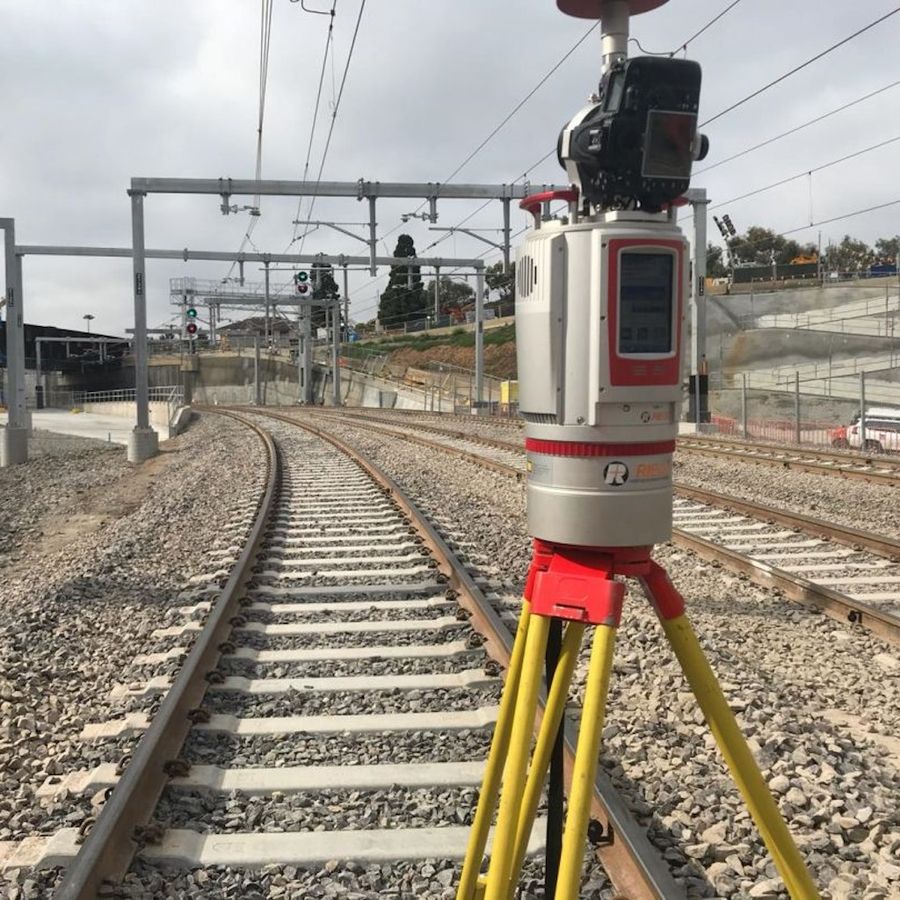

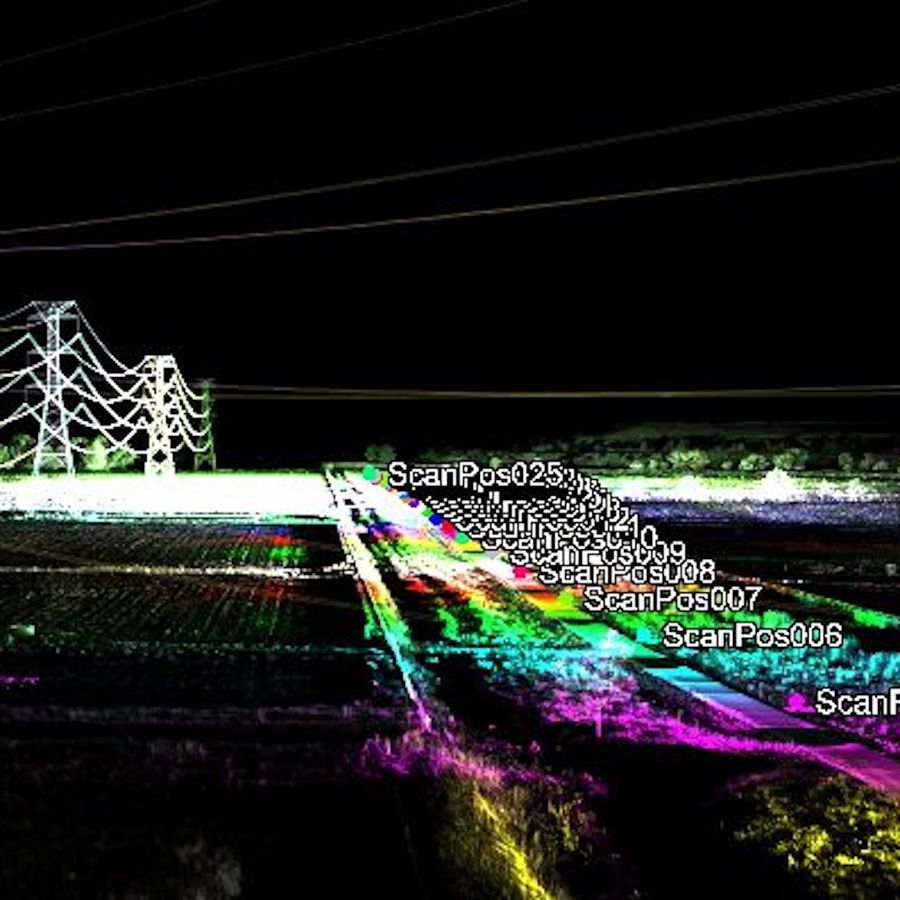

Multiple Target Capabilities

Riegl’s TLS Sensors can return multiple targets per single LiDAR beam. This allows the user to perform in-depth analysis on the pointcloud identifying where the beam split. Such information can be used for advanced pointcloud cleaning, better penetration for forestry and Carbon Capture environments and waveform analysis.

RI40400.tag.T3.jpg RI40400.tag.T4.jpg

Long Range

Up to 800m range, High accuracy, high precision ranging based on echo digitization, online waveform processing, and multiple-time-around processing.

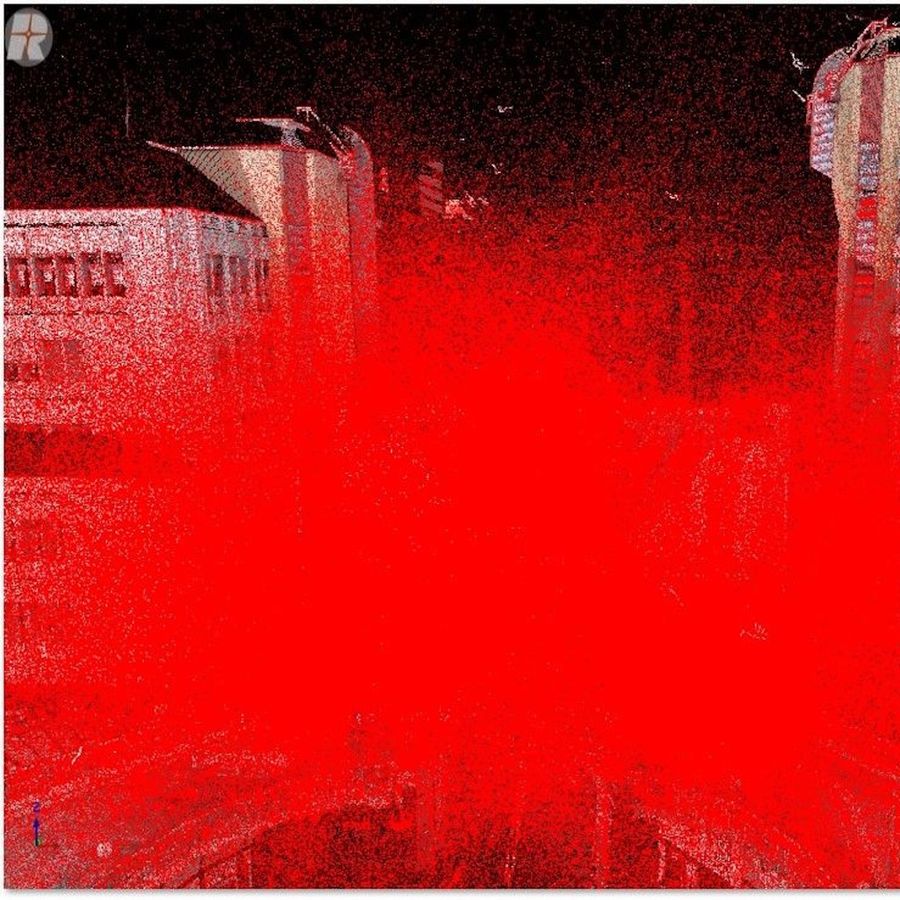

Before Removing Rain & Fog

Using the multiple returns, we’re able to remove the rain and fog from the scene leaving behind the data that really matters

RI40400.tag.T5.jpg RI40400.tag.T6.jpg

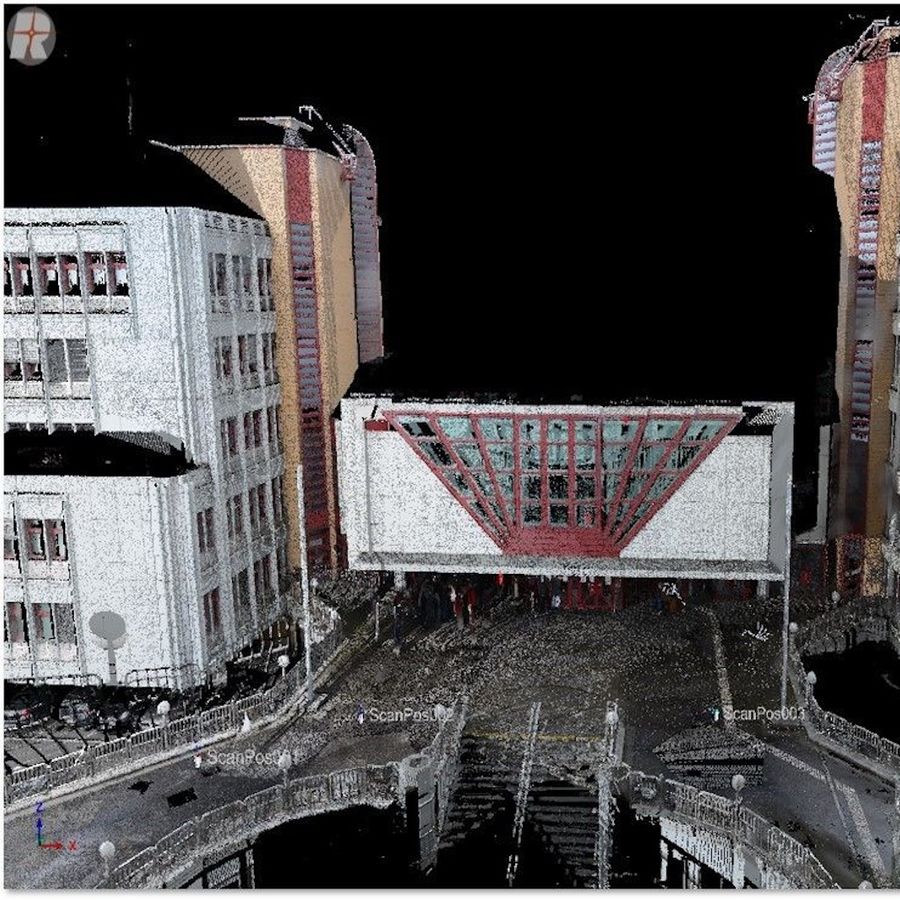

After Removing Rain & Fog
