Leica BLK3D Imager
TAKE A PICTURE MEASURE ANYTHING.
The BLK3D captures images and places precise measurements at your fingertips. Share images and measurements in multiple formats.
NEW DIMENSIONS FOR 2D PICTURES.
The BLK3D creates images that contain precise three-dimensional measurements.
THE ART OF PHOTOGRAMMETRY SIMPLIFIED.
Un-matched combination of a calibrated stereo-camera, advanced algorithms and real-time edge computing fused with leading Electronic Distance Measurement (EDM) technology.
PROGRESSIVE PROJECT DOCUMENTATION FOR ARCHITECTURE, ENGINEERING AND CONSTRUCTION.

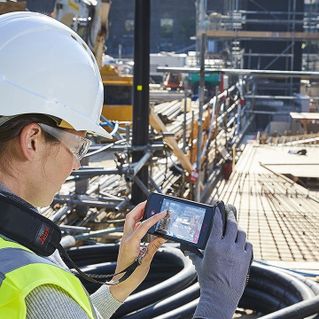

Capture critical moments throughout the life of a building.
ACCESS PROJECTS ANYWHERE, ANYTIME.

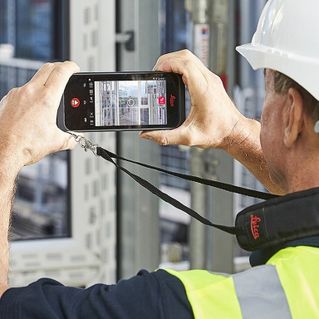

Measure in your image – on the handheld imager, on the desktop, on-site or in the office.
OBJECT DETECTION AND SNAPPING.
Auto-Snapping uses computer vision technologies to select the right points for your measurements.
WORKING WITH DIGITAL FLOORPLANS.
Create floorplans and import existing ones. Add measurable images. Document construction progress with multiple images over time.
STORE ORGANISE SHARE.
Store your measurable images on the device and on desktop. Organize your projects by tagging measurable images with searchable keywords for easy recall and share them in multiple formats.
The Leica BLK3D is a real-time, in-picture 3D measurement solution. By combining measurement sensors, software, and on-device edge data processing capabilities, the Leica BLK3D makes in-picture measurements with professional-grade accuracy in real-time possible. Every image captured is a complete and precise 3D measurement record.
Its edge computing capabilities eliminate the need for network connections and cloud services, ensuring professionals can make faster decisions within their daily workflows – whether measuring inaccessible locations, creating floor plans, estimating building installations, documenting construction site progress or creating measurable, as-built documentation.
BLK3D ACCURACY
The BLK3D represents a new way to capture and document reality by combining measurement sensors, software, and on-device data processing. Its integrated stereo-camera captures images that provide a complete 3D record, with:
- EDM accuracy of 1mm
- 2D in-picture accuracy of +/- 3mm
- 3D in-picture accuracy of +/- 6mm
Mobile Software
Reality Capture: Capture 3D measurable images.
Laser: Use the integrated Laser EDM to add highly accurate measurements to 3D images, or to take stand-alone measurements.
Sketch & Document: Create floorplans and attach measurable images to them. Useful for documenting construction progress over time.
New Project: Group 3D images and floorplans as a Project
Organiser: Organize projects.
Desktop Software

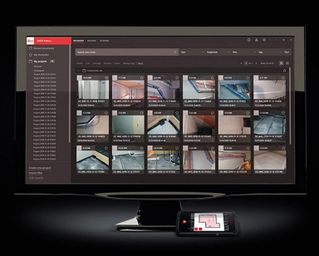

3D IMAGES ON THE BIG SCREEN
Pick up in the office where you left off in the field.

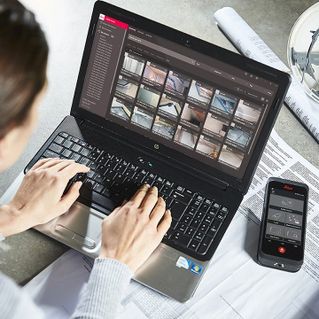

Transfer 3D images to the desktop to add measurements and organize projects.
Measure distance or area in 3D with the aid of the same advanced snapping algorithms that are on board the BLK3D itself.
The BLK3D Desktop keeps projects organized and can export measurements as CAD drawings, JPGs, or PDFs.
BLK3D Desktop software is compatible with 64-bit versions of Windows 7, 8.1, and 10 and requires a minimum of 6 GB of RAM.
ENHANCED FUNCTIONALITY:
3D MODELER
Create 3D CAD models from measurements with the optional 3D Modeler.
Hardware
HANDHELD 3D IMAGING
The combination of a calibrated stereo-camera, advanced algorithms and real-time edge computing.
Size and weight : 180 x 77 x 27 mm (7.1 x 3.1 x 1.1 in), 480 g / 17 oz
STEREO CAMERAS CREATE 3D IMAGES AND PLACE PRECISE MEASUREMENTS AT YOUR FINGERTIPS, IN REAL-TIME.
2x 10 MP (158.00 mm diagonal calibrated base line)
Field of view: 80°
Focal length: 4.0 mm (22 mm in 35 mm equiv. in 1:1)
Aperture: F3.0
2x Synchronous LED Flash
PERFORMANCE
Intuitive Android OS, 64GB Storage: Holds thousands of 3D images, Fast internet connection with newest WLAN standards, Battery lasts a full day and can be exchanged
QUALITY MATERIALS
Aluminum housing for stability and durability, Chemically hardened, sunlight visible, multi-touch screen, Protective overmold for grip and shock absorption
LASER ACCURACY
Use the laser EDM combined with smart mapping tools to sketch accurate floorplans and combine them with 3D images.
Achieve 1mm accuracy by assigning laser measurements to image measurements.
Laser
Accuracy with favourable conditions: ± 1.0 mm / 0.04 in
Range with favourable conditions: 250 m / 820 ft
Smallest unit displayed: 0.1mm / 1/32 in
Design & Physical Dimensions
Material | Black anodized aluminium |
Dimensions | 180mm x 77mm x 27mm |
Weight | 480g |
Connector | USB-C |
Display | 5’’ HD IPS Capacitive Touch Display |
P2P Support | Quick Mount on Leica DST 360 |
Power
Battery Type | Swappable, rechargeable Li-Ion battery |
Capacity | 14 Wh |
Charging | via USB-C connector or external charger |
Environmental
Robustness | Designed for any construction site |
Operating Temperature | -10°- +50°C |
Imaging
Camera | 2 x 10MP with 80°Field of View |
Algorithms | Advanced SGM algorithmic on-board (GPU) + EDM Structure from Motion (SFM) algorithmic for poses and orientation |
Operating System & Processors
Operating System | Android 7 (Nougat) with GMS certification |
CPU | Qualcomm Snapdragon 820E (Quad Core @ 2.35 GHz) |
Storage | 64GB |
RAM | 4GB |
Communication | WLAN (5GHz), Bluetooth 4.1 and 2.1 |
Performance
Measurement Speed | <1 sec |
Range | up to 20m (imaging); 250m (Electronic Laser Distance Measurement) |
Product Manuals | |
---|---|
Leica BLK3D Imager - Product Manual | Specifications |
Leica BLK3D Imager - Specifications |
- Leica BLK3D
- BLK3D Mobile Basic
- Power Adapter
- Battery and Neck strap
Brand: Leica Geosystems |
Code: LG869073
Supplier Code: 869073
Supplier Description:
Brand: Leica Geosystems |
Code: LG869073
Supplier Code: 869073
Supplier Description:
At a glance
Leica BLK3D Imager for real-time, in-picture 3D measurement
